Description
Description:
- Argus is axisflying electronic series that include ESC, FC and stack. The lightweight Argus ECO will reduce the weight of the whole FPV to a greater extent, while providing stable and excellent control.
Feature:
- The Argus ECO is significantly lighter than the Argus Pro with its aluminum housing.
- The FC supports up to 4 motor outputs, easily build your drone.
- Quickly check the working status of the FC by turning on and off the corresponding status indicator light.
- Open circuit board, free soldering equipment.
Function:
60A 6S BlHeli-S ESC / Axisflying F405 FC
ICM 42688P Gyro
Blackbox 16MB
HD/Analog Supported
GPS Supported
Specification:
Brand: Axisflying
Model: Argus ECO
Product Name: 60A ESC +F405 FC STACK
Name |
Specification |

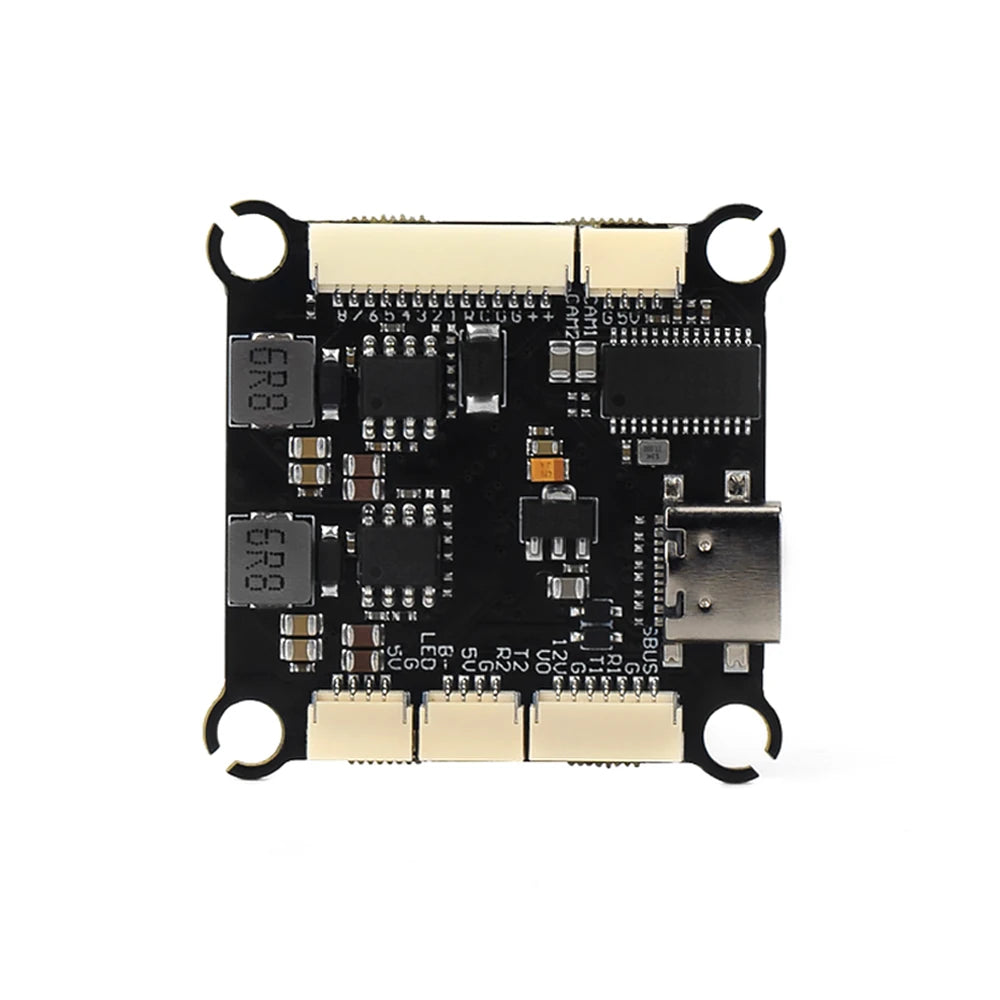

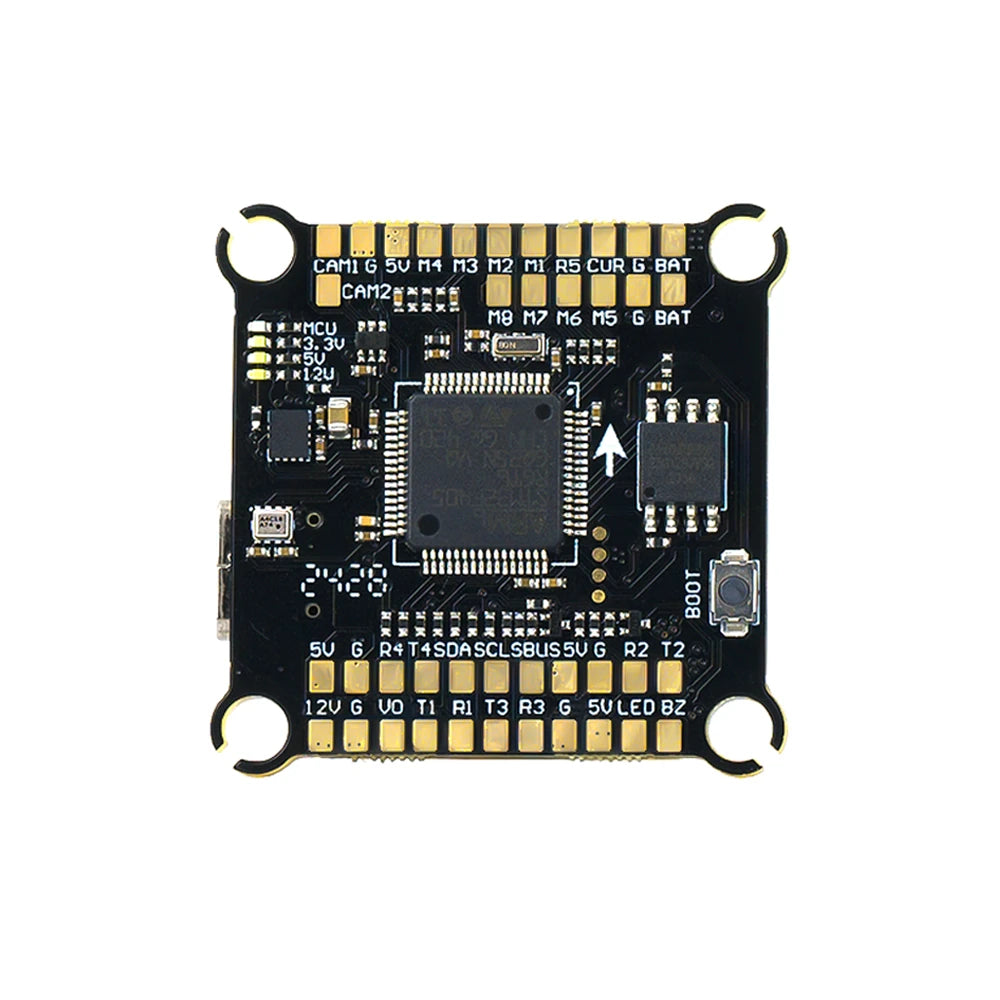

Argus ECO Flight Control F405 |
Firmware Name: SPDX-SPEDIX F405(Betaflight) |
MCU: STM32F405RGT6 | |
Gyro: ICM42688P | |
BEC: 5V3A / 12V2A | |
Uarts: 5 Set | |
OSD: Supported | |
Black Box: 16M | |
Barometer: Supported | |
Input Voltage: 4~8S | |
Size: 36*36*6mm | |
Install Hole Distance: 30.5*30.5mm | |
Weight: 7g | |

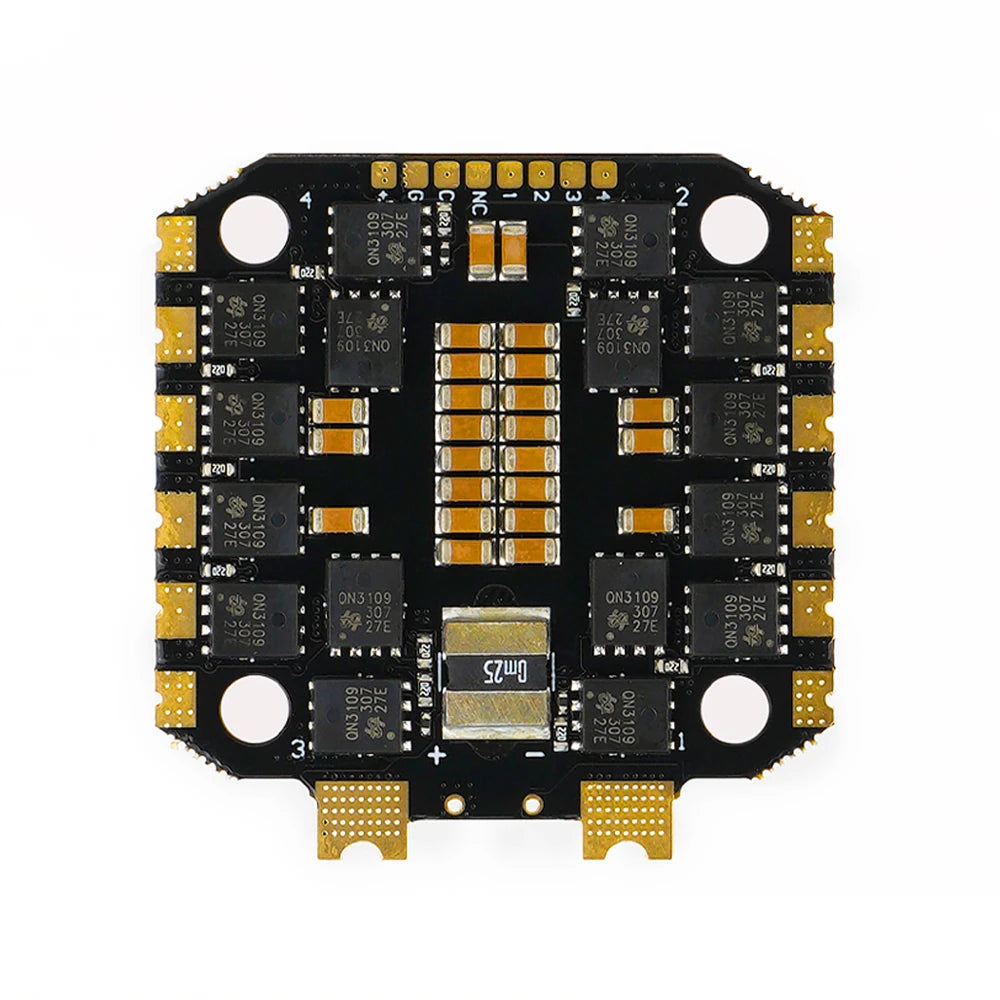

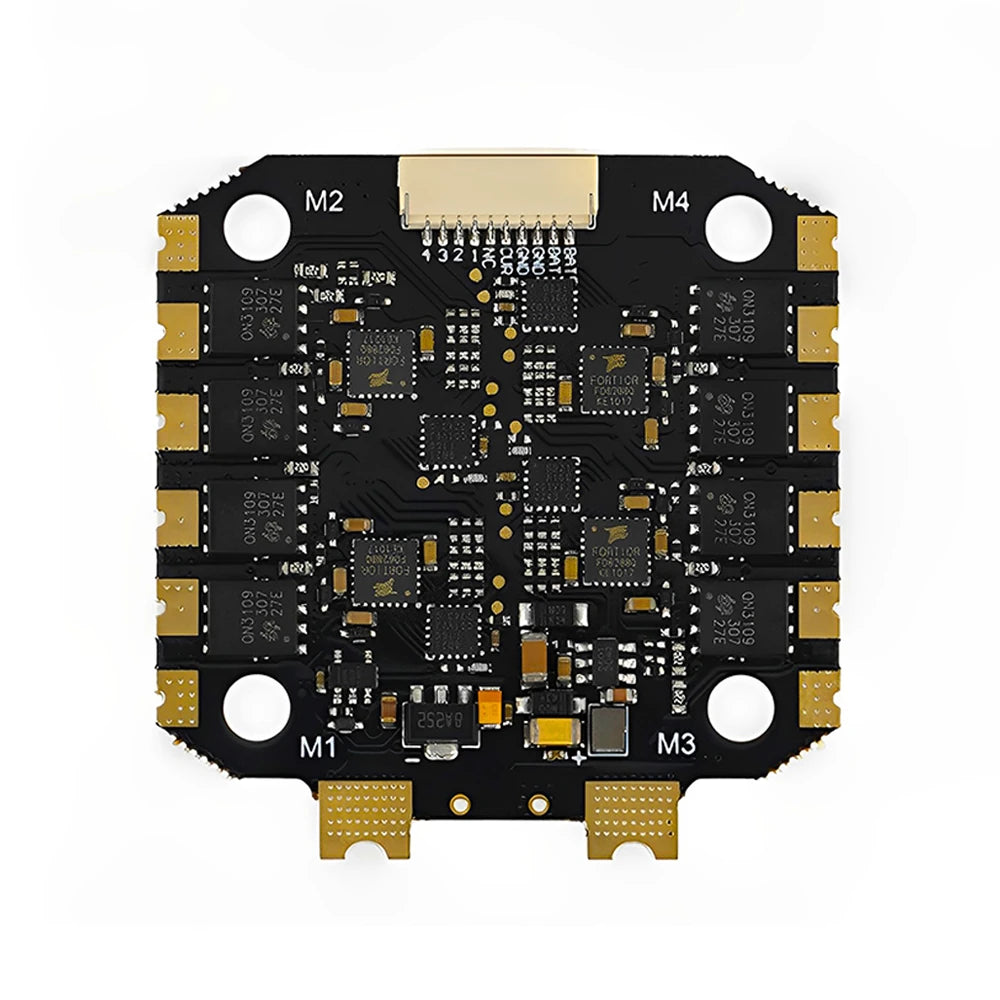

Argus ECO ESC 60A –6S BIheli-S |
Firmware name: Bluejay_QH30 (default) |
Amperage Meter: 200 | |
Input Voltage: 4~6S | |
Continuous Current: 60A | |
Burst Current: 70A | |
Temperature Protection: Supported | |
Telemetry: Not Supported | |
BEC: Not Supported | |
Size: 44.8*43*6mm | |
Install Hole Distance: 30.5*30.5mm | |
Weight: 13.5g |
Package included:
1x Connecting Cable
4x M3*30 Screw
4x M3 Locknuts
1x 35V 1000uF Capacitor
8x Ruber Damping Ring (ESC*4,FC*4)
1x XT60 Power Cable
1x Connecting Cable for Receiver
1x Connecting Cable for HD
1x Connecting Cable for Analog
1x Connecting Cable for LED & Beeper
