Description:

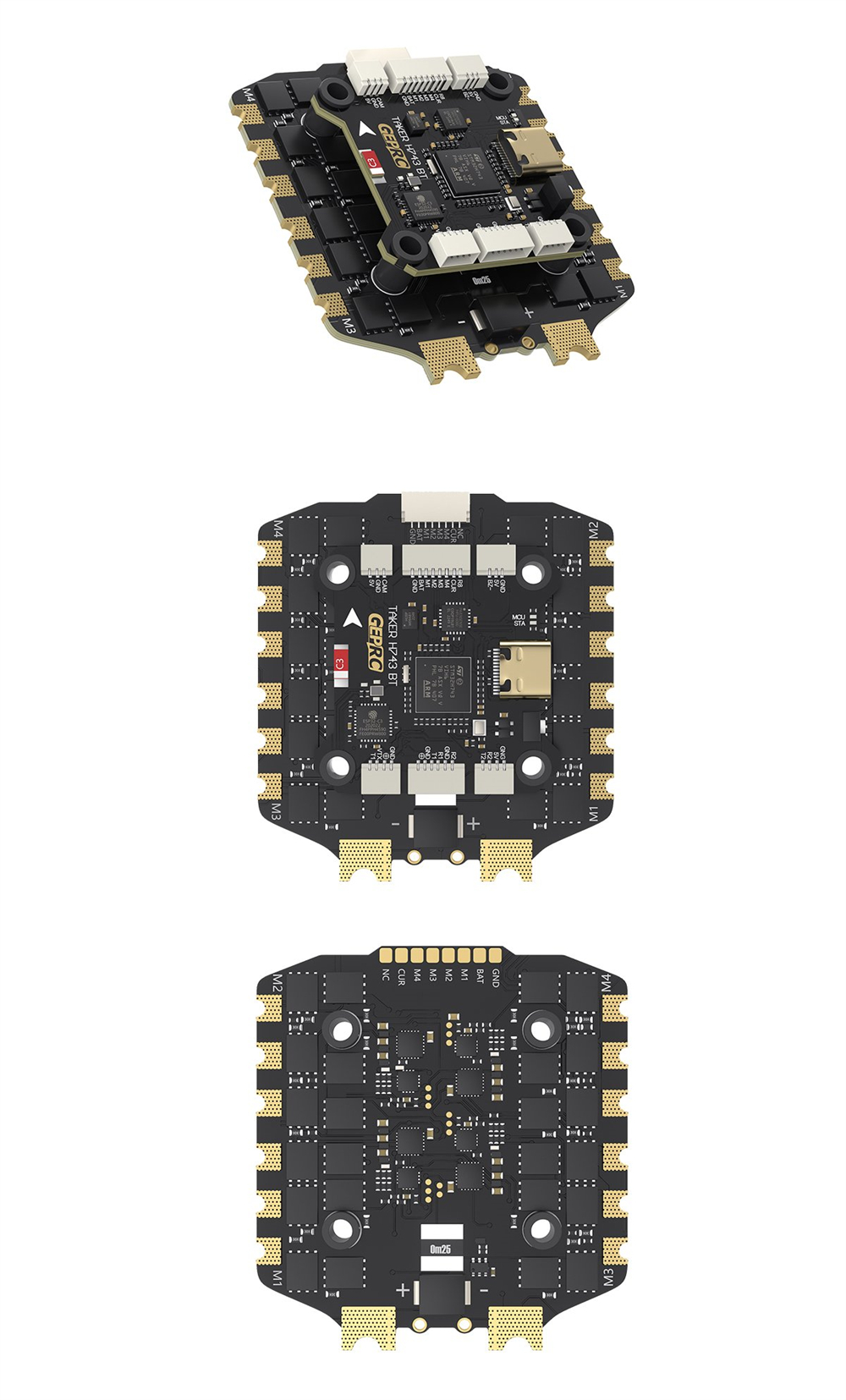

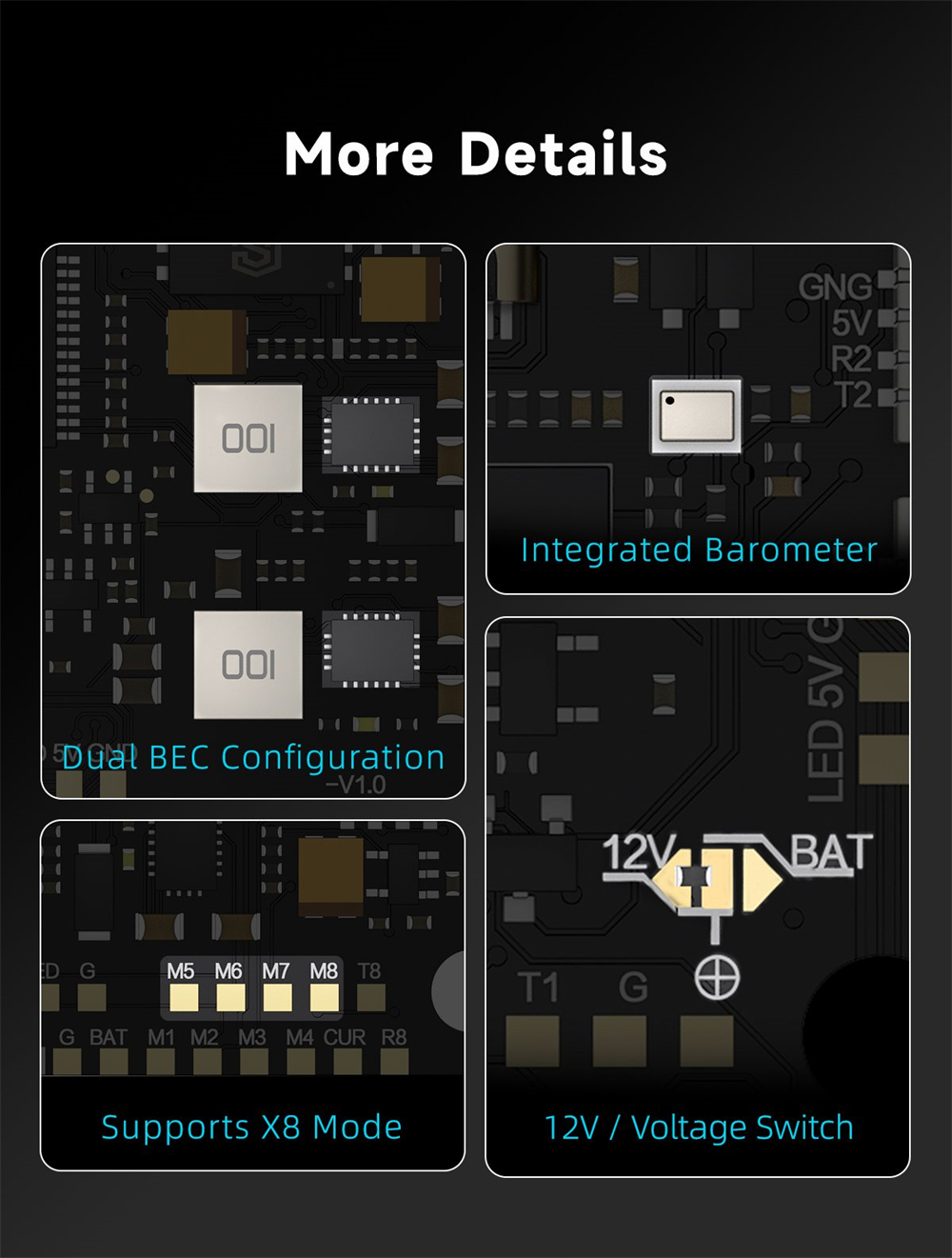

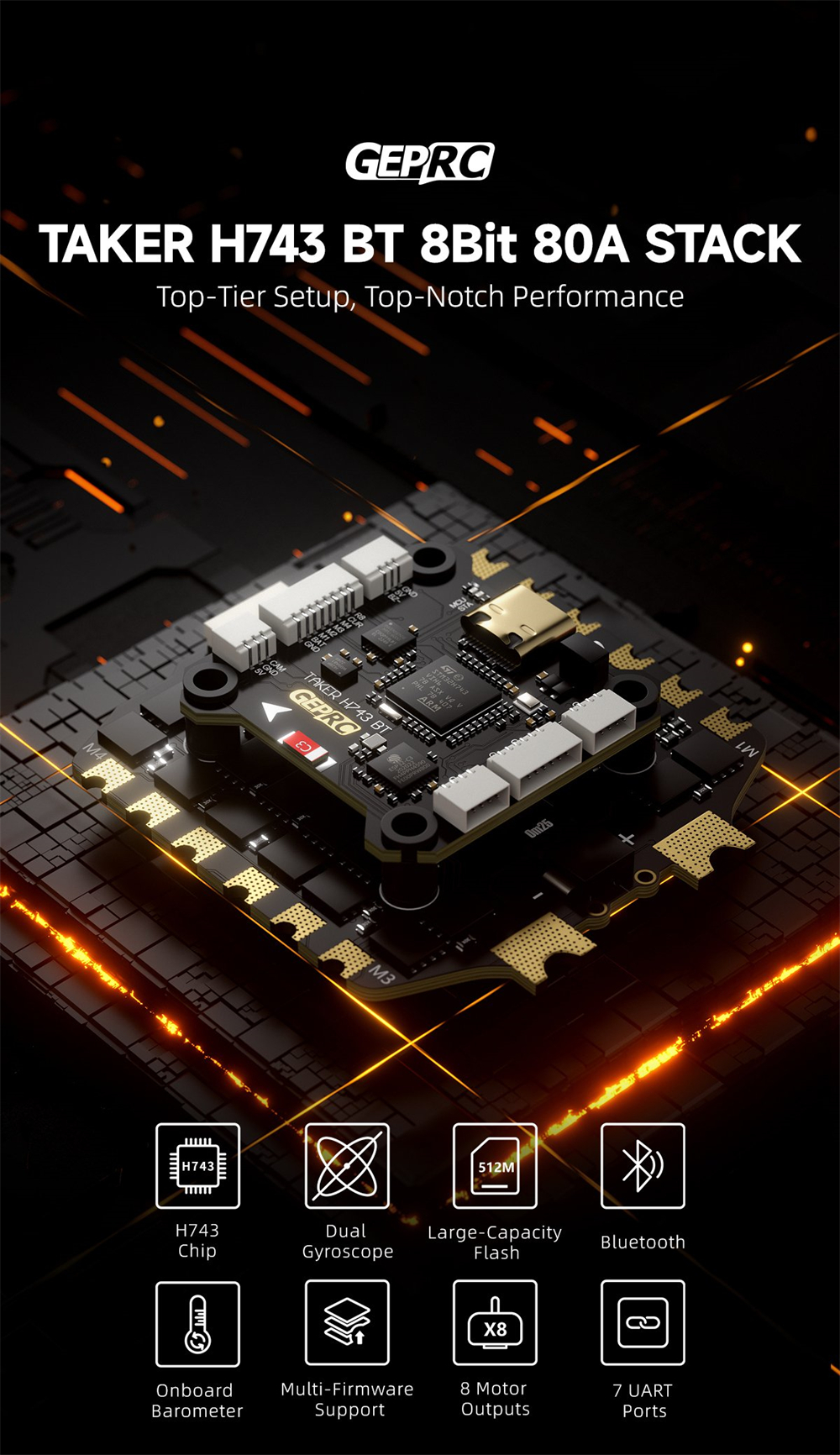

TAKER H743 BT 8Bit 80A STACK is the latest Stack system developed by the GEPRC team. It features a high-performance STM32H743VIH6 chip with a Cortex-M7 core running at up to 480MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.

Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H80_BLS 80A 4IN1 ESC, it delivers an exceptionally smooth flight experience.



Feature:

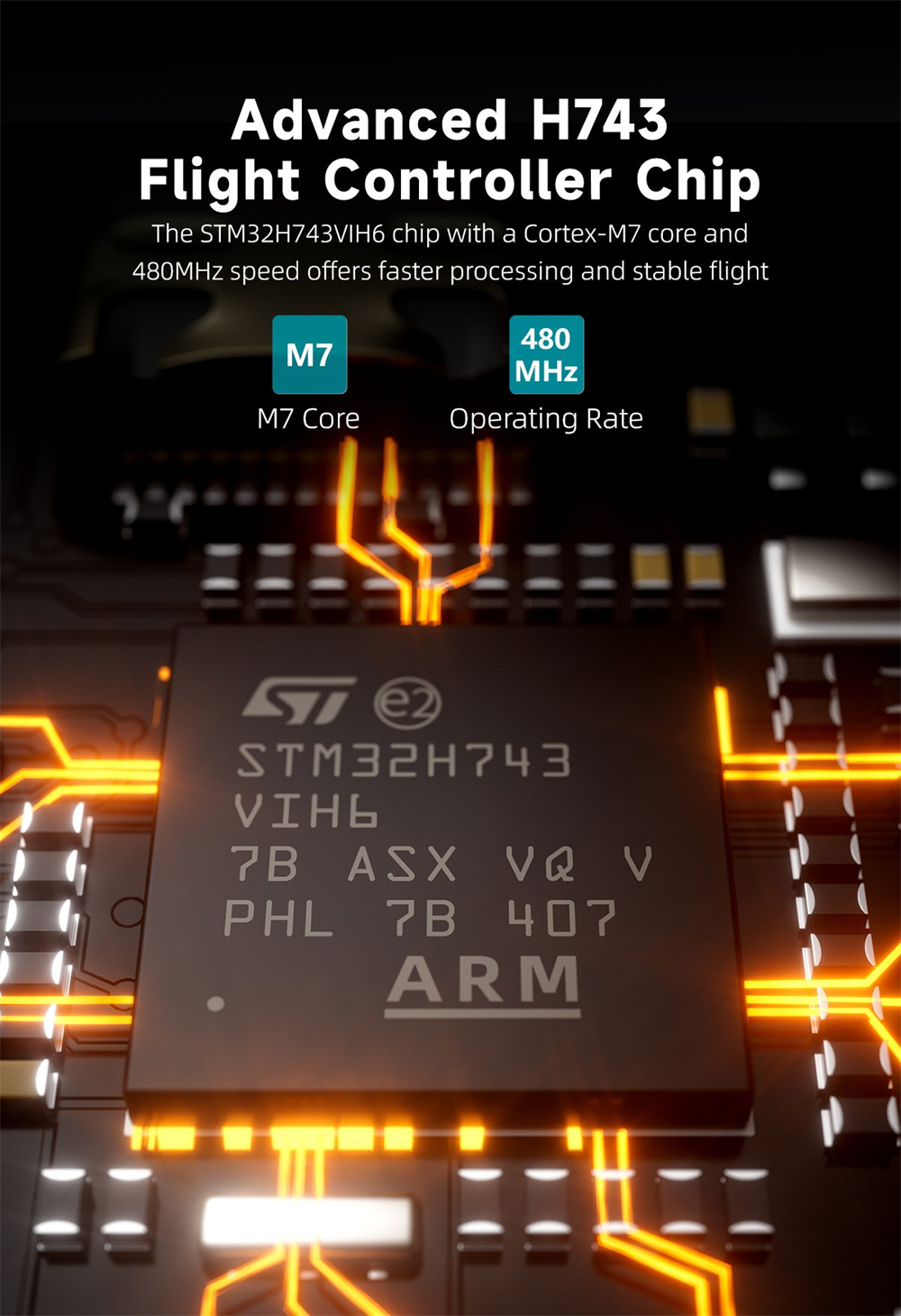

1. Adopts the high-performance STM32H743 as the main controller

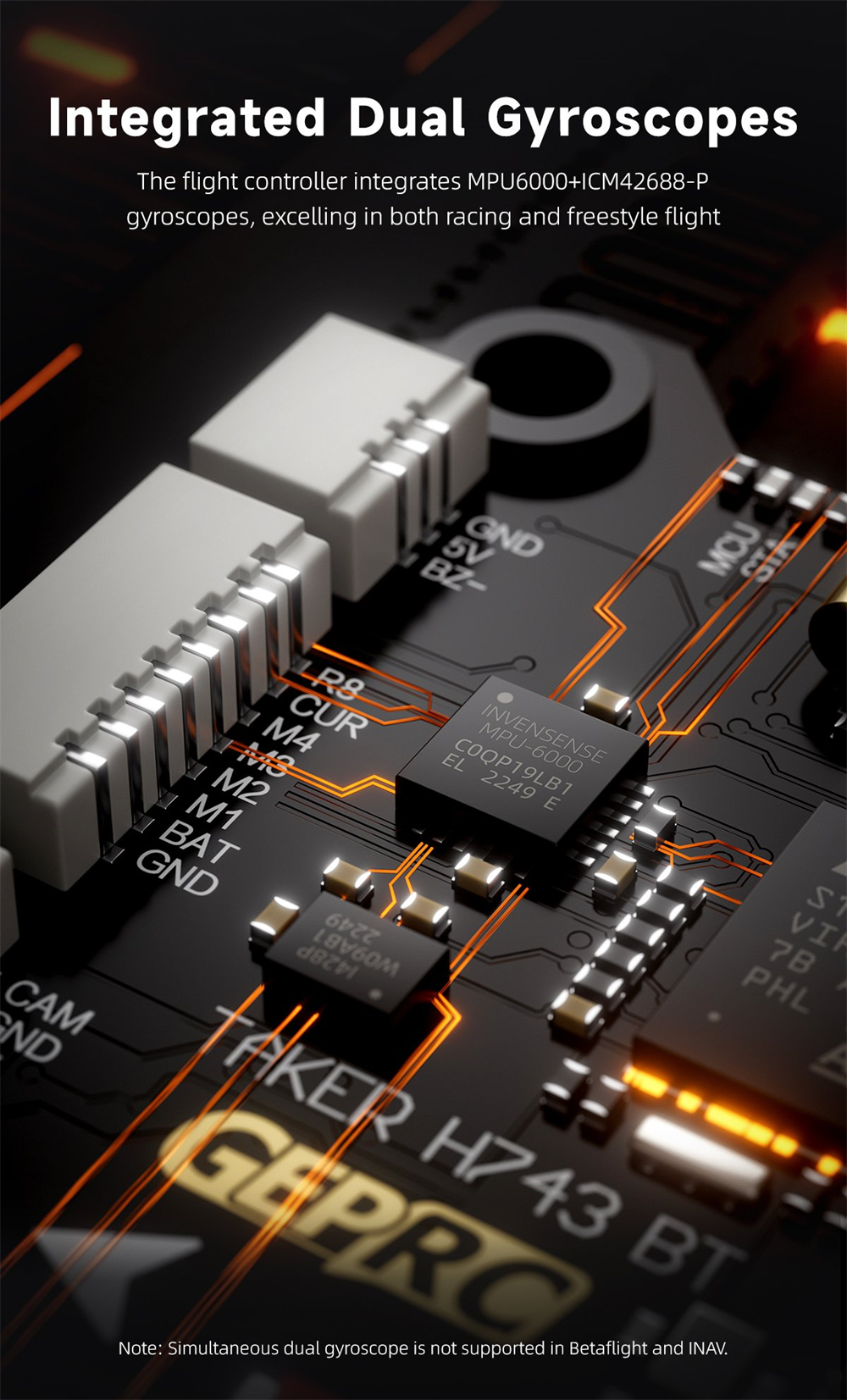

2. Equipped with MPU6000 and 42688-P dual gyroscopes

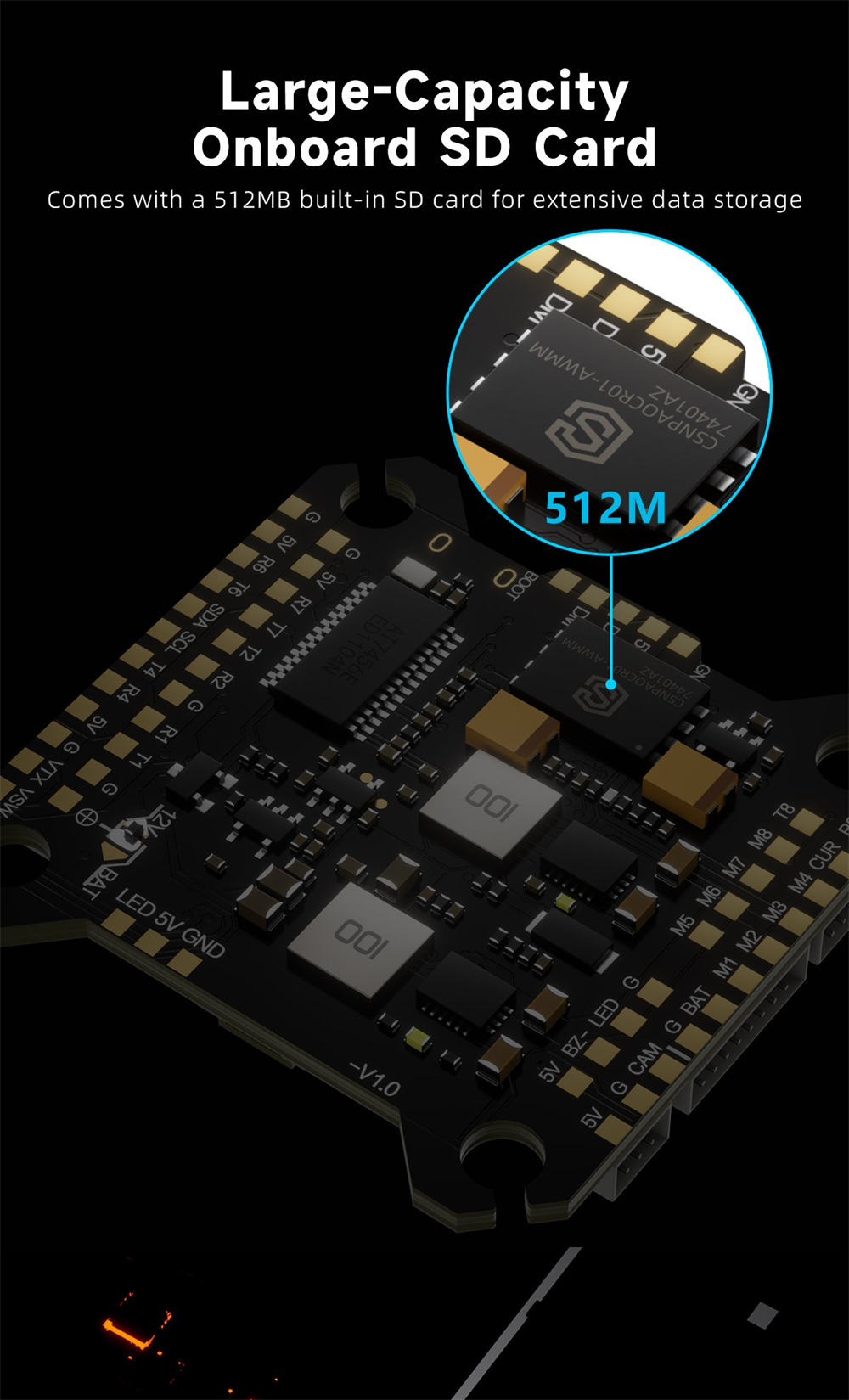

3. 512MB high-capacity black box storage

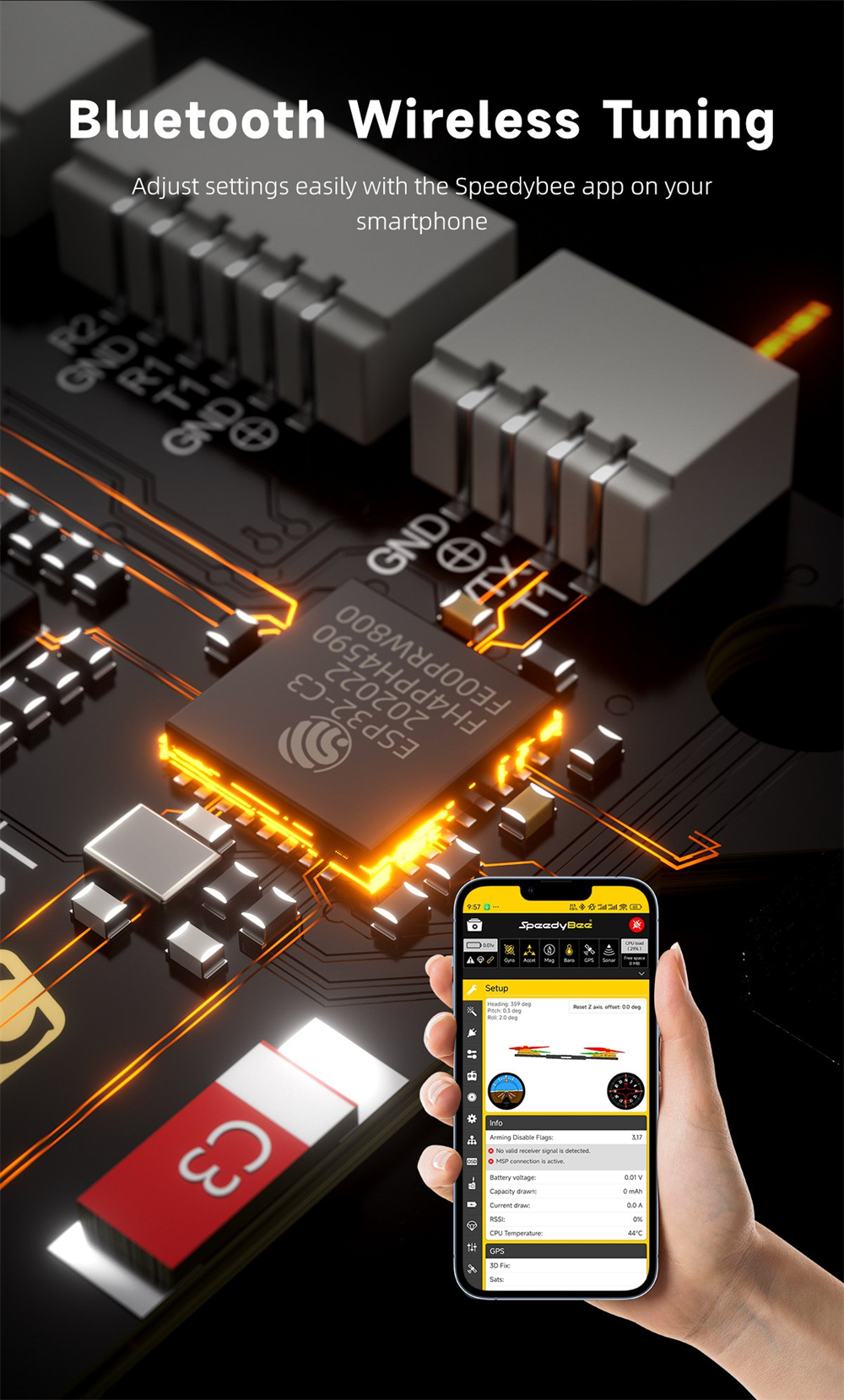

4. Bluetooth parameter tuning

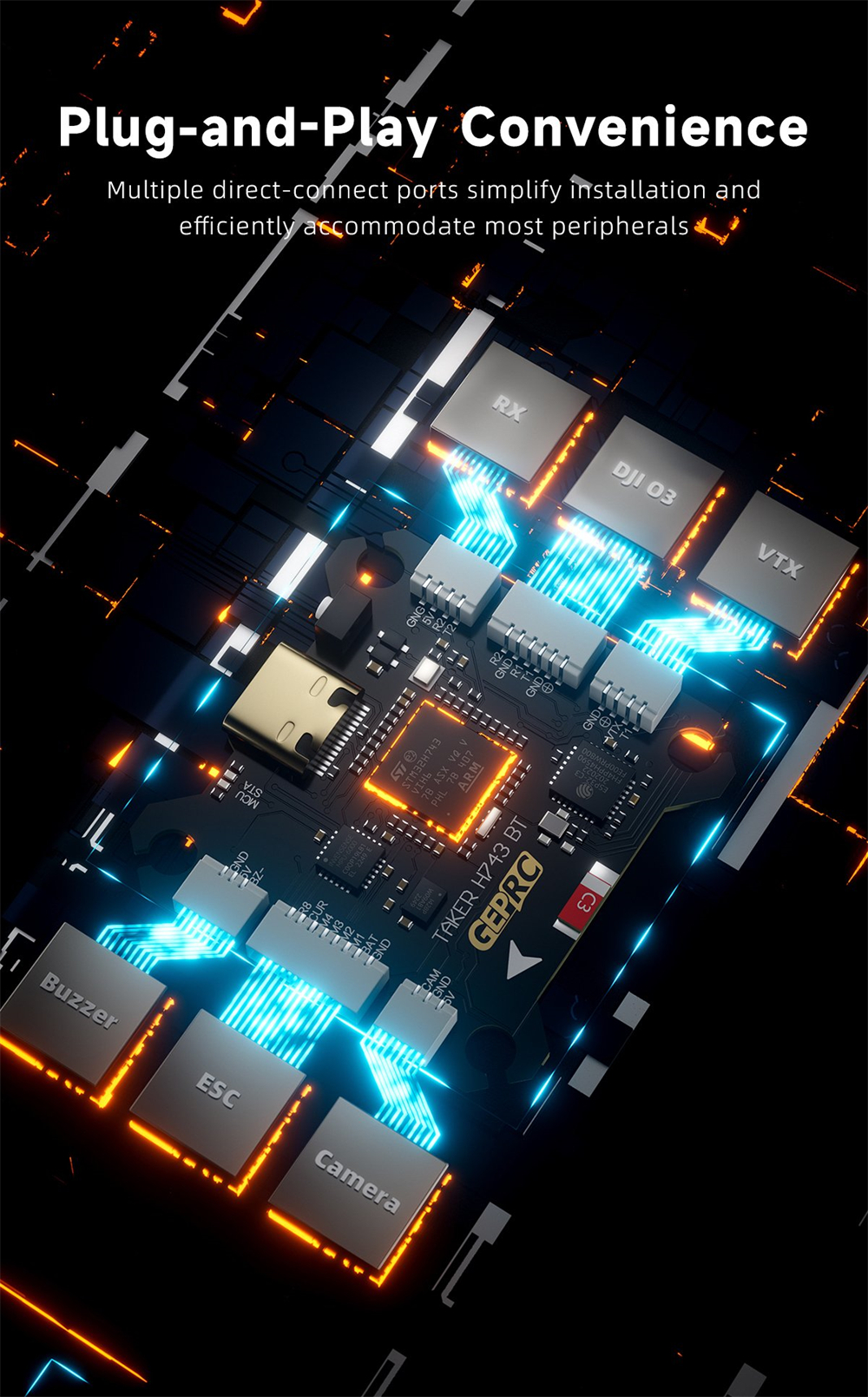

5.Plug-and-play, no soldering required

6. Integrated barometer

7.Features 7 UART ports

8. Independent BEC with 12V@2.5A and 5V@3A outputs

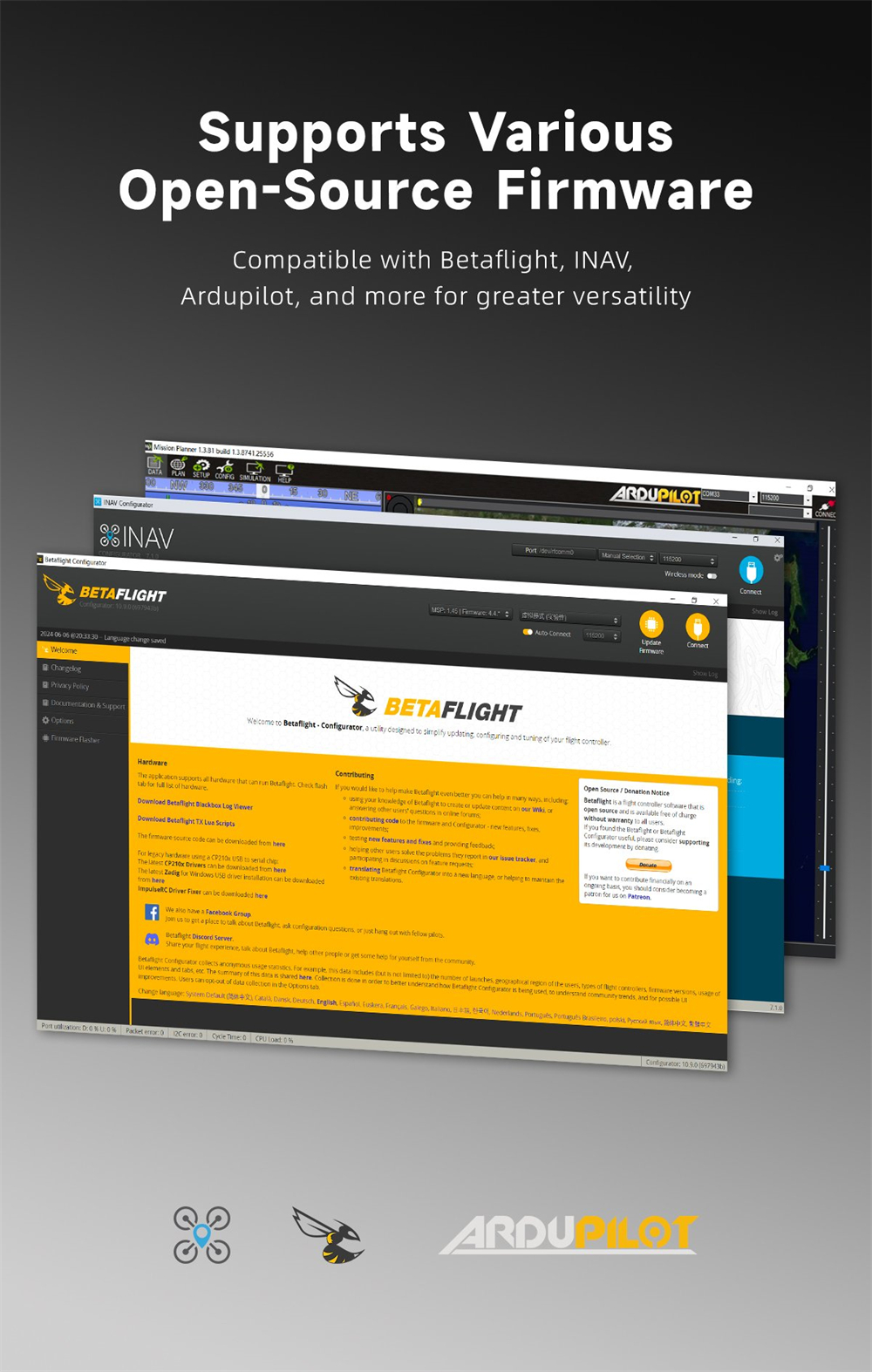

9. Supports multiple firmware options

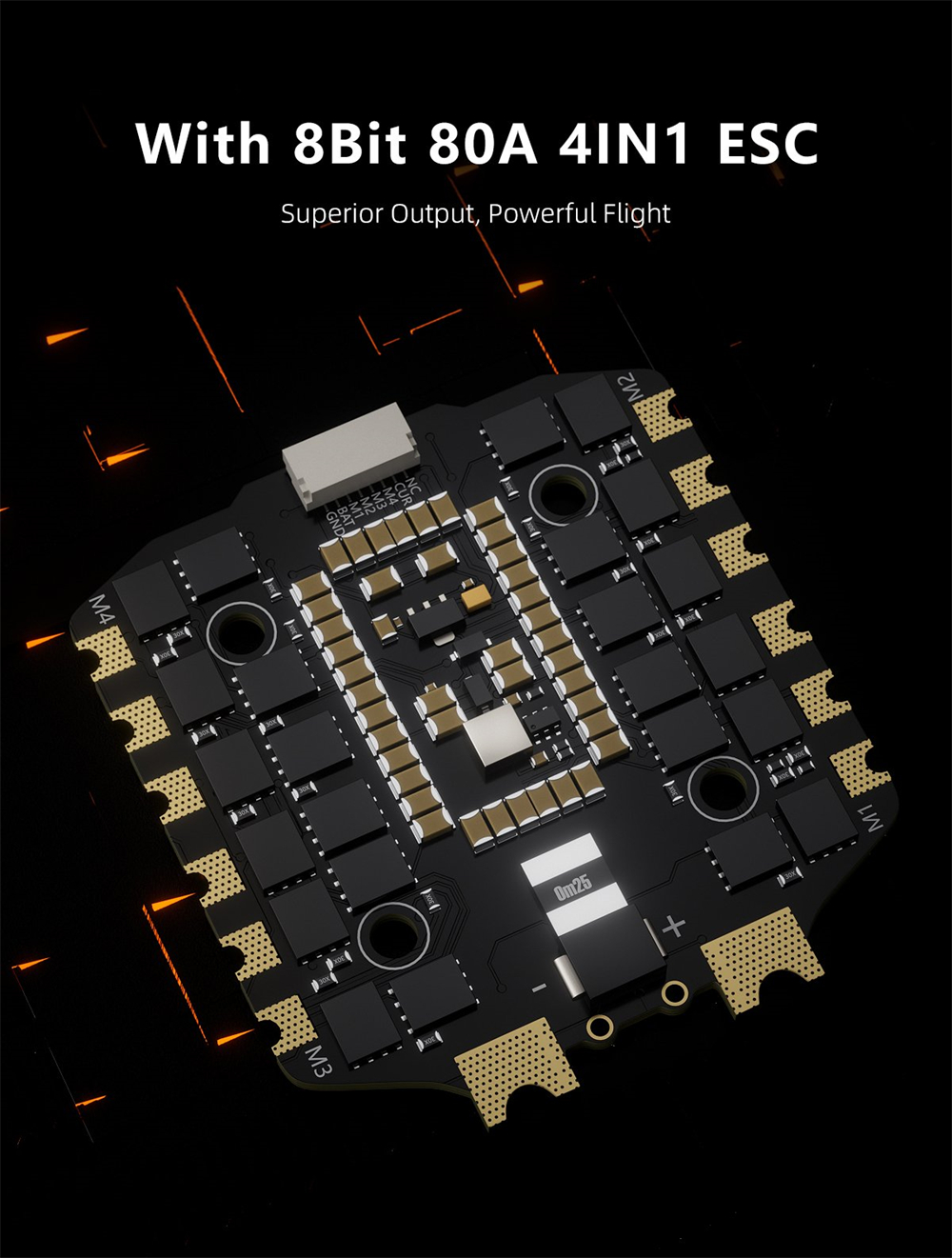

10. Equipped with the TAKER H80_BLS 80A 4IN1 ESC for a smooth flight experience

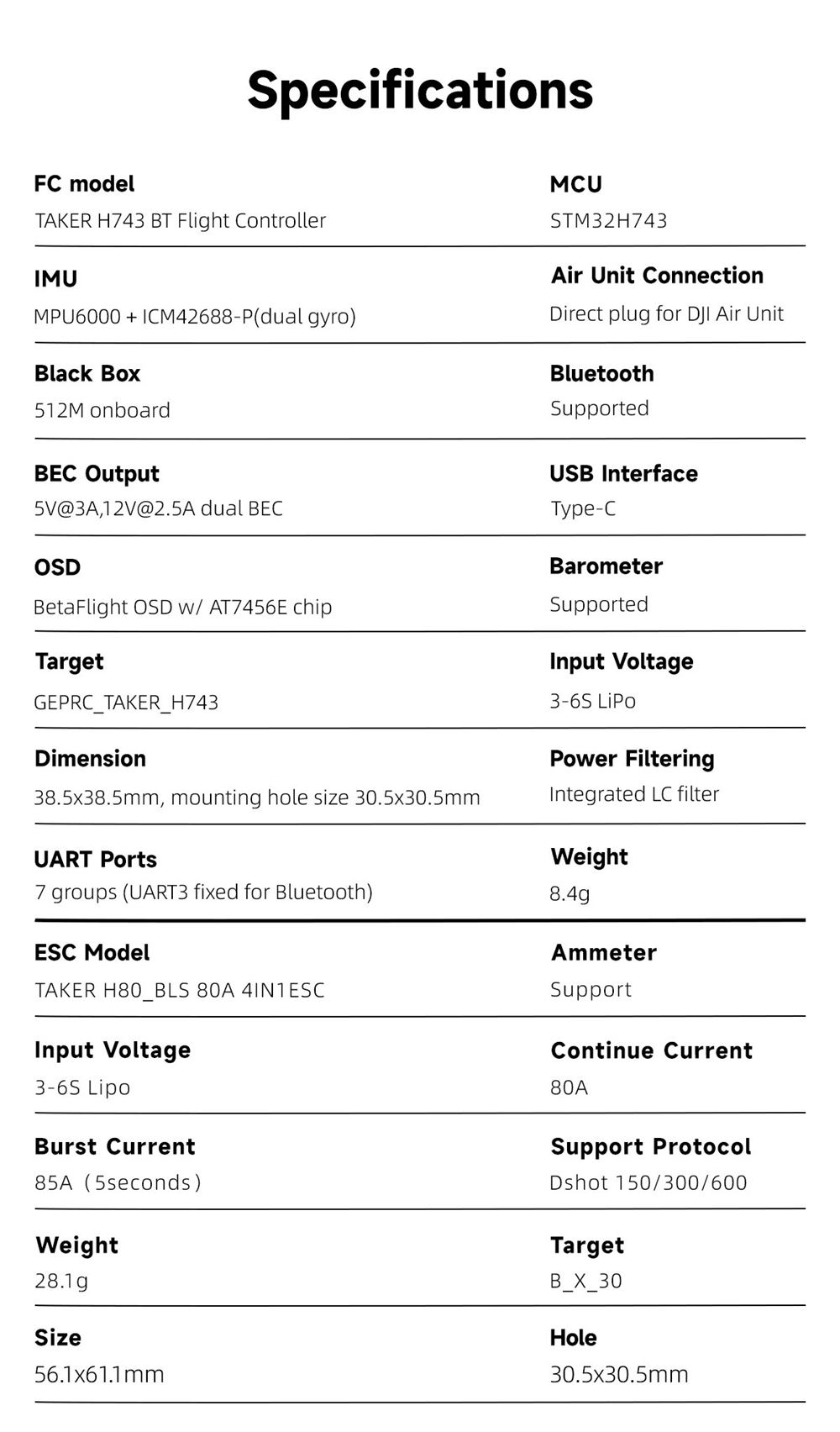

Specification:

Brand: GEPRC

Model: TAKER H743 BT 8Bit 80A STACK

Model	Parameter
TAKER H743 BT Flight Controller	FC Model: TAKER H743 BT Flight Controller MCU: STM32H743 IMU: MPU6000 + ICM42688-P(dual gyro) Air Unit Connection: direct plug for DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC Output: 5V@3A,12V@2.5A dual BEC Target: GEPRC_TAKER_H743 Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm Input Voltage: 3-6S LiPo UART Ports: 7 groups (UART3 fixed for Bluetooth) Power Filtering: Integrated LC filter Weight: 8.4g
TAKER H80_BLS 80A 4IN1 ESC	ESC Model: TAKER H80_BLS 80A 4IN1 ESC Input Voltage: 3-6S Lipo Ammeter: Support Continue Current：80A Burst Current：85A（5 seconds） Support Protocol: Dshot 150/300/600 Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring. Weight: 28.1g Target: B_X_30

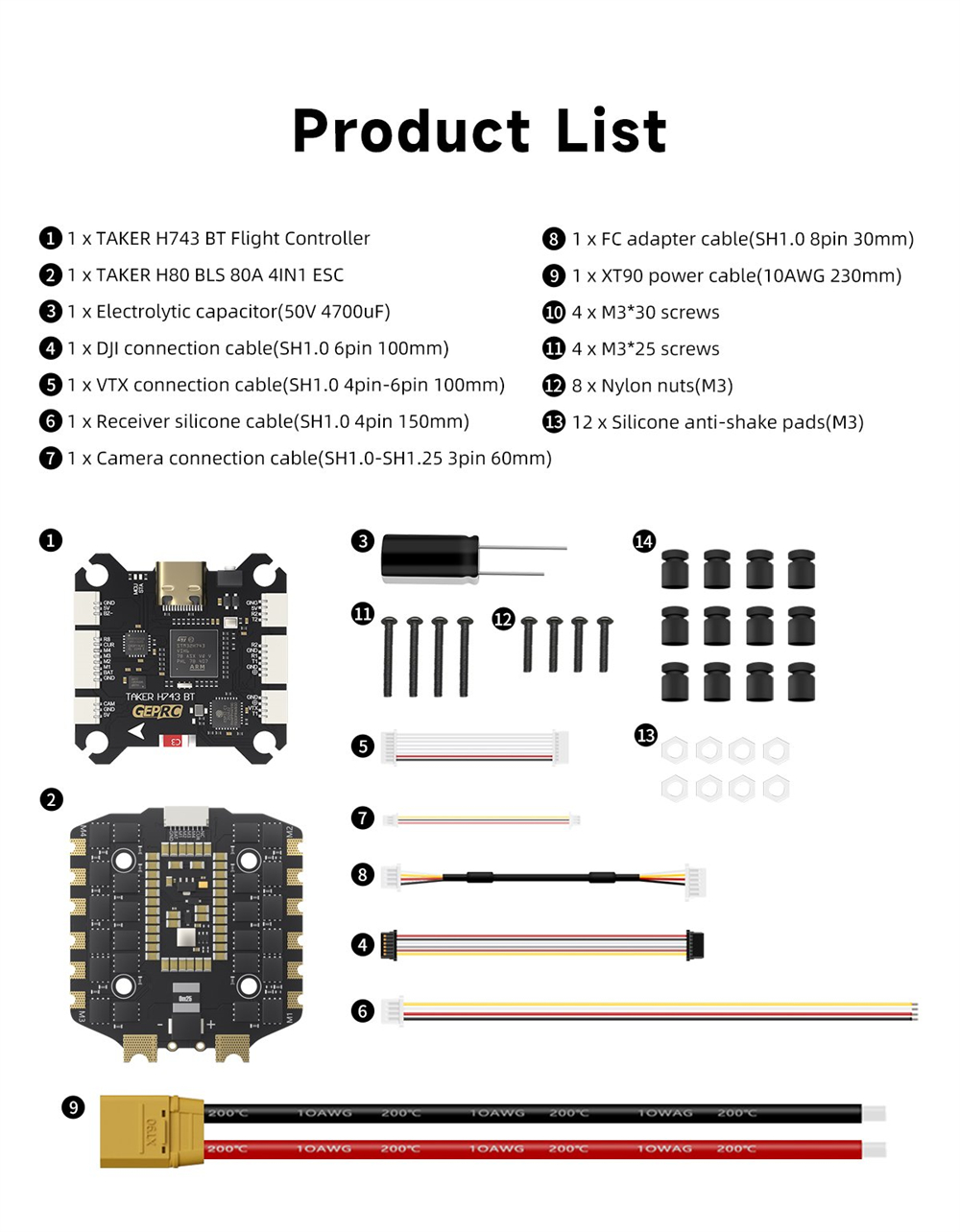

Package Included:

1 x TAKER H743 BT Flight Controller

1 x TAKER H80_BLS 80A 4IN1 ESC

1 x Electrolytic capacitor(50V 4700uF)

1 x DJI connection cable(SH1.0 6pin 100mm)

1 x FC adapter cable(SH1.0 8pin 30mm)

1 x Receiver silicone cable(SH1.0 4pin 150mm)

1 x Camera connection cable(SH1.0-SH1.25 3pin 60mm)

1 x VTX connection cable(SH1.0 4pin-6pin 100mm)

1 x XT90 power cable(10AWG 230mm)

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts(M3)

12 x Silicone anti-shake pads(M3)
