Description
Introduction：

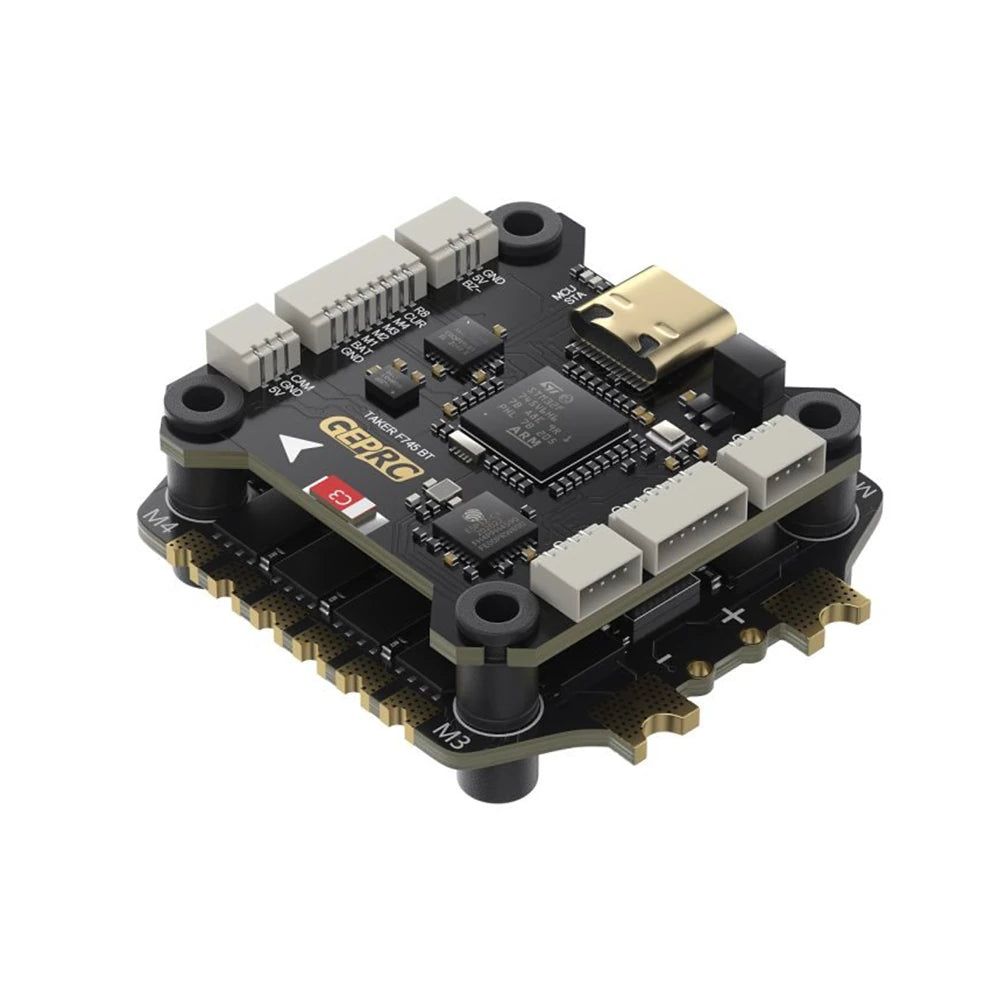

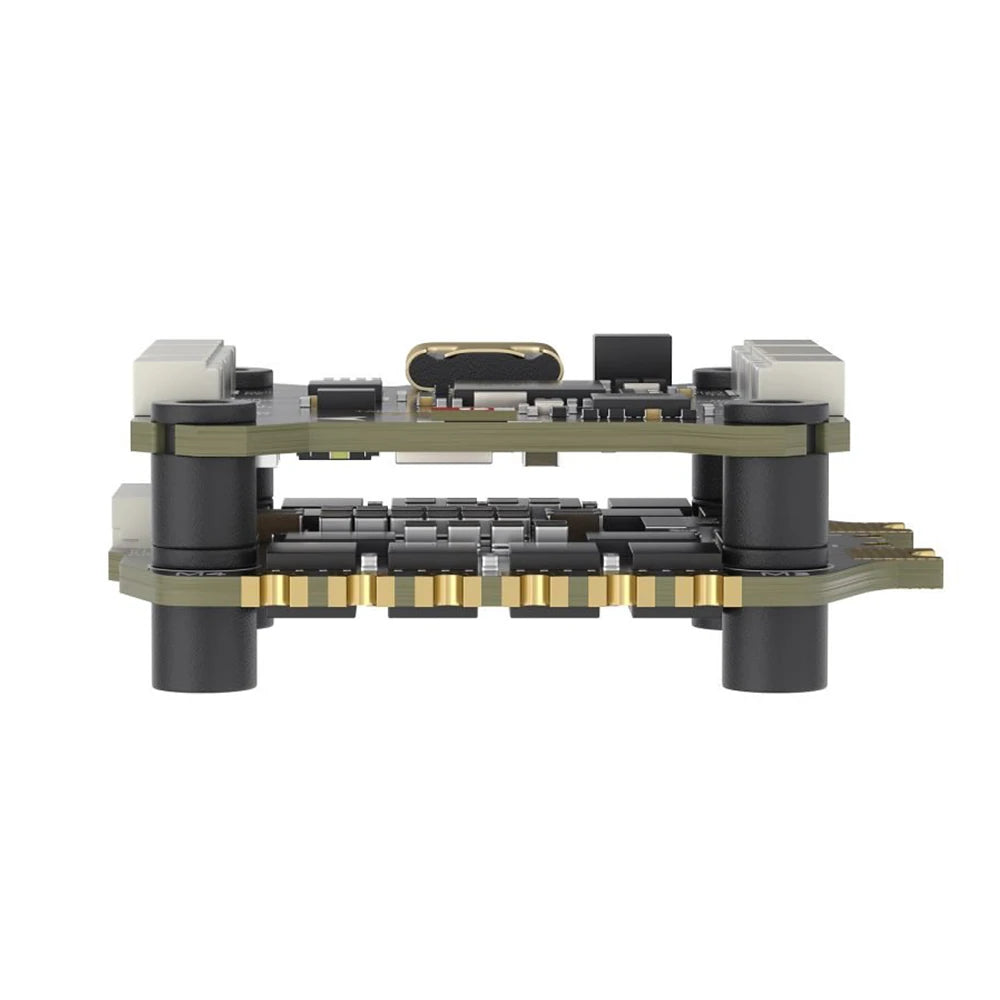

The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.
Features:
- Adopts the high-performance STM32F745 as the main controller
- Equipped with MPU6000 and 42688-P dual gyroscopes
- 512MB high-capacity black box storage
- Bluetooth parameter tuning
- Upgraded Type-C USB interface
- Plug-and-play, no soldering required.
- Integrated barometer
- Features 7 UART ports
- Independent BEC with 12V@2.5A and 5V@3A outputs
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.
Specifications:

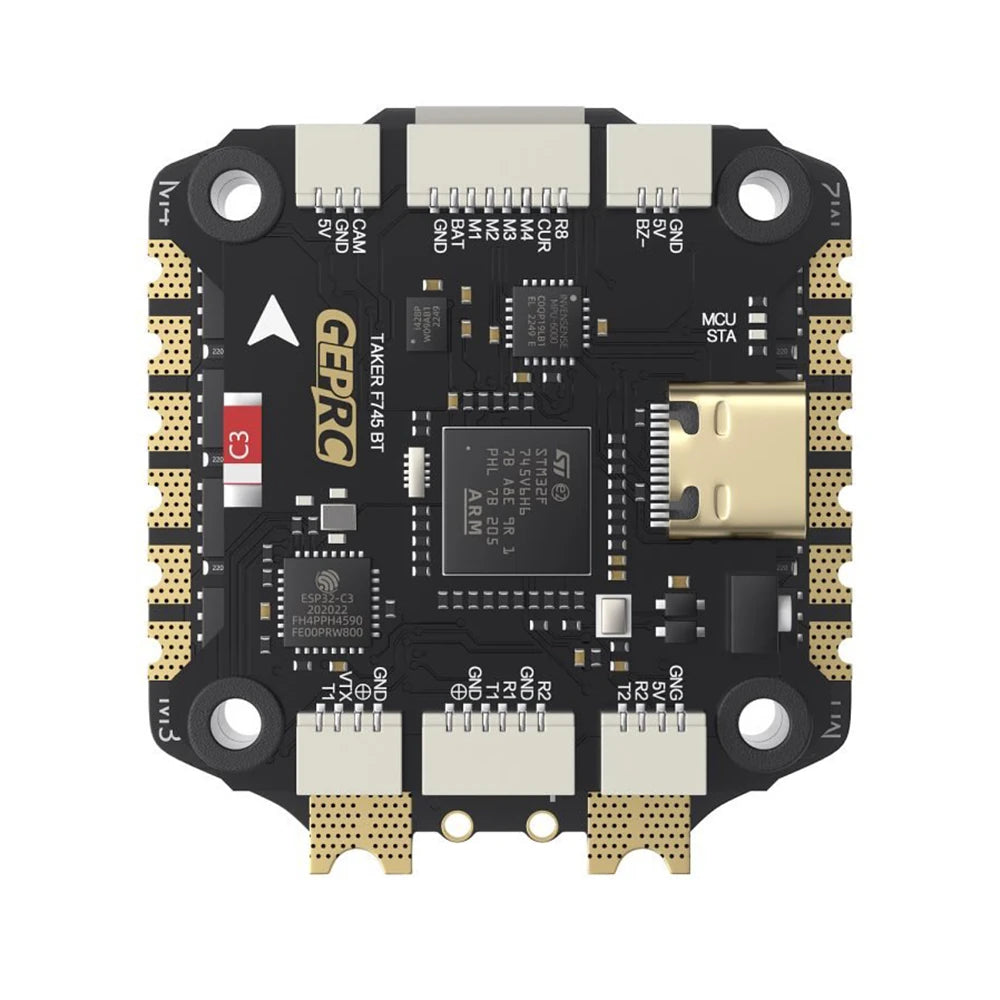

| TAKER F745 BT Flight Controller |
FC Model: TAKER F745 BT Flight Controller MCU: STM32F745 IMU: MPU6000 + ICM42688-P(dual gyro) Air Unit Connection: direct plug for DJI Air Unit Black Box：512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC Output: 5V@3A,12V@2.5A dual BEC Target: GEPRCF745_BT_HD Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm Input Voltage: 3-6S LiPo UART Ports: 7 groups (UART3 fixed for Bluetooth) Power Filtering: Integrated LC filter Weight: 8.4g |

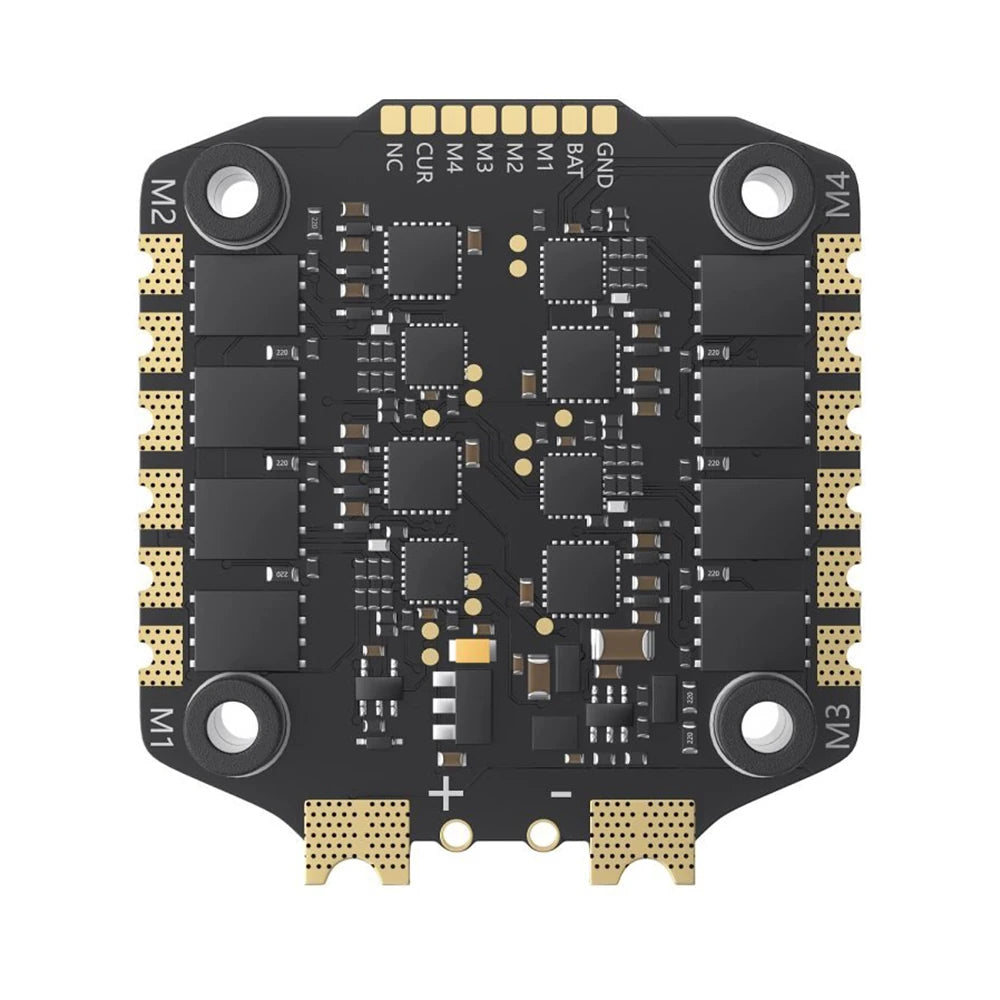

| TAKER H60_BLS 60A 4IN1 ESC |
ESC Model: TAKER H60_BLS 60A 4IN1 ESC Input Voltage: 3-6S Lipo Continuous Current: 60A Peak Current: 65A（5 seconds） Supported Protocol: Dshot 150/300/600 Dimension：42×45.7mm, mounting hole size 30.5×30.5mm Weight: 14.9g Target: B_X_30 |
Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 × DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 × XT60 power cable
4 × M3*30 screws
4 × M3*25 screws
8 x Nylon nuts
12 × Silicone anti-shake pads
