Feature:

1. Uses the mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 16M onboard black box storage

4. Integrated LC filter

5. Upgraded Type-C USB interface

6. Directly plugs into the DJI Air Unit

7. Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience

8. Simple and efficient installation method with shock absorbers for stable gyroscope performance

9. Dual independent BECs: 12V@3A and 5V@3A

10. Supports 8S Lipo batteries

11. Support direct insertion of 8 motors



Specification:

Brand: GEPRC

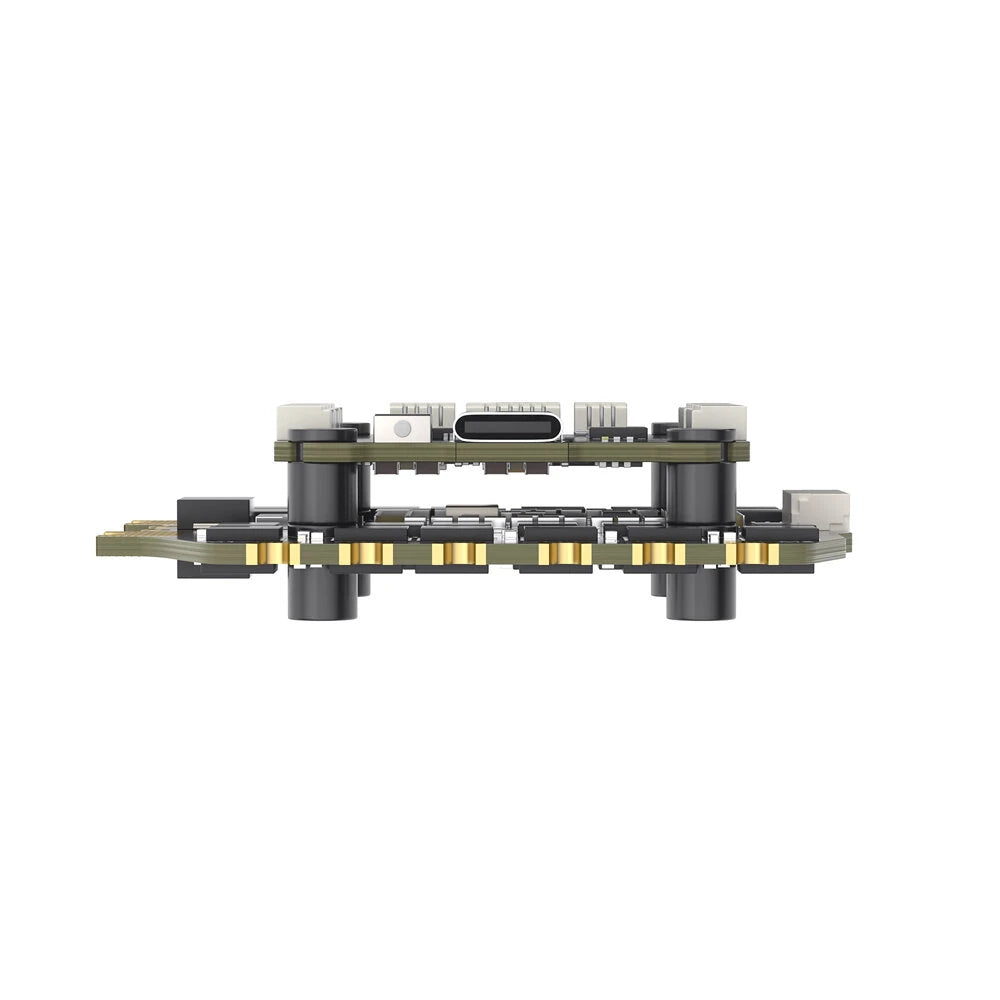

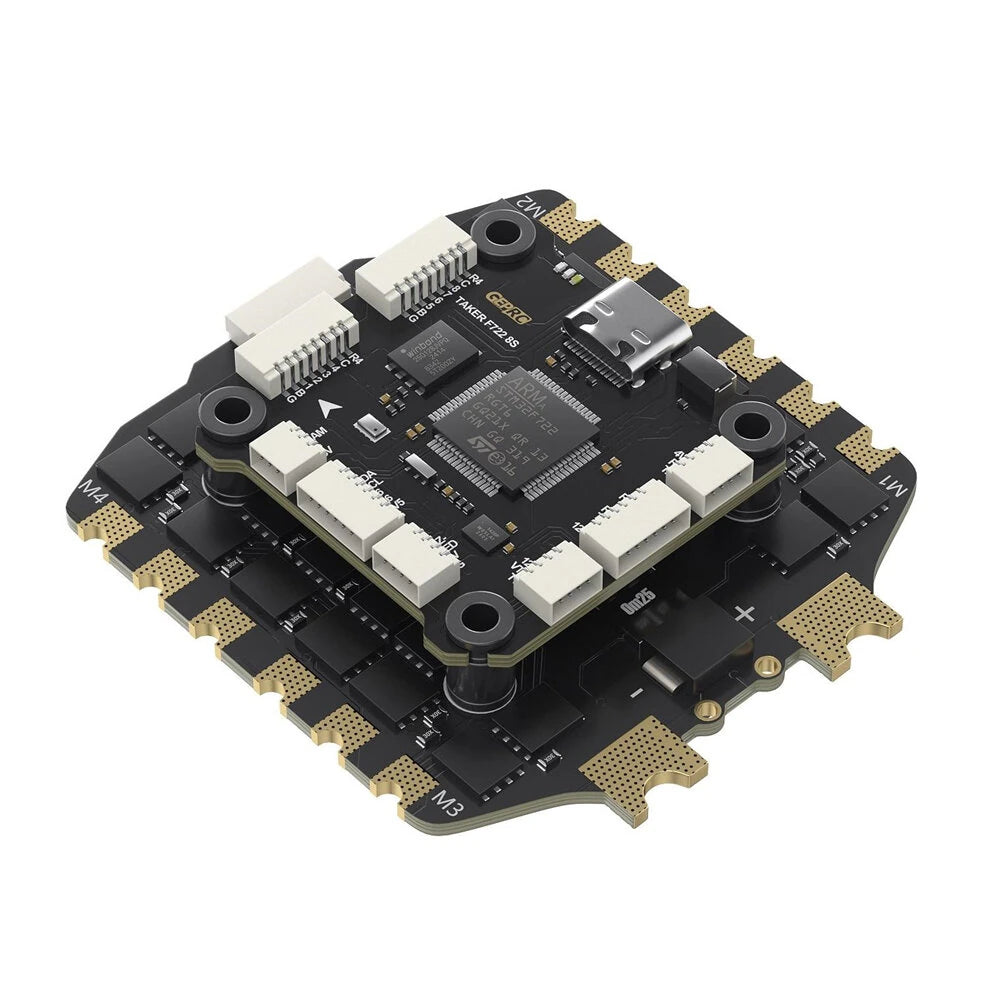

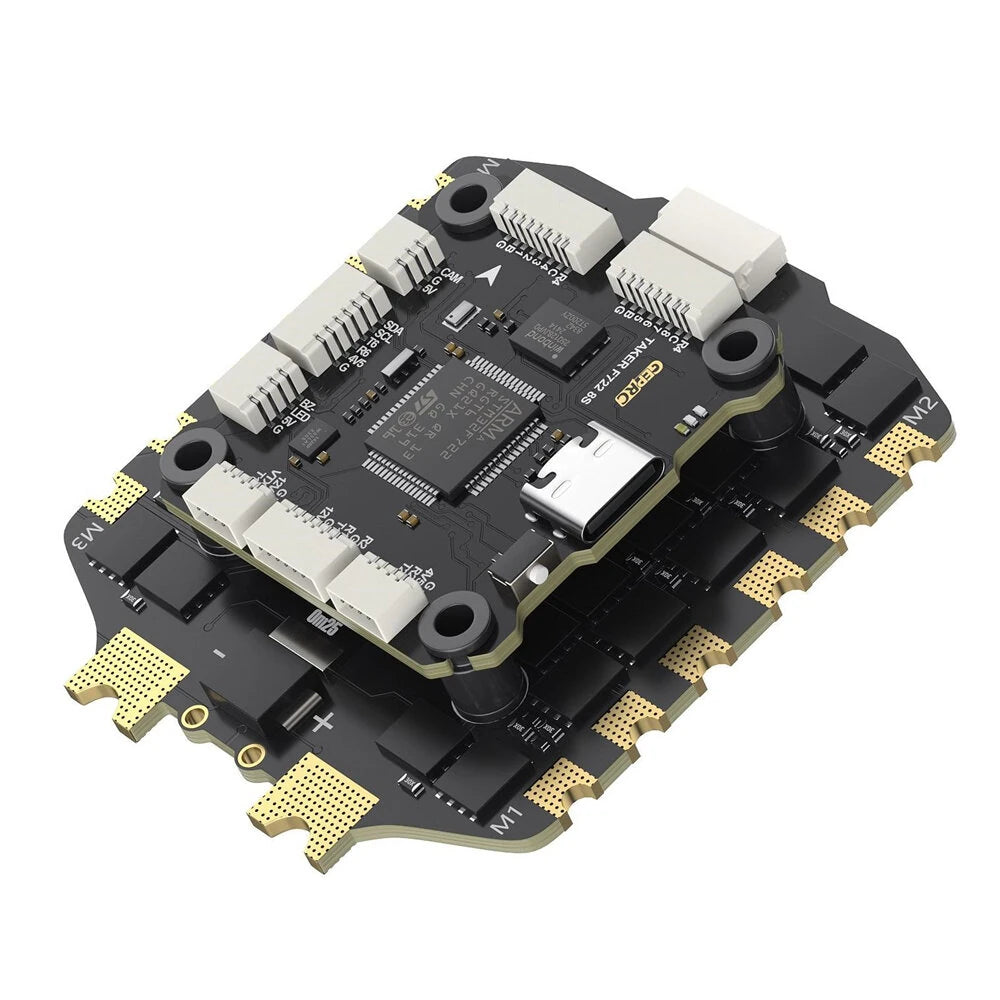

Model: TAKER F722 BLS 100A 3-8S STACK

Model	Specification

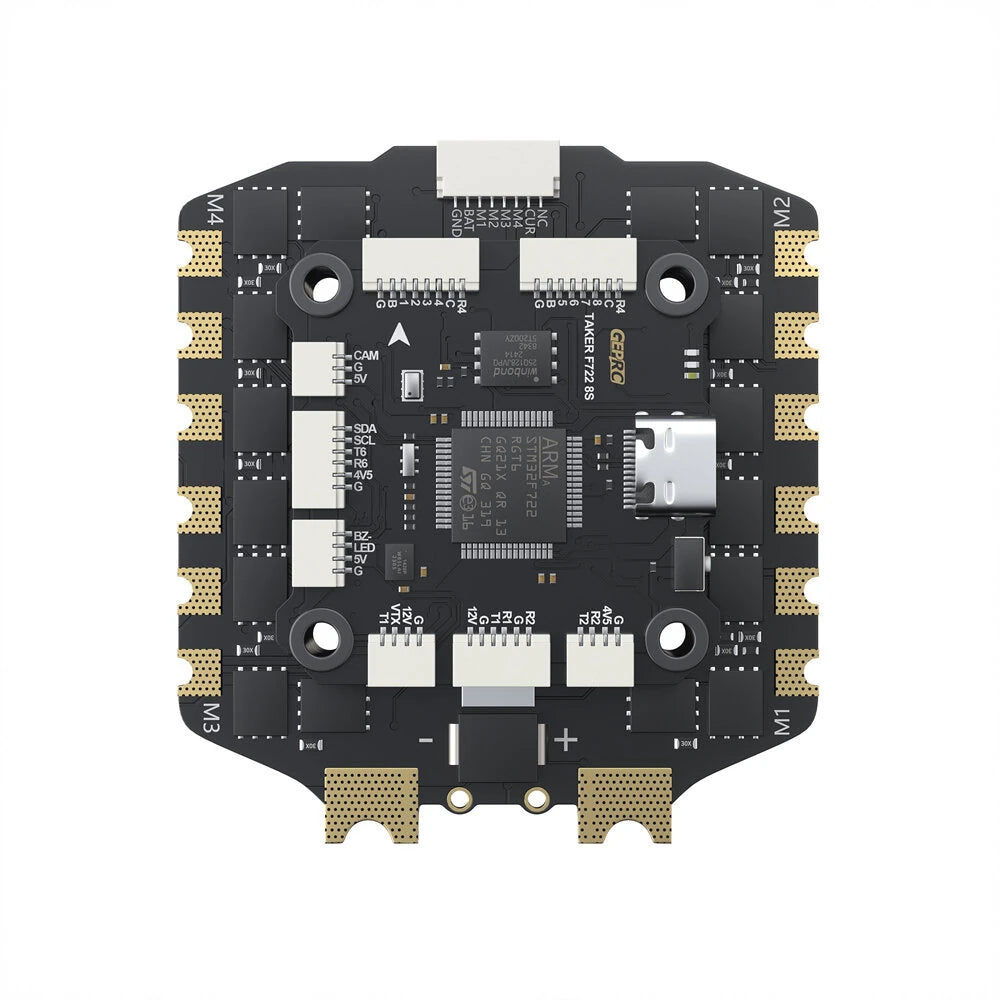

TAKER F722 8S Flight Controller	MCU: STM32F722 IMU: ICM42688-P(SPI) Air Unit Connection: Direct plugs into DJI Air Unit Black Box: 16M onboard USB Interface: Type-C Barometer: Supported OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A,12V@3A dual BEC Firmware Target: TAKERF722SE Dimension: 38.5×38.5mm, Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle Input Voltage: 3-8S LiPo UART: 6 UARTs Power Filter: Integrated LC filter Weight: 8.1g Includes

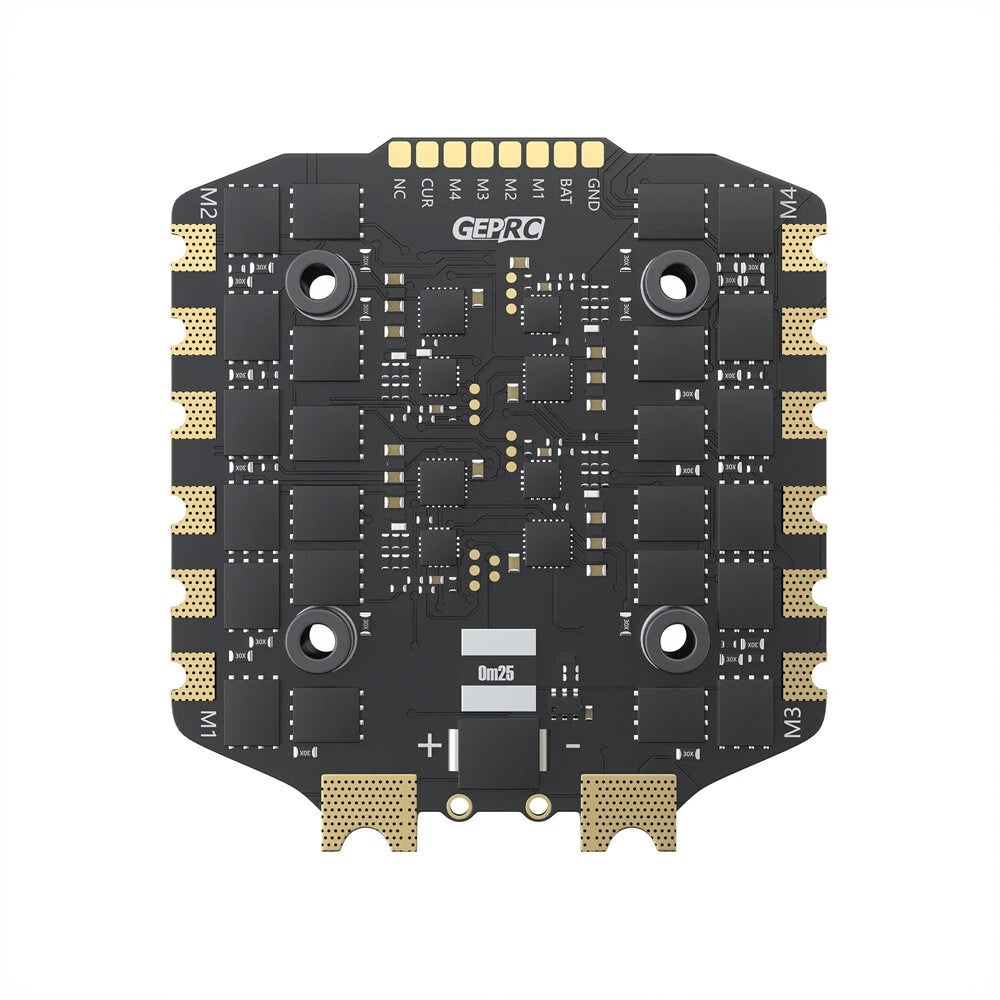

TAKER H100_8S_BLS 100A 4IN1 ESC	Input Voltage: 3-8S Lipo Ammeter: Support Calibration value: 200 Continue Current: 100A Burst Current: 105A (5 seconds) Support Protocol: Dshot 150/300/600 Size: 56.3*61.1 mm; hole: 30.5×30.5 mm; φ4 mm hole becomes φ3mm after using the silicone shock-absorbing ring. Weight: 28.8g Target: B_X_30



Package Included:

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI O3 3-in-1 connection cable

2 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT90 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
