Feature:

1. Use mainstream STM32F722 chip

2. Equipped with the latest 42688-P gyroscope

3. 512M black box storage

4. Support Bluetooth parameter tuning

5. Integrated LC filter

6. Upgrade type-C USB interface

7. With TAKER H60_BLS 60A 4IN1 ESC, silky flight

8. Directly plugs into the DJI Air Unit

9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance

10. Integrated Barometer

11. 9V@2.5A + 5V@3A dual independent BEC



Specification:

Brand: GEPRC

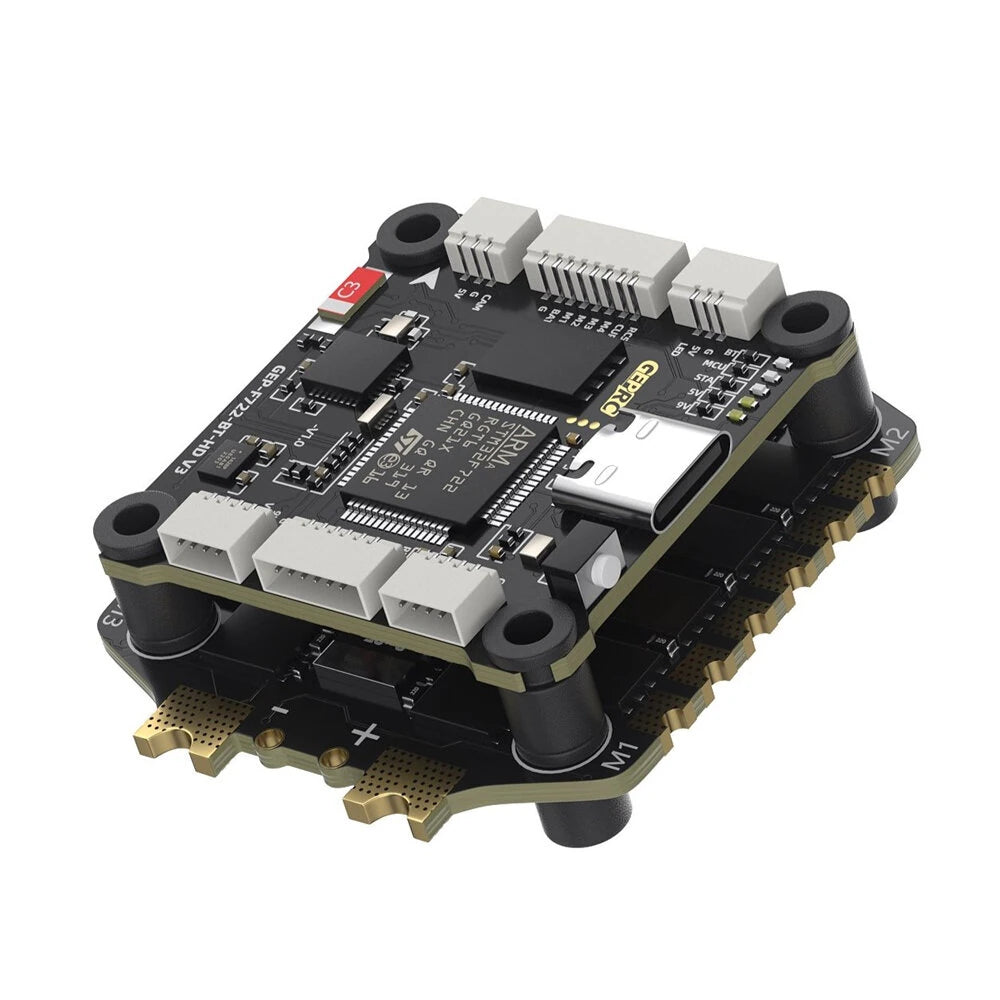

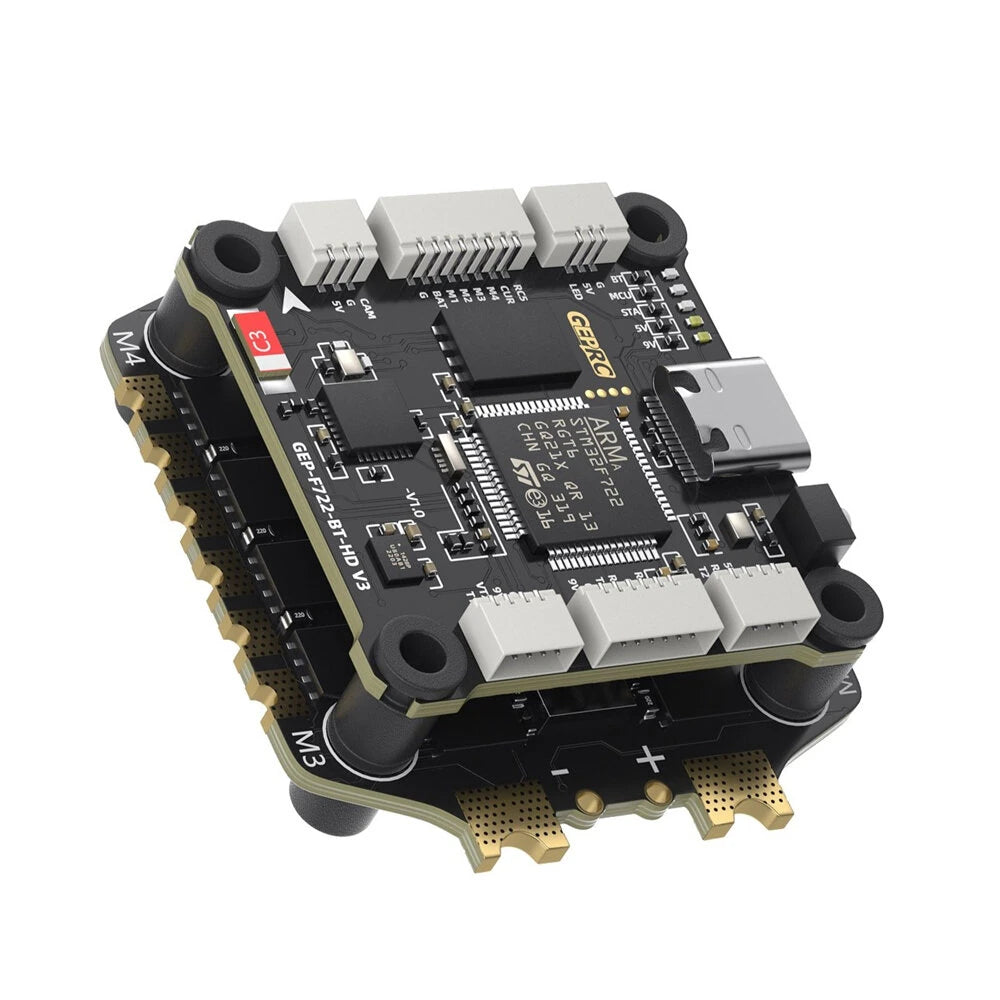

Model: TAKER F722 BT 8Bit 60A STACK

Model	Specification

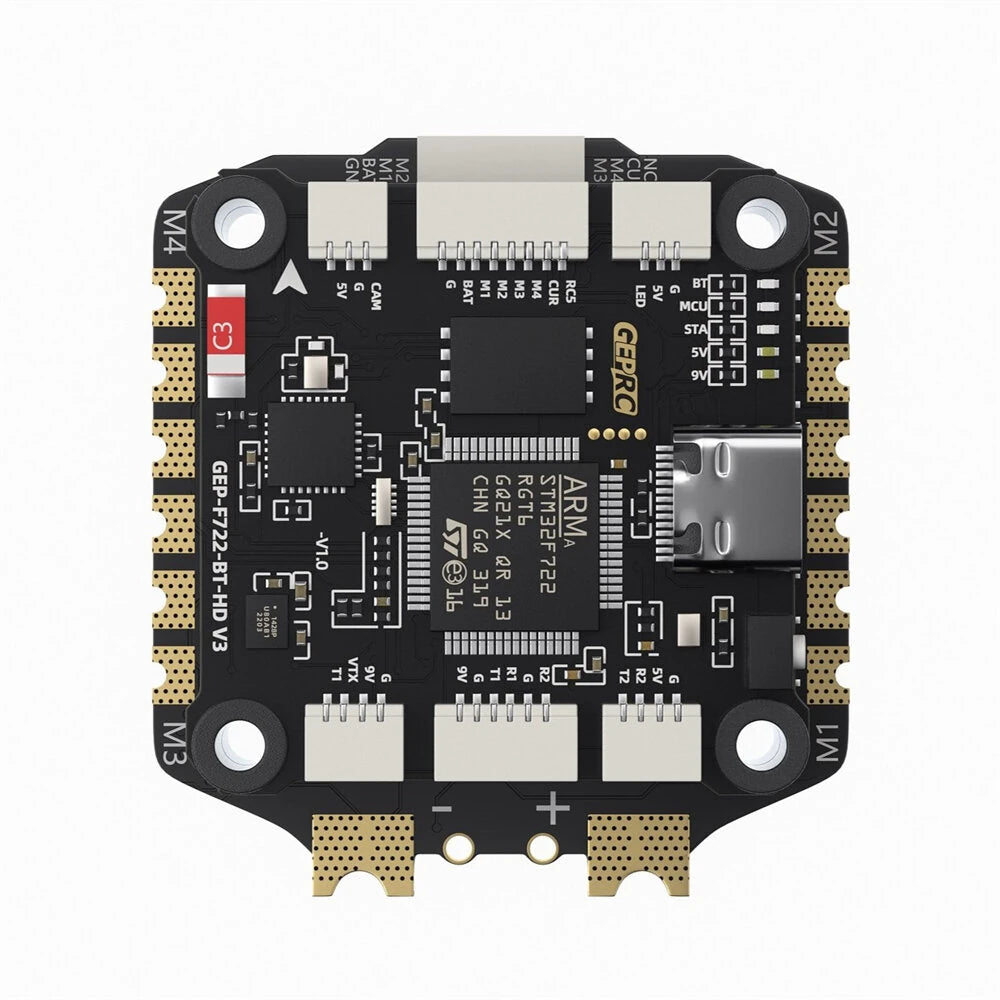

F722 BT HD V3 Flight Controller	MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A, 9V@2.5A dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g

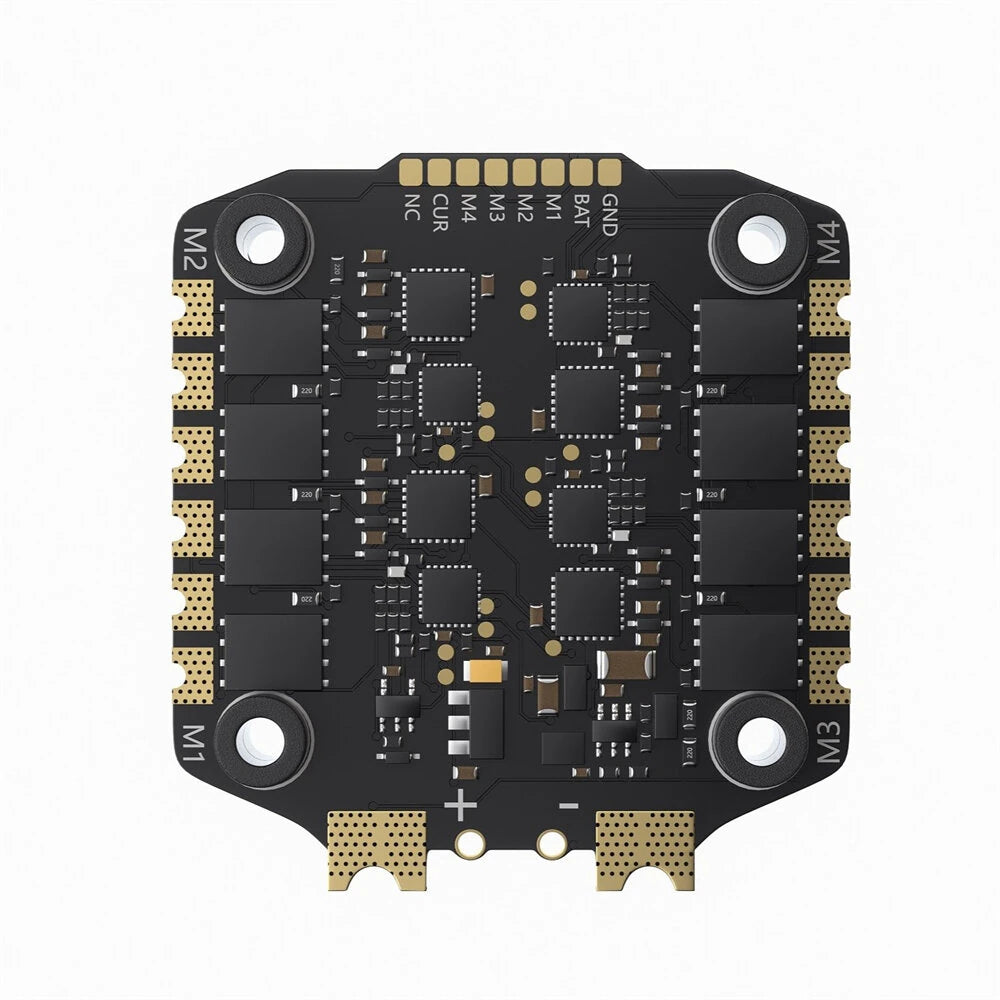

60A 4IN1 ESC	Input Voltage: 3-6S Lipo Ammeter: Support Continue Current：60A Burst Current: 65A (5 second) Support Protocol: Dshot 150/300/600 Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring Weight: 14.9g Target: B_X_30



Package Included:

1 x FC board

1 x ESC board

1 x Capacitor

1 x DJI O3 3-in-1 connection cable

1 x FC adapter cable

1 x sh1.0 4pin silicone cable

1 x Camera connection cable

1 x VTX connection cable

1 x XT90 power cable

4 x M3*30 screws

4 x M3*25 screws

8 x Nylon nuts

12 x Silicone anti-shake pads
