Description
Specification:
Brand: iFlight
Model: BLITZ F745, BLITZ E55
Optional Version: ESC ( Only E55 ESC)/ FC+ESC ( F745 FC & E55 ESC)
|

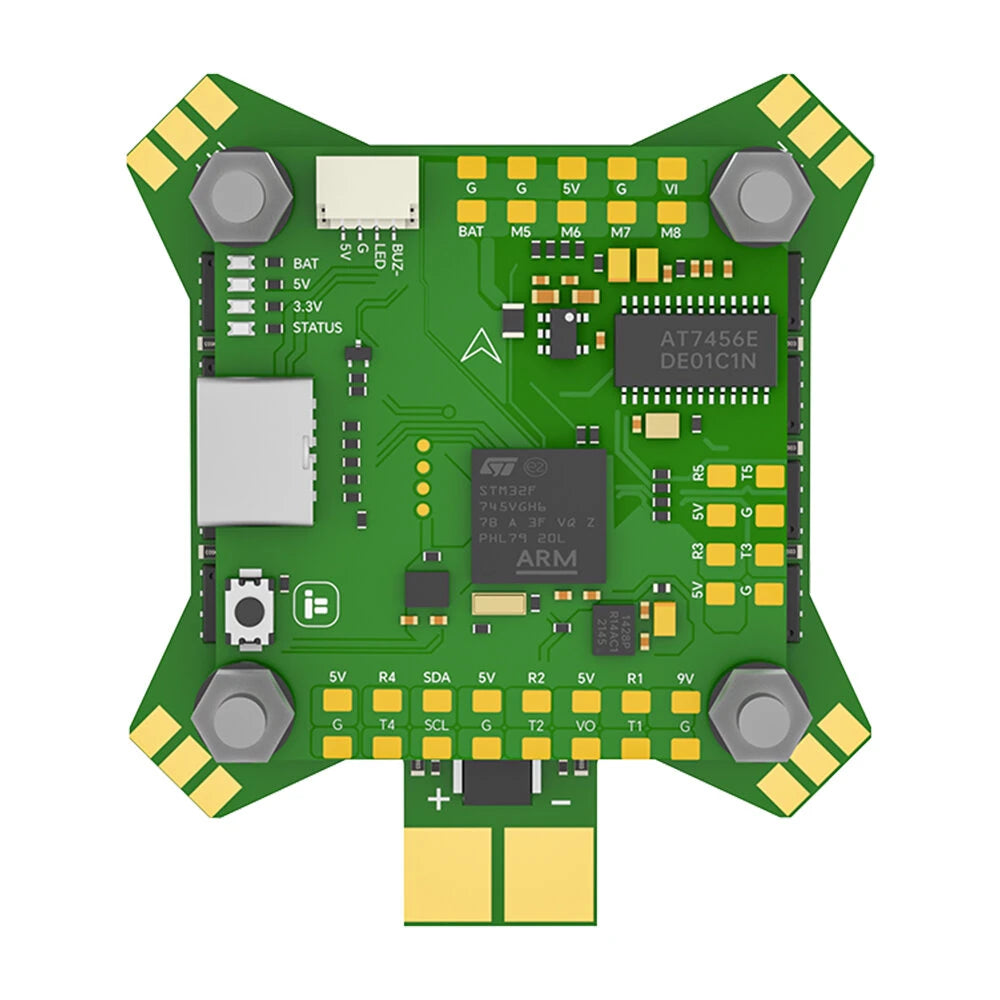

BLITZ F745 Flight Controller |
MCU: STM32F745 Gyro: ICM42688 Barometer: DPS310 OSD Chip: AT7456E Flash: 32MB (Blackbox flash) UARTS: 6 Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Mount pattern: 30.5*30.5mm Dimensions: 36.5*35 mm Weight: 7.8g BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds) Output 9V 2.5A continuous output current, 3A peak current (15 seconds) BF Firmware target: IFLIGHT_BLITZ_F7_AIO Ardupilot Firmware：arduplane_with_bl Wiring Suggestion UART 1 for VTX HD / Analog UART 2 for a Receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet |

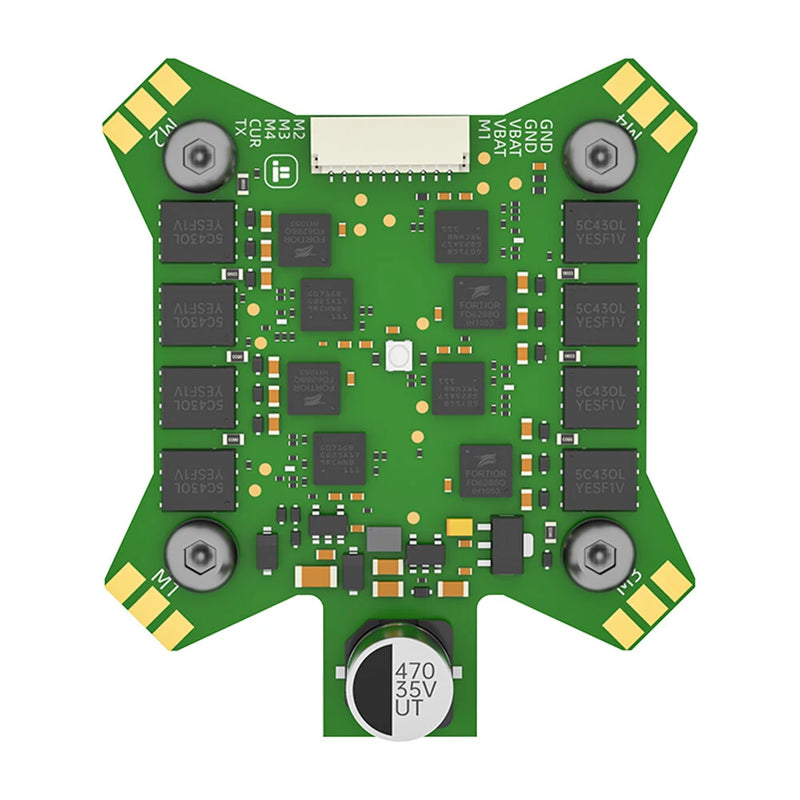

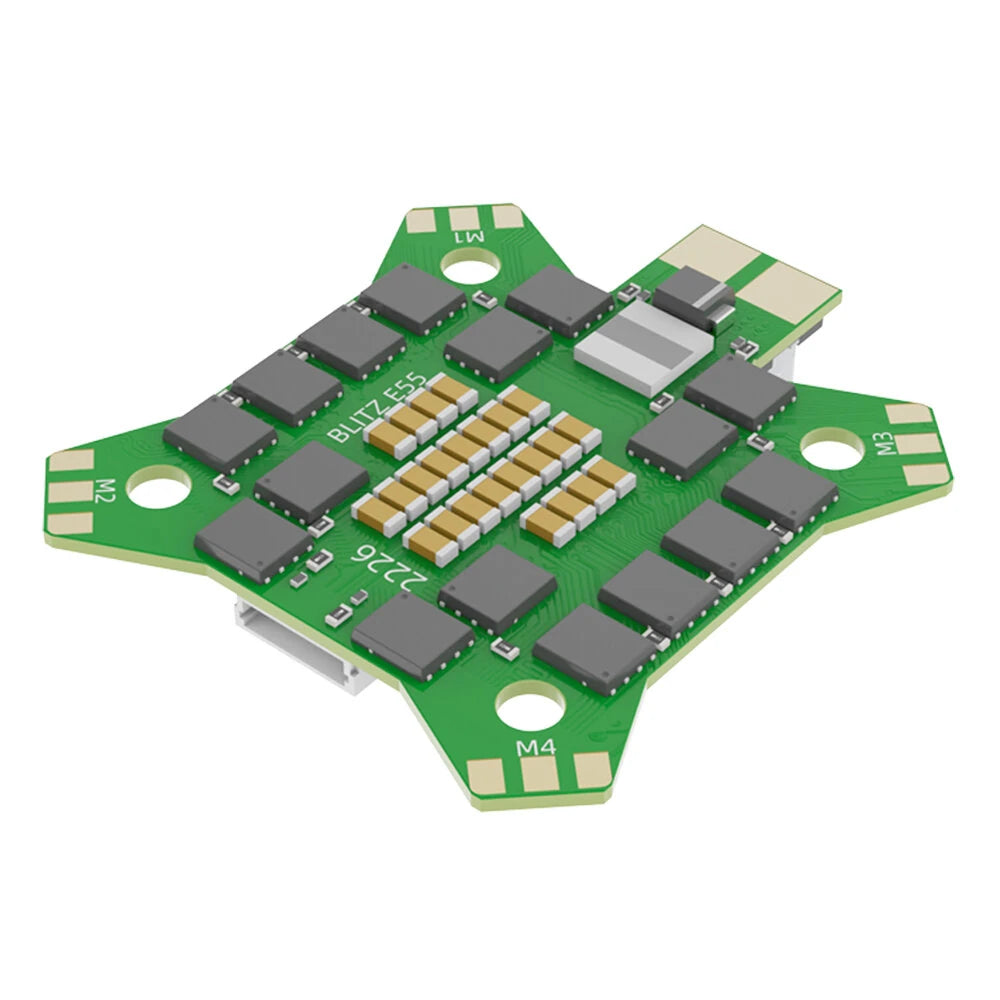

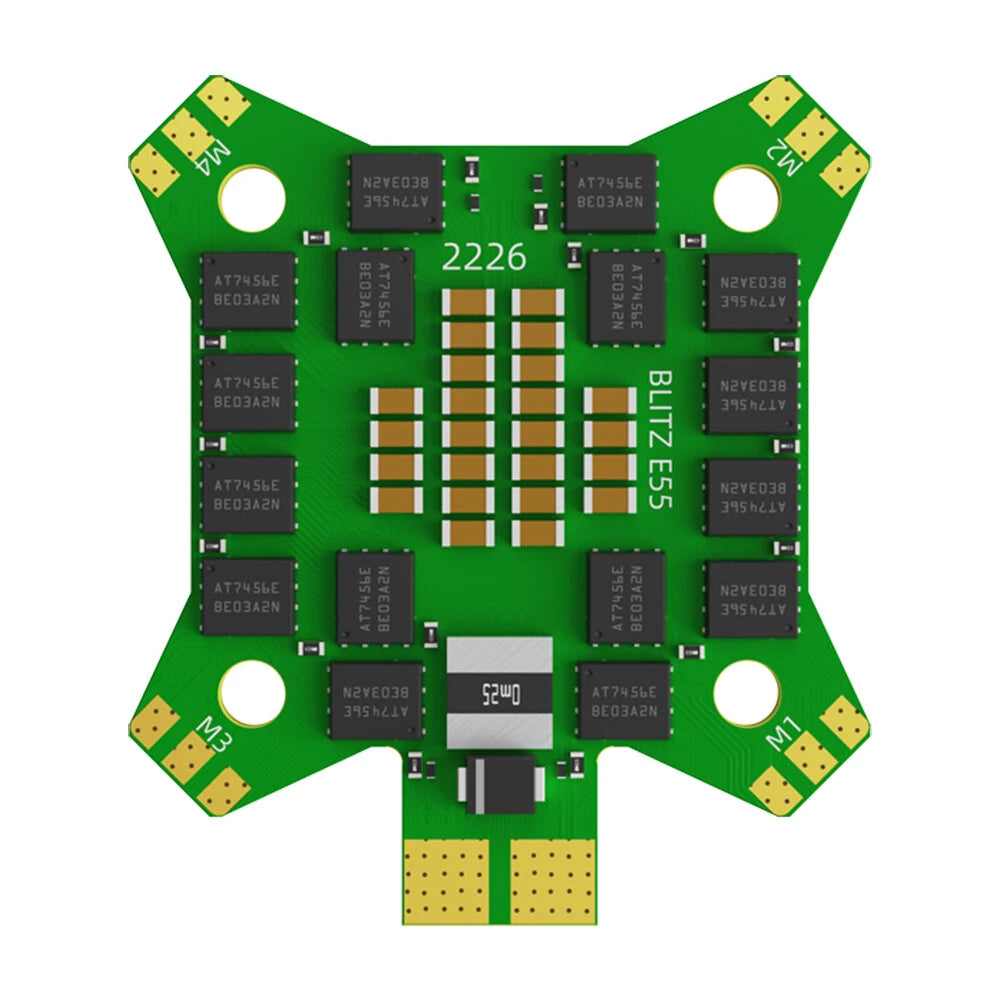

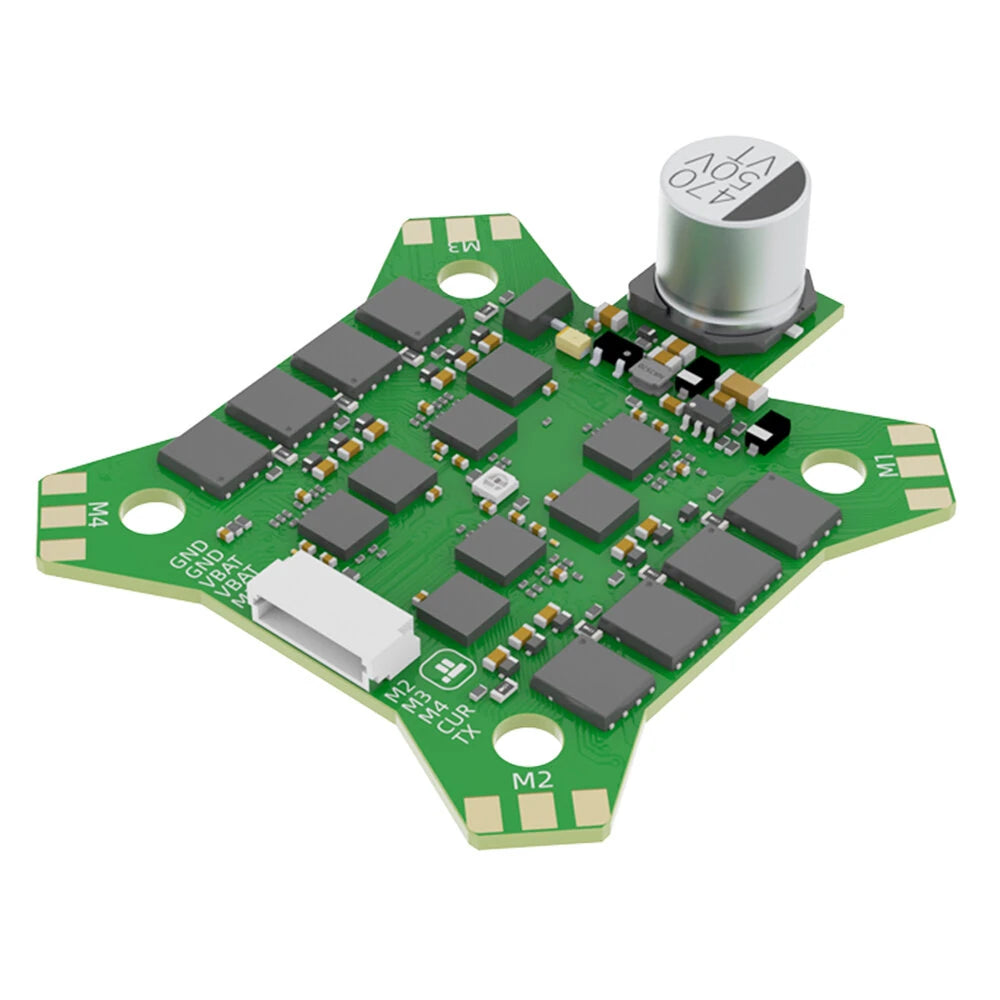

| E55 4in1 ESC |
Supports 2-6S lipo input Mounting Holes: 30.5*30.5mm/Φ4mm |
Features:
1. Improved circuit design, better components and lower electrical noise!
2. DJI HD VTX Connector (Plug-and-Play / No soldering required).
3. FC indicator LEDs for visual debugging.
4. Support Betaflight, INAV, Ardupilot firmware.
Package Included:

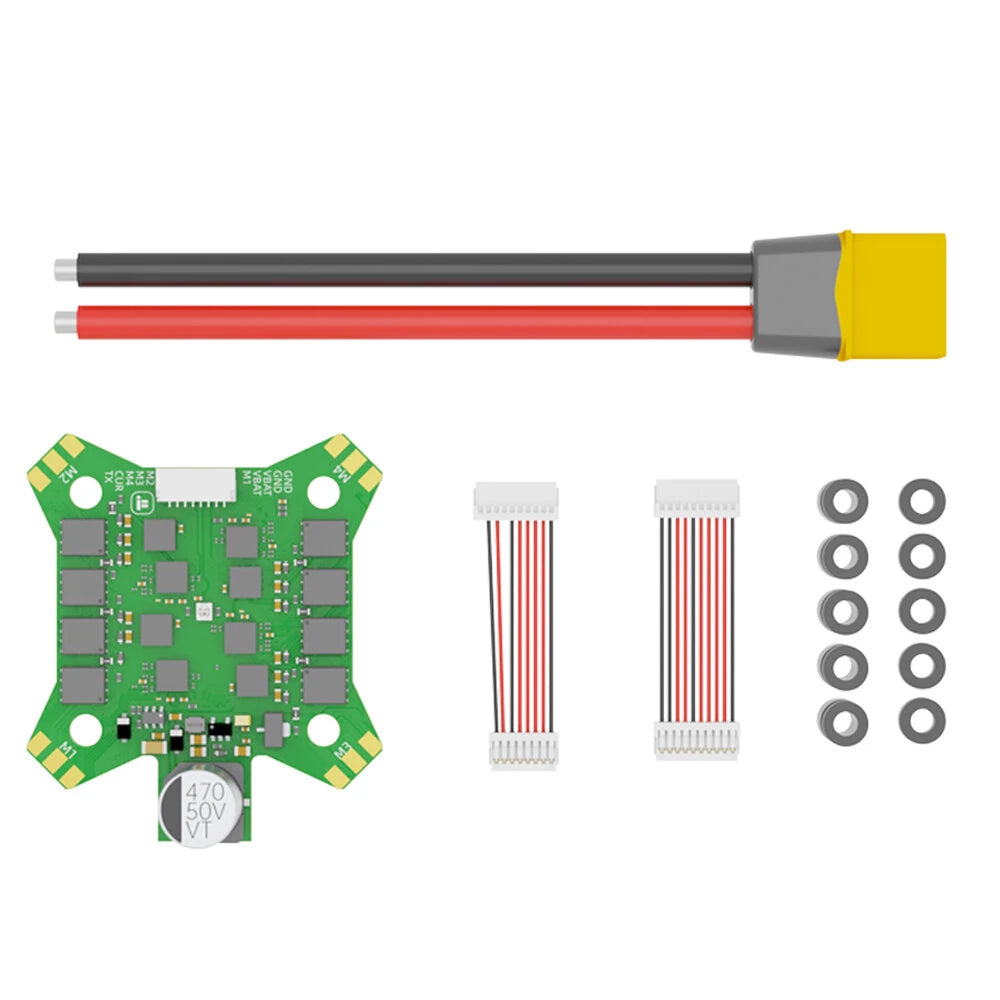

| ESC Version |
1 x BLITZ E55 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires |
| FC+ESC Version |
1 x BLITZ F745 Flight Controller 1 x BLITZ E55 4IN1 2-6S ESC 1 x silicon grommets 1 x wire harness for F7 Flight controller |
