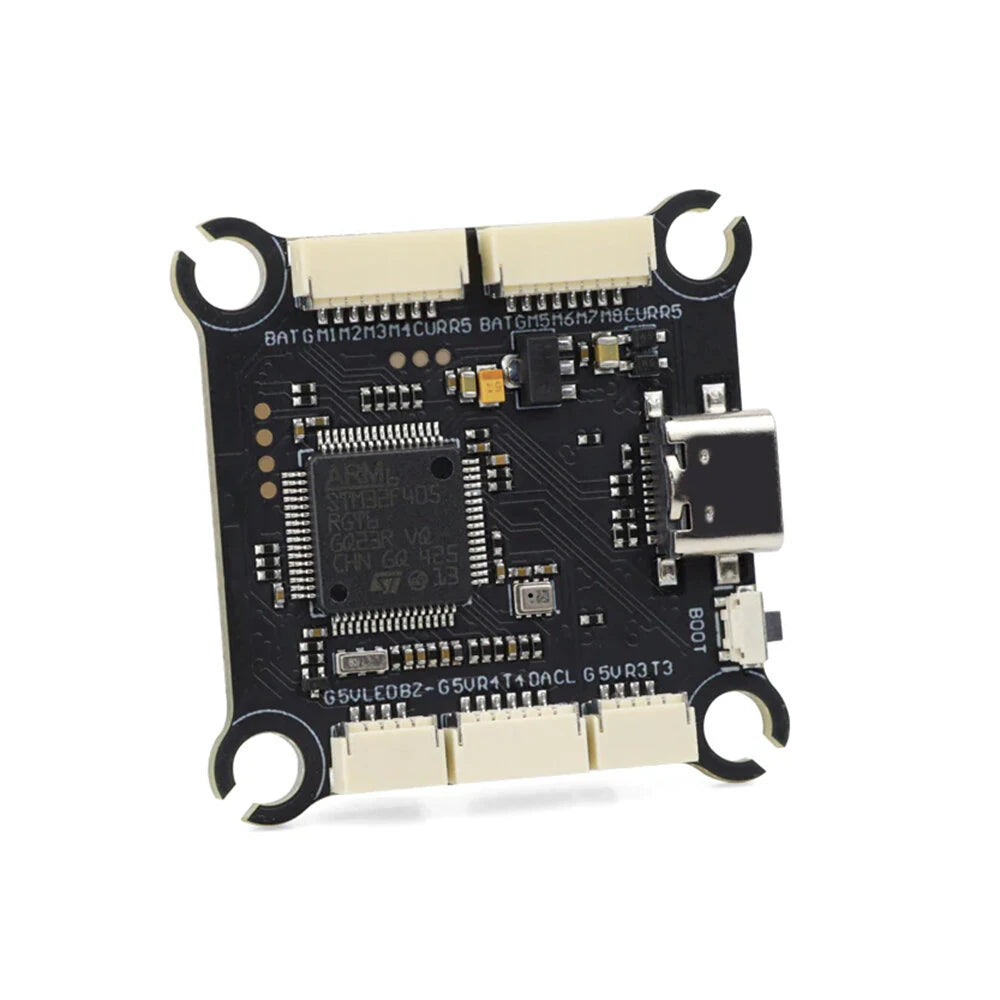

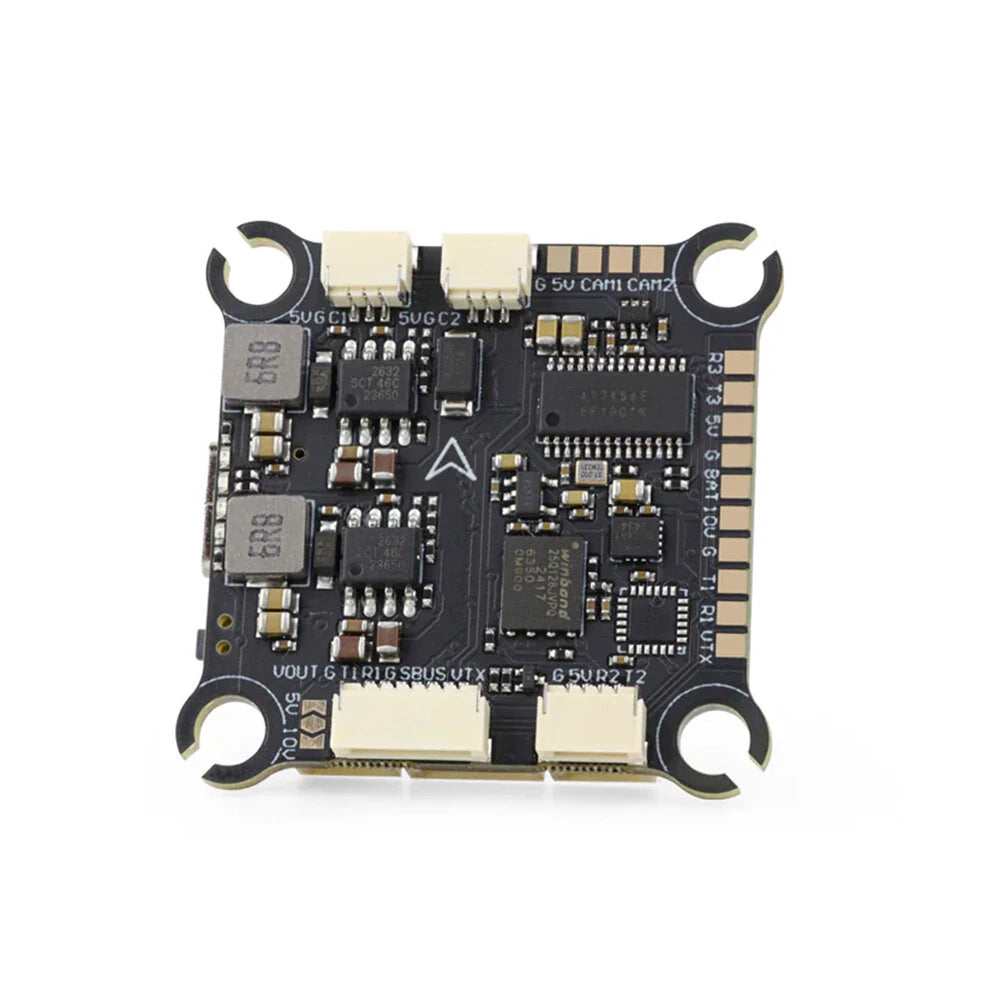

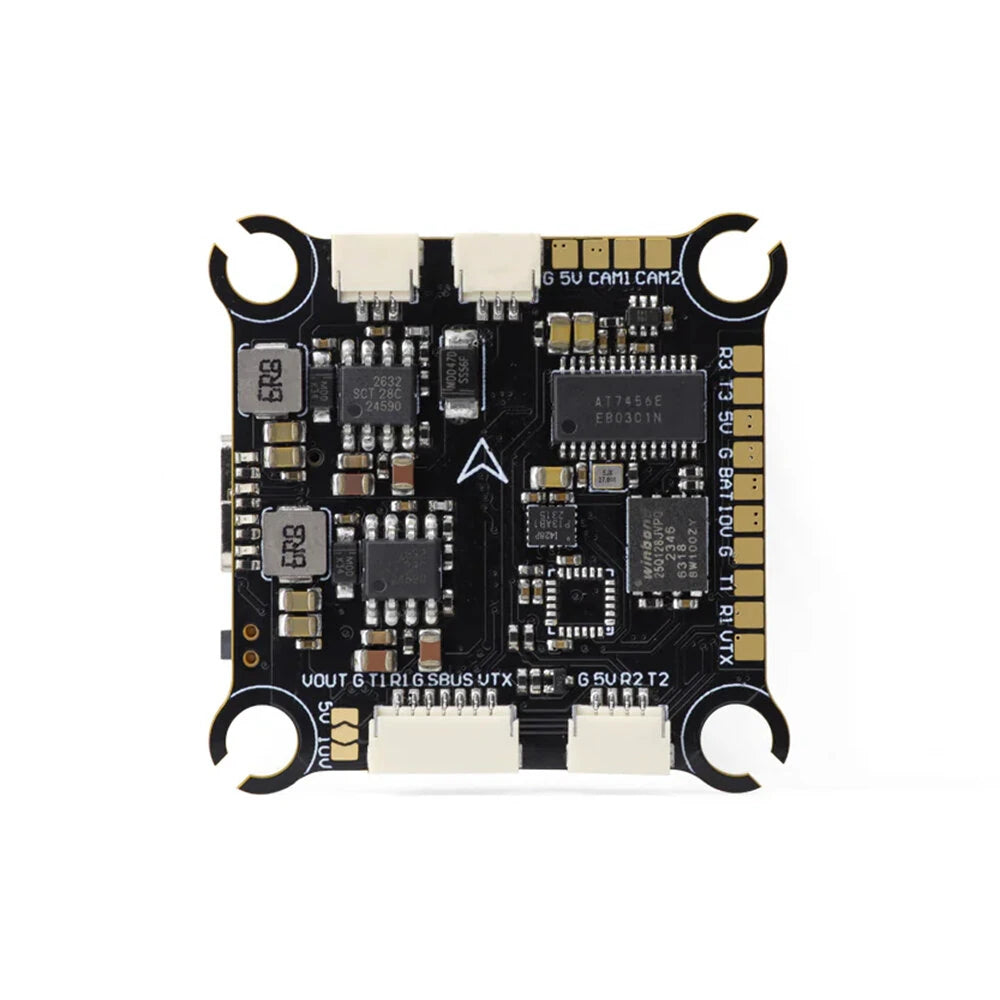

30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
Roll over image to zoom in Click on image to zoom
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones
30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones

30.5*30.5mm HGLRC F405 2-8S V1 Flight Controller ICM42688P SPL06-001 for RC FPV Racing Freestyle Drones

Save R 345.02
Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: F405 FC
Price:
R 1,116.72 R 1,461.74
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Feature:
1. The flight controller gyroscope uses the high-performance ICM42688P for enhanced stability, with MPU6000 gyroscope pads reserved.
2. Fully modular, direct-connect design for plug-and-play operation without solder pads, enabling modularity.
3. A large 16MB black box ensures sufficient flight data recording.
4. Supports 8s of high-voltage, rapid output for extremely fast respons, ensuring stable control throughout the flight, allowing for aggressive flight.

Specification:
Brand: HGLRC
Model: F405 8S V1 Flight Controller
Voltage: 7.4V-33.6V(2-8s)
MCU: STM32F405
GYRO: ICM42688P
OSD: AT7456E
Barometer: SPL06-001
Black Box: 16MB
UART: 5
Flight Controller Firmware: HGLRCF405V2

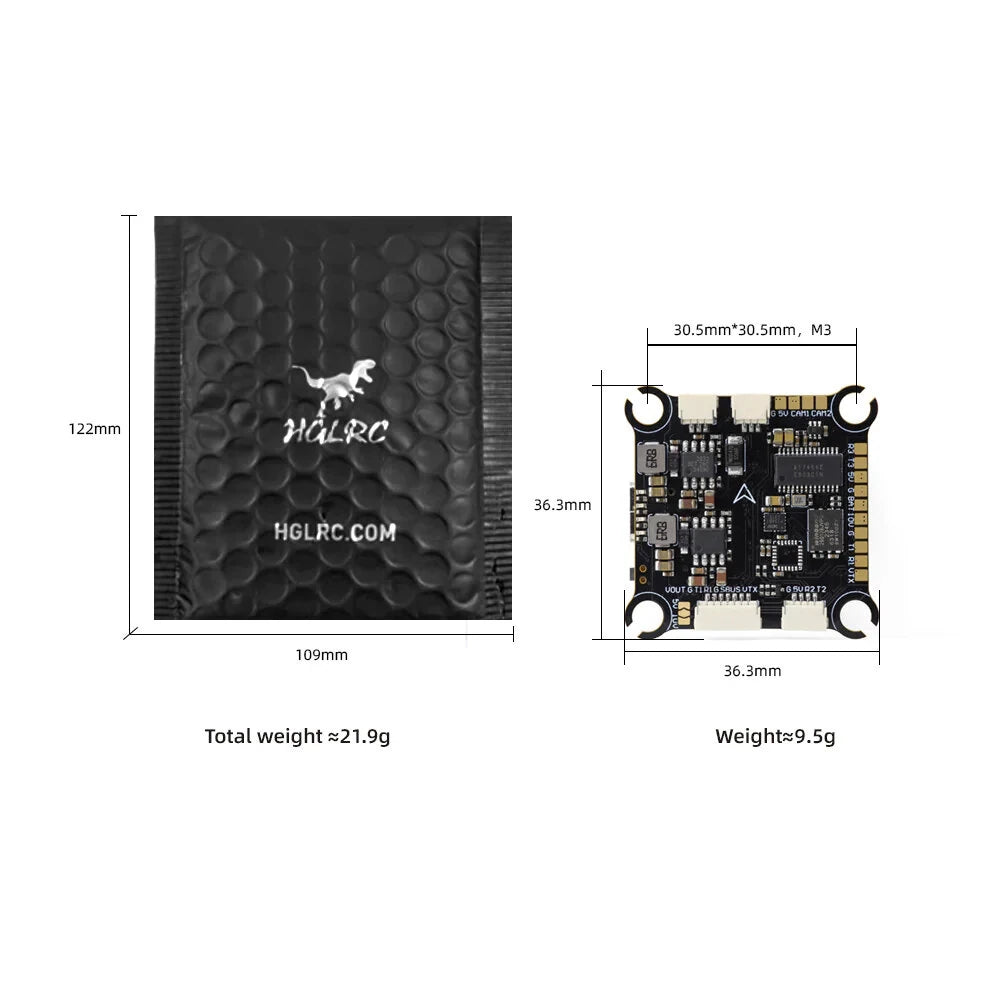

Dimensions: 36.3*36.3mm
Mounting Holes: 30.5*30.5mm, M3
Weight: 9.5g

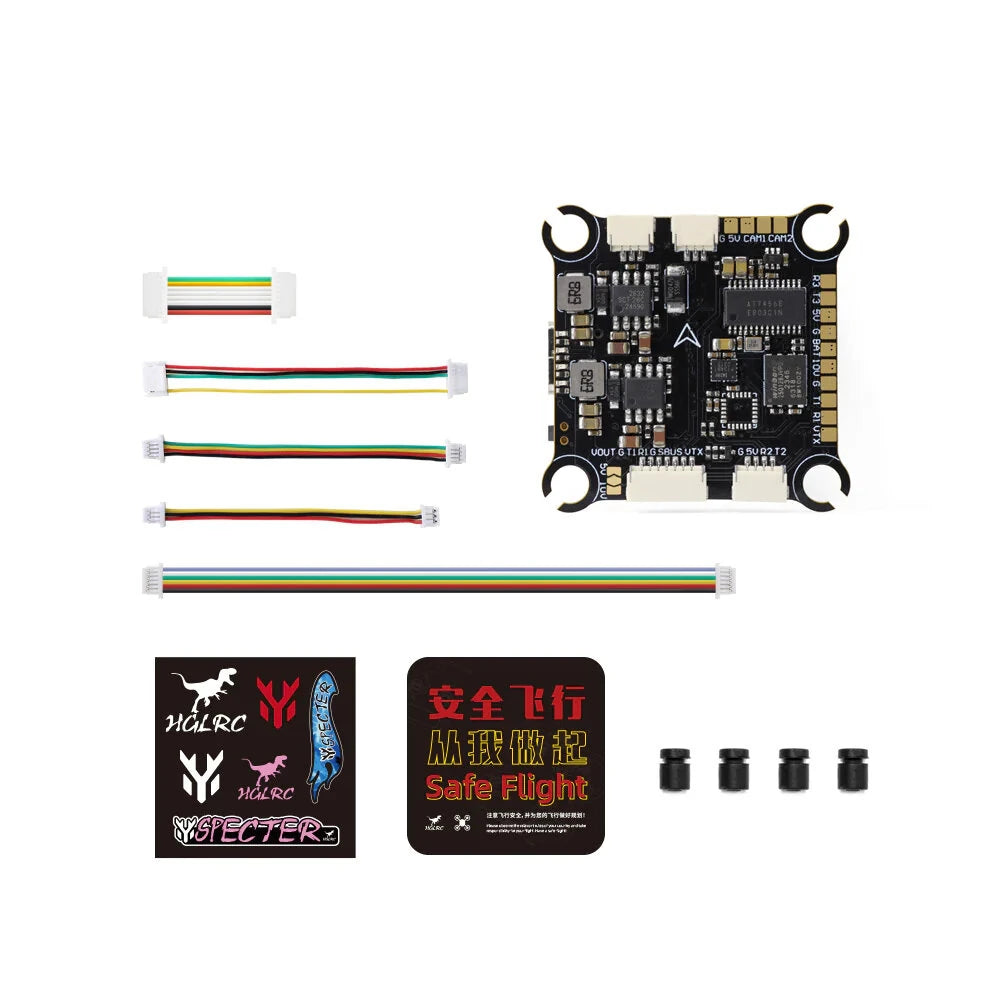

Package included:
1x HGLRC F405 8S V1
1x 30AWG 25mm Dual-End SH1.0-8P Flex Cable
1x 30AWG, 70mm Dual-End SH1.0-4P Flex Cable
1x 30AWG, 60mm Single-End SH1.0-3P/Single-End SH1.25-3P
1x 30AWG 70mm, Single-Ended GH1.25-6P/Single-Ended SH1.0-7P
1x 30AWG, Total Length 140mm, Double-Ended SH1.0-6P
4x 3*8 shock-Absorbing Columns
1x HGLRC Sticker
1x QR Code Card
