Description

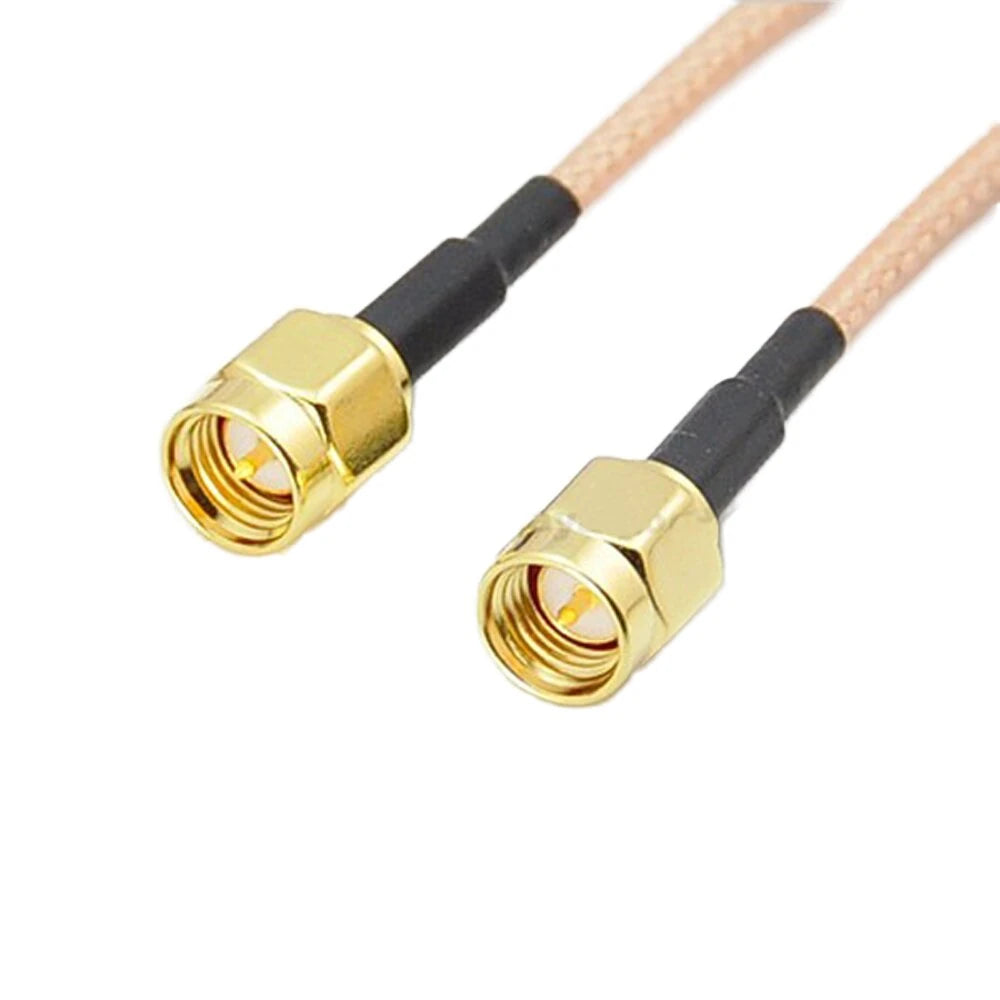

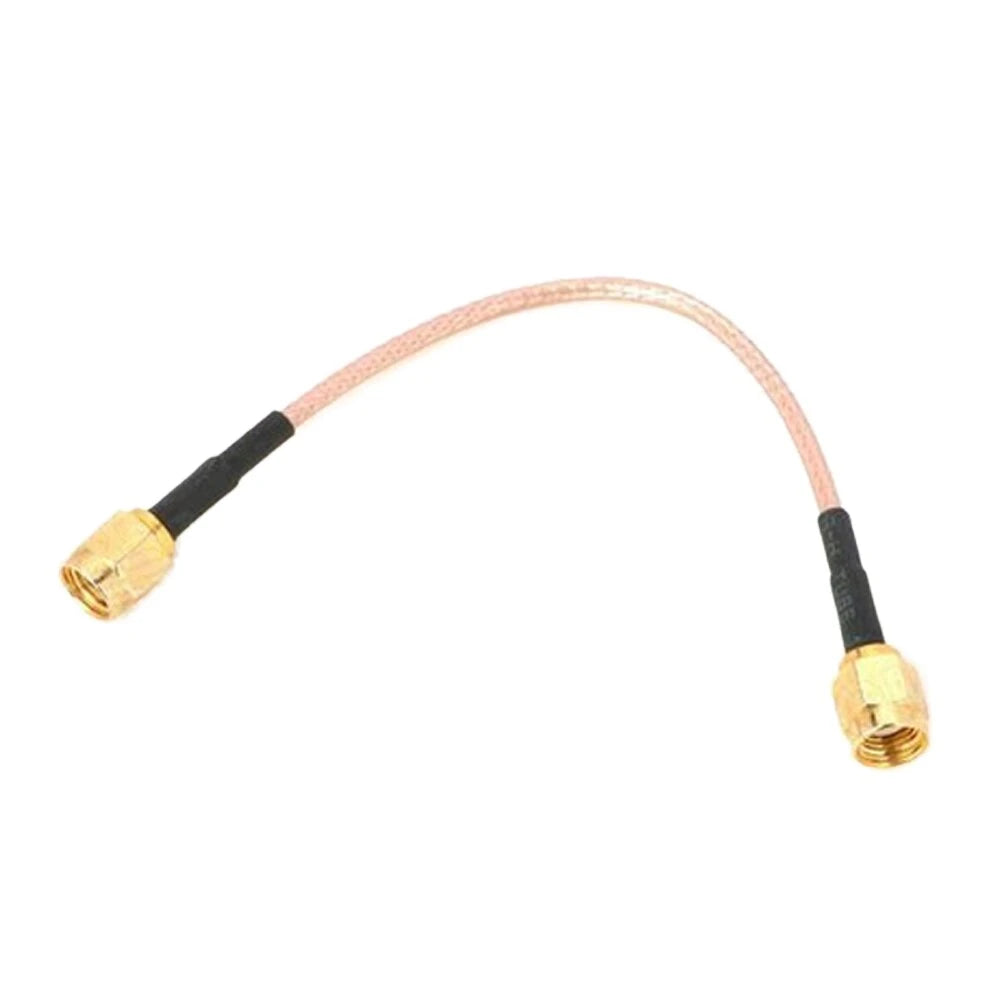

Precision RF Links for Low-Latency ControlEngineered for racers who refuse to compromise signal integrity, our SMA pigtails use military-grade RG316-1.5 coax with double-shielded construction to suppress interference from 6S ESCs. Unlike cheap aluminum-wrapped cables, the 99.9% silver-plated core maintains SWR <1.2 even after 1000+ bends.Why Pilots Choose This:✔ 2.4GHz Optimized – Tuned for TBS Crossfire/ExpressLRS systems (minimal attenuation at 2500MHz)✔ Crash-Resistant – SMA connectors feature hex nuts (won’t loosen in crashes like push-on types)✔ Rigorous QC – Each batch tested with VNA to ensure <0.18dB loss at 15cm length1. Superior ShieldingDual-layer braid + foil blocks interference from VTX and motor noise2. Hex Nut SecurityRequires 7mm wrench to tighten (prevents mid-flight disconnects)3. Silver-Plated Efficiency22% lower resistance than nickel-plated alternatives (verified with multimeter)4. ELRS/Crossfire Ready15cm length ideal for mounting diversity antennas on 5' freestyle builds5. Weather ResistantSilicone jacket prevents moisture ingress (IP67 rating when connectors are taped)
Description:
| SMA Male connector, Both ends have pins. | |
| Cable Length : | Approx 15 cm |
| Vibration: | MIL-STD-202,Method 213 |
| Operating Voltage： | 335V max |
| Characteristic impedance: | 50Ω |
| Temperature Range: | -65 |
| Proof pressure: | 1000V rms |
Package included:
2 x Cable
