Description
Summary:
TAKER G4 35A is a newly developed AIO flight control by the GEPRC team. It adopts G473 main control and has more redundant computing power.
In response to market demand, the TYPE-C interface has been upgraded, and the power supply pad and motor wire pad have been optimized to make welding easier. It is compatible with two mounting holes of 25.5-26.5mm and can be compatible with more frames.
We are committed to pursuing flight controllers that are smaller in size, lighter in weight and stronger in performance.
Features:
1. Compact size and compatible mounting holes make installation convenient.

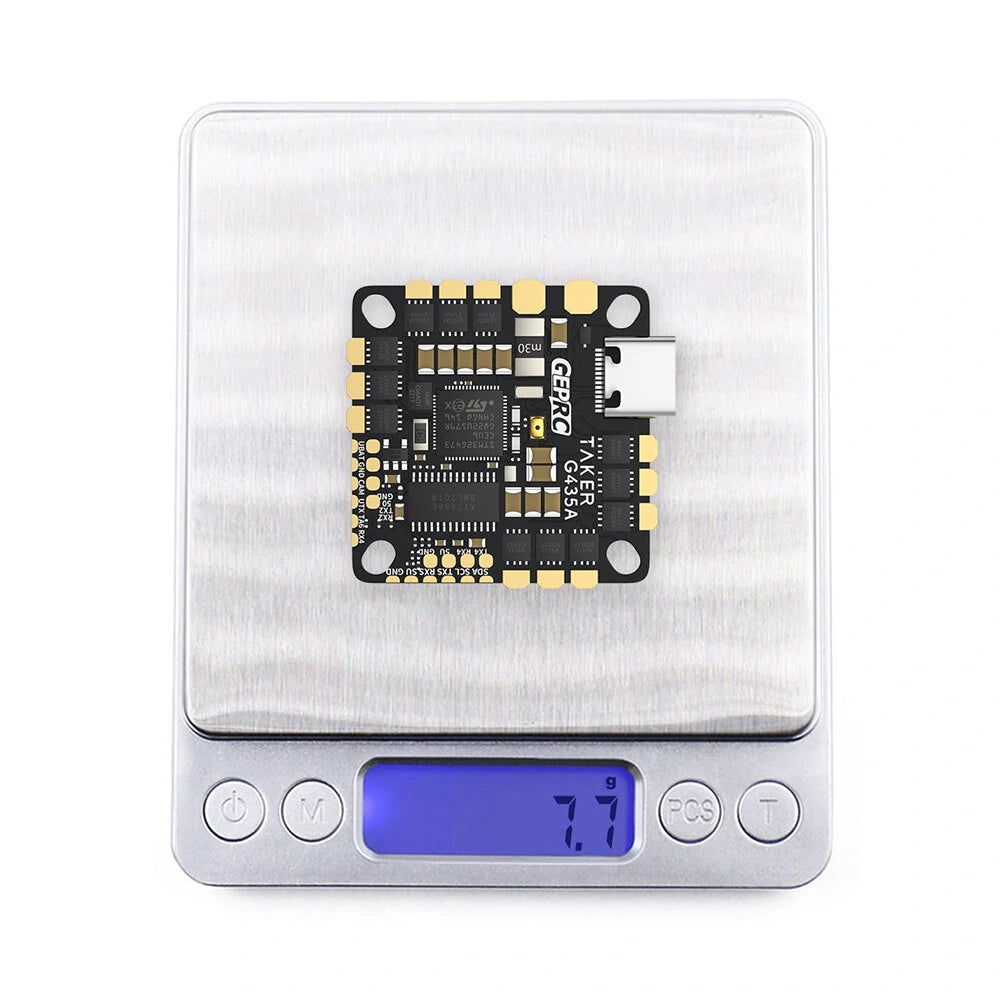

2. Light weight only 7.7g.
3. G473 main control, 170MHz operating frequency, abundant computing power.
4. Upgraded Type-c USB for better versatility.
Specifications: ( Manual)
Brand: Geprc
Model Name: TAKER G4 35A AIO
MCU: STM32G473CEU6
IMU: ICM 42688-P
Firmware target: TAKERG4AIO
OSD: Betaflight OSD w/ AT7456Ev
Uart: R1 T1 / R2 T2 / R4 T4 / R5 T5
Buzzer: YES
LED : YES
USB: Type-c USB
BEC output: 5V@3A
ESC MCU: BB21F16G
Continuous Current: 35A
Burst Current: 45A(5″)
lnput Voltage: 2-4S (LIPO Battery)
Supports: Dshot600,Oneshot,Multishot
Current meter: 210
target: J -H -15
Size: 33.4×34.4mm Board
Install hole: 25.5-26.5 Φ3.05mm
Weight: 7.7g
Includes:
1x TAKER G4 35A AIO
1x Capacitor
1x Cable Set
