Description
Product Description:

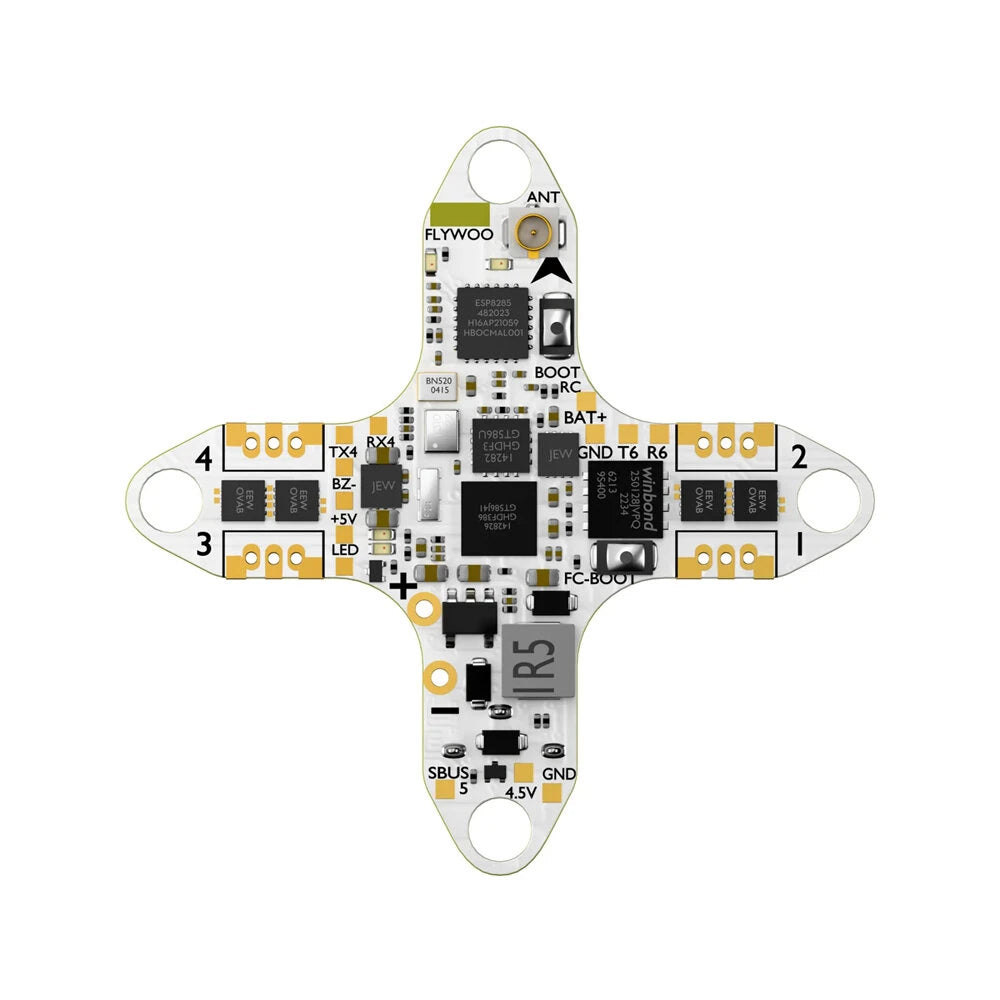

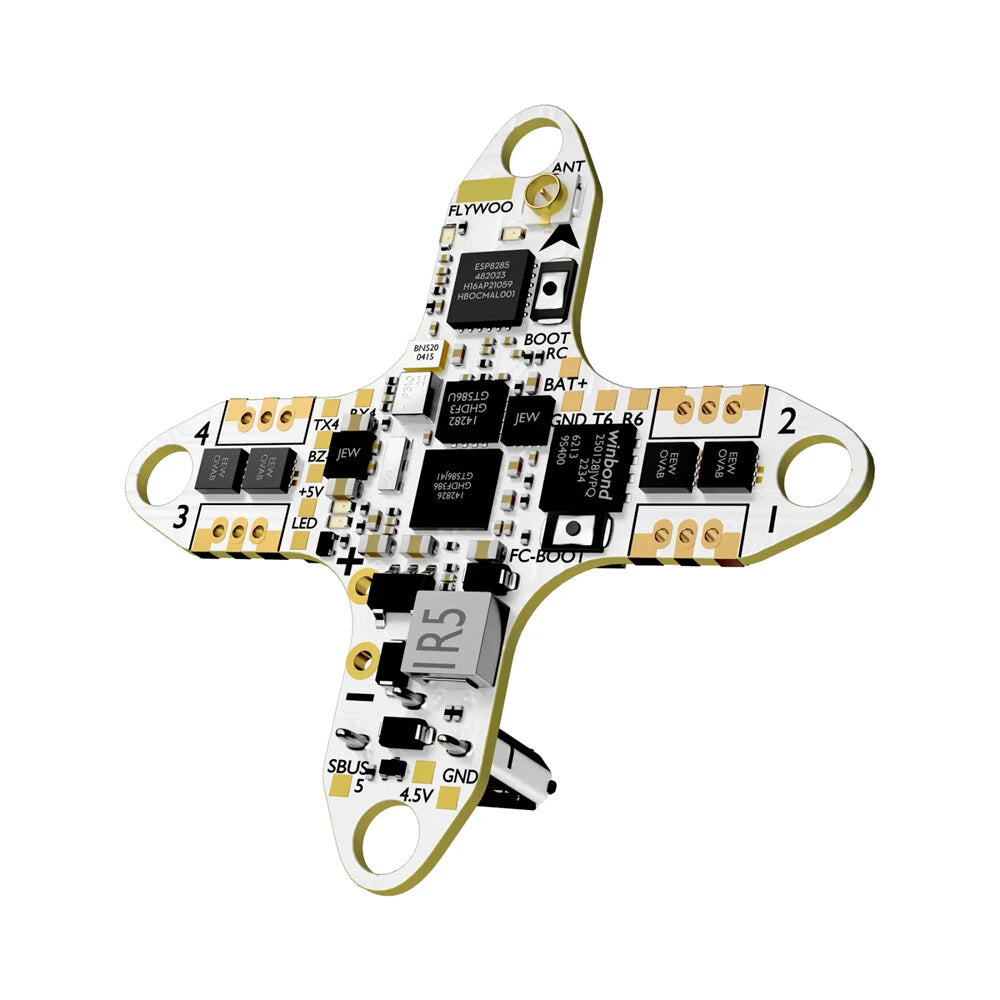

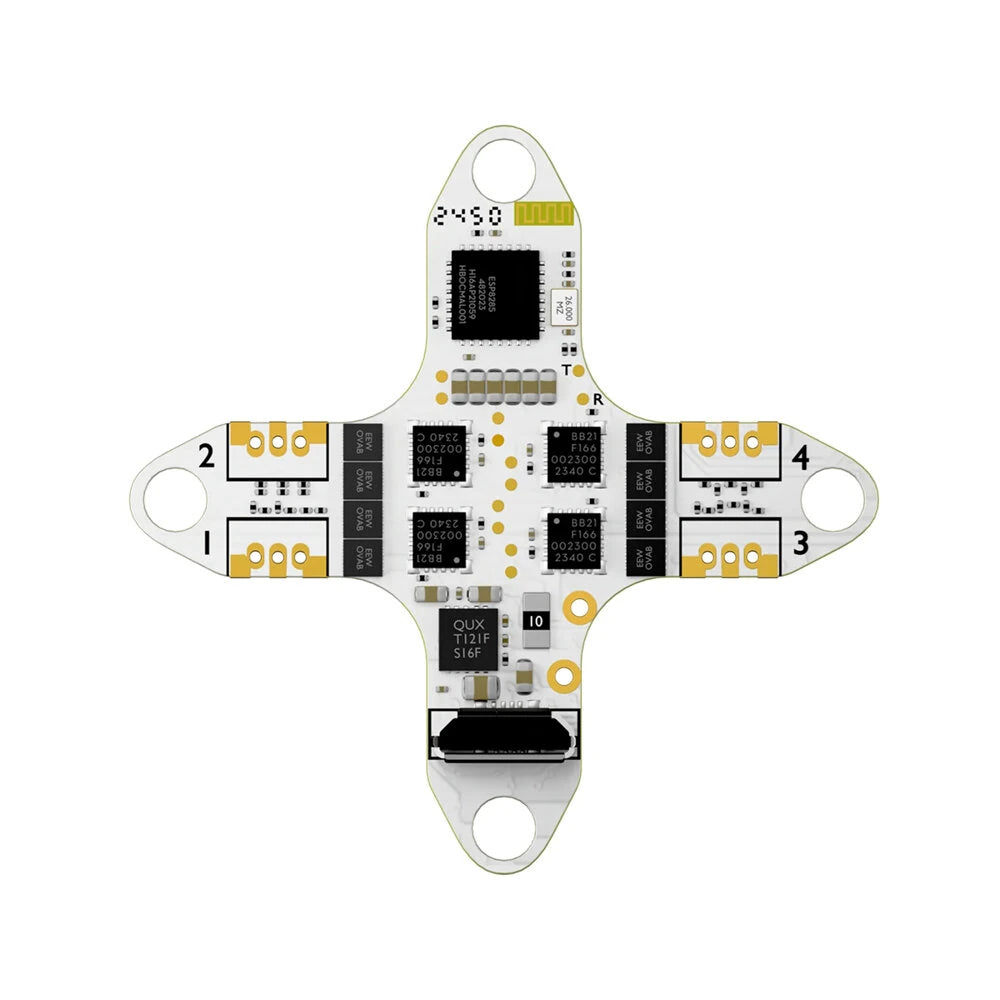

The Flywoo GOKU F405 HD 1S 5A AIO w/TXCO ELRS is a groundbreaking flight controller designed specifically for ultra-compact 1S HD drones, combining cutting-edge performance with unmatched portability.
Built around the STM32F405 BGA MCU, this all-in-one (AIO) board delivers superior computational power while maintaining an exceptionally lightweight design of 2.6g (excluding motor connectors ). Its cross-shaped PCB stacking ensures seamless compatibility with all 1S frame kits, making it ideal for pilots seeking precision, reliability, and adaptability in micro HD builds.
Highlights:
- When paired with the FLYWOO O4 1S 5V BEC module, it can achieve a minimum voltage of 2.6V.
- Integrated Serial ELRS 2.4GHz receiver (with TCXO crystal oscillator for superior precision and stability)
- STM32F405BGA aerospace-grade MCU (up to 68% faster processing vs. traditional F411 and 20% vs. G437)

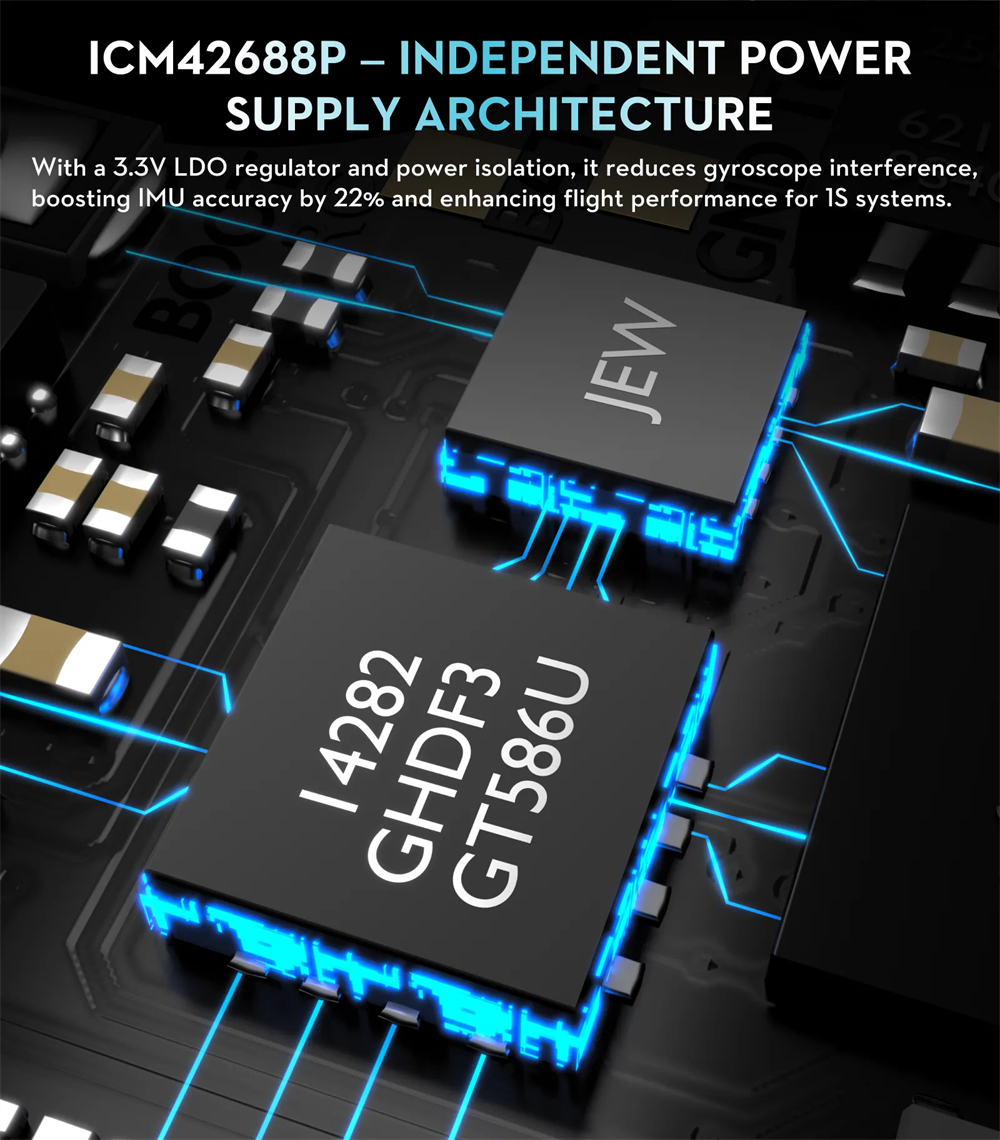

- Equipped with ICM-42688P gyro and 8MB Betaflight Blackbox flash memory
- Ultra-compact, slim, cross-shaped PCB layout compatible with all popular 1S frames
- Specifically optimized for 1S HD drone setups, including Walksnail, HDZero, and DJI O4 systems

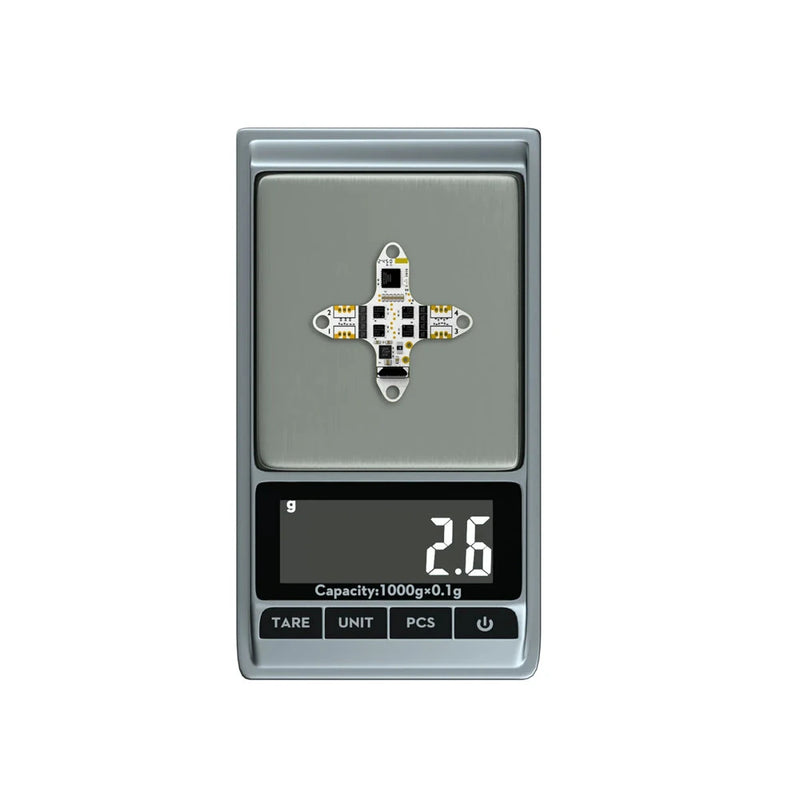

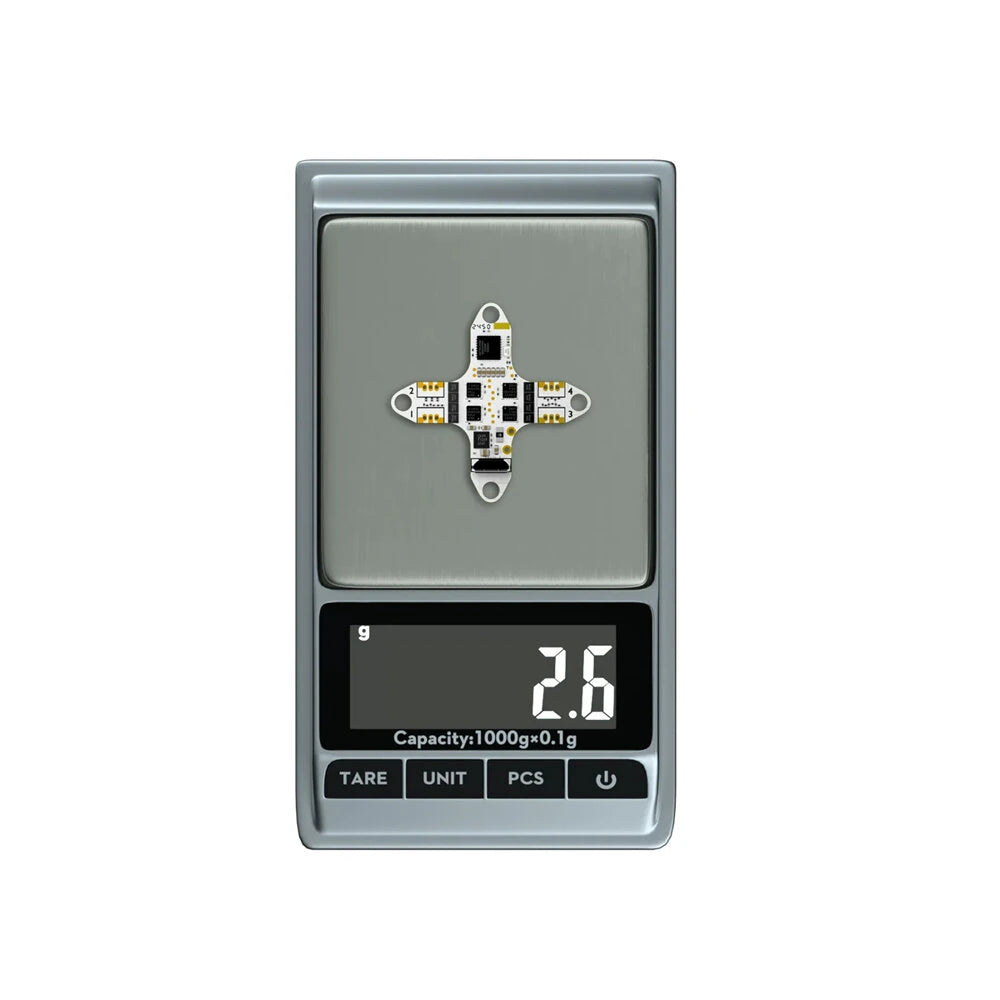

- Weighs just 2.6g without motor connectors—the industry's lightest 1S AIO solution
- Pre-soldered motor connector
Specifications:
Brand: Flywoo
Model: GOKU F405 HD 1S 1S 5A ELRS AIO
Product Name |
GOKU F405 HD 1S 1S 5A AIO w/TCXO ELRS |
MCU |
STM32F405BGA |
IMU |
ICM42688P |
Barometer |
SPL06 |
Black Box |
8M |
OSD Support |
No |
UART |
UART 3（For ELRS),UART4,UART5(SBUS),UART |
Protocols |
CRSF, SBUS, iBus, Spektrum |
BEC |
5V 2.0A max |
RX |
Flywoo TCXO EL24E 2400 RX 3.0.0 |
FC Firmware |
FLYWOOF405S_AIO |

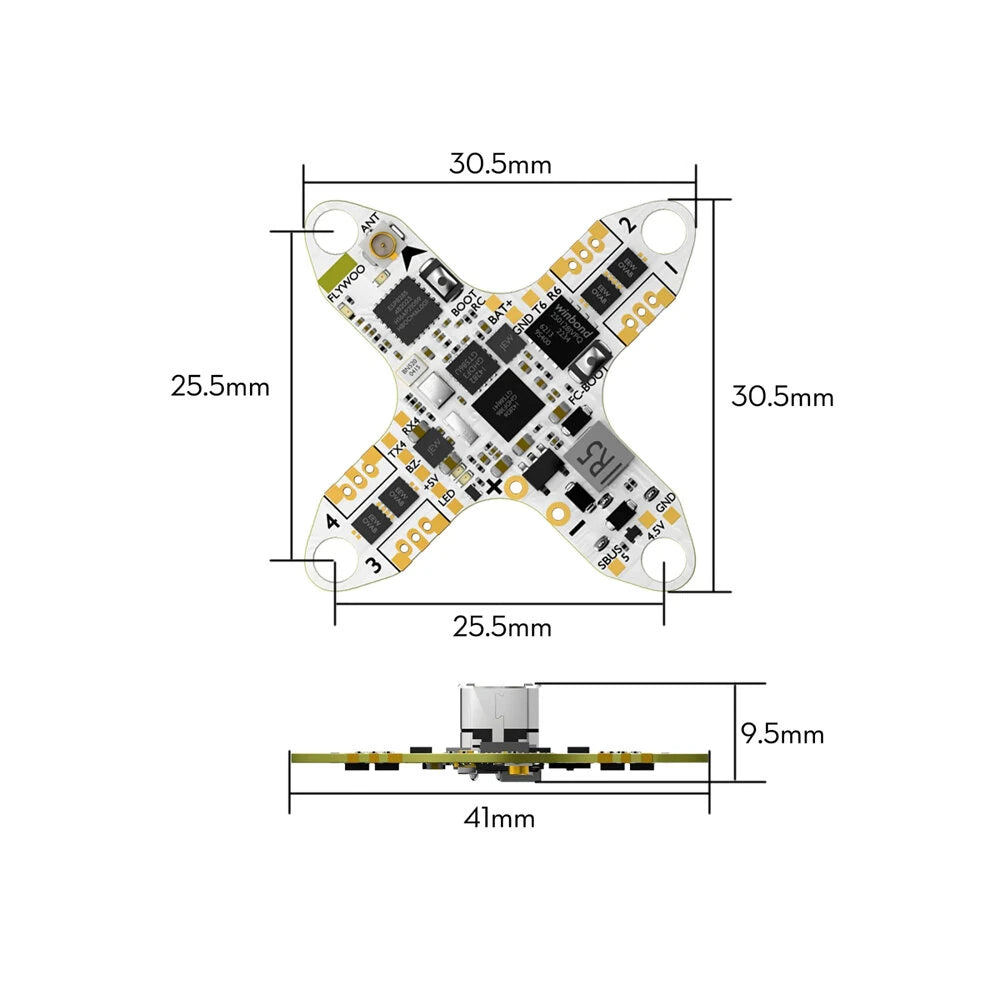

Dimensions |
30.5 x 30.5mm |
Mounting Holes |
Standard 25.5/25.5mm square to center of holes |
Weight |
2.6g ( no motor connector ) 3.28g ( with motor connector ) |
Product Name |
Onboard 4in1 ESC |
Power input |
1S Only |
Current |
5A continuous, 8A peak |
ESC firmware |
O_H_5_48KHz_V0.19.hex Bluejay firmware |
Digital signal protocol |
DShot300, DShot600 |
Motor Connector |
JST1.25 |
Battery connector |
A30 |
Product Name |
FLYWOO O4 1S 5V BEC Module |
Input Voltage |
2.65V-5V (1S battery voltage) |
Output |
5V/3A |
Dimensions |
11mm x 8mm x 2.2mm |
Weight |
0.4g |
Package Included:
1x GOKU F405 HD 1S 5A ELRS AIO (pre-soldered motor connectors)
1x FLYWOO O4 1S 5V BEC Module
1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL--40mm
5x M2*6.6 Shock-absorbing ball
1x shrink film
4x Silica wire (Red/Black)
1x A30 Power cable
<
