Description

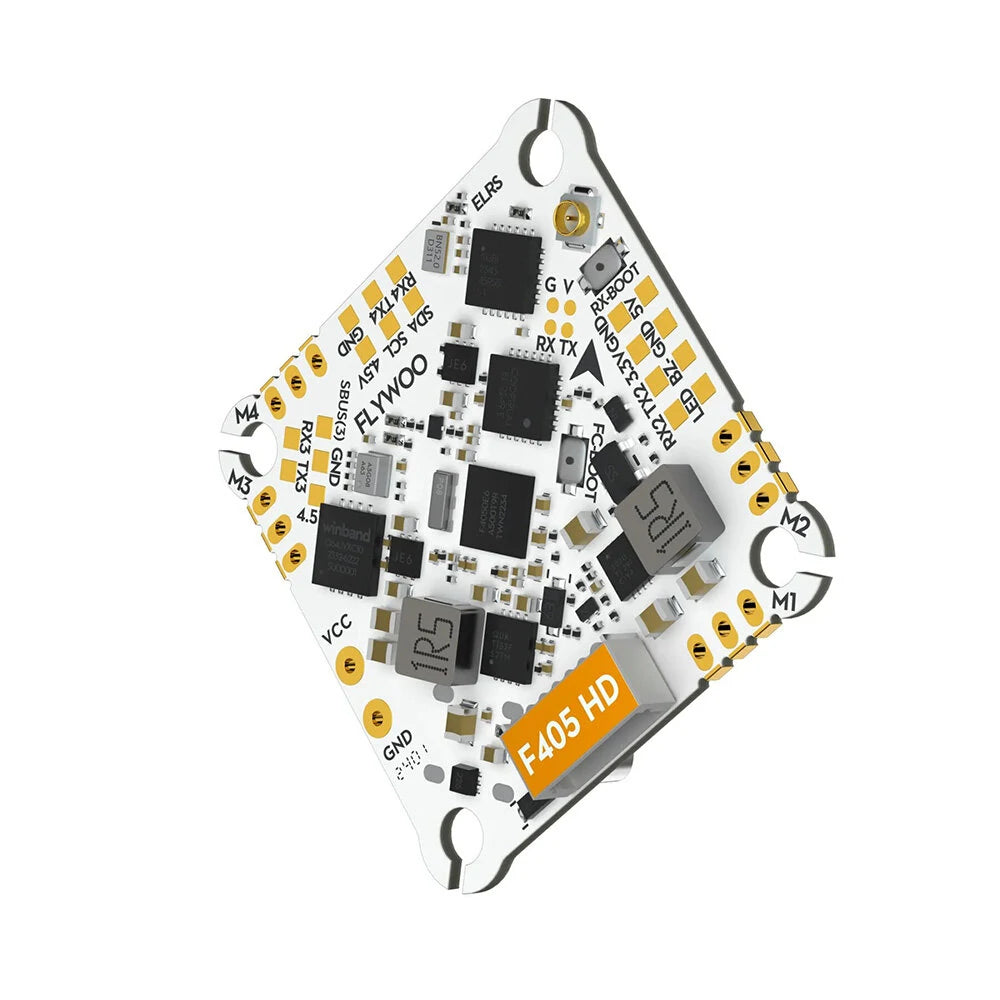

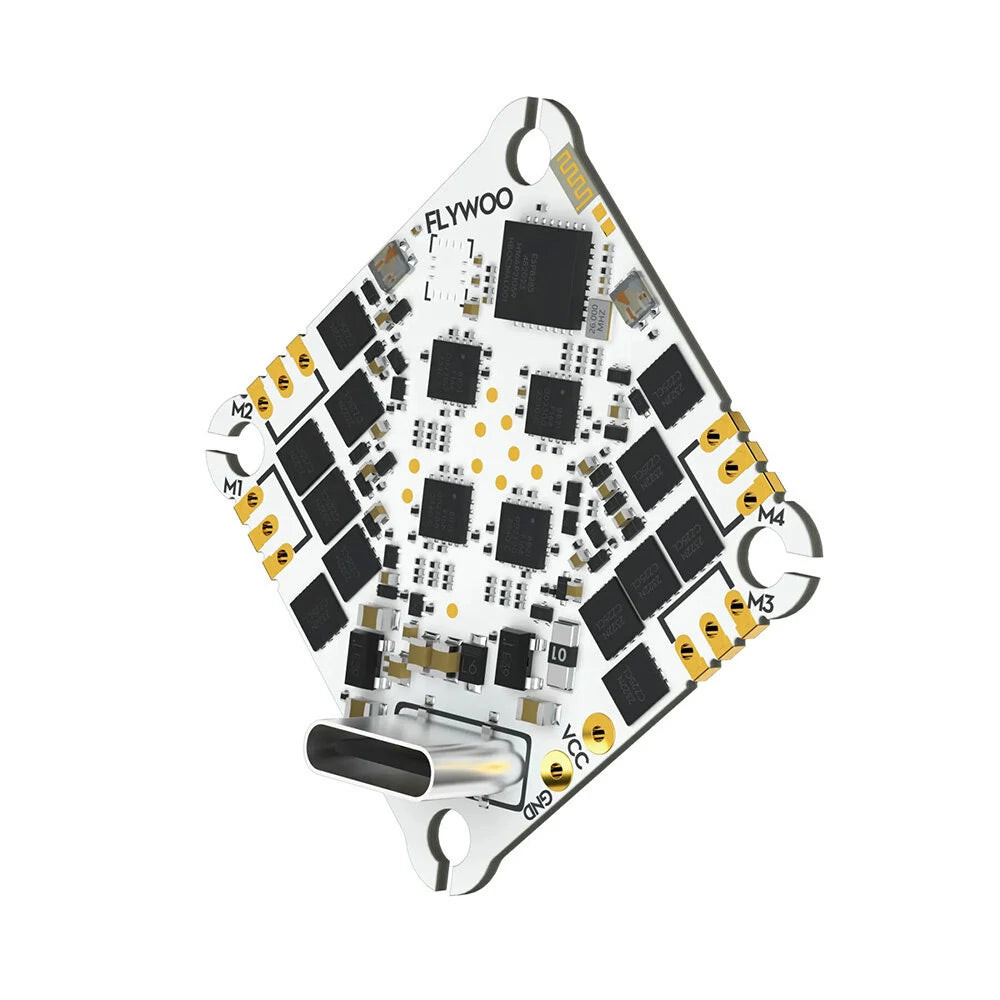

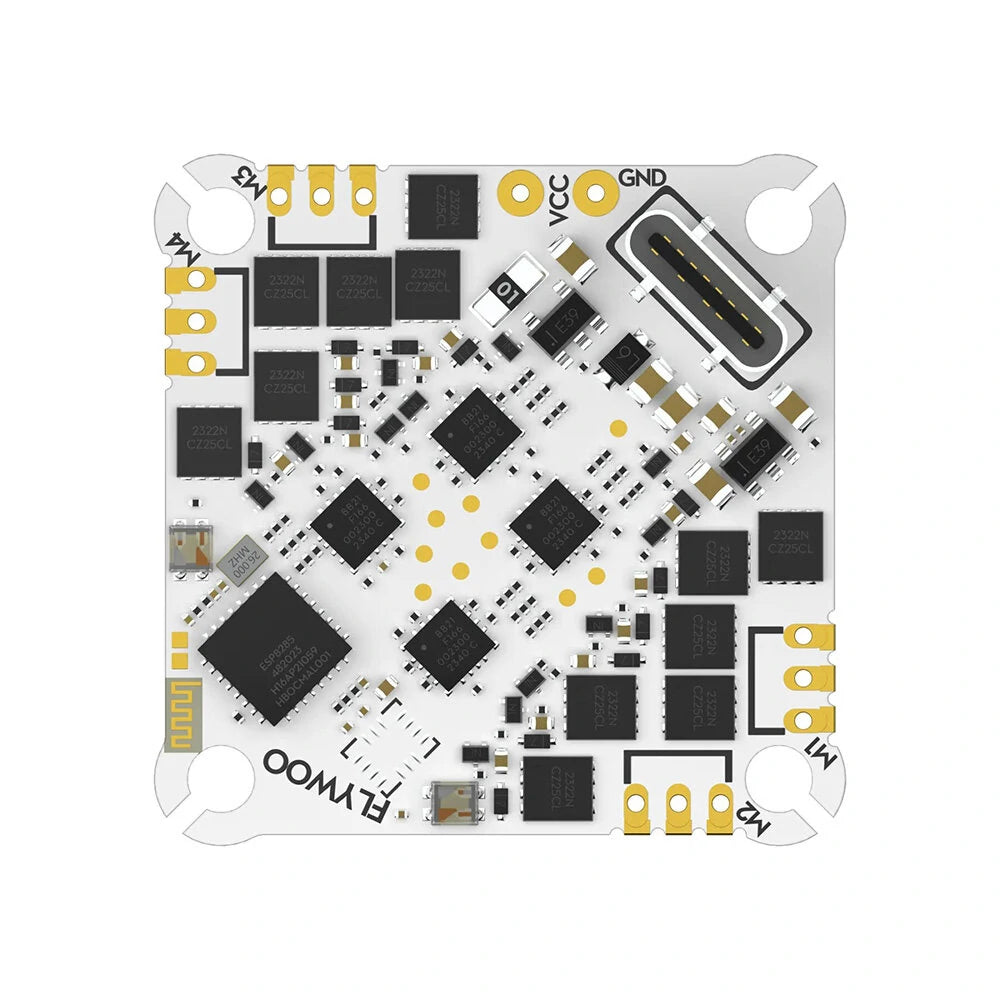

With the growing popularity of digital transmission, FLYWOO introduces an innovative solution for 1-2S HD Micro Drones.
This full-featured HD AIO solution integrates a Type-C interface, equipped with a high-performance F405 BGA MCU, and offers enoug Uart to meet the meet all you need. The GOKU F405 HD V2 AIO features a built-in 9V 2A BEC module, effectively preventing power cuts in the DJI O3 Air unit due to insufficient voltage.
Additionally, it comes with a serial ELRS 2.4G receiver, an 8MB black box, a barometer, and a current sensor, specifically designed for HD VTX. Its socket-style motor connections and plug-and-play (for DJI O3) design significantly simpliy the installation and debugging process, achieving a perfect blend of efficiency and convenience.
Highlights：
1.Type-C Design: Utilizes Type-C , more convenient and reliable connections.
2.New Power Supply : Features 9V 2A BEC , effectively preventing power outages in the DJI O3 Air unit due to voltage dropping .
3.Plug-and-Play Port for DJI O3: Direct plug design for DJI O3 air unit eliminates complex soldering steps
4.Motor Socket Design: Adopts socket connections for motors to facilitate quick replacements and upgrades.
5.Multifunctional Design: Integrates a serial ELRS 2.4G receiver, 8MB black box, barometer, and current sensor, reserves 2 full UARTs and 1 standard SBUS port, supporting connections with various devices like GPS, HD VTX, and external receivers.
Specifications：
Brand: Flywoo
Model: GOKU F405 HD
| Flight Controller |

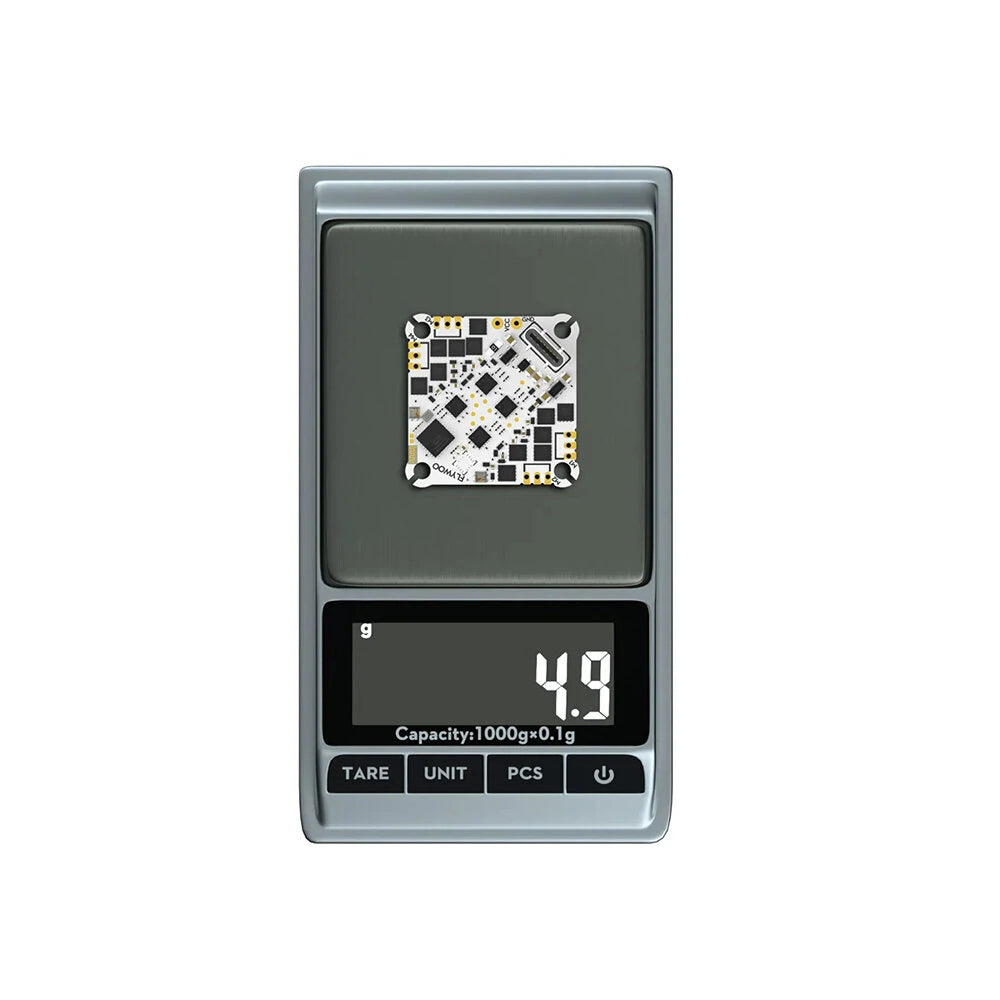

BF Flight Controller Firmware: FLYWOOF405S_AIO INAV Firmware: FLYWOOF405PRO MCU: STM32F405BGA BEC: 5V 2A/9V 2A Flash: 8M LED: 2*WS2812 Barometer: DPS310/SPL06 Gyro: ICM42688P Motor: M1-M4 OUTPUT I2C: SCL/SDA Uarts: 1,2,3,4,5,6 connector： Type-C OSD: NO Hole: 25.5*25.5-3mm Size: 30*30mm Weight: 4.9g |
|
Onboard 12A 4in1 ESC |
Built-in 1S/2S 12A BL_S 4in1 ESC Support Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 Input Voltage: 1-2S Lipo Firmware: BLHELI_S Firmware: Z_H_30_REV16.7 |
|
Onboard ELRS 2.4G Receiver Version ( Optional Receiver Version) |
ESP8285 MCU SX1280IMLTRT RF Module Frequency Range: 2400 MHz to 2500 MHz Maximum receive refresh rate: 500Hz Minimum receiver refresh rate: 25Hz Seiral: UART 1 Firmware: Flywoo EL24P 2400 RX Version: 3.X.X |
Without Receiver Version |
NO Receiver |
Package Included:
1x XT30 Power Cable
1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL(only ELRS Receiver Version Has)
1x Connection Cable for DJI O3
1x PH 2.0 Battery Lead
1x capacitor
4x JST Straight Socket
4x M2*10 screw
4x M2 nuts
4x M2 shock-absorbing ball
