25.5x25.5mm DarwinFPV FoldApe4 ELRS3.0 F411 Bluejay MPU6500 AIO F4 Flight Controller 1-3S 15A ESC for Long Range RC FPV Racing Drone

Save R 401.72

Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: F411 15A AIO
Price:
Sale priceR 1,305.72 Regular priceR 1,707.44
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Summary:

This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.


Learn about ExpressLRS:ExpressLRS is an open source Radio Link for Radio Control applications, all of you can find these projects on GitHub.it is based on the fantastic Semtech SX127x/SX1280 LoRa hardware combined with an Espressif or STM32 Processor. Using LoRa modulation as well as reduced packet size it achieves best in c

lass range and latency. It achieves this using a highly optimized over-the-air packet structure, giving simultaneous range and latency advantages. It supports both 900 MHz and 2.4 GHz links, each with their own benefits. 900 MHz supports a maximum of 200 Hz packet rate, with higher penetration. Under 2.4GHz frequency bands,OpenTX system supports amazing 500Hz.


Specifications:

BrandDarwinFPV
Model: F411 15A ELRS AIO

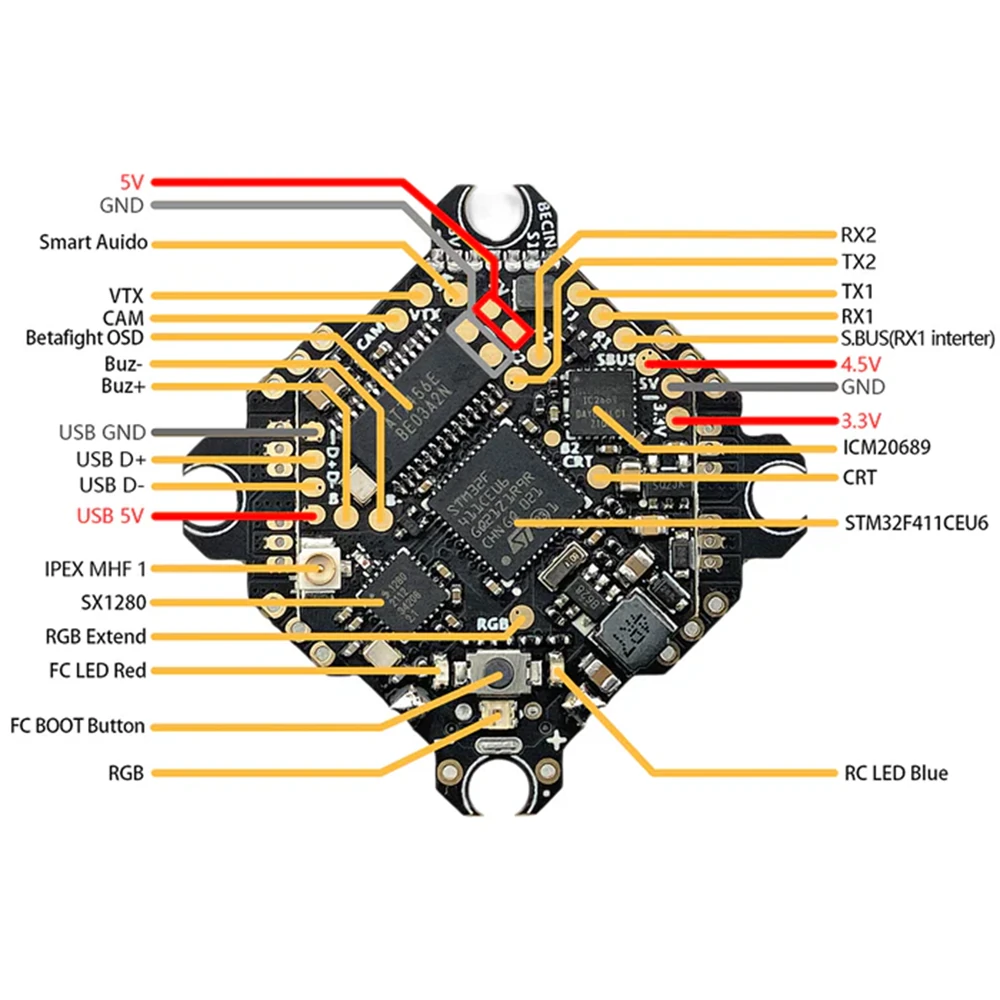

Input Voltage: 1-3S LipoFC Main Control Chip: STM32F411Gyro: MPU6500OSD: AT7456EBlack Box: NoneBarometer: NoneBluetooth: NoneReceiver: On board SPI ELRS 3.x Version 2.4G ReceiverBEC: 5V/2AUSB Interface: 1x Micro USBSerial Port: UART1,UART2Soft Serial Port: NoneRSSI: NoneRGB: Onboard 1 xRGBBuzzer: 1x BB-FC Firmware: DARWINF4SX1280HD(BetaFlight)ESC Main Control Chip: EFM8BB21 (8bit 48MHz)Continuous Current: 4x15APeak Current: 4x17A (5S)Support Throttle Protocol: Dshot 150/300/600Galvanometer: NoneTelemetry: NoneESC Firmware: S_H_50 (BlueJay)ESC Power Cable: #20AWG /70mm

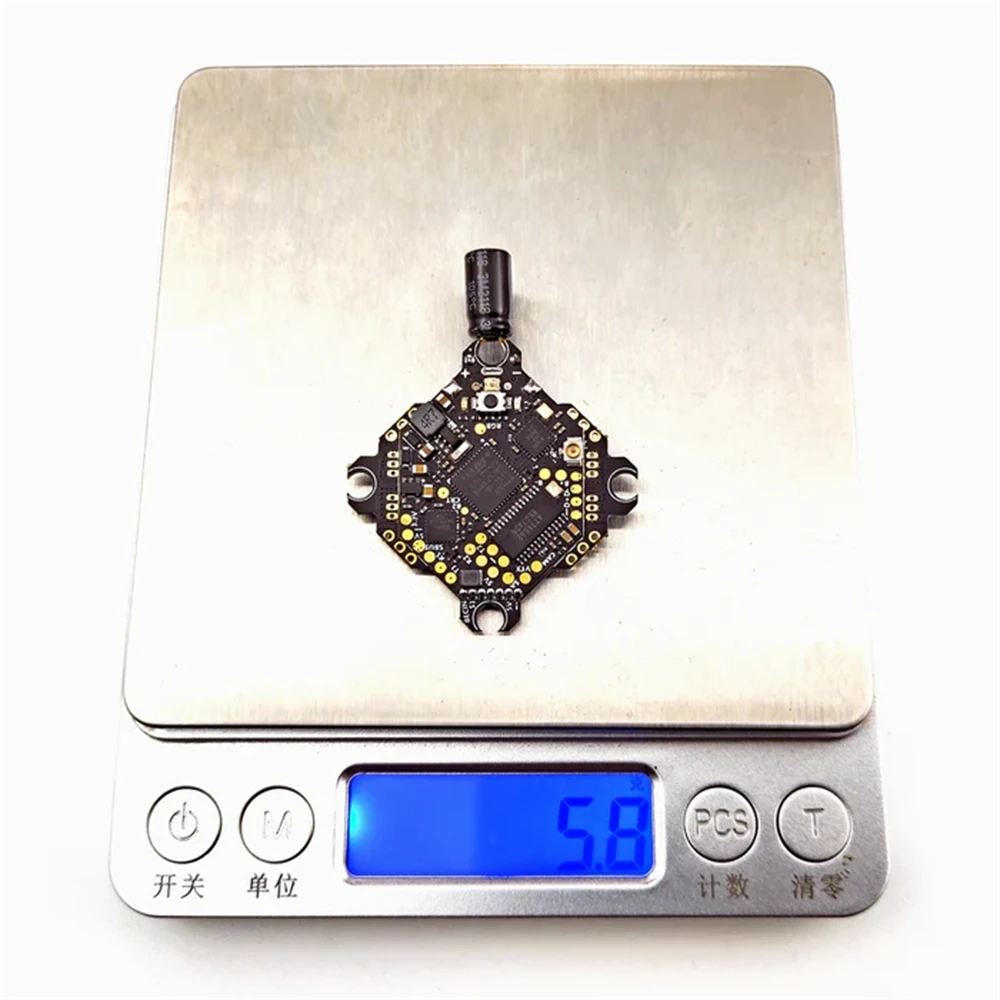

Mounting Dimensions: 25.5x25.5mmDimensions: 31x31x7mmWeight: 5.4±2g

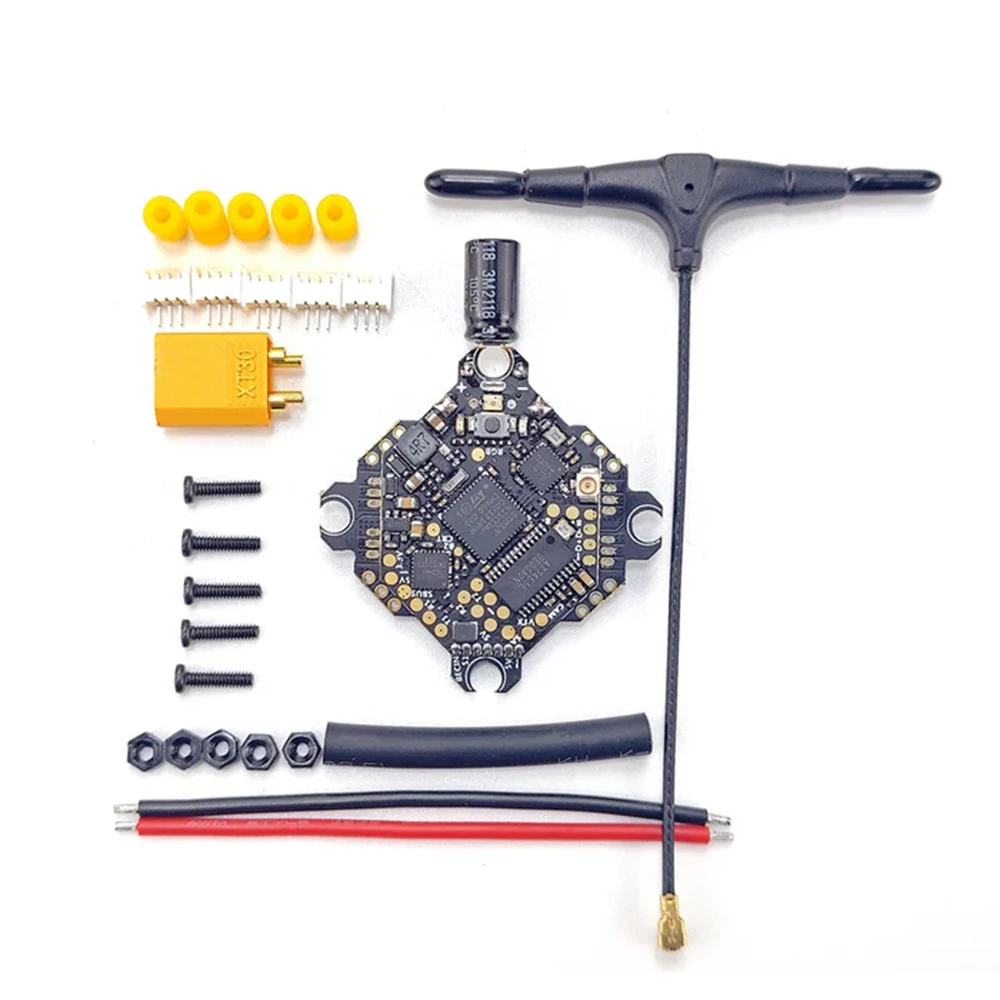

 Packing List:1 × DarwinFPV F411 15A ELRS AIO5 × Motor socket (SH1.25 female)1 × Power cord (#20AWG /70mm)1 × XT305 × M2*6.6 shock absorber ball1 × 2.4G RF113 IPEX1 86mm silver-plated antenna1 × Spare screw package (M2*8)1 × Sticker
