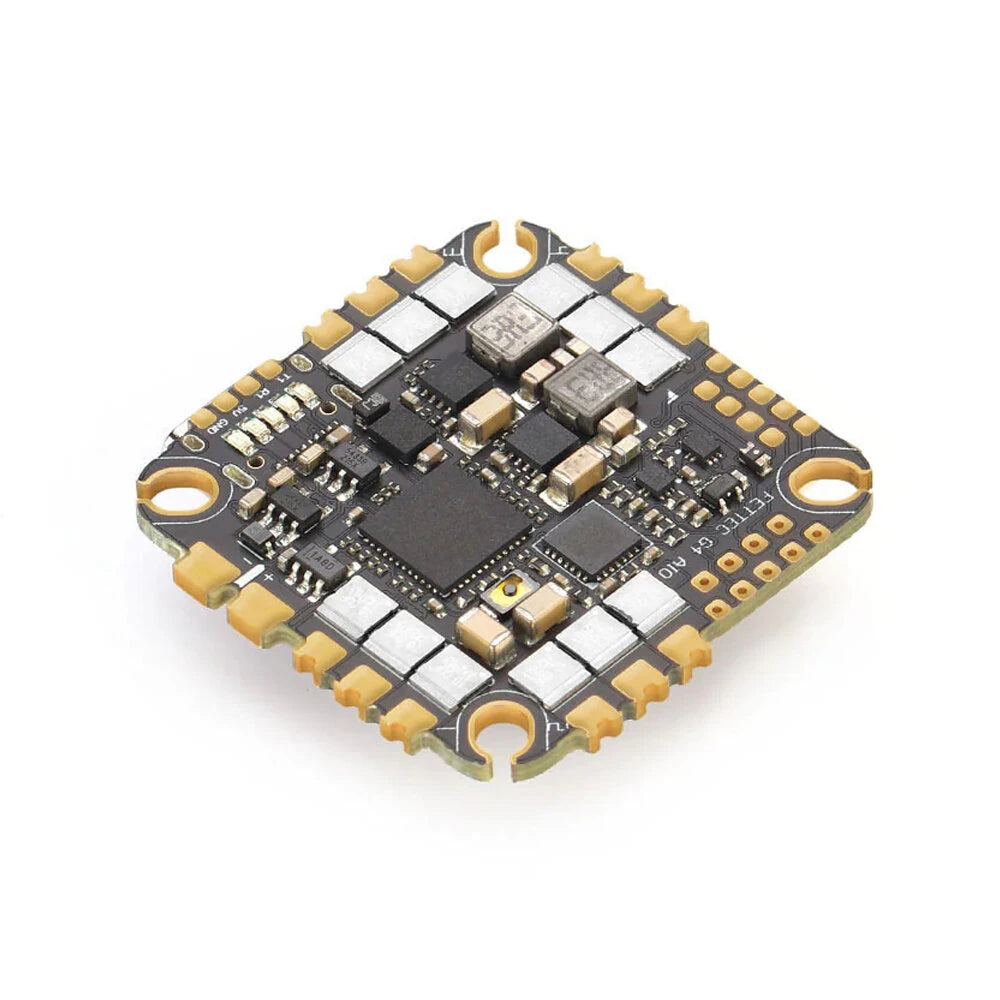

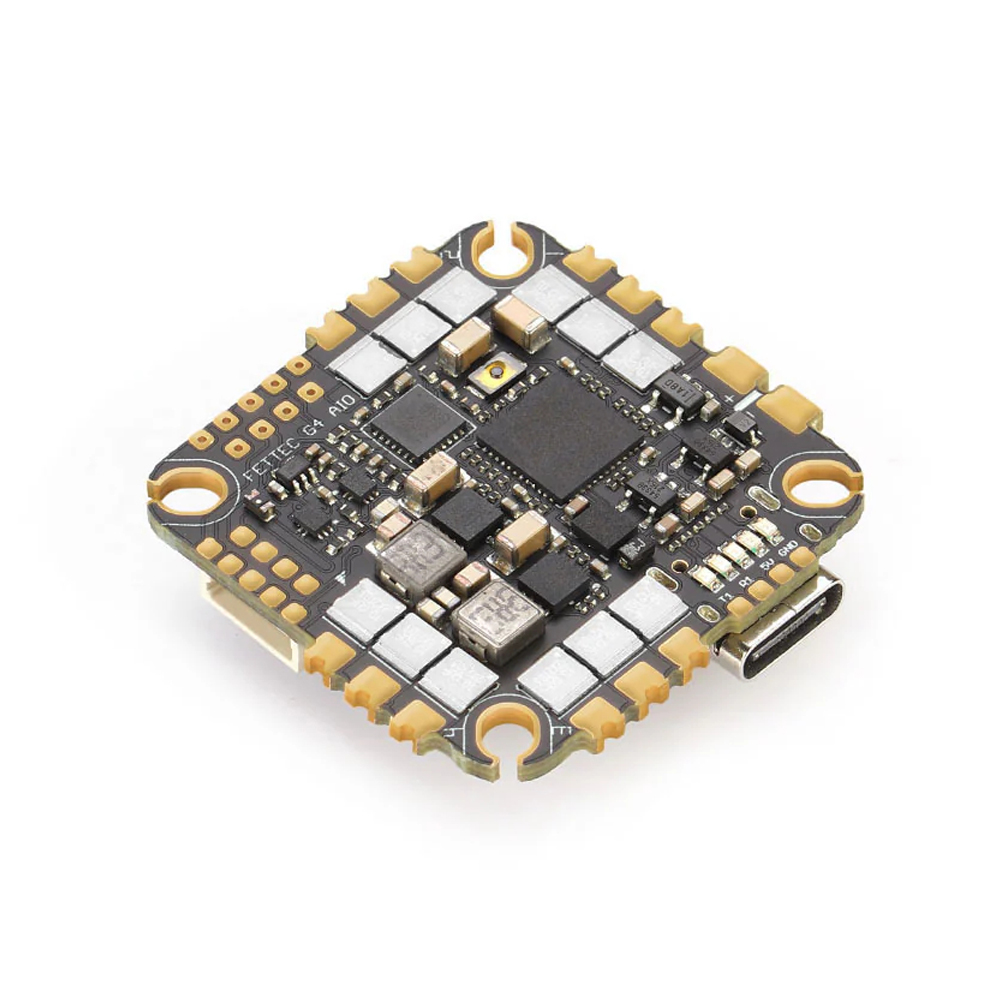

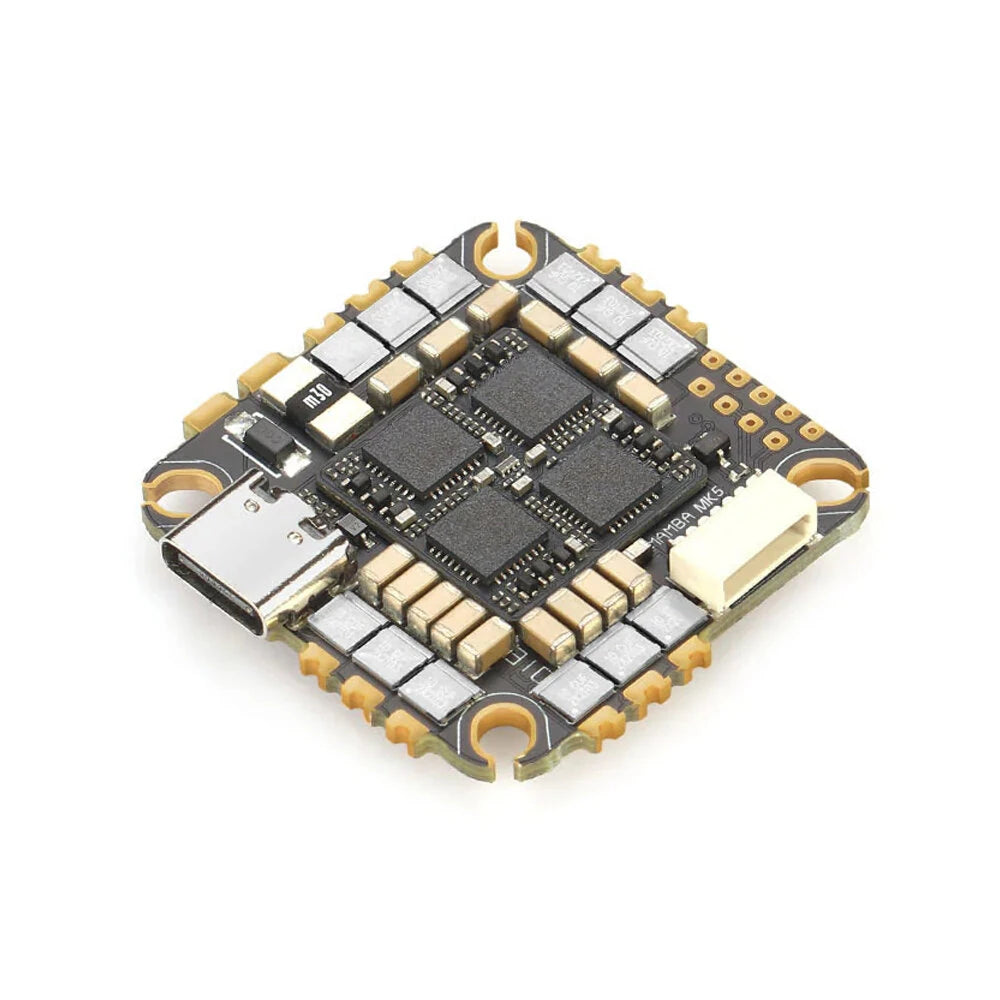

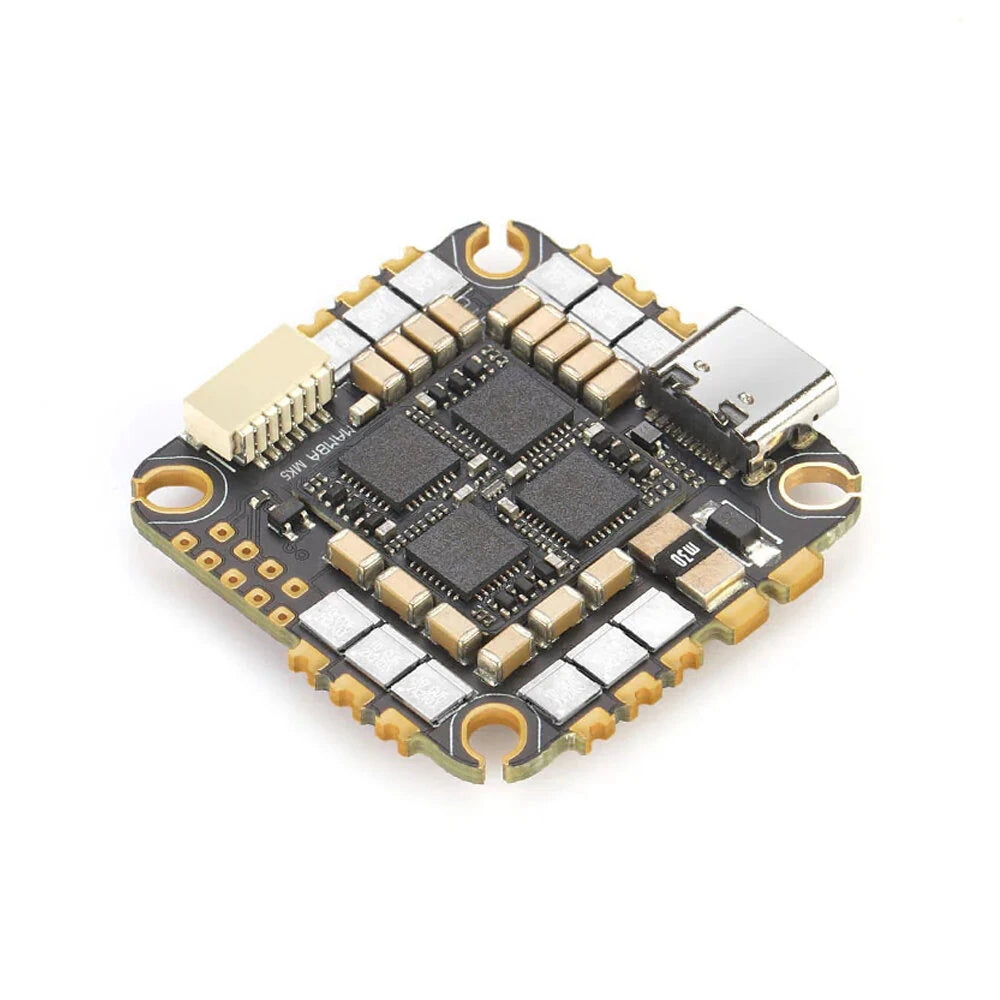

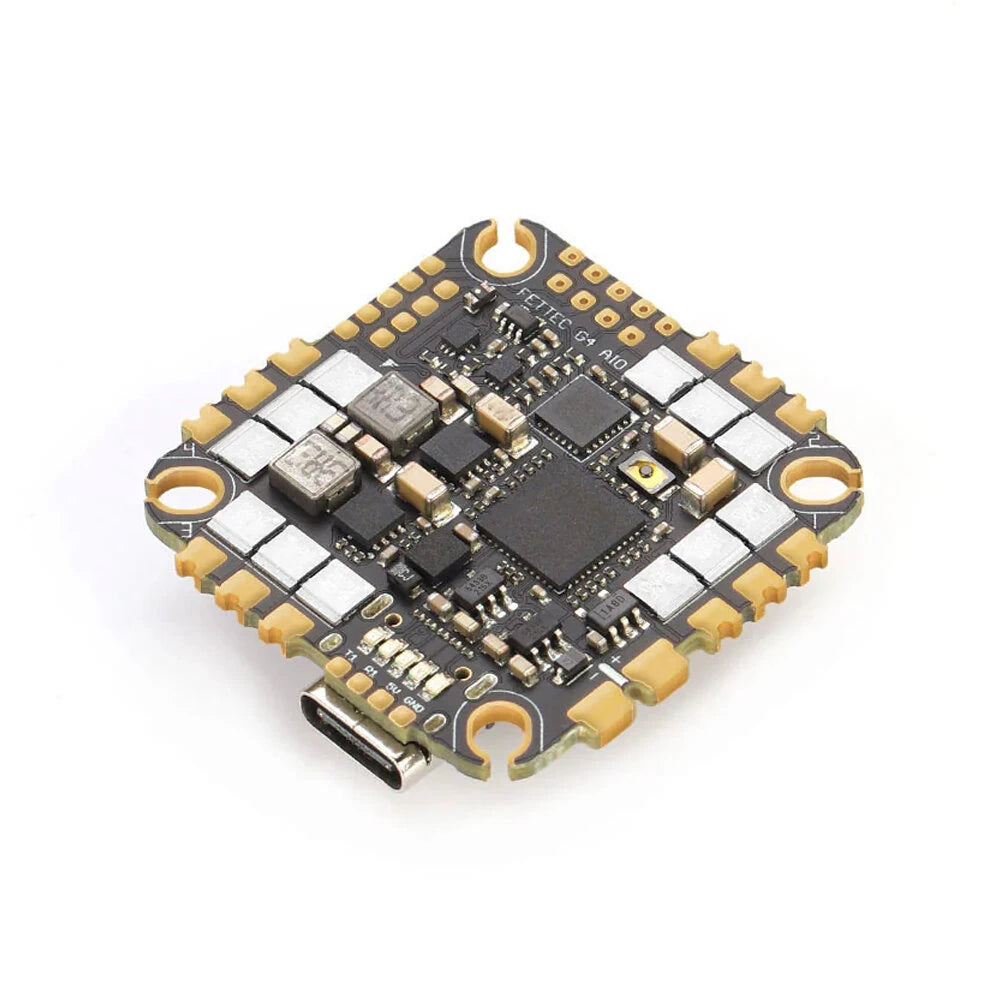

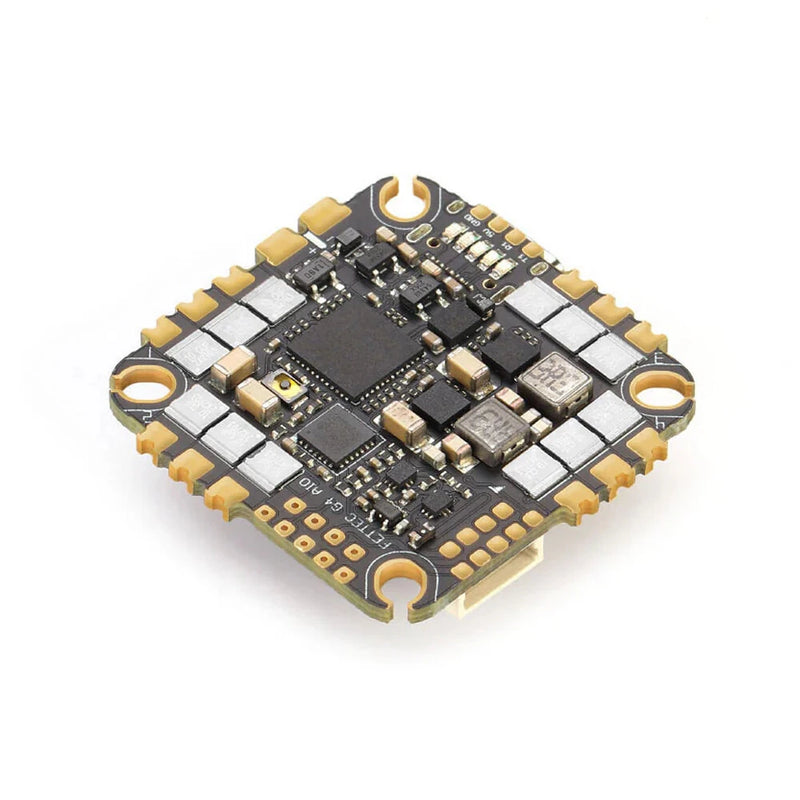

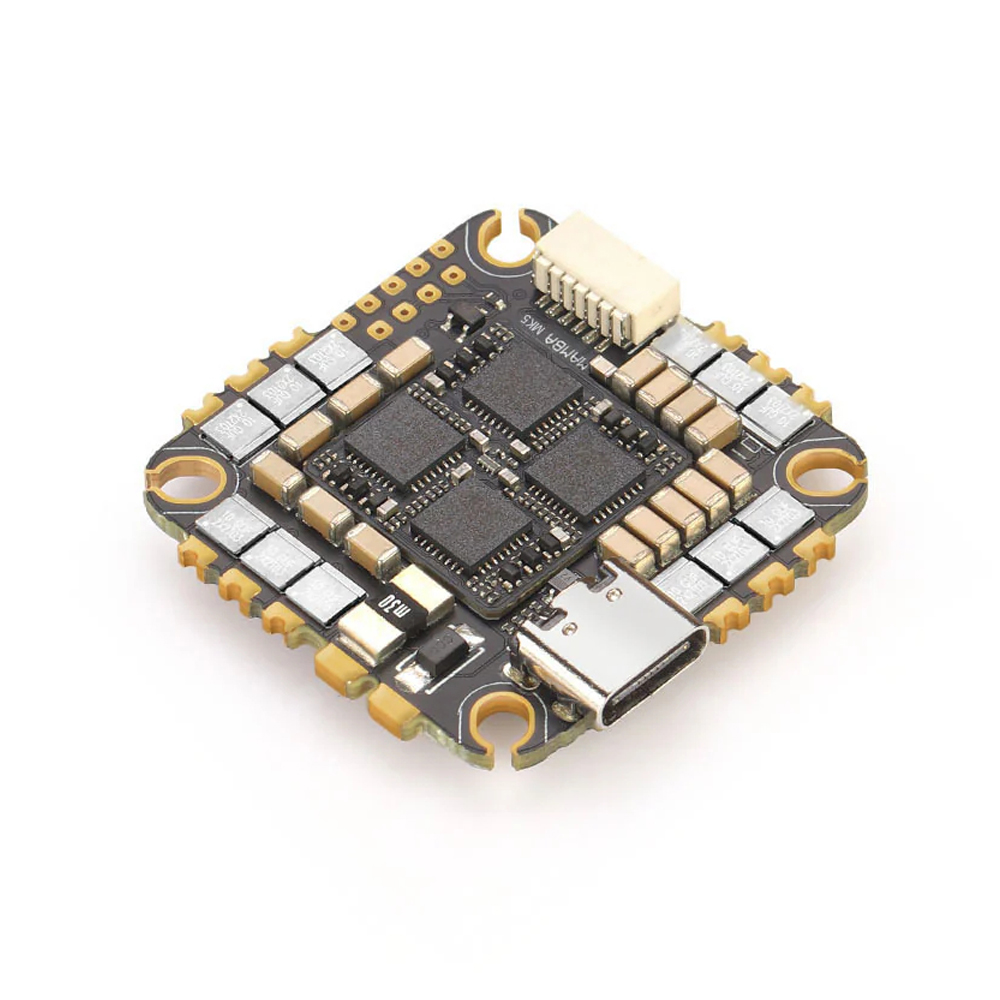

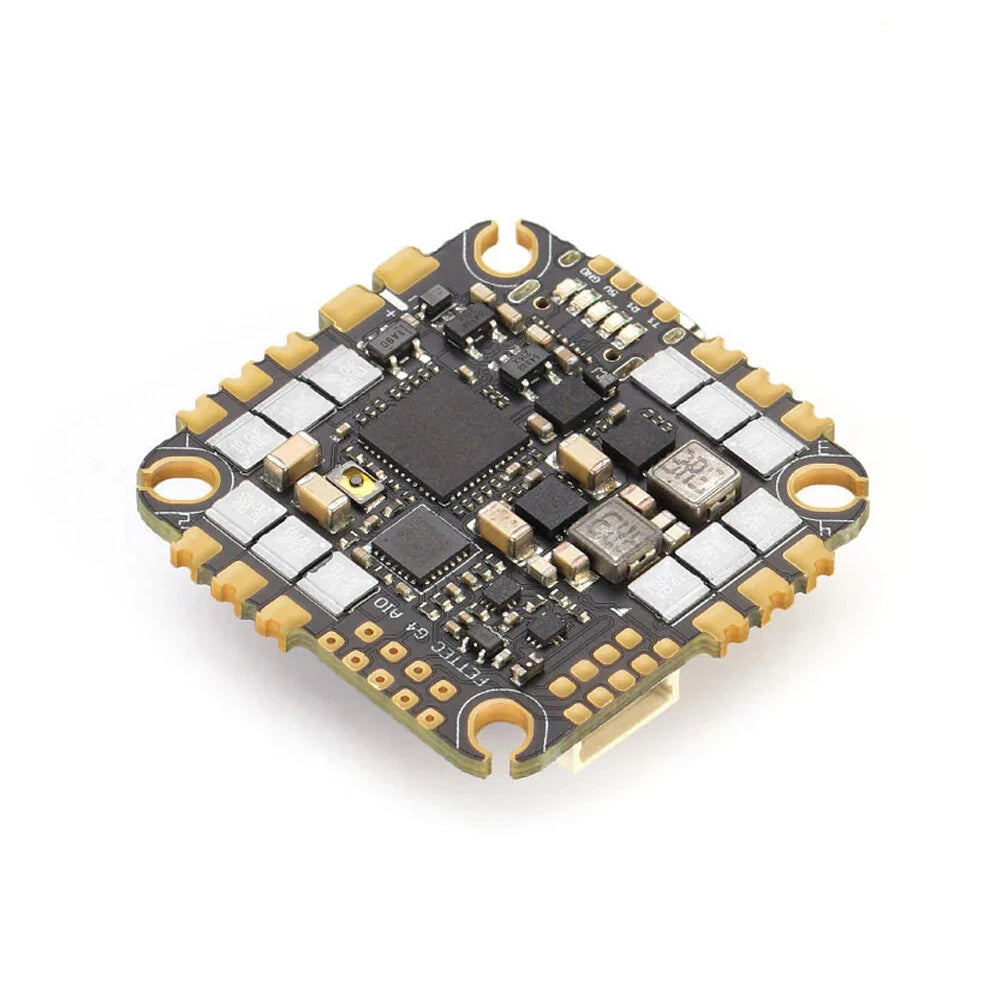

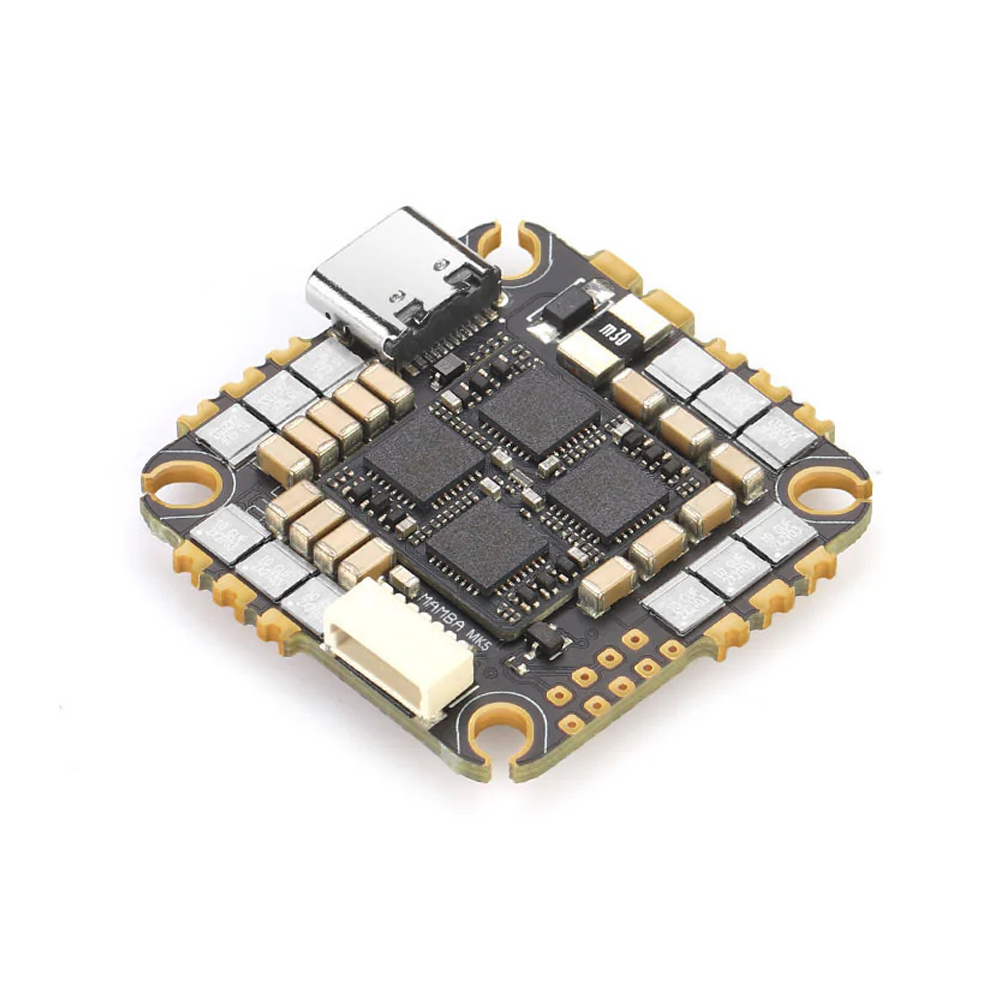

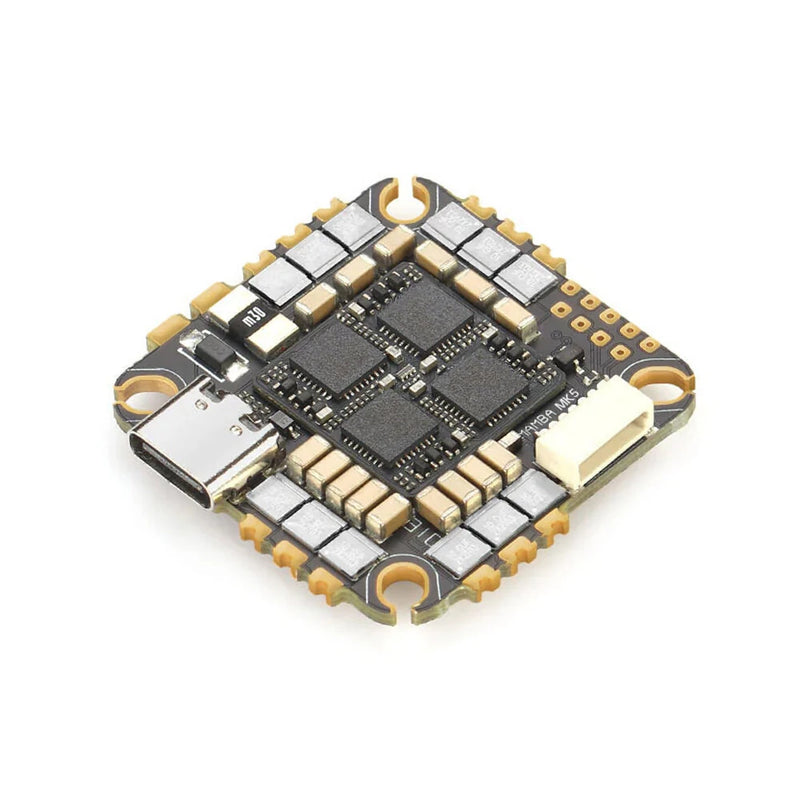

25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
Roll over image to zoom in Click on image to zoom
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone
25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone

25.525.5mm Mamba MK5 G4 AIO Alpha Dshot2400 Flight Controller with 40A 4-6S ESC for RC FPV Racing Drone

Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: MK5 G4 AIO
Price:
R 2,289.70 R 2,757.64
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Please notice：This AIO only Support Alpha not support BetaFlight.


Specification
Brand: MAMBA

Item Name: MK5 G4 AIO

FC

Target: Alpha
MCU: 170MHz STM32G473
GYRO: IIM-42652
OSD: Yes
Uarts: 4 Set
Motor Signal:4 Set
ESC Soft: Dshot300/600/1200/2400
Power Led: Yes
LED Controller: Yes
AIR UNIT Port: Yes
Buzz: Yes
Input: 4~6S Lipo (14.8~25.2V)
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC: 10V 2A& 5V 2A
Mounting size: 25.5×25.5mm/M2
Overall dimensions: 35×34.5×6.5mm
ESC Input: 4~6S Lipo (14.8~25.2V)f
Continue Current: 40A×4
Burst current: 45A (10S)
Target：BLHeli_32 MAMBA F40_128K
SOFT: Dshot300/600/1200/2400
PWM:24~128K


Supply :
High Frequency 470uF/35V ×1
AIR UNIT sh1.0 ×1
16AWG 60mm ×2
AMASS Original XT60

Package Included:
1 x MAMBA MK5 G4 AIO
