Description

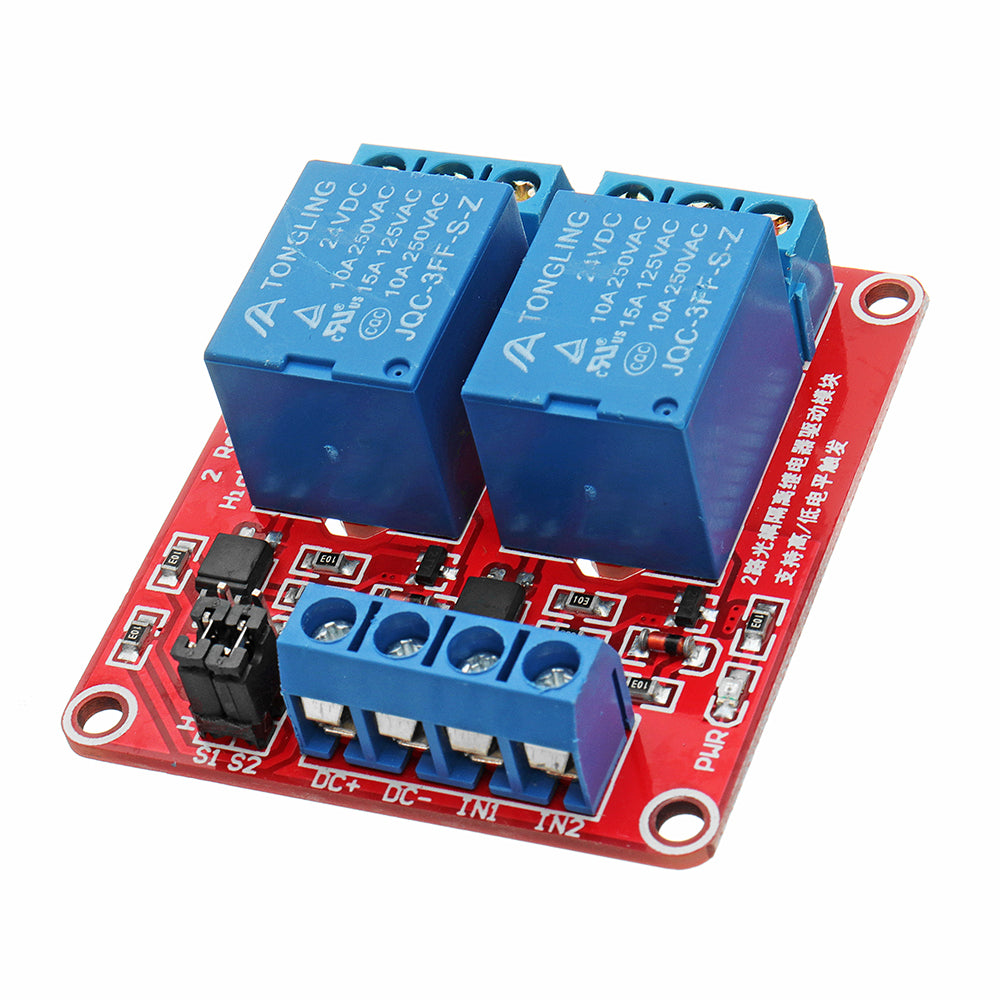

This module uses genuine quality relay, with stable performance.
You can set it to high or low trigger by a jumper.
It also has a fault-tolerant design, meaning that even if the control line is broken, the relay will not operate.
The power indicator (green) and relay status indicator (red) make it easy to use.
The interface is designed for human nature, with all interfaces available through a direct connection terminal.
The module is also 50 x 26 x 18.5mm (L x W x H) with four mounting holes.
More Information:
You can set it to high or low trigger by a jumper.
It also has a fault-tolerant design, meaning that even if the control line is broken, the relay will not operate.
The power indicator (green) and relay status indicator (red) make it easy to use.
The interface is designed for human nature, with all interfaces available through a direct connection terminal.
The module is also 50 x 26 x 18.5mm (L x W x H) with four mounting holes.
Description:
The module uses genuine quality relay, normally open interfaces
Using SMD optocoupler isolation, driving ability, stable performance
The module can be high or low by a jumper setting trigger
Fault-tolerant design, even if the control line is broken, the relay will not operate
The power indicator (green), the relay status indicator (red)
The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenient
Specification:
Maximum load: AC 250V/10A, DC 30V/10A
Trigger current: 5mA
Working voltage: 12V

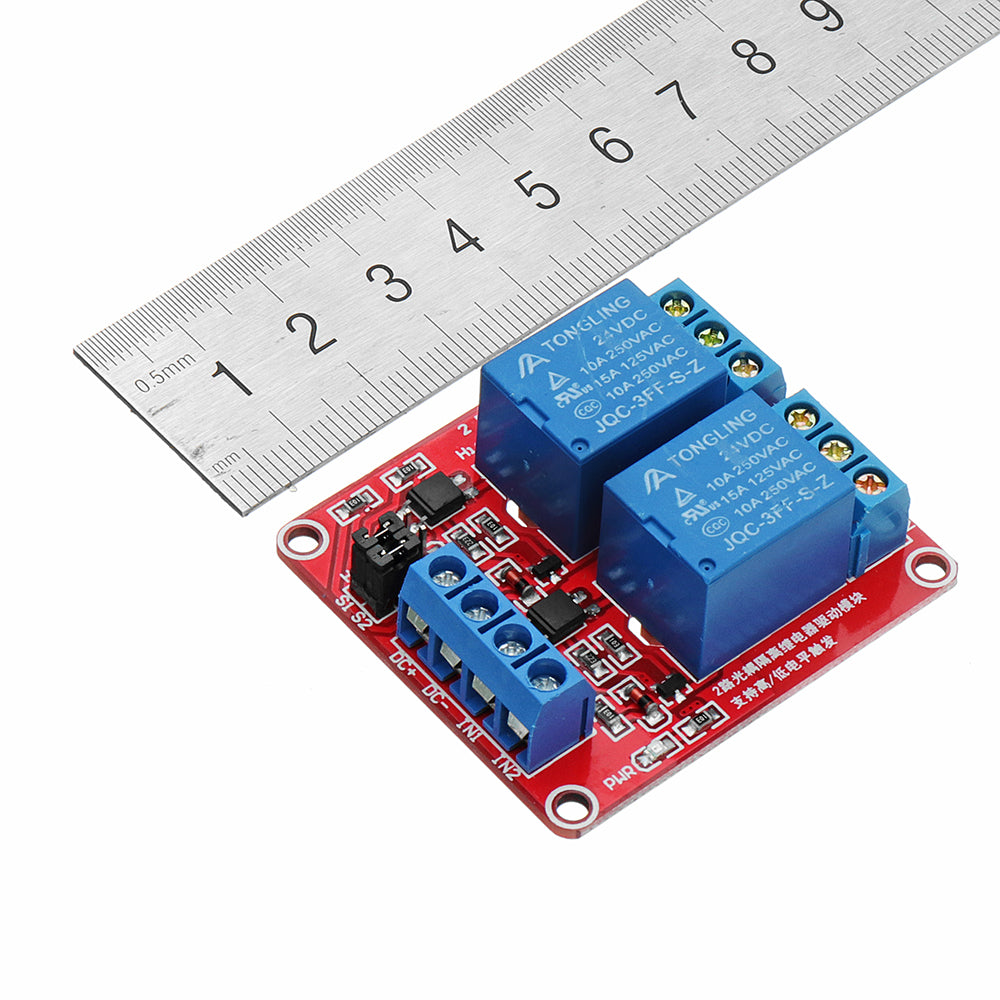

Module size: 50 x 26 x 18.5mm (L x W x H)
Four mounting bolts holes, diameter 3.1mm
Module Interface:
DC+: positive power supply (VCC)
DC-: negative power supply (GND)
IN: can be high or low level control relay

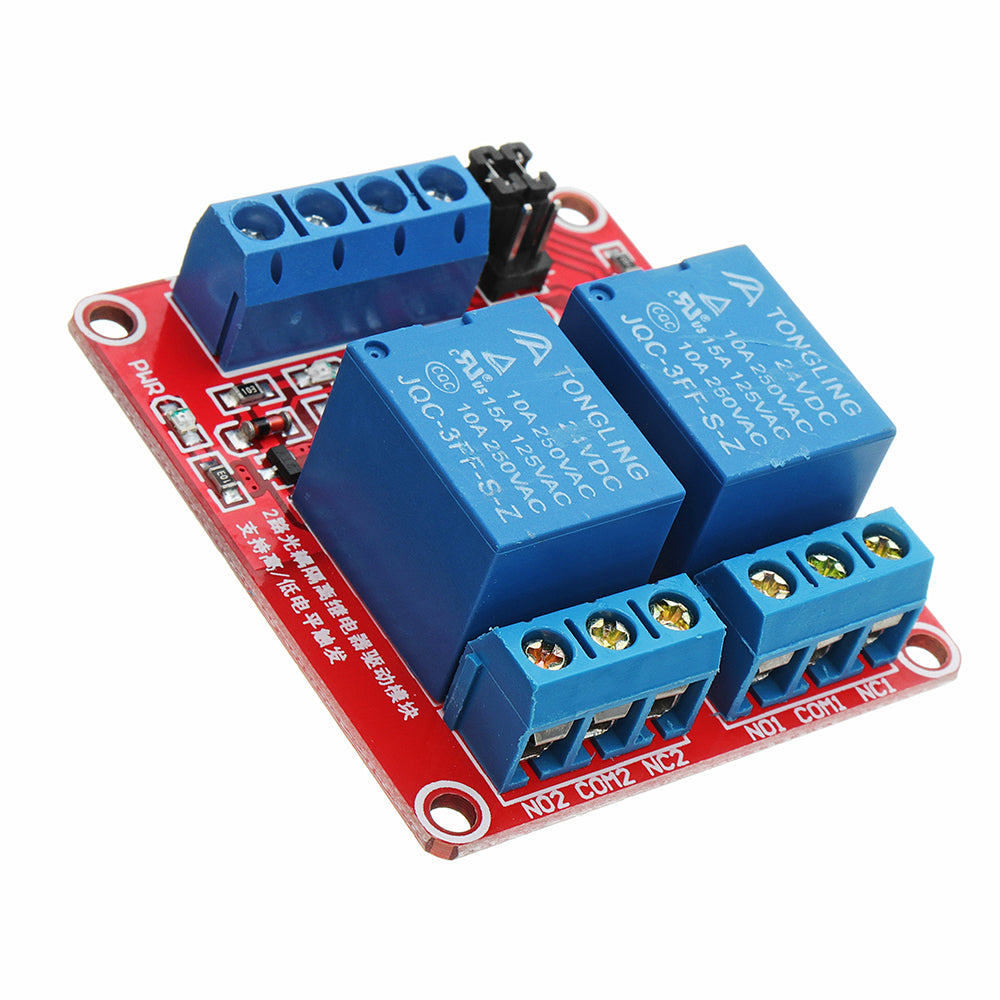

Relay Outputs:
NO: normally open relay interface
COM: Common Interface Relays
NC: normally closed relay interface
High and low level trigger options:
It is low level trigger when jumper connect to LOW pin
It is high level trigger when jumper connect to HIGH pin
Package included:
1 x 2 Channel H/L Level Trigger Optocoupler Relay module
