Description
Specification:
Brand: MAMBA

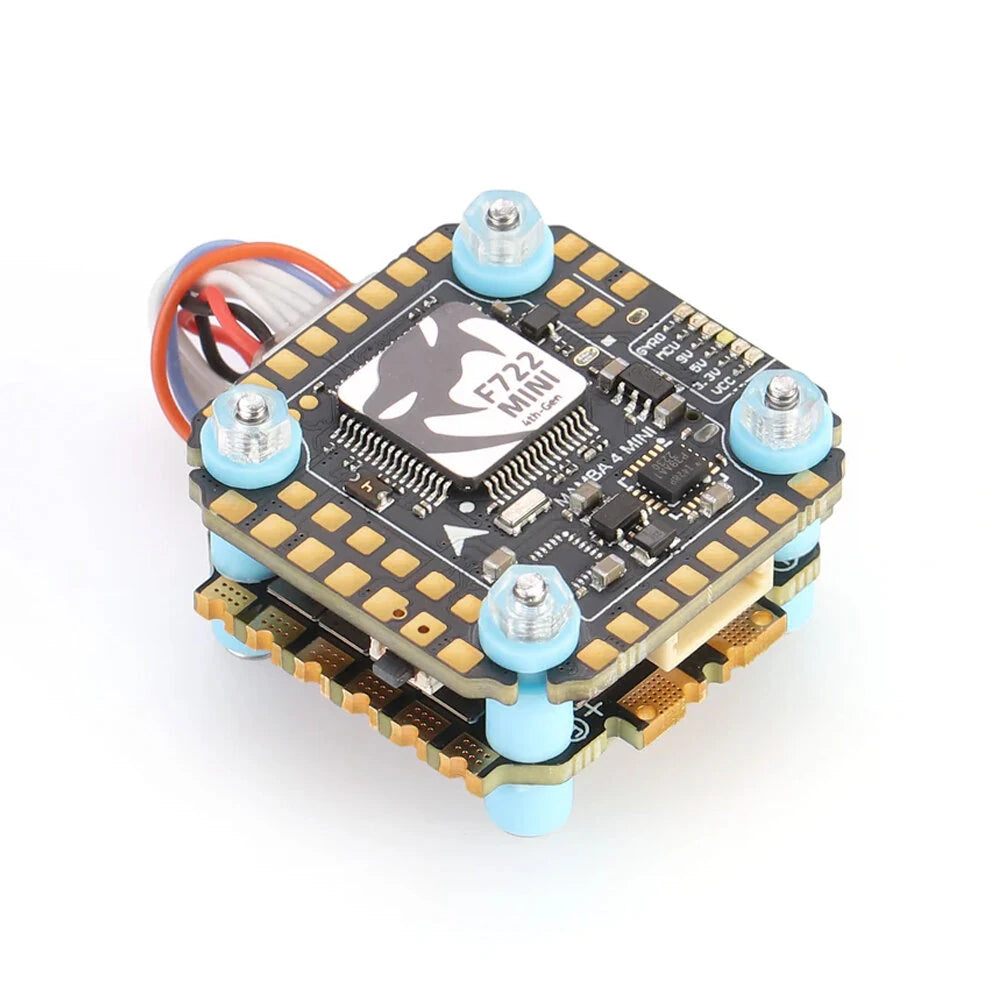

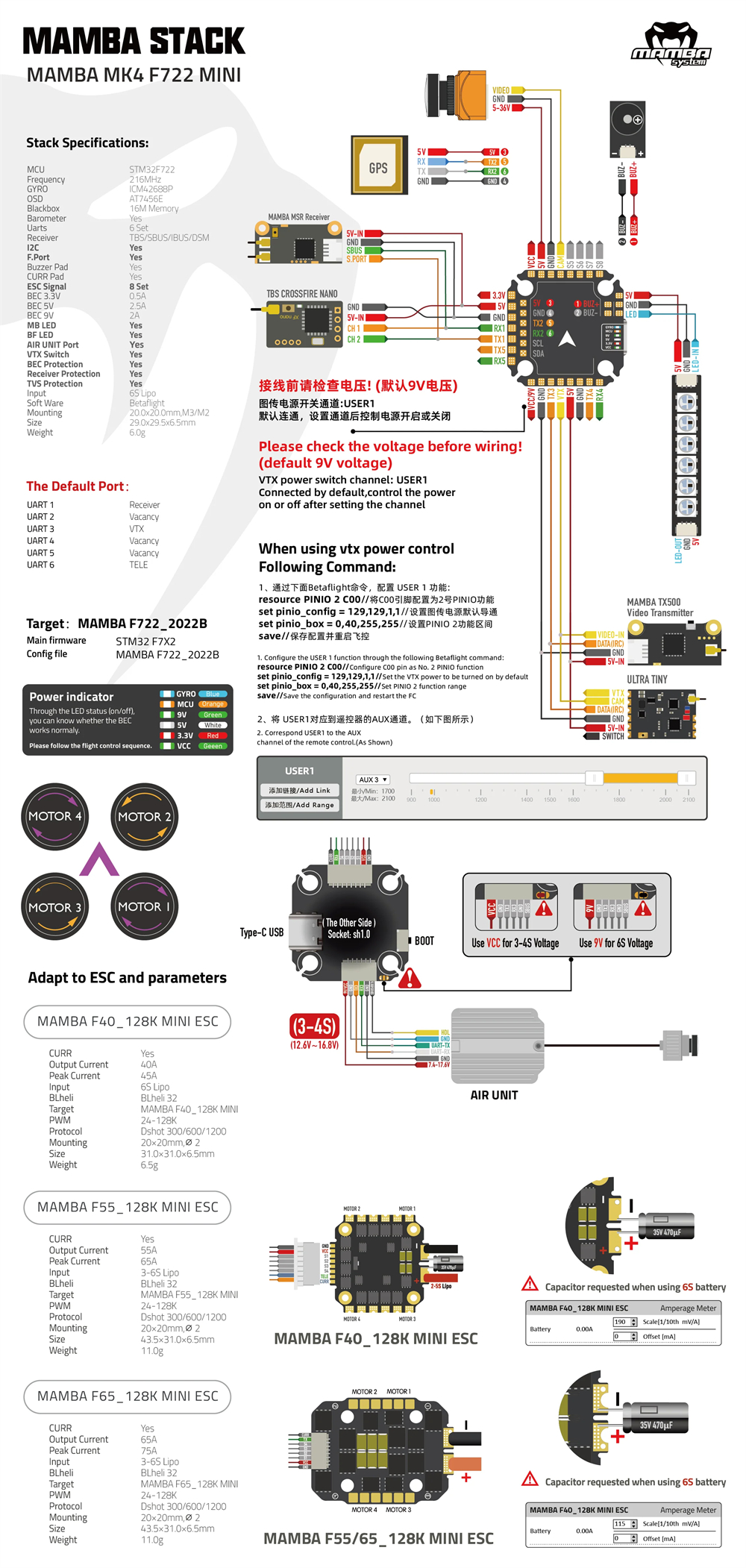

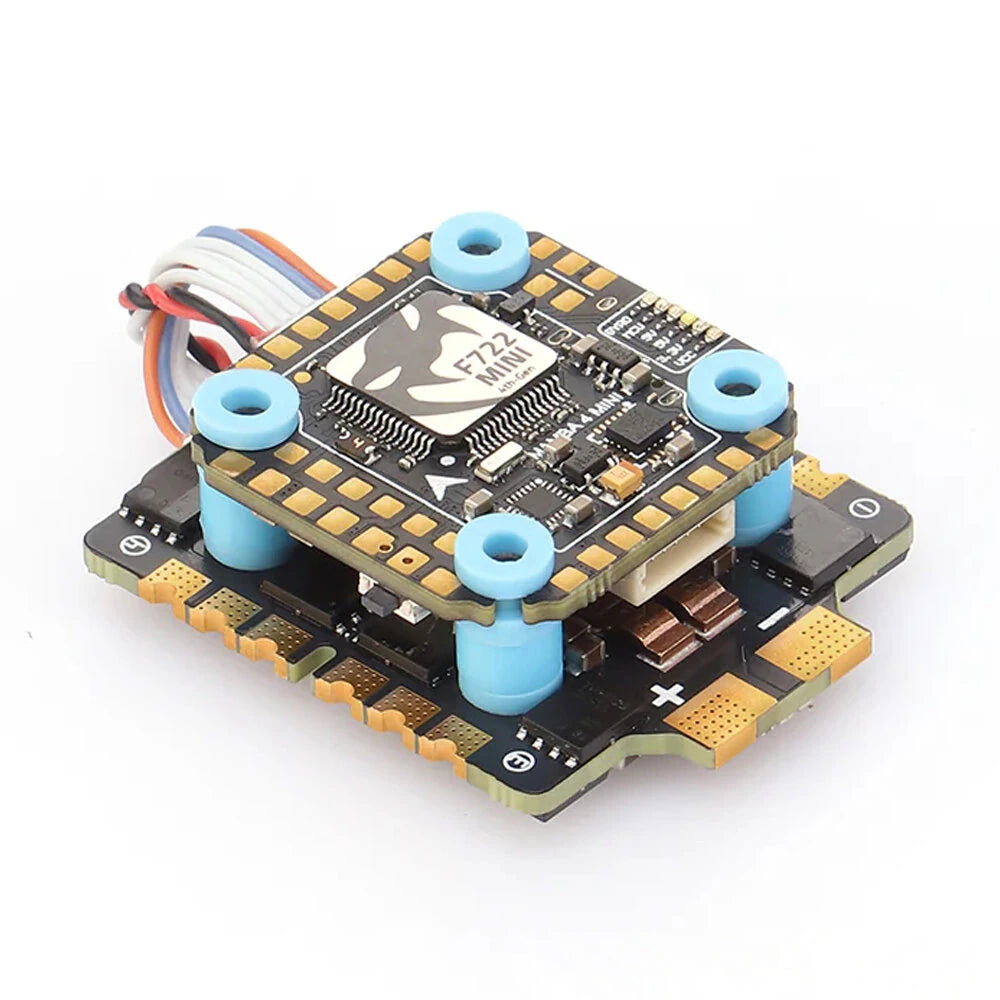

Item Name: MK4 F722 MINI Stack
Model |
Specification |

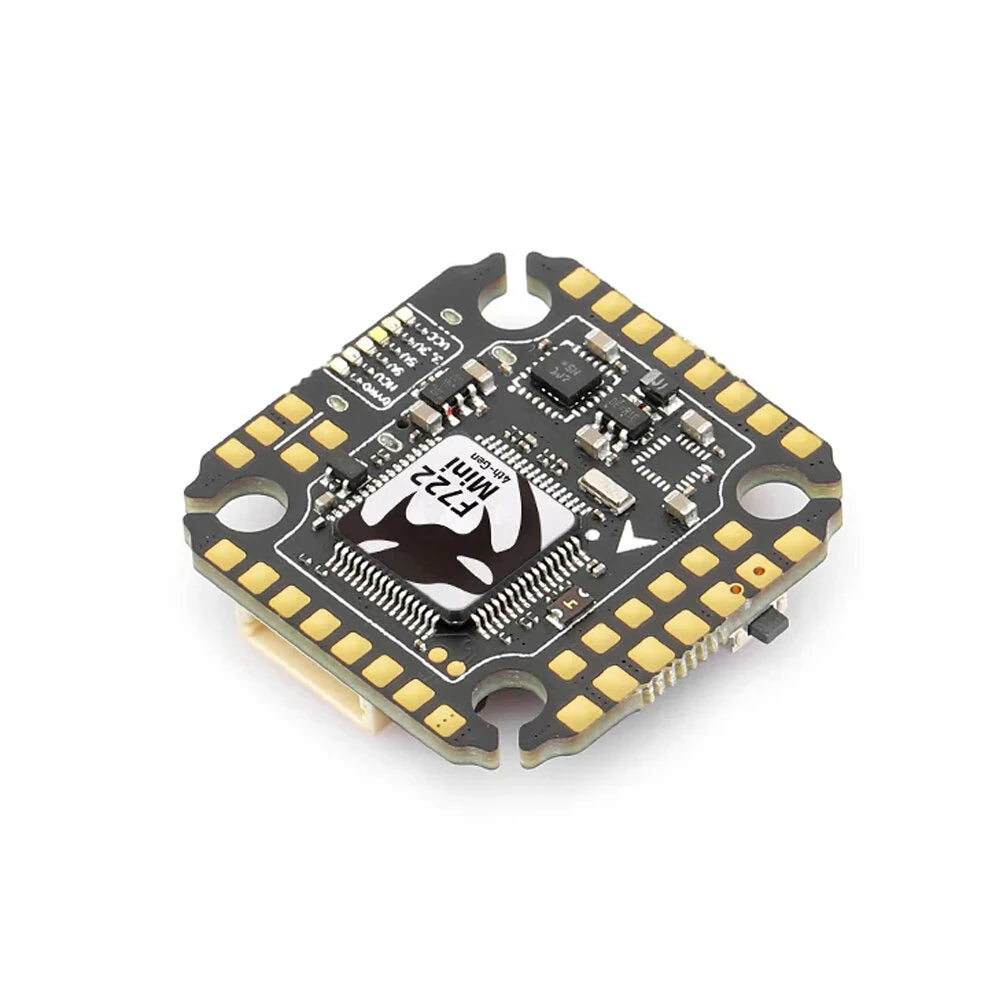

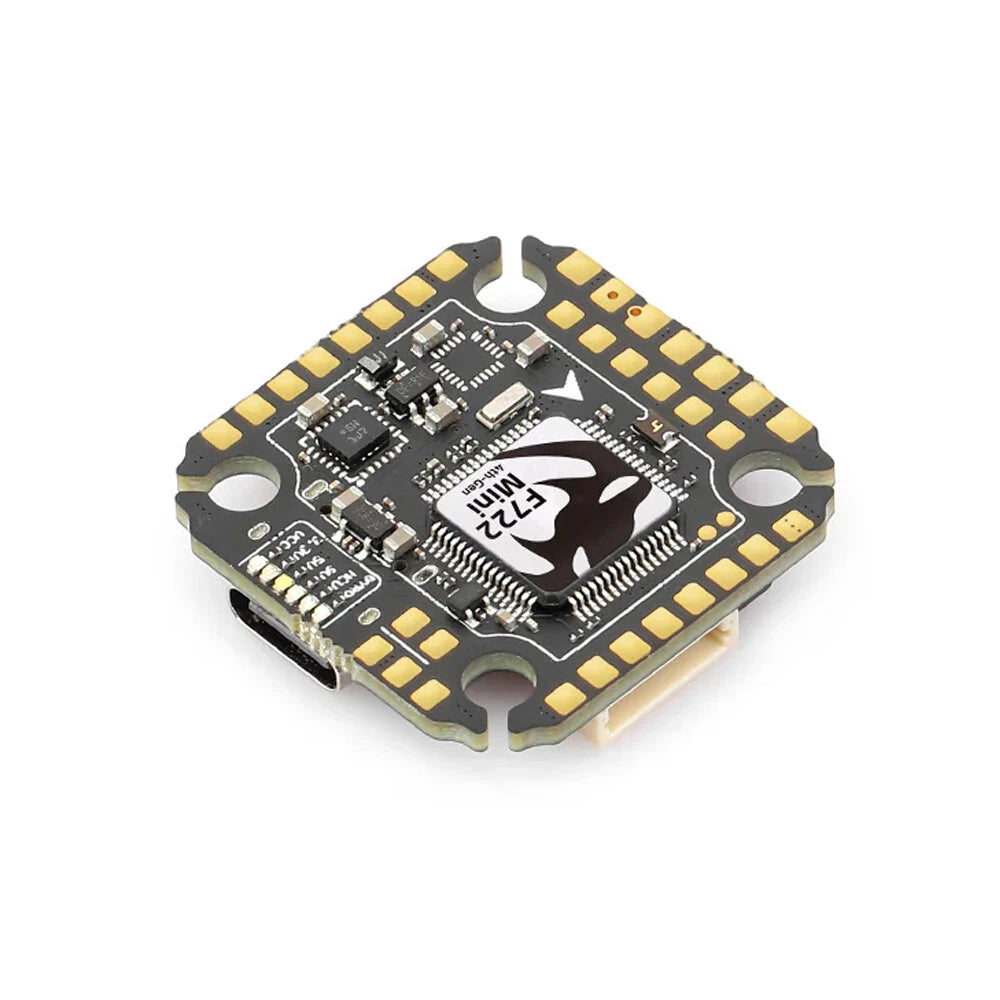

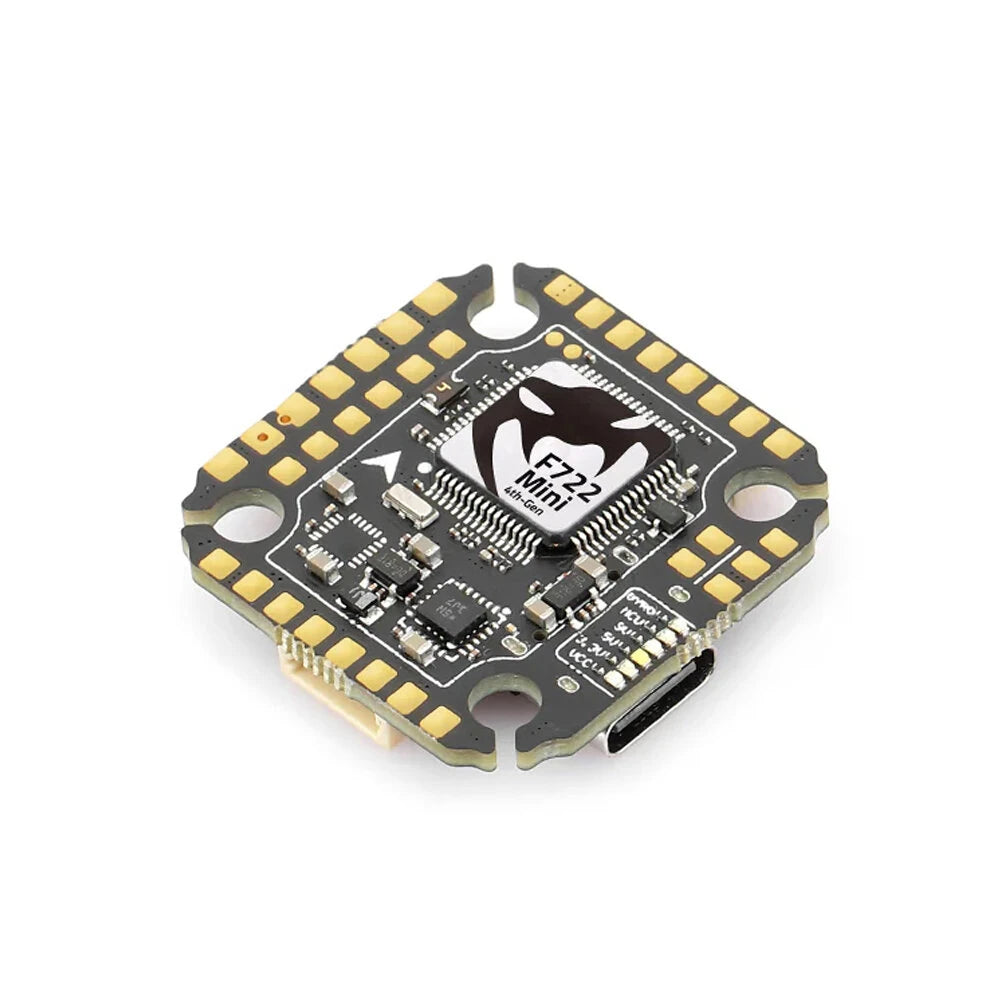

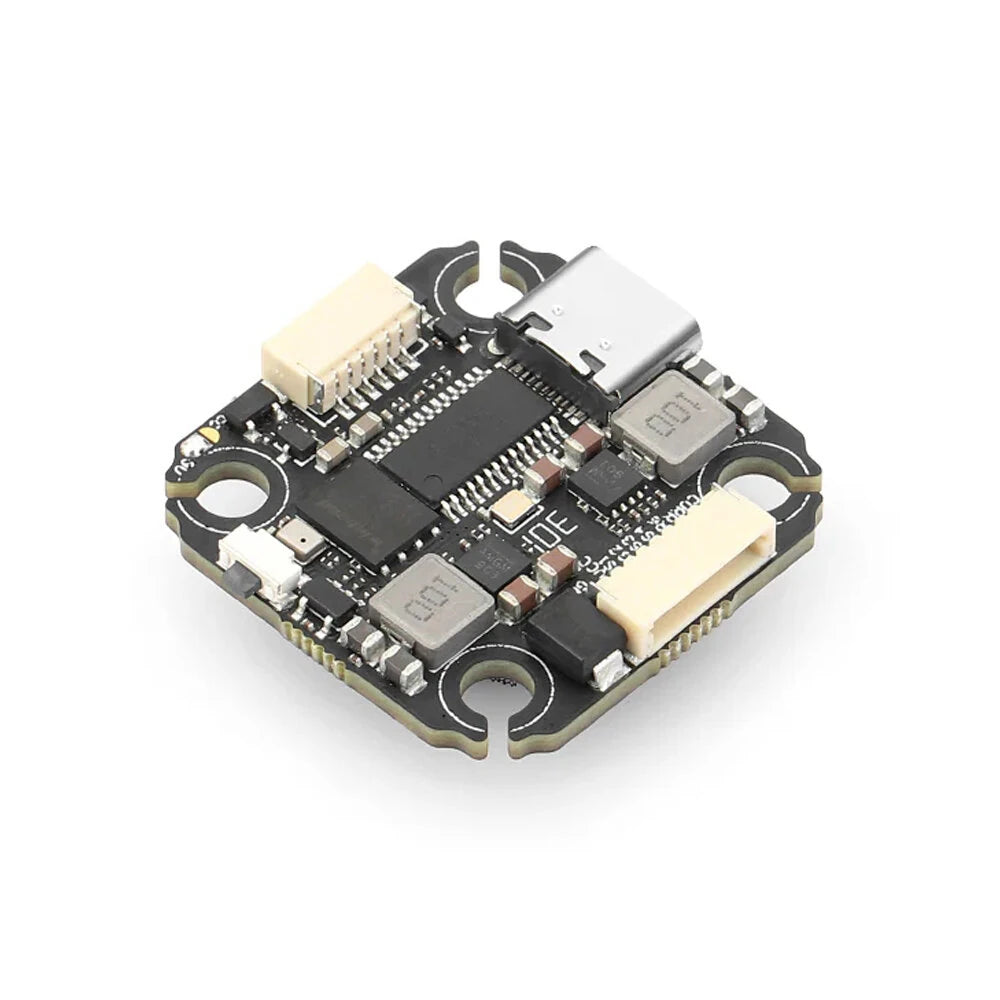

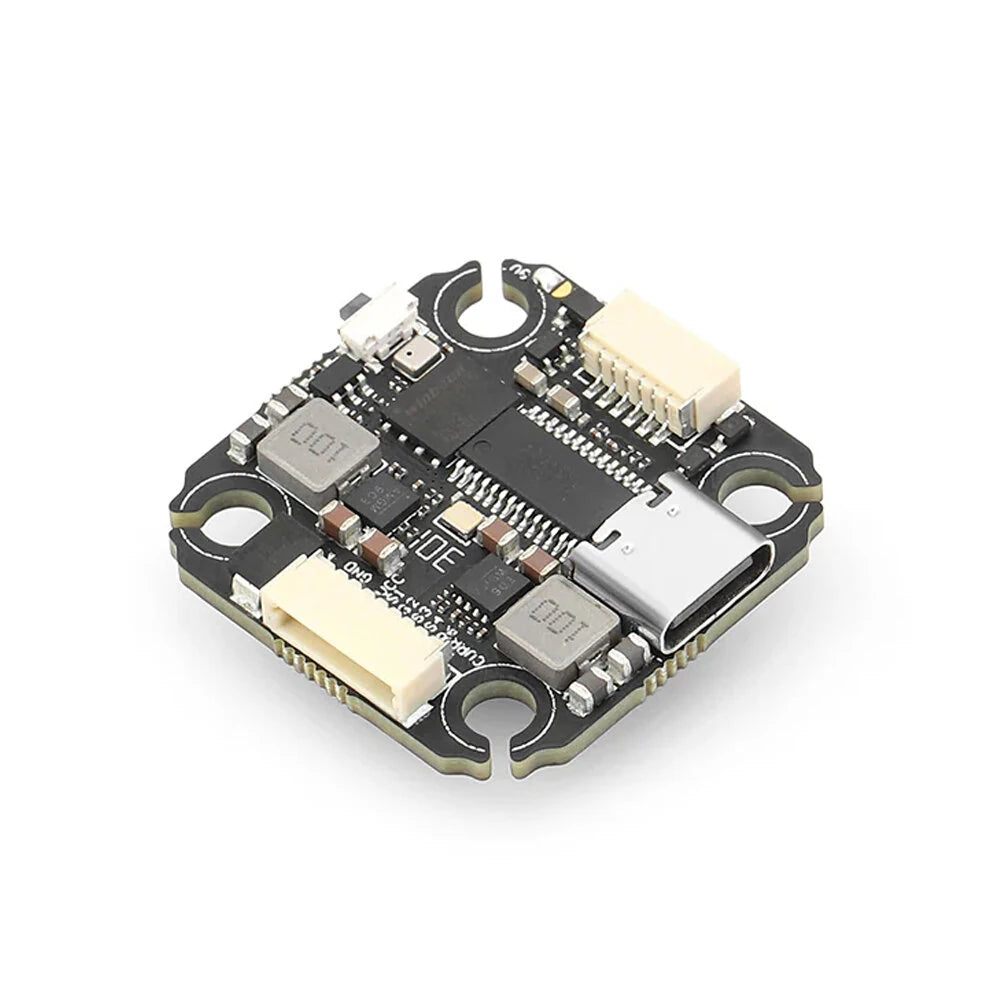

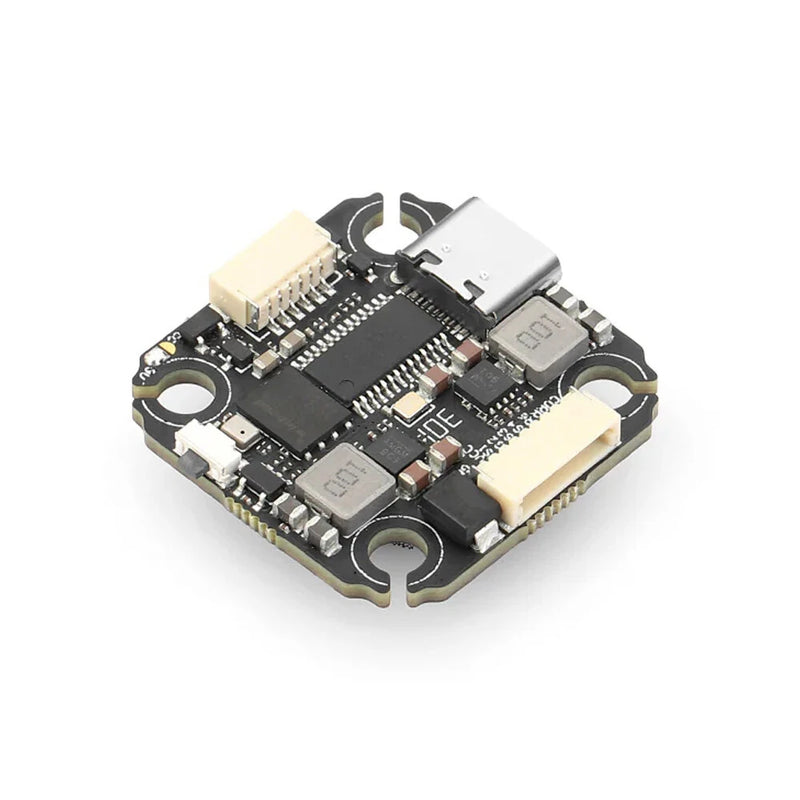

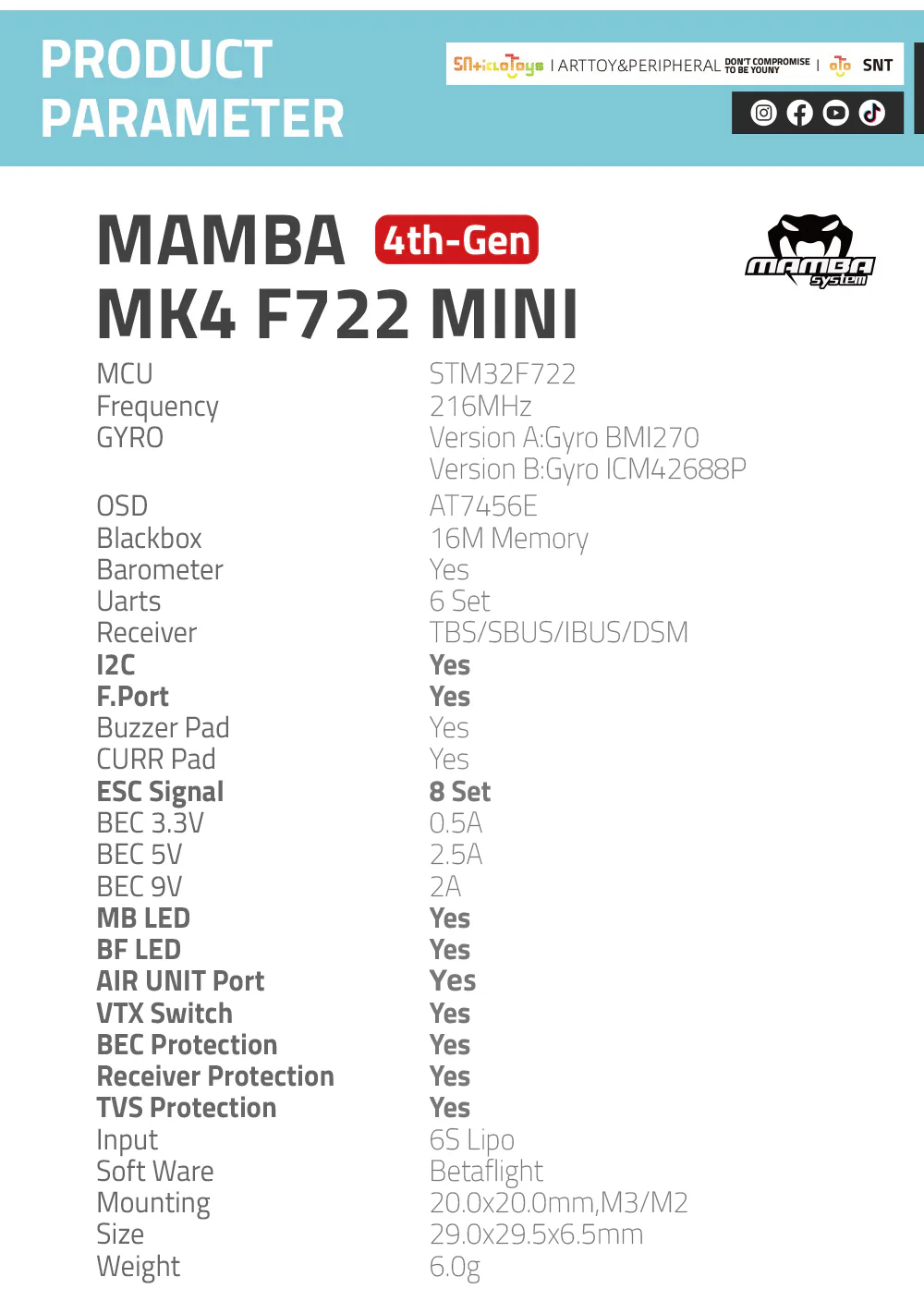

MAMBA MK4 F722 MINI Flight Controller |

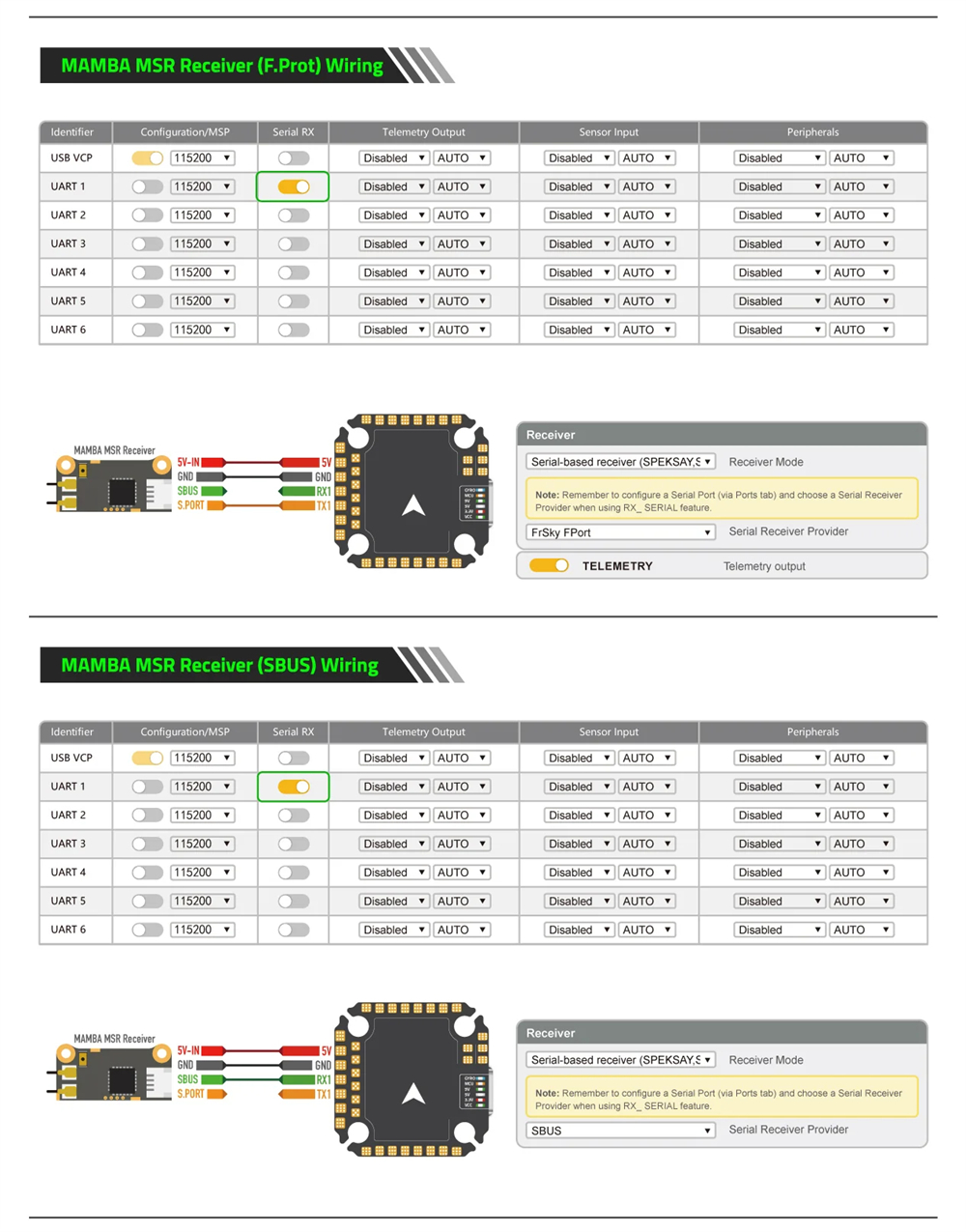

Model: MAMBA MK4 F722 MINI Flight Controller MCU: STM32F722 Frequency: 216MHz GYRO: Dual ICM-42688-P OSD: AT7456E Blackbox: 16M Memory Barometer: Yes UARTs: 6 Set Receiver: TBS/SBUS/IBUS/DSM I2C: Yes F.Port: Yes Buzzer Pad: Yes CURR Pad: Yes ESC Signal: 8 Set BEC 3.3V: 0.5A BEC 5V: 2.5A BEC 9V: 2A MB LED: Yes BF LED: Yes AIR Unit Port: Yes VTX Switch: Yes BEC Protection: Yes Receiver Protection: Yes TVS Protection: Yes Input: 6S Lipo Software: Betaflight Mounting: 20x20mm,M3/M2 |

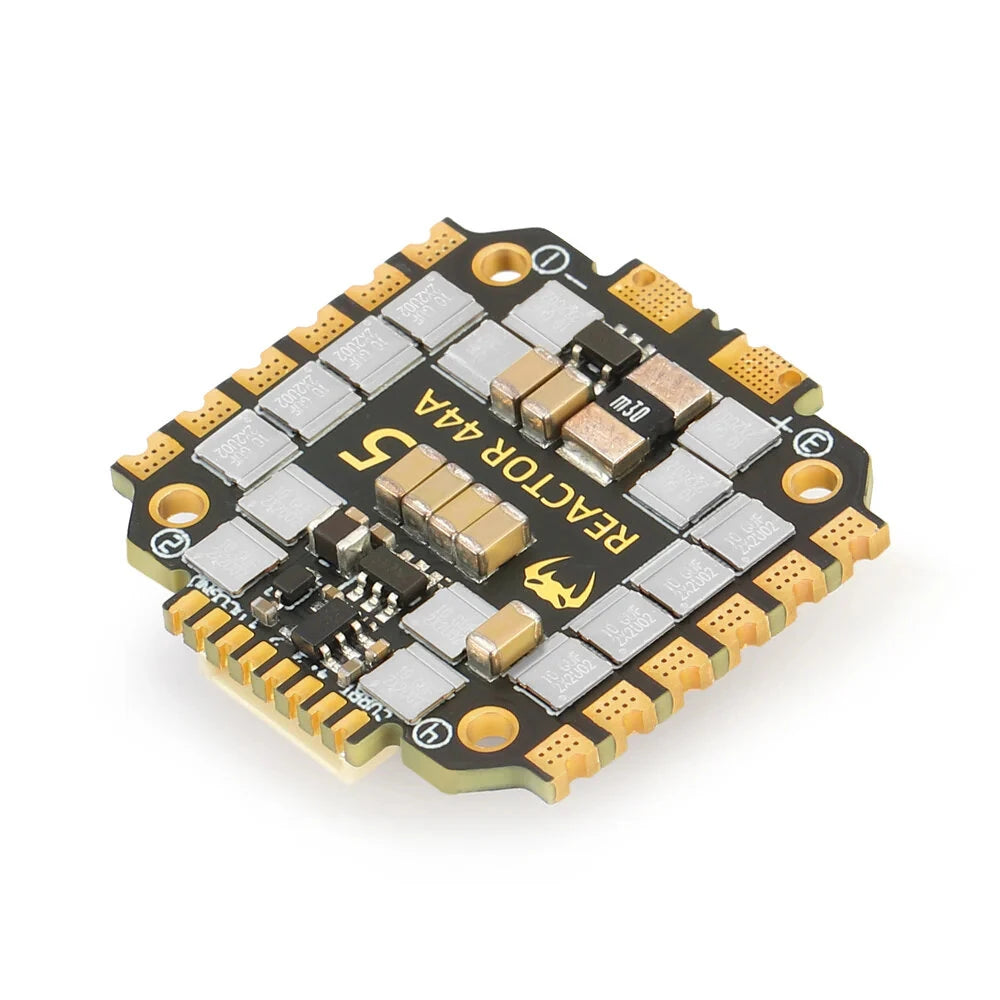

Reactor 44A ESC |
Model: Reactor 44A ESC Input Voltage: 4~6S Lipo (16.8V~25.2V) Continue Current: 44A×4 Burst Current: 54A (10S) BEC: No Target: BLHeli_32 MAMBA5_Reactor_44 SOFT: DSHOT300/600/1200/MAX2400（FETTEC） PWM: 24~128K Mounting Size: 20mm,M2 |
Reactor 66A ESC |
Model: Reactor 66 ESC Input Voltage: 4~6S Lipo (16.8V~25.2V) Continue Current:66A×4 Burst Current:105A (10S) BEC: No Target: BLHeli_32 MAMBA5_Reactor_66 SOFT: Dshot300/600/1200 PWM:24~128K Mounting size: 20mm,M2/M3 |

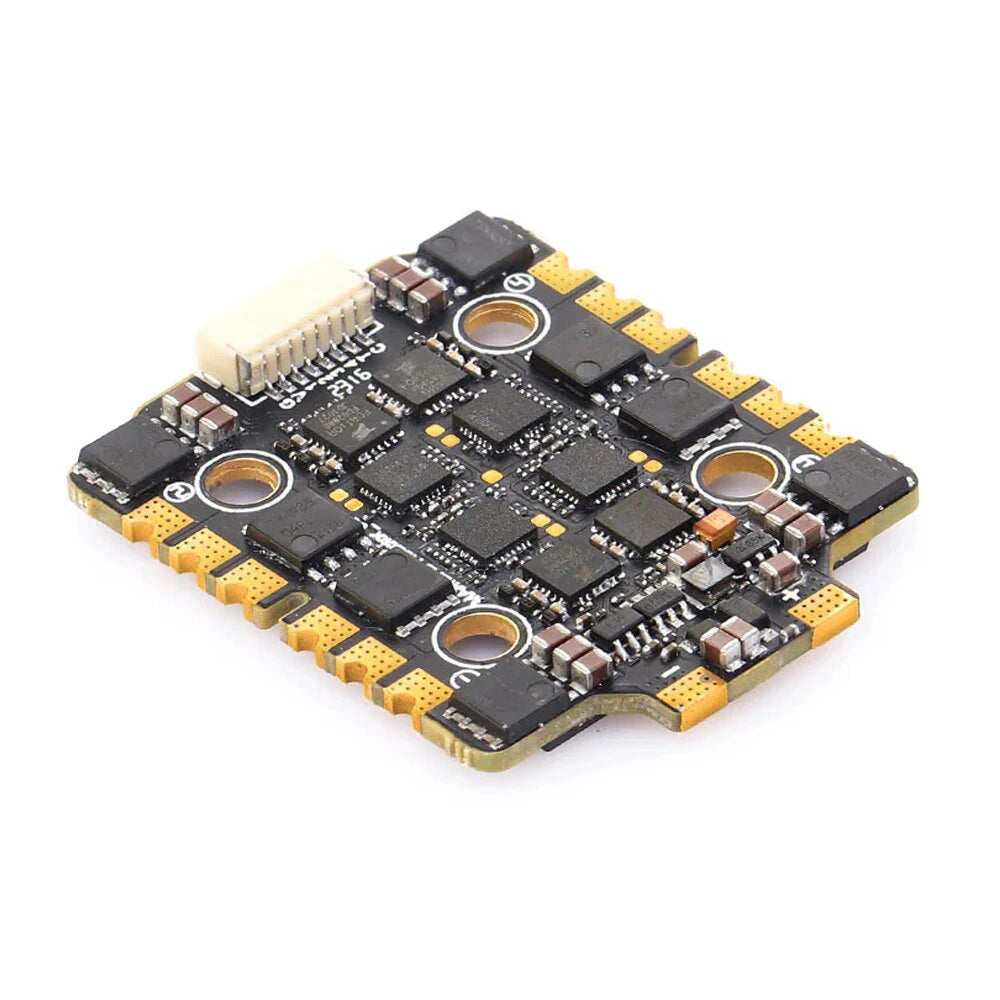

40A 128K MINI ESC |
Model: 40A 128K MINI ESC Input Voltage: 2~6S Lipo (8.4V~25.2V) Continue Current:40A×4 Burst Current:45A (10S) BEC: No Target: BLHeli_32 MAMBA F40_128K_MINI SOFT: Dshot300/600/1200 PWM:24~128K TVS Protection: Yes Mounting: 20mm/M2-M3 |

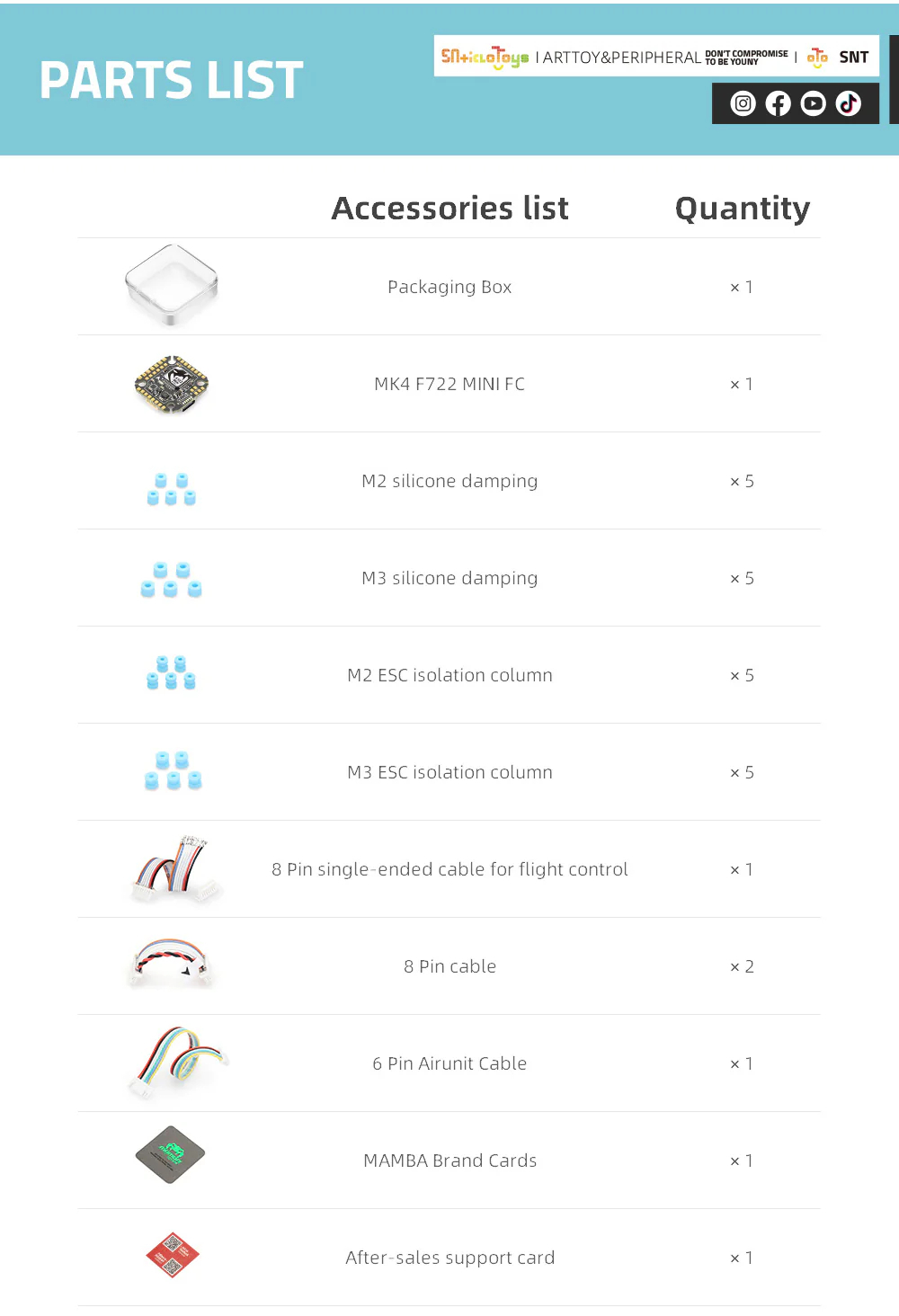

Package Included:
1 x MK4 F722 MINI Stack
