Description
Specification:
Brand: MAMBA

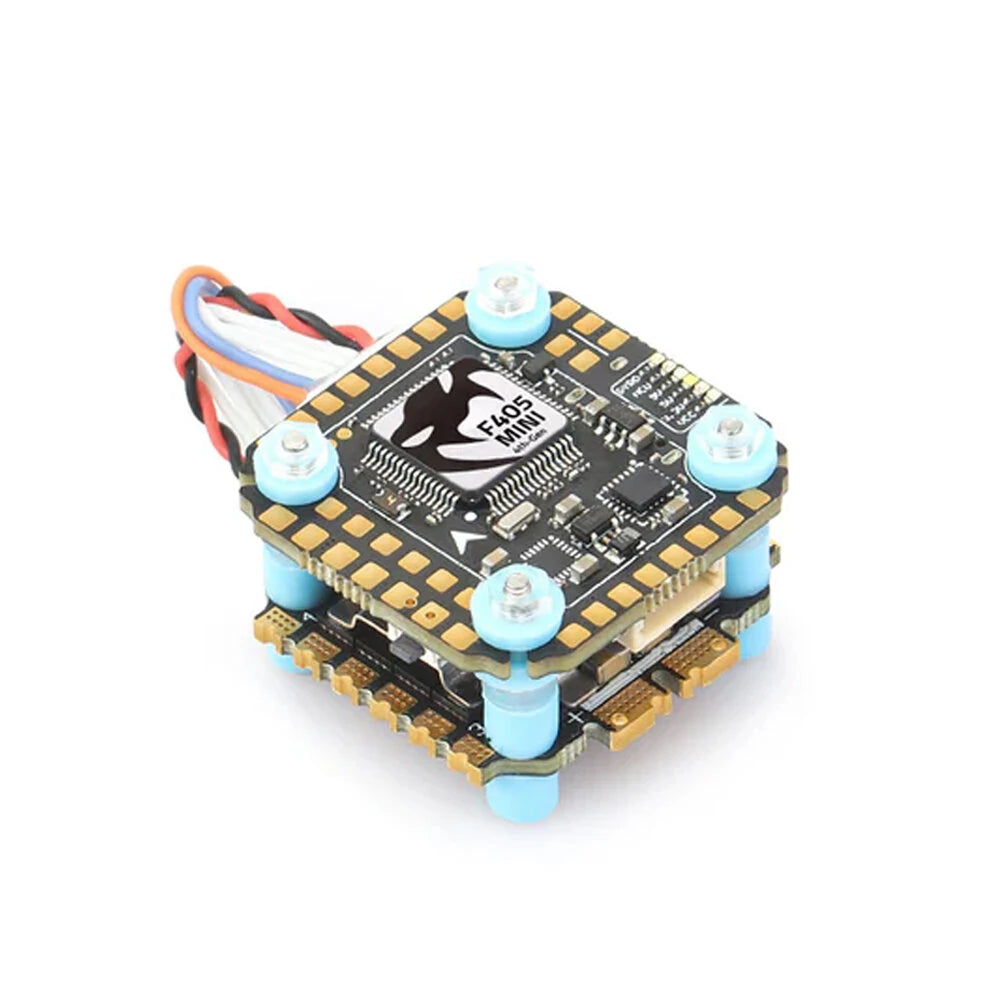

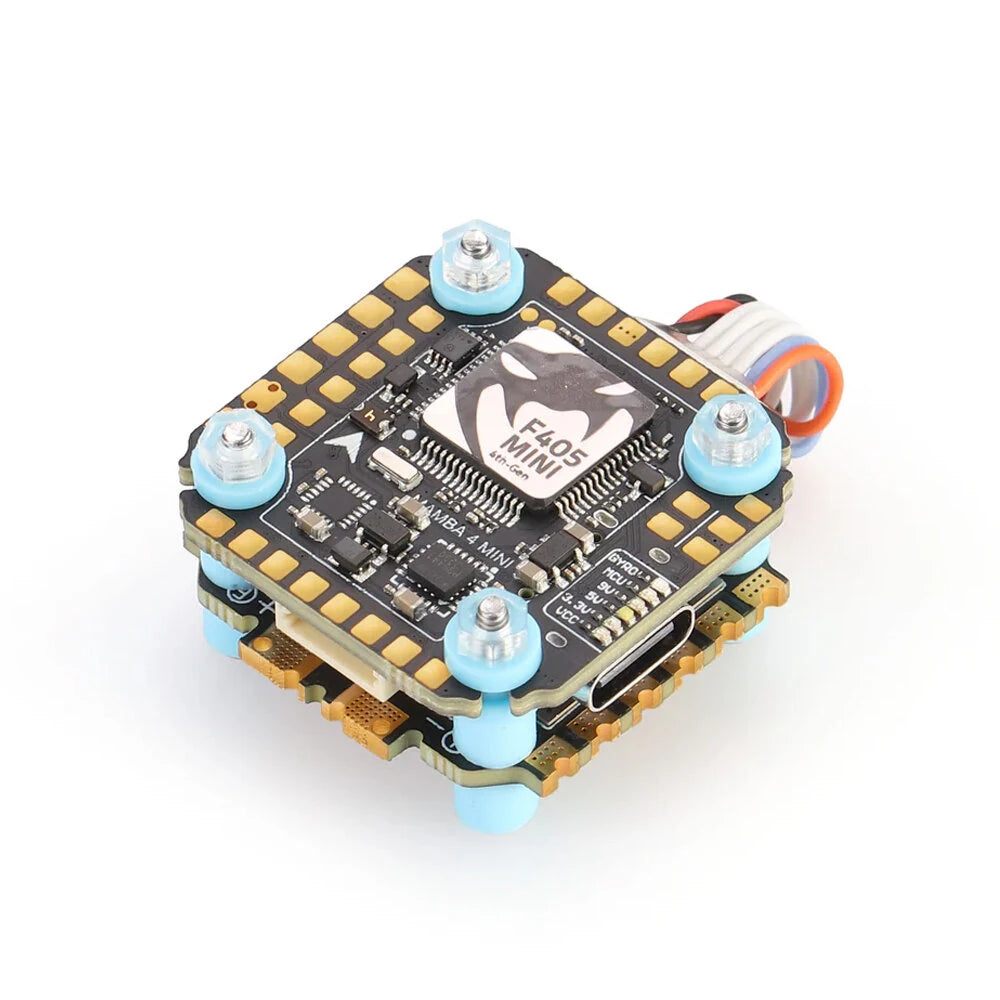

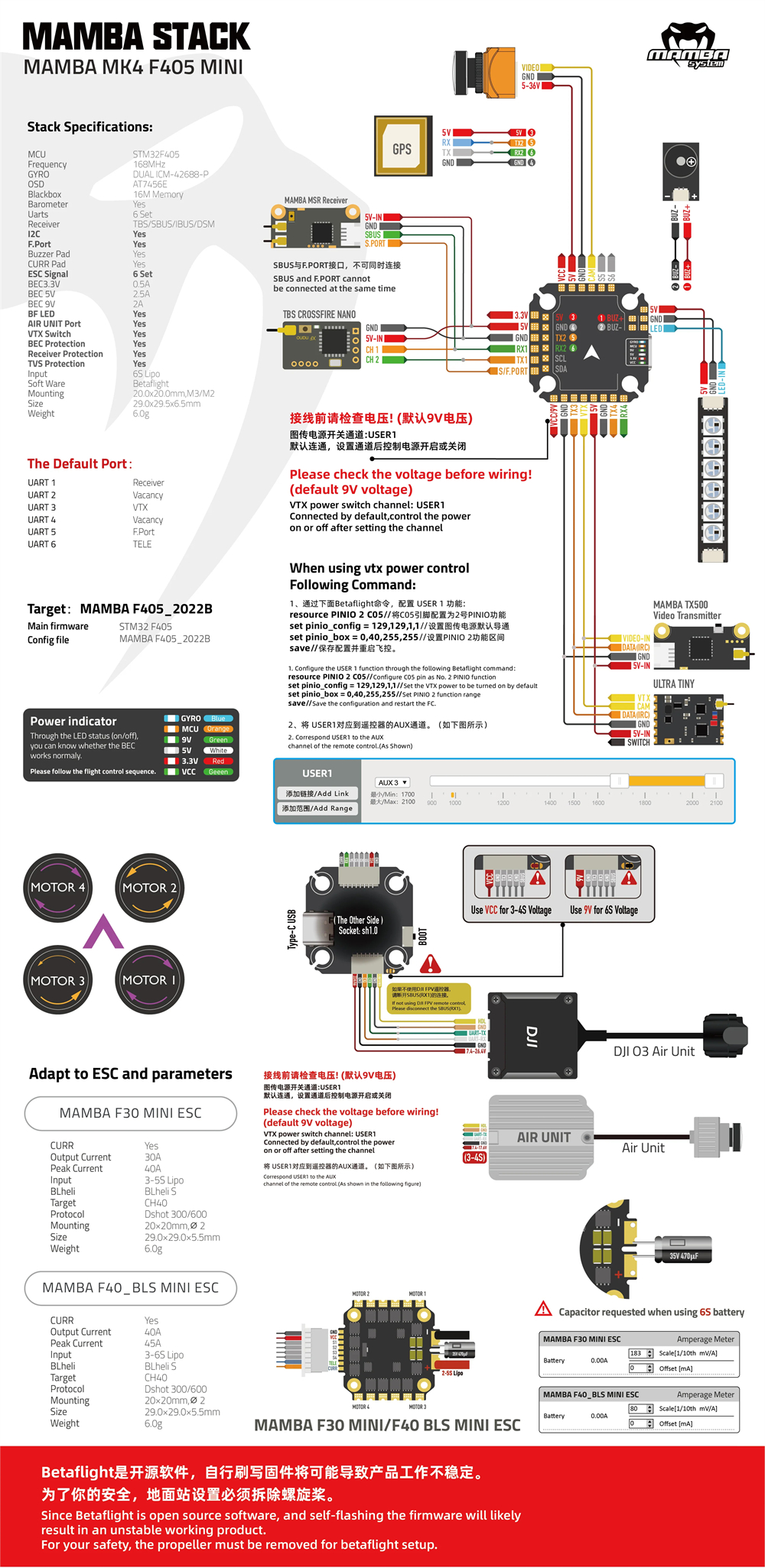

Item Name: MK4 F405MINI Stack
Model |
Specification |

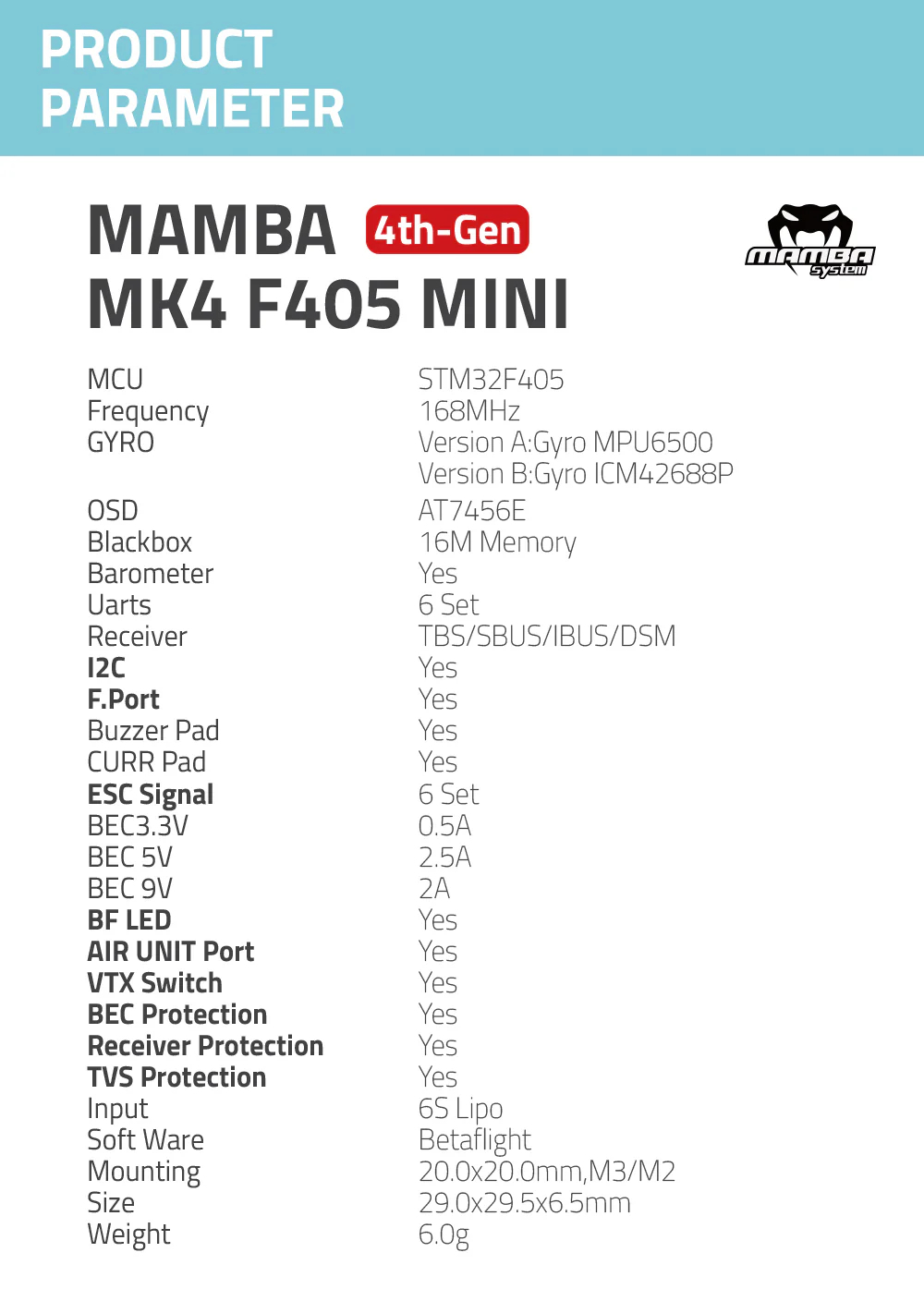

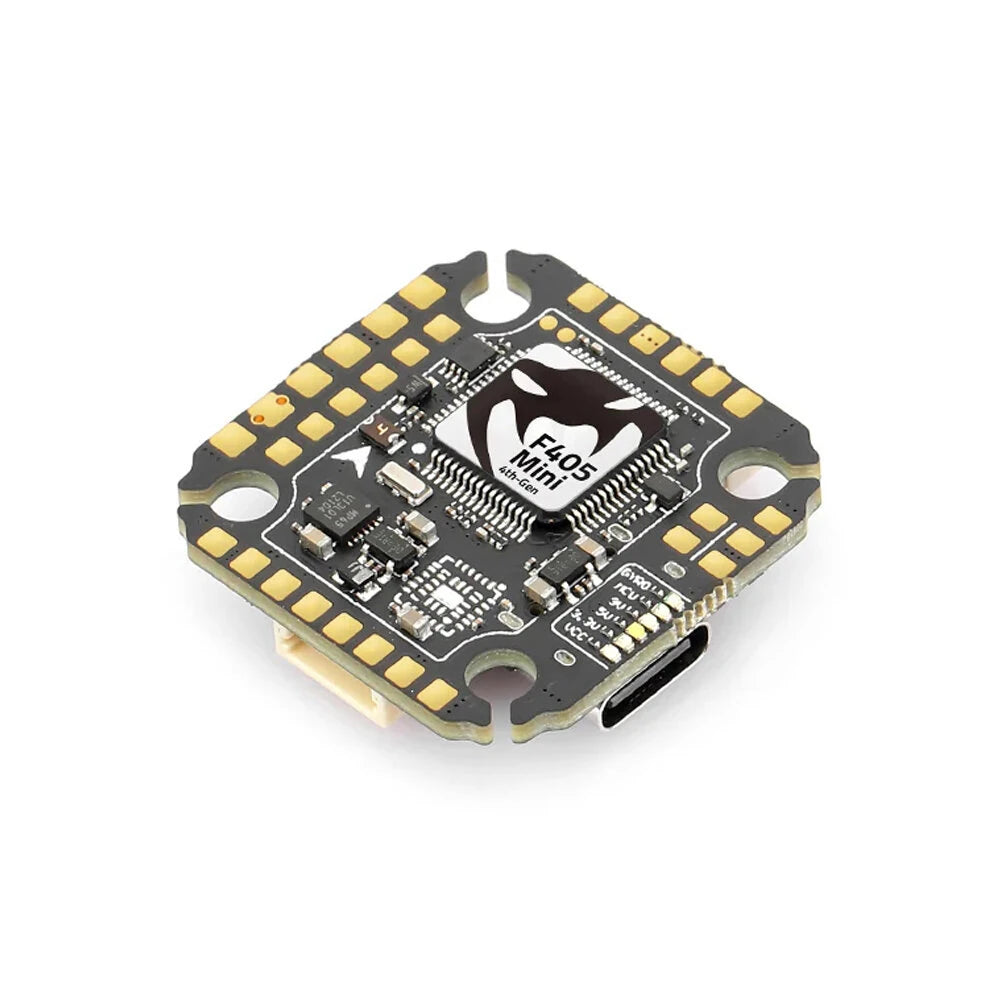

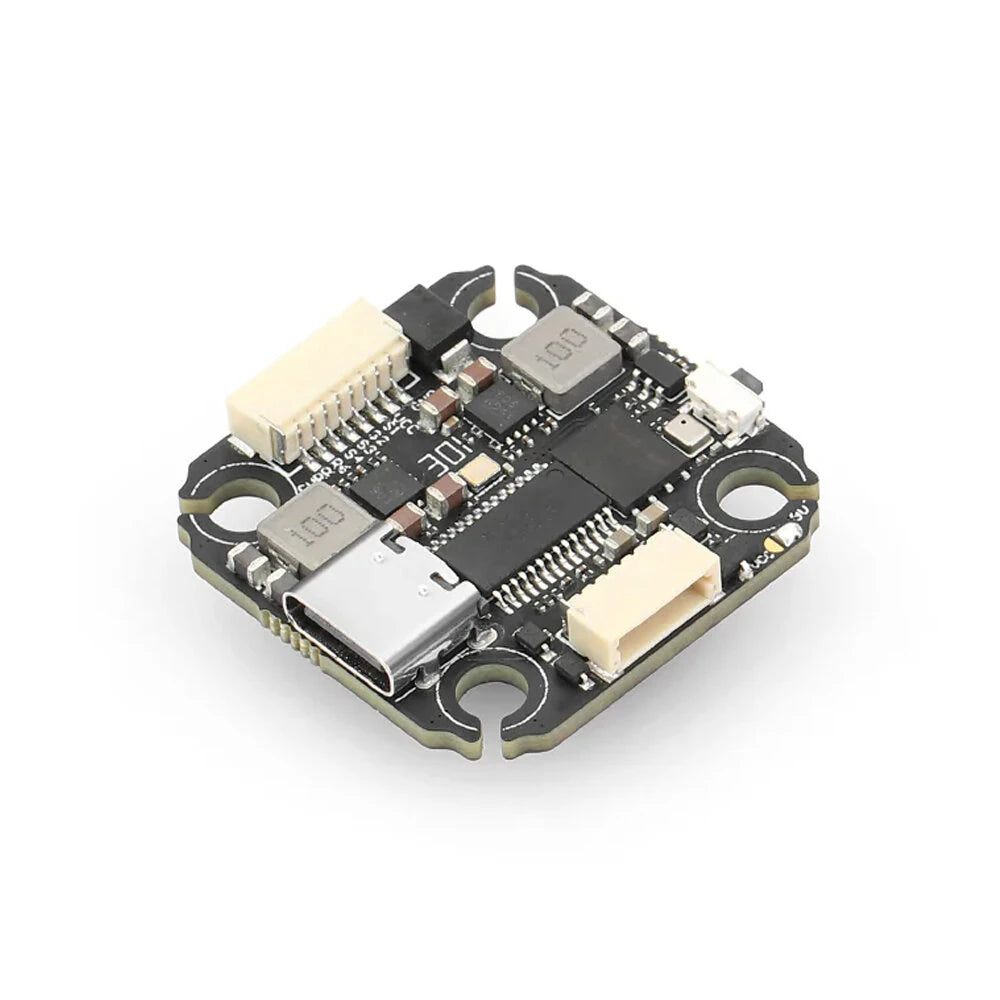

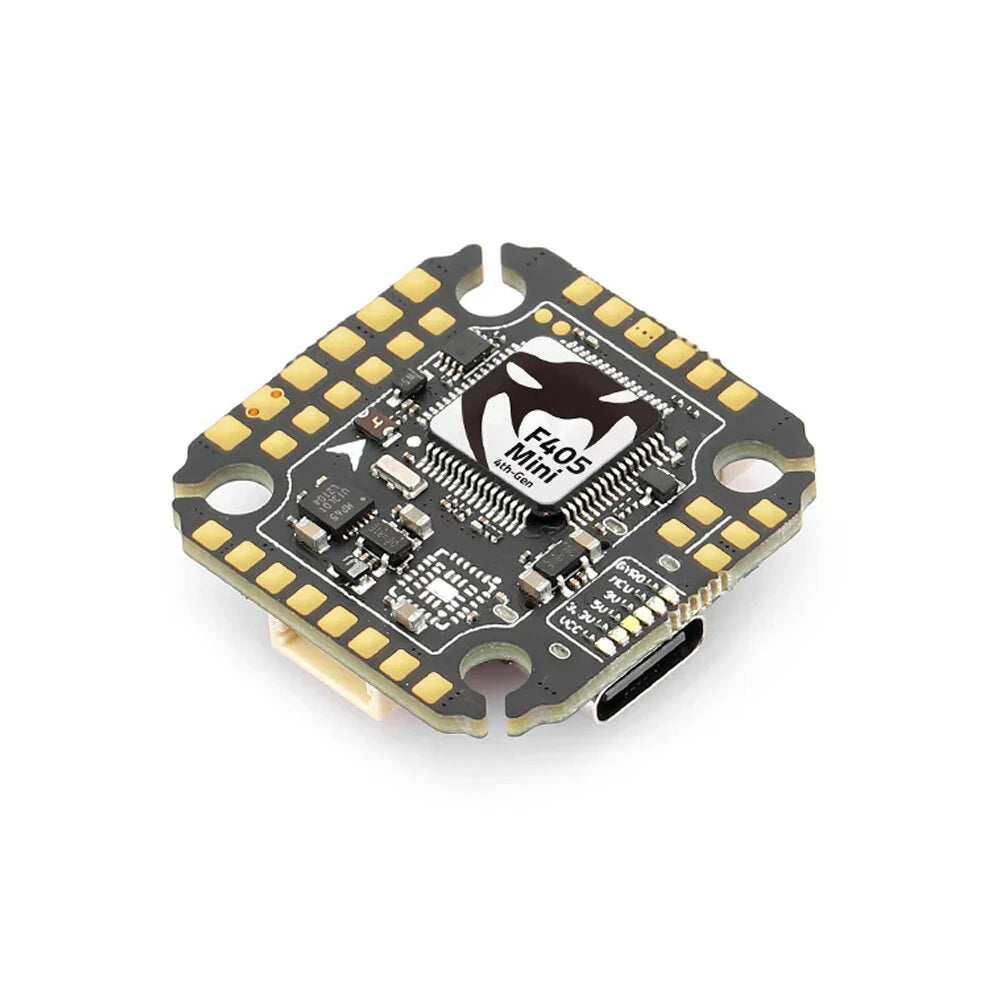

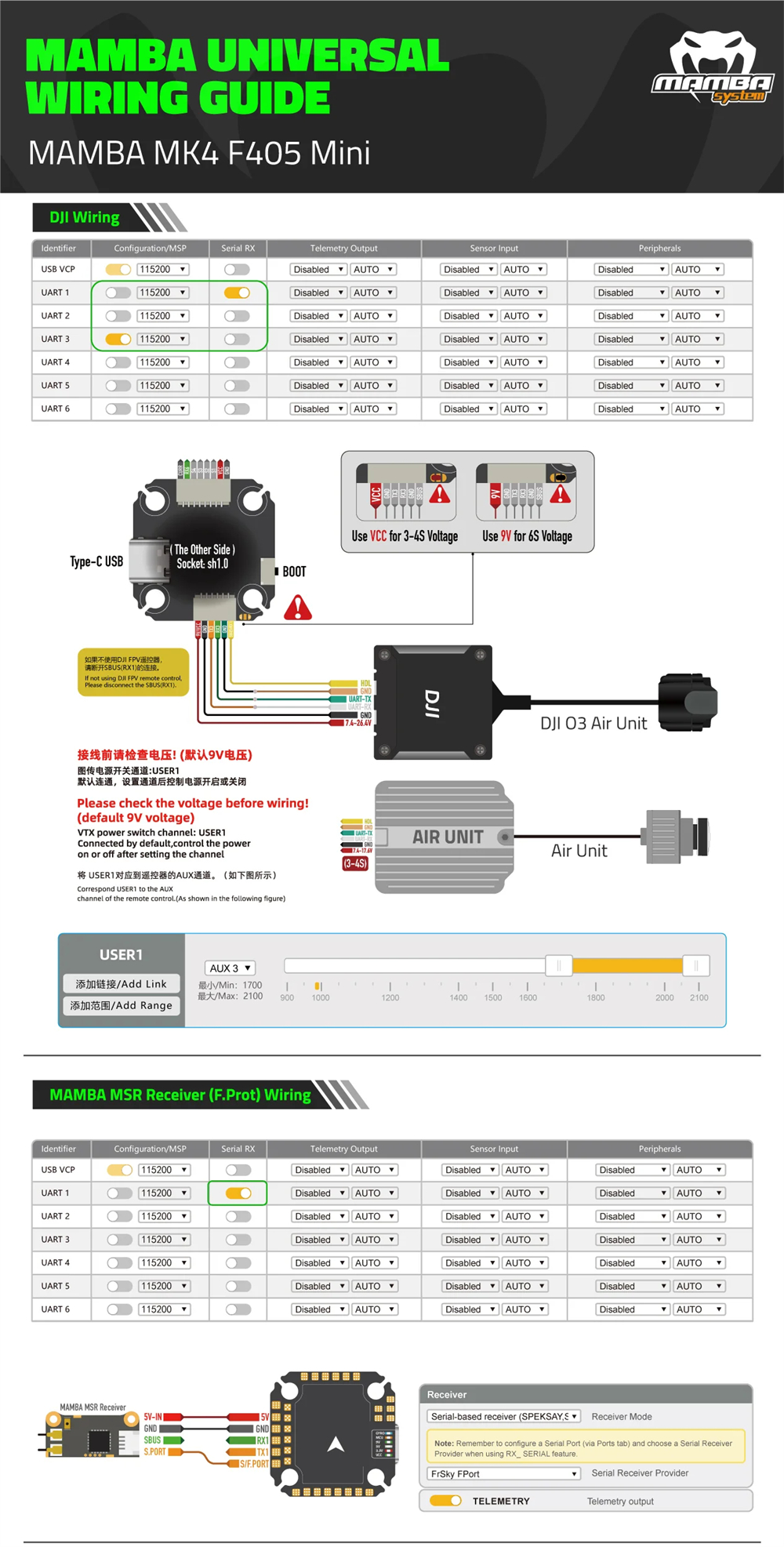

MAMBA MK4 F405 MINI Flight Controller |

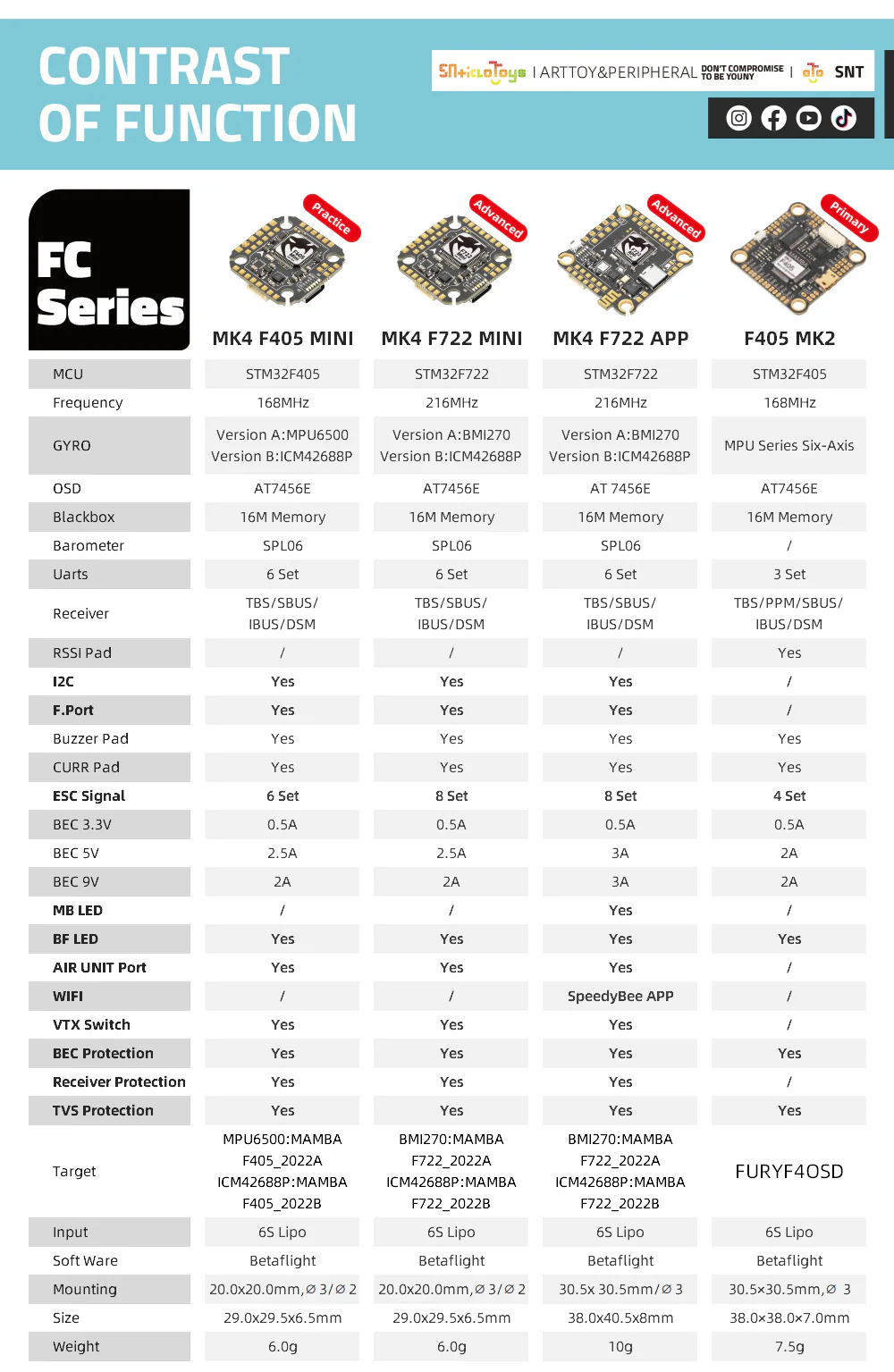

Model: MAMBA MK4 F405 MINI Flight Controller MCU: STM32F405 Frequency: 168MHz Gyro: Version: ICM42688P OSD: AT7456E Blackbox: 16M Memory Barometer: SPL06 Uarts: 6 Set Receiver: TBS/SBUS/IBUS/DSM RSSI Pad: / I2C: Yes F.Port: Yes Buzzer Pad: Yes Curr Pad: Yes ESC Signal: 6 Set BEC 3.3V: 0.5A BEC 5V: 2.5A BEC 9V: 2A MB Led: / BF Led: Yes Air Unit Port: Yes Wifi: / VTX Switch: Yes BEC Protection: Yes Receiver Protection: Yes TVS Protection: Yes Target: ICM42688P:MAMBA F405_2022B Input: 6S Lipo Soft Ware: Betaflight Mounting: 20.0x20.0mm, Ø 3/Ø 2 Size: 29.0x29.5x6.5mm Weight: 6.0g |

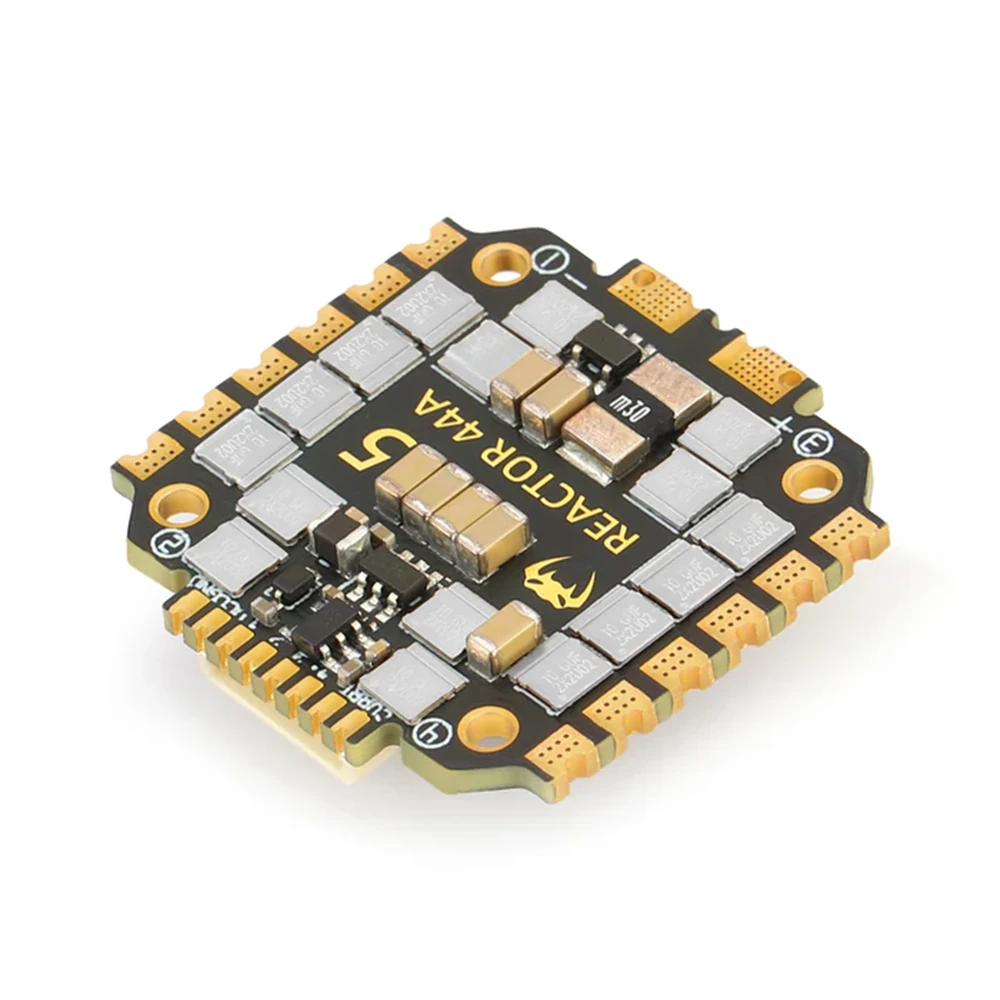

MAMBA Reactor 44A ESC |
Model: MAMBA Reactor 44A ESC Input Voltage: 4~6S Lipo (16.8V~25.2V) Continue Current:44A×4 Burst Current:54A (10S) BEC: No Target: BLHeli_32 MAMBA5_Reactor_44 SOFT: DSHOT300/600/1200/MAX2400（FETTEC） PWM:24~128K Mounting size: 20mm,M2 |

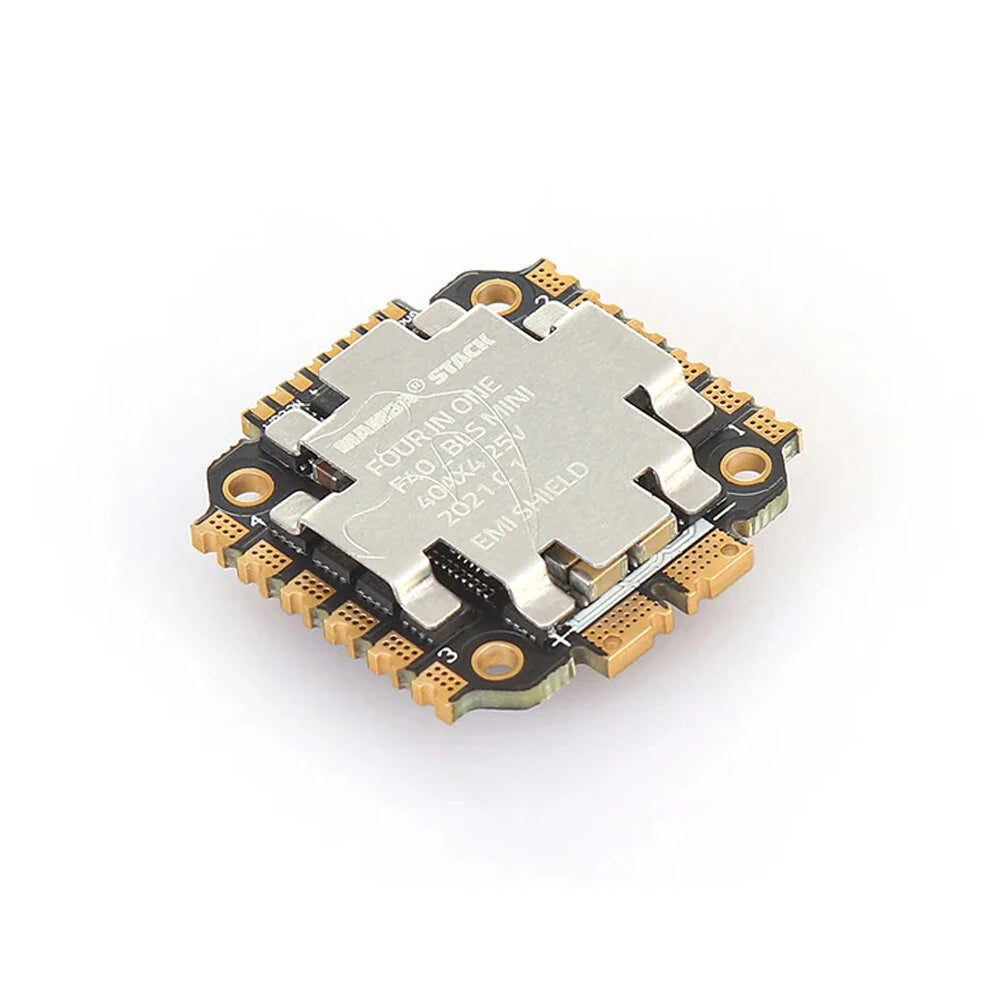

F40_BLS MINI ESC |
Model: F40 BLS MINI ESC Input Voltage: 2~6S Lipo (8.4V~25.2V) Continue Current: 40A×4 Burst Current: 45A (10S) BEC: No Target：BLHeli_S CH40 SOFT: Dshot300/600 TVS Protection: Yes Mounting: 20mm, M2 |

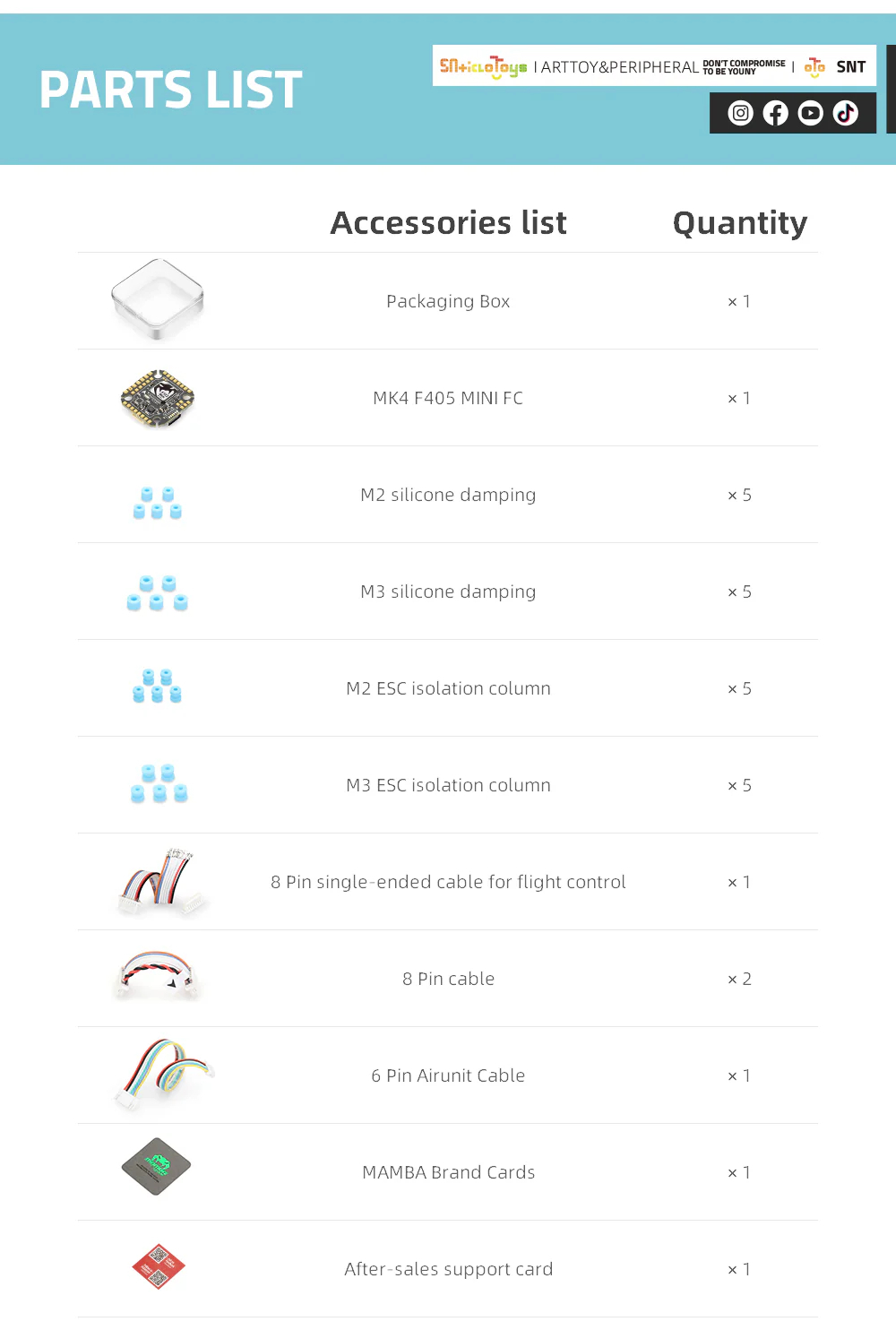

Package Included:
1 x MK4 F405MINI Stack
