Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: Flight Controller
Price:
R 1,040.70 R 1,571.05
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specifications:
Brand: JHEMCU
Model: F722 NOXE
Main control: STM32F722RE (216MHZ)
Gyroscope: ICM-42688-P
Barometer: DPS310
OSD chip: AT7456E
Black box: 16MB
LED programming: supported
BB sound: supported
Input voltage: 3-6S
I2C interface: supported
BEC: 5V/2.5A
BEC: 10V/2.0A
Camera input: supported
USART: UART1, UART2, UART3, UART4, UART5, UART6
Receiver: ELRS(CRSF),TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES, support
Compass: YES, support
ESC signal: Dshot150,Dshot300，Dshot600
USB: TYPE-C
Current port: YES
Voltage sensor : YES
DFU button: YES
Weight: 5g
Flight control firmware: betaflight_ 4.4.2_ JHEF7DUAL.HEX
Installation hole spacing: 20x2x4MM
Maximum overall size: 29x29MM

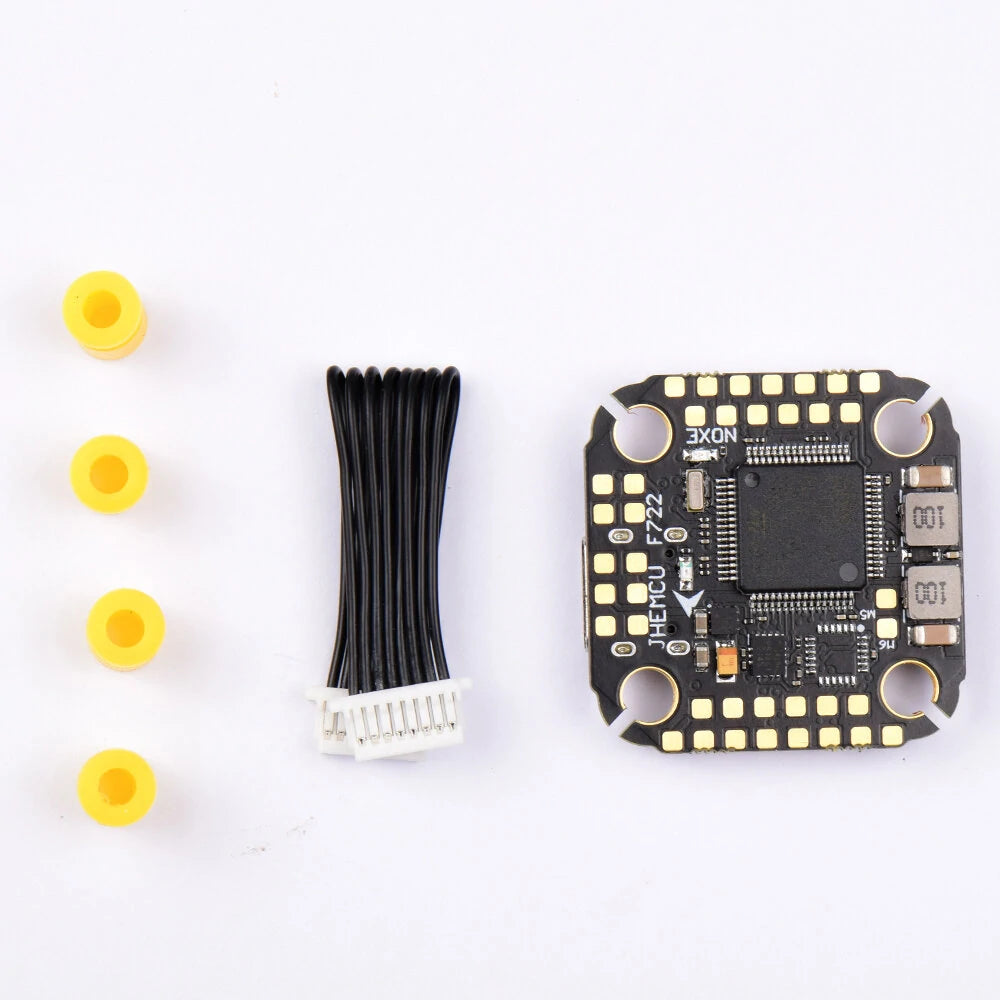

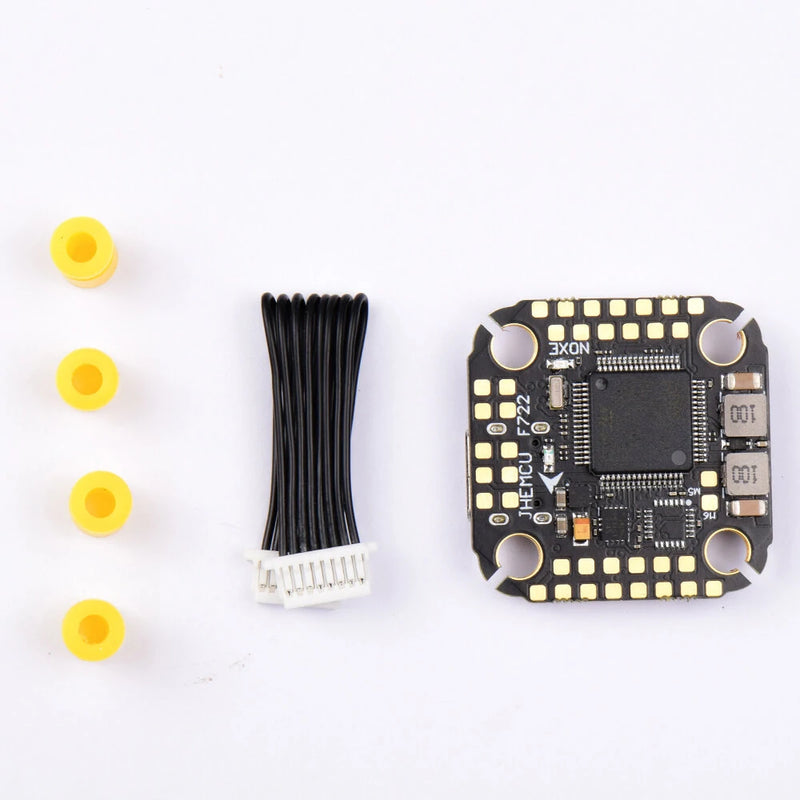

Package Included:
1x Flight Controller
1x 8P plug cable

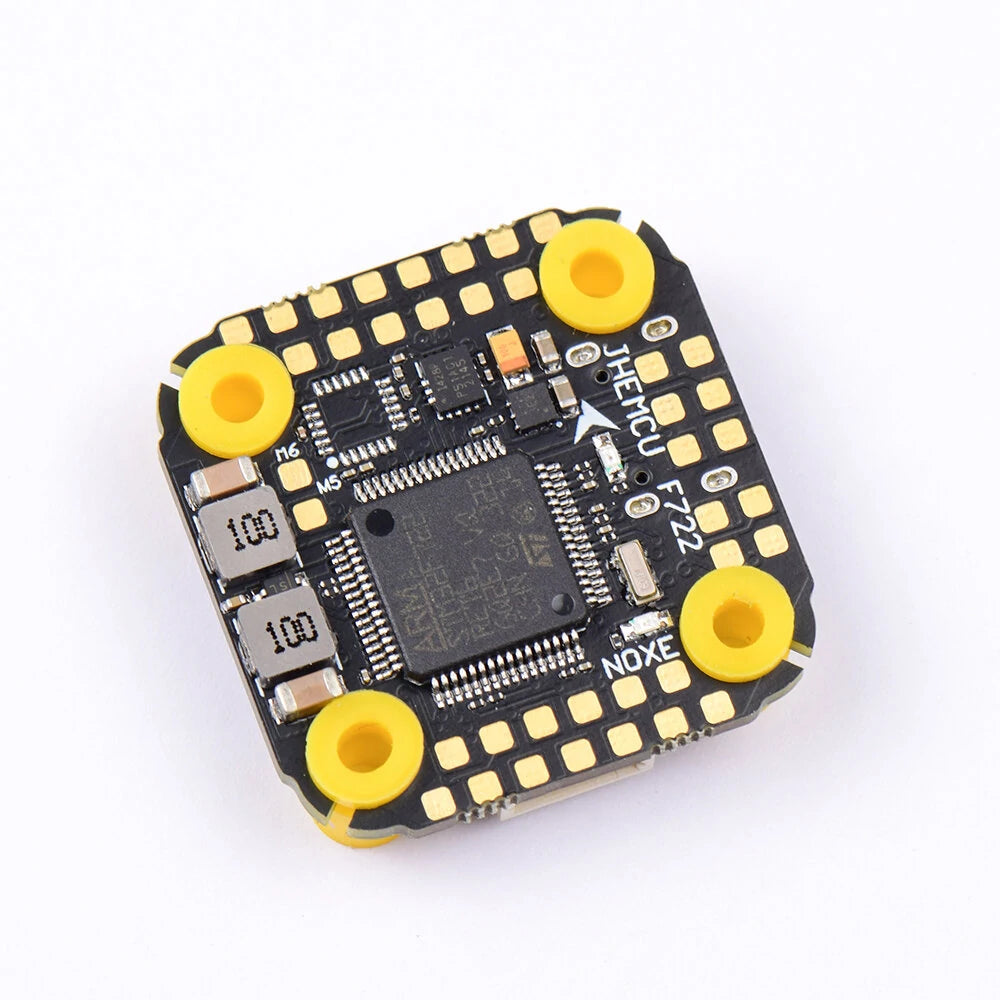

4x Damping ball
