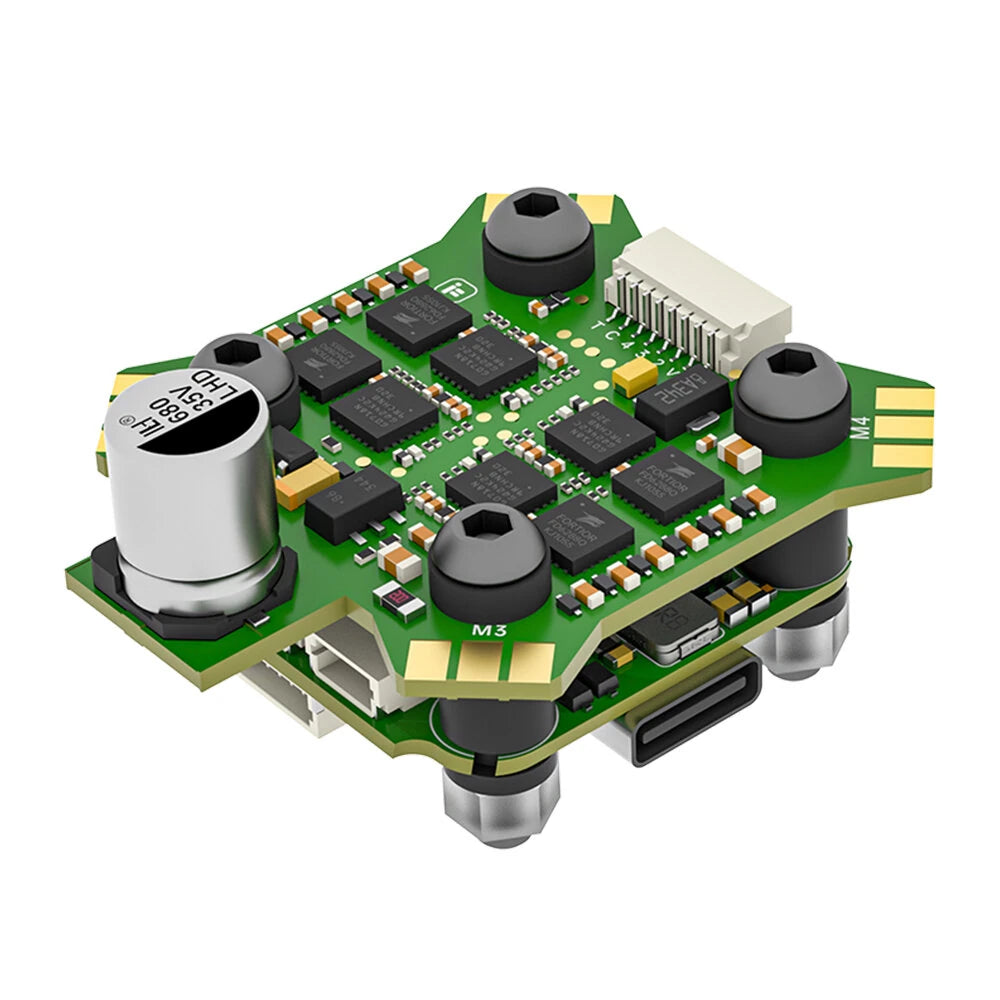

20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
Roll over image to zoom in Click on image to zoom
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing
20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing

20x20mm iFlight BLITZ Mini F745 F7 Flight Controller E55 Mini 55A BL_32 4In1 Brushless ESC Stack for RC Drone FPV Racing

Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: ESC
Price:
R 2,438.70 R 3,180.31
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Features:
1.Improved circuit design, better components, and lower electrical noise!
2.DJI HD VTX Connector (Plug-and-Play / No soldering required).
3.FC indicator LEDs for visual debugging.
4.Support Betaflight, INAV, Ardupilot firmware.


Specifications:

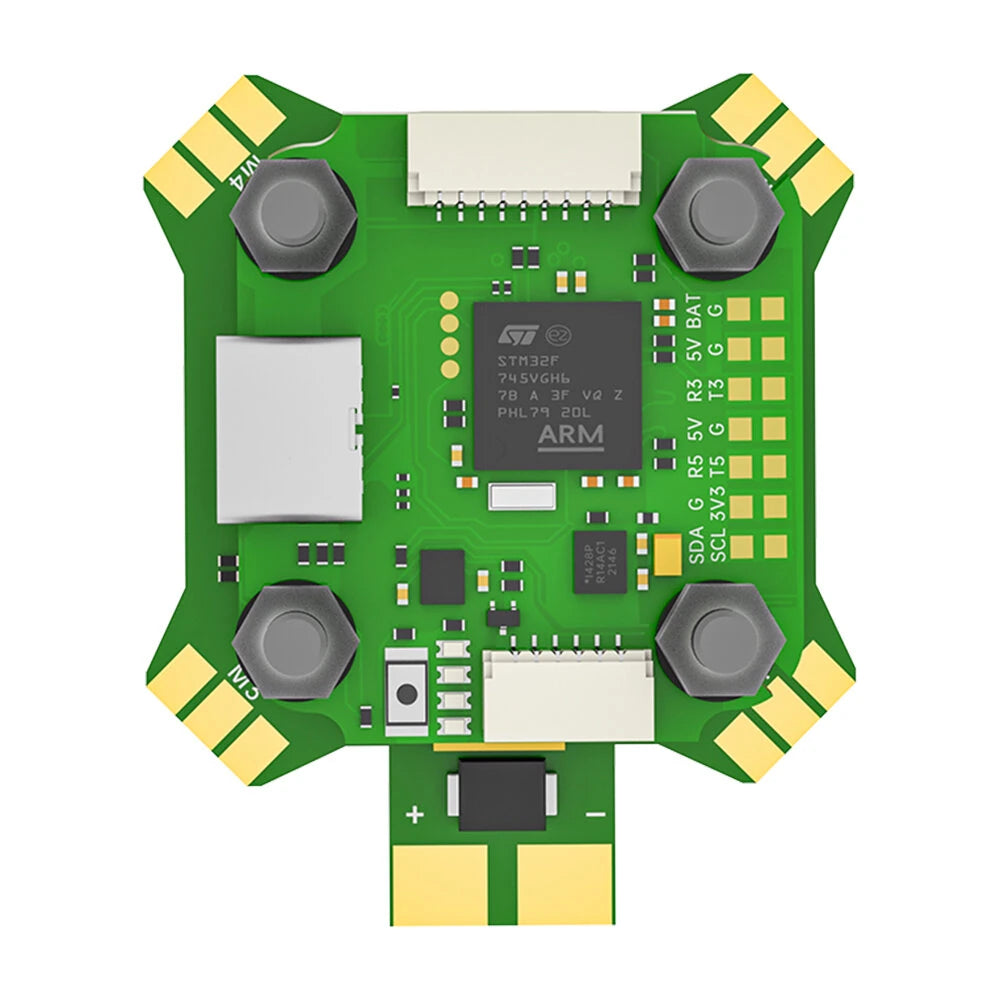

Mini F745 Flight Controller

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Mount pattern: 20*20mm/φ4
Dimensions: 30.5*27 mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware：arduplane_with_bl


Wiring Suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemet

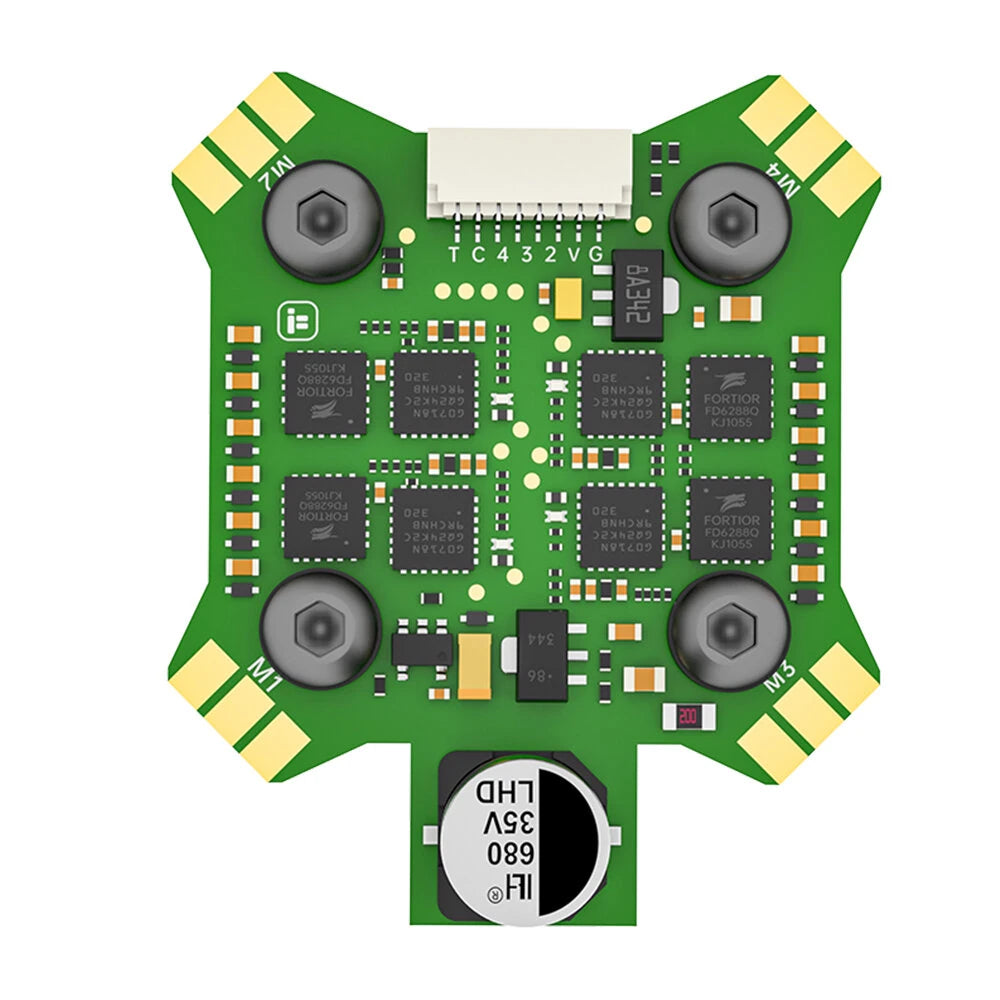

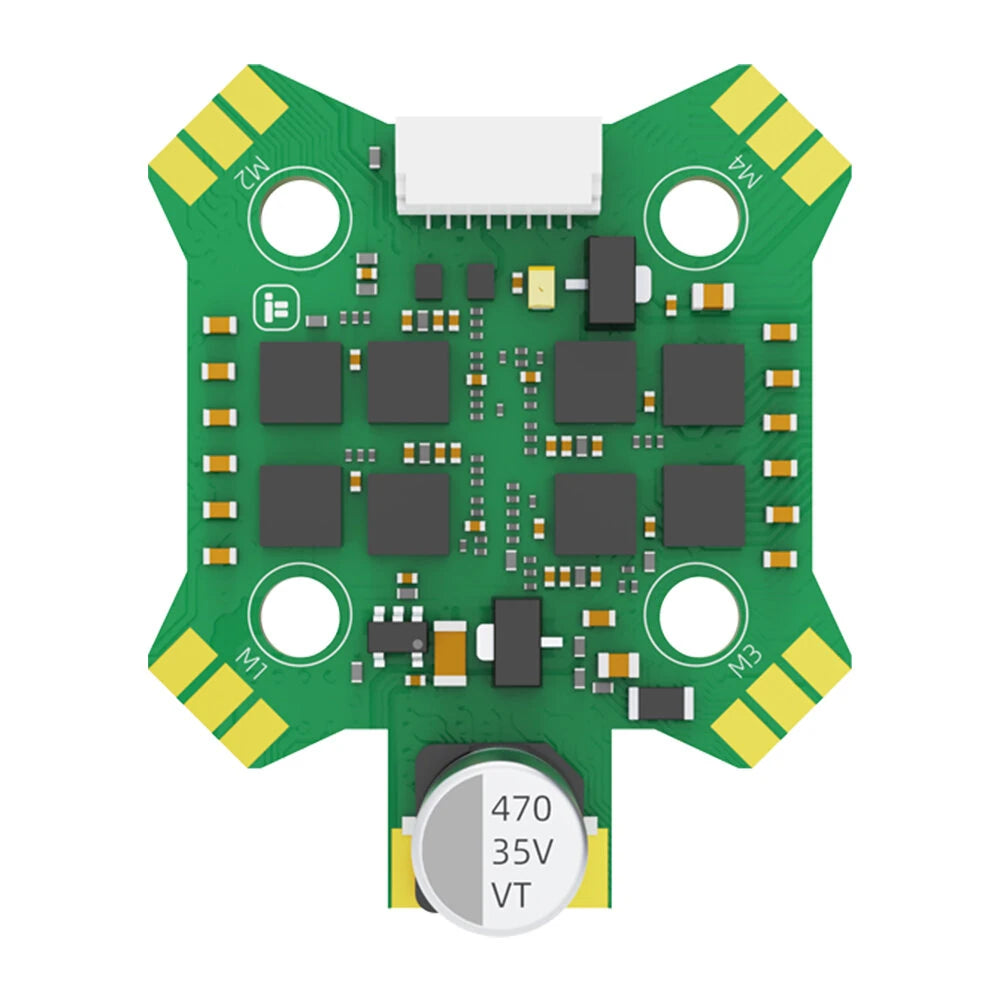

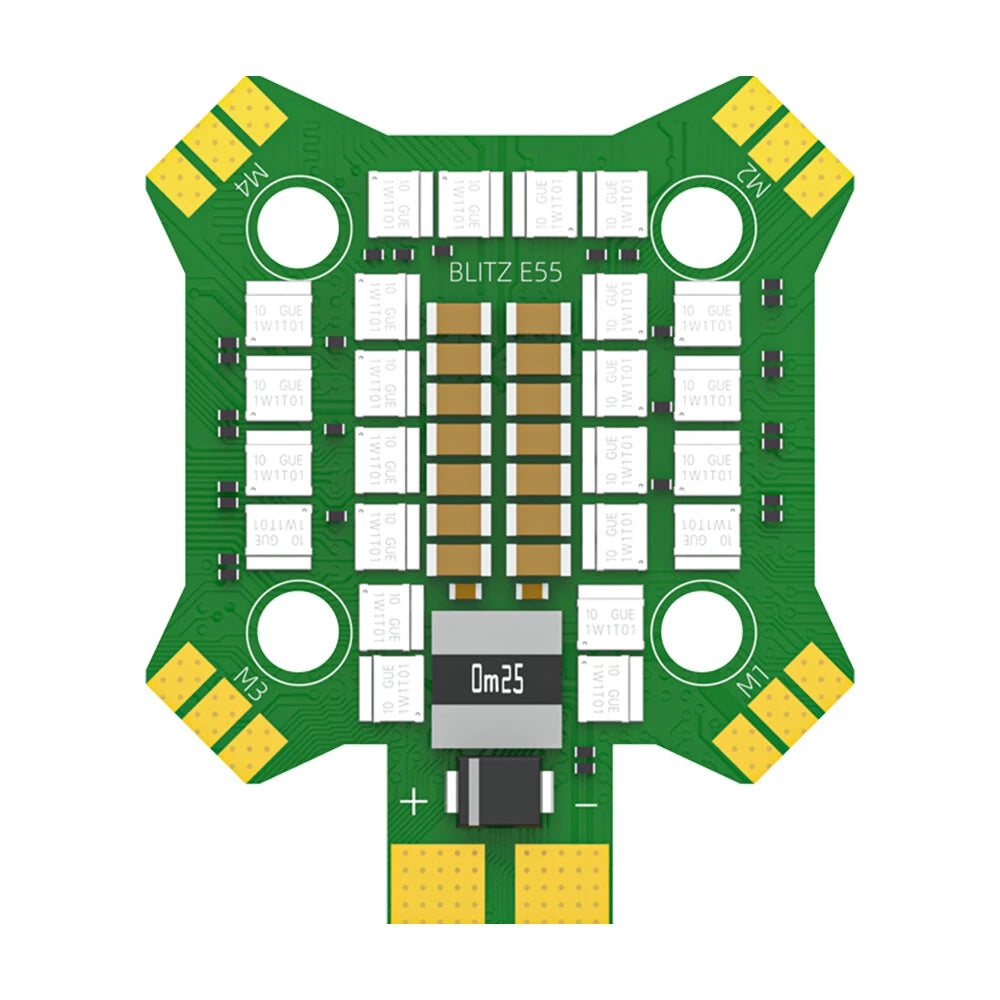

Mini E55 4in1 ESC Mounting Holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S Lipo input
MCU: G071
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Firmware: BLHeli 32
Target: IFLIGHT_BLITZ_G071_01 32.9/ IFLIGHT BILTZ G2 32.9

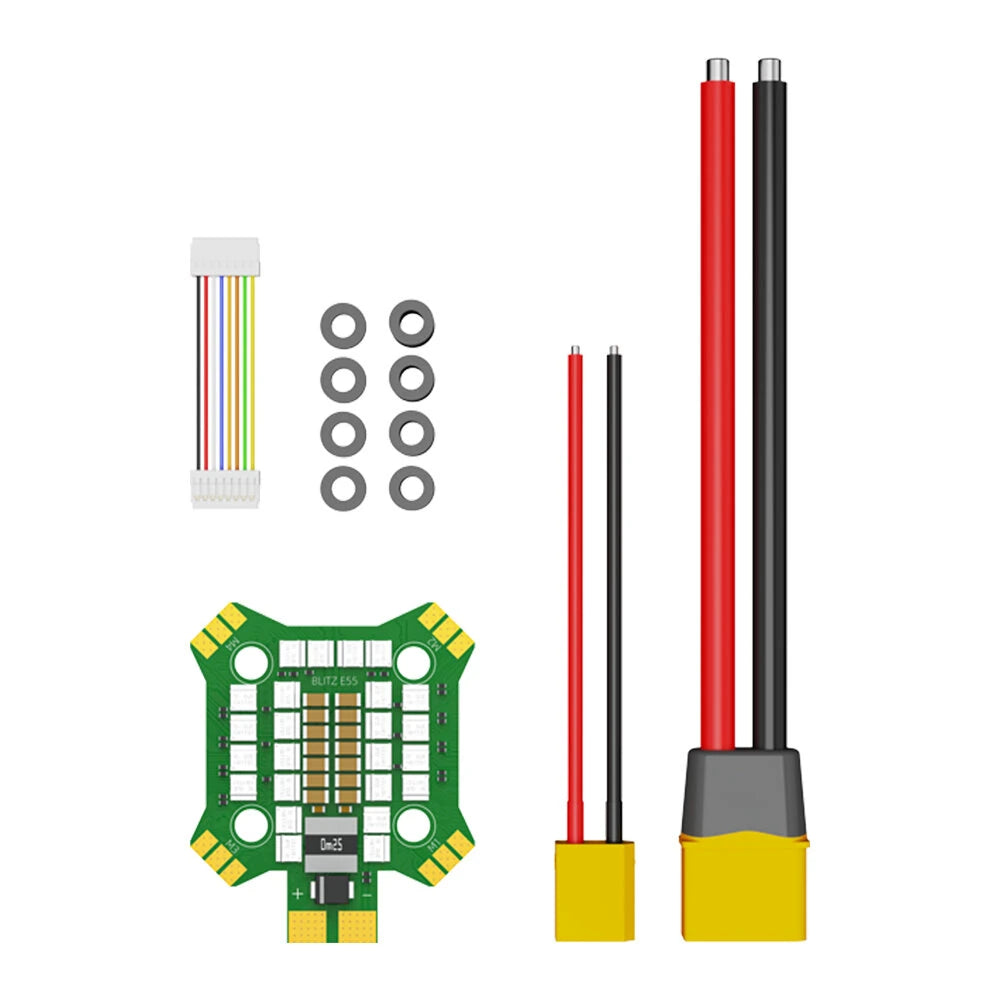

Package Included:


ESC Version 1 x BLITZ Mini E55 4IN1 ESC
FC+ESC Version 1 x BLITZ Mini F745 Flight Controller
1 x BLITZ Mini E55 4-IN1 ESC
1 x silicon grommets
1 x wire harness for F7 Flight controller
