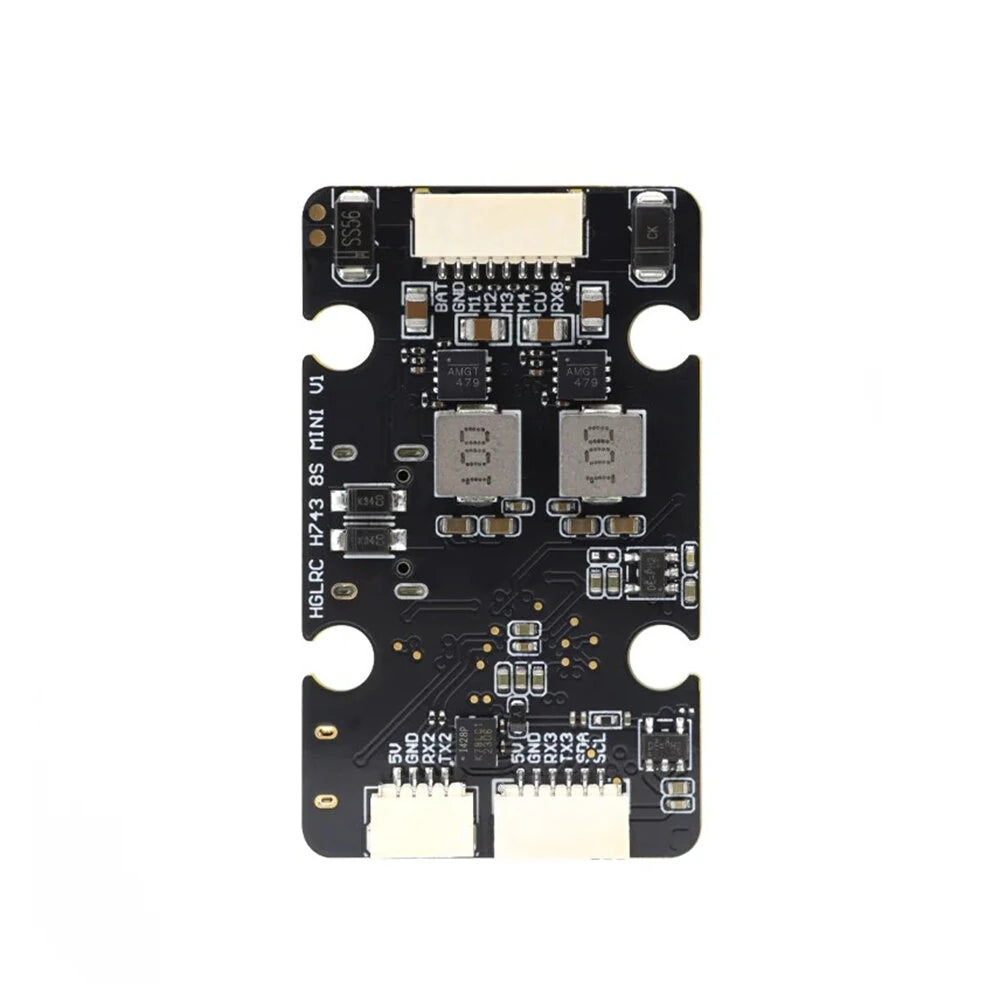

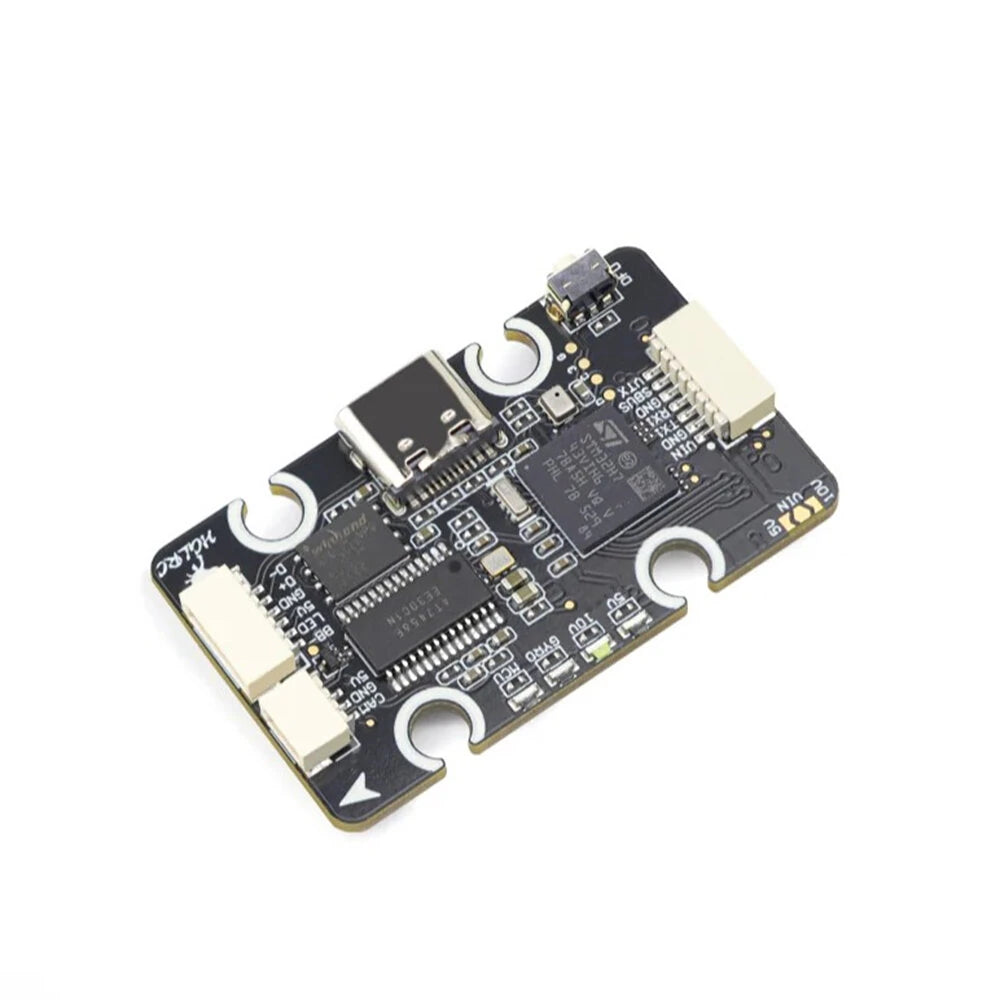

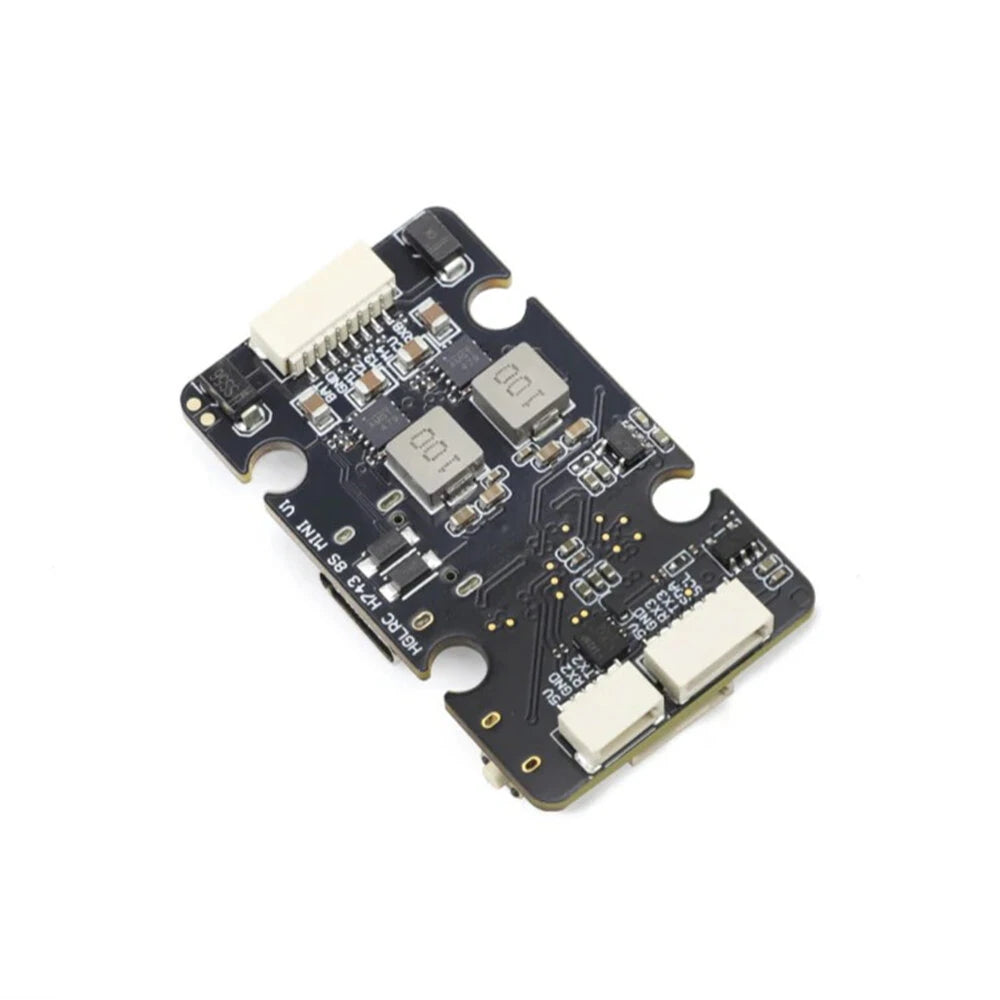

20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
Roll over image to zoom in Click on image to zoom
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones
20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones

20x20mm HGLRC H743 8S MINI V1 2-8S Flight Controller ICM42688 For RC FPV Racing Drones

Save R 614.85
Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: Flight Controller
Price:
R 1,209.70 R 1,824.55
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Feature:
1. Equipped with the high-performance STM32H743 MCU, delivering powerful computing and rapid response.
2. Chose ICM42688P gyroscope for the FC to enhance the stability.
3. Includes a 16MB large-capacity Blackbox for comprehensive flight data logging.
4. Supports 8S high-voltage input for power output to keep fast respons and stable control.
5. Fully modular plug-and-play design with direct connectors, eliminating the need for soldering.
6. Ultra-narrow size and dual BEC design greatly save installation space, making it compatible with small frames.


Specification:
Brand: HGLRC
Model Name: H743 8S MINI V1
FC Firmware: HGLRC_H743_LITE
MCU: STM32H743
GYRO: ICM42688
OSD: AT7456E
Barometer: SPA06-003
Blackbox: 16MB
UART: 8
Input Voltage: 7.4V-33.6V/2-8SLIPO

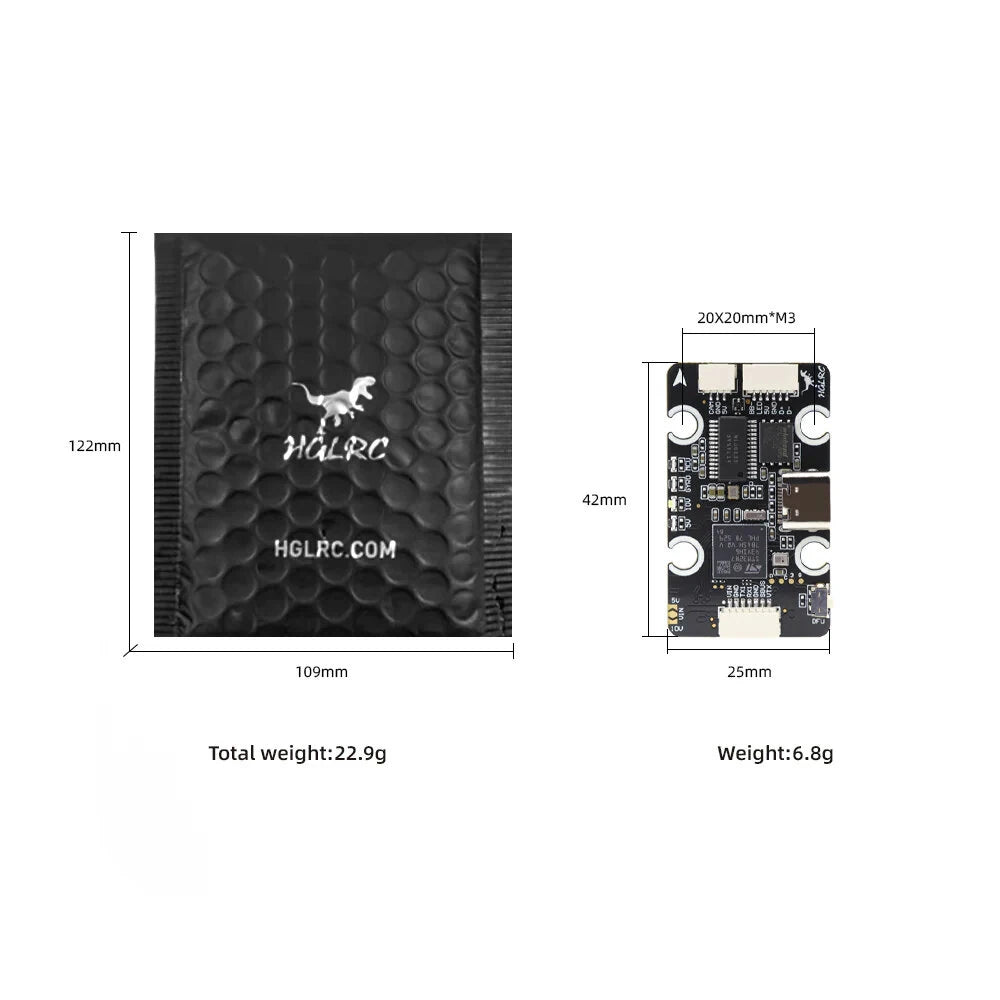

Dimensions :42mmx25mm
Mounting Holes: 20x20mm，M3
Weight:6.8g

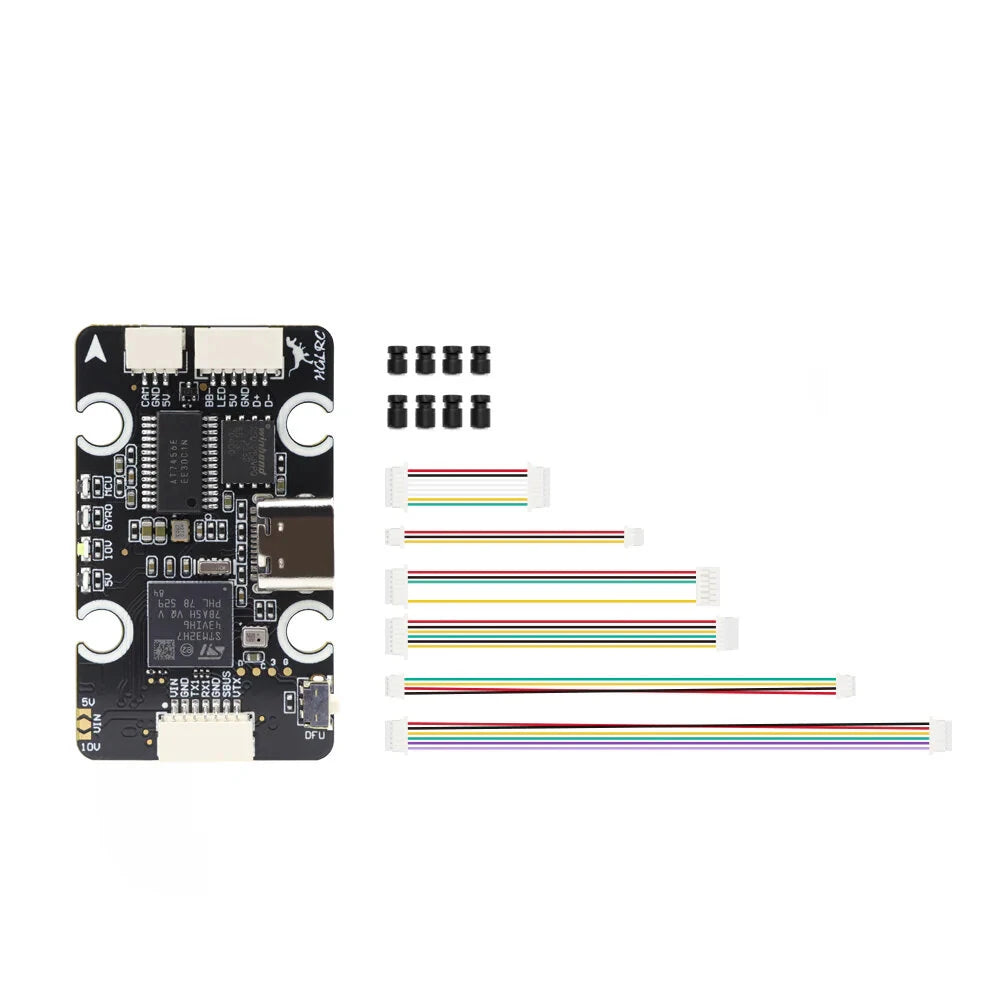

Package Included:
1x HGLRC H743 8S MINI V1 FC
1x 30AWG 25mm Double-ended SH1.0-8P Cable
1x 30AWG,100mm Double-ended SH1.0-4P Receiver Cable
1x 30AWG,50mm Single SH1.0-3P / Single SH1.25-3P Camera Cable
1x 30AWG 70MM Single GH1.25-6P / Single SH1.0-7P DJI Cable
1x 30AWG 70MM Single SH1.0-7P / Single 1.0-6P VTX Cable
1x 30AWG,120mm total length, Double-ended SH1.0-6P GPS Cable
4x 3*8 Vibration Damping Standoffs
4x 3*6.6 Vibration Damping Standoffs
1x HGLRC Sticker
1x QR Code Card
