Description
Description:

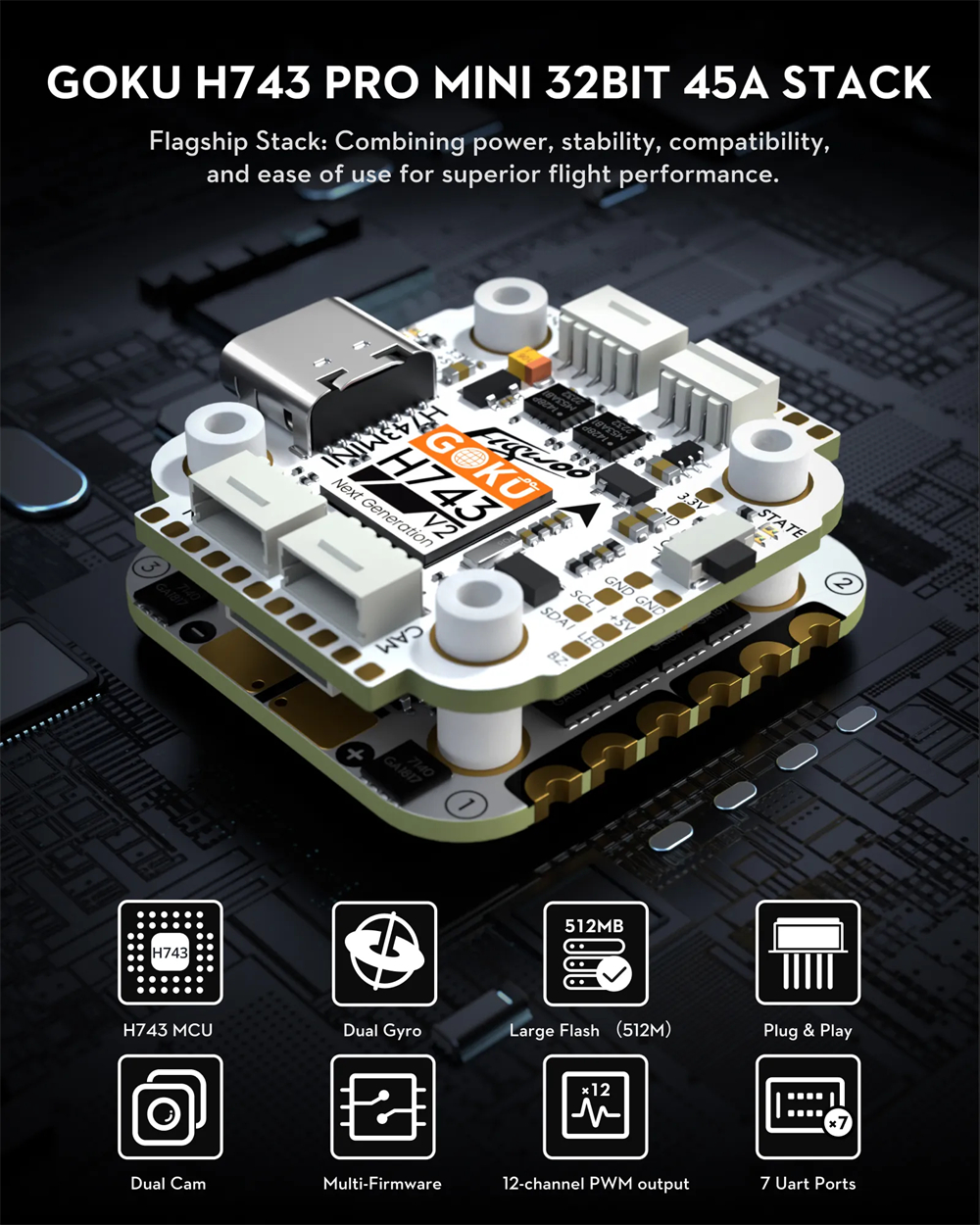

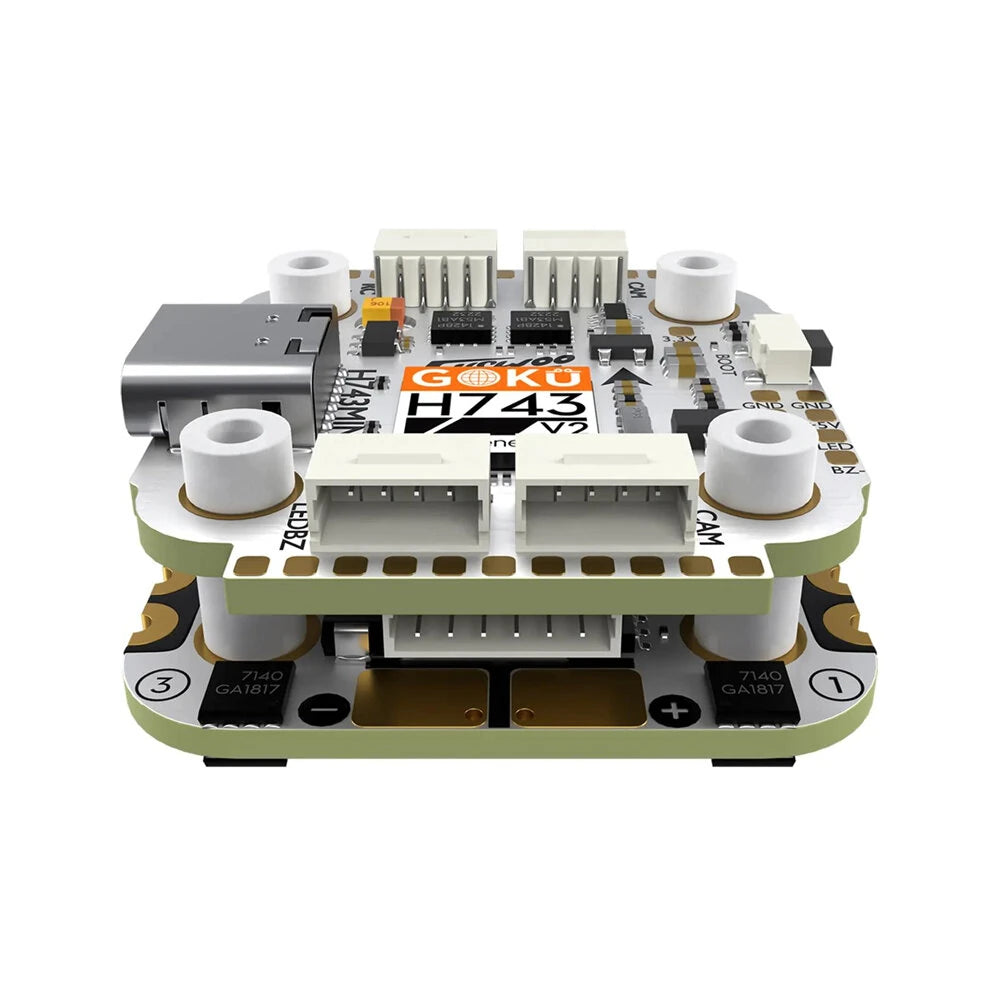

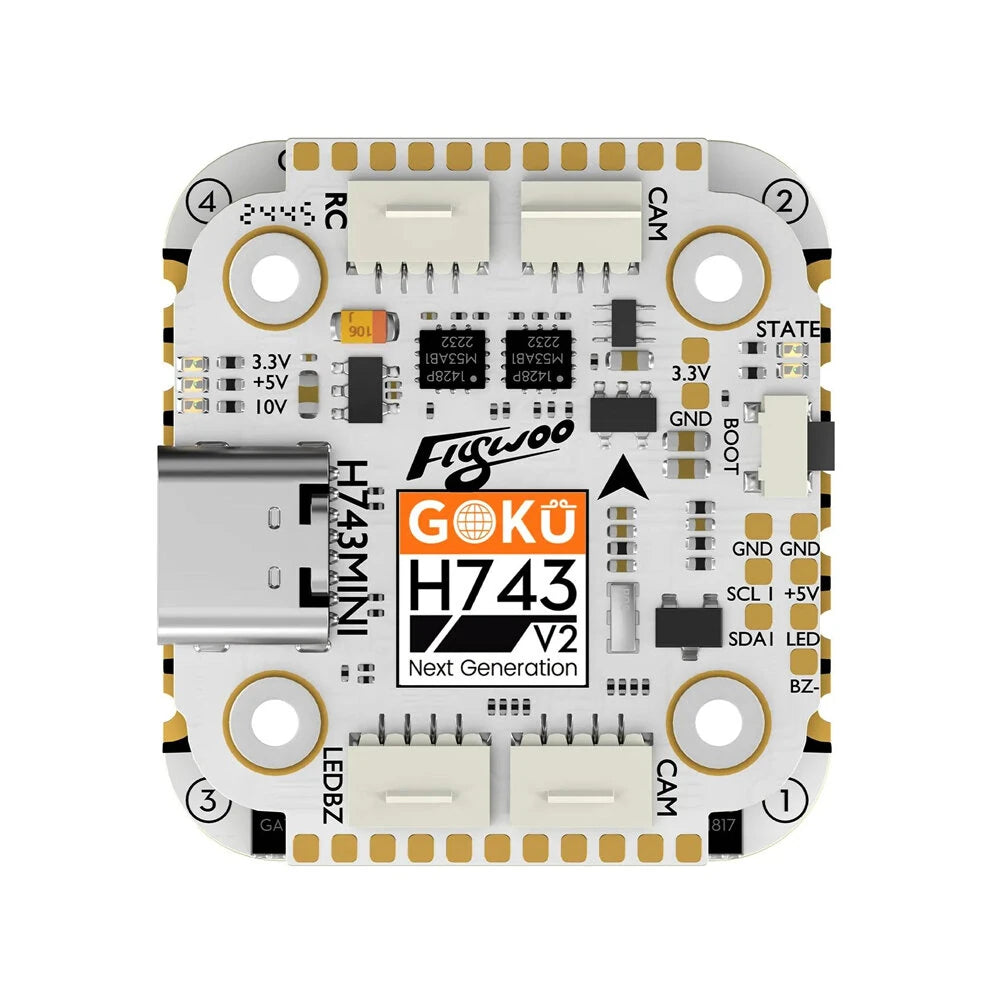

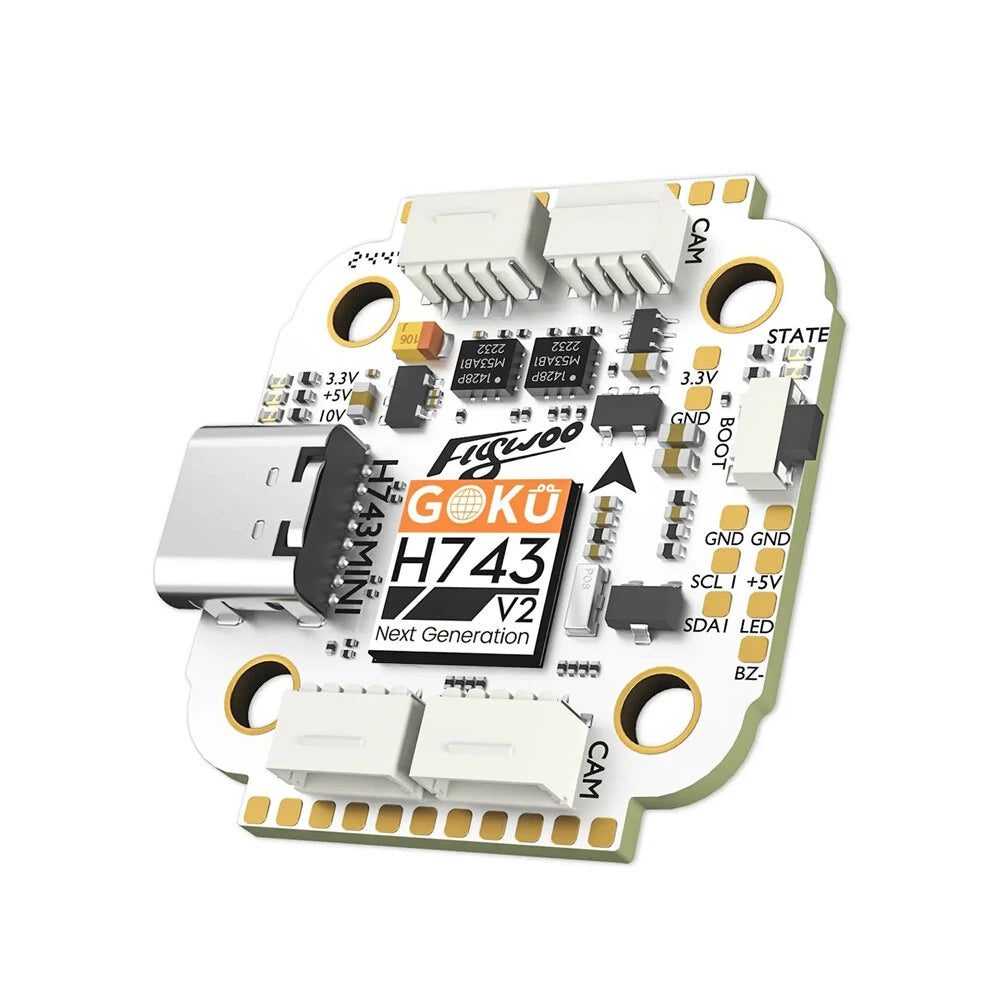

GOKU H743 Pro Mini 32bit 45A Stack is Flywoo’s flagship flight controller and ESC combo.
It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB blackbox , 10V2A/5V2A dual BECs, and 8 motor outputs for X8 multi-rotor. It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors. Paired with the GOKU G45M 45A ESC, it delivers fast, precise handling for racing and freestyle.
Highlights：

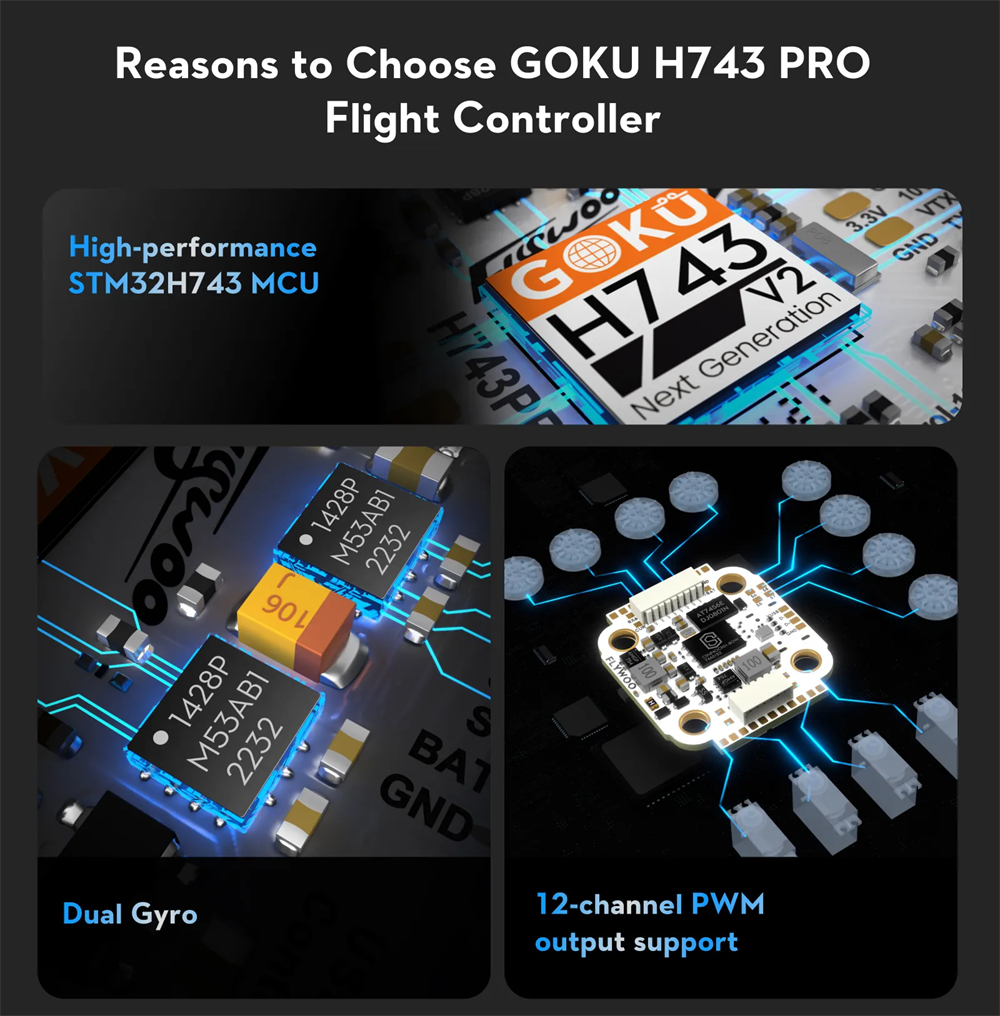

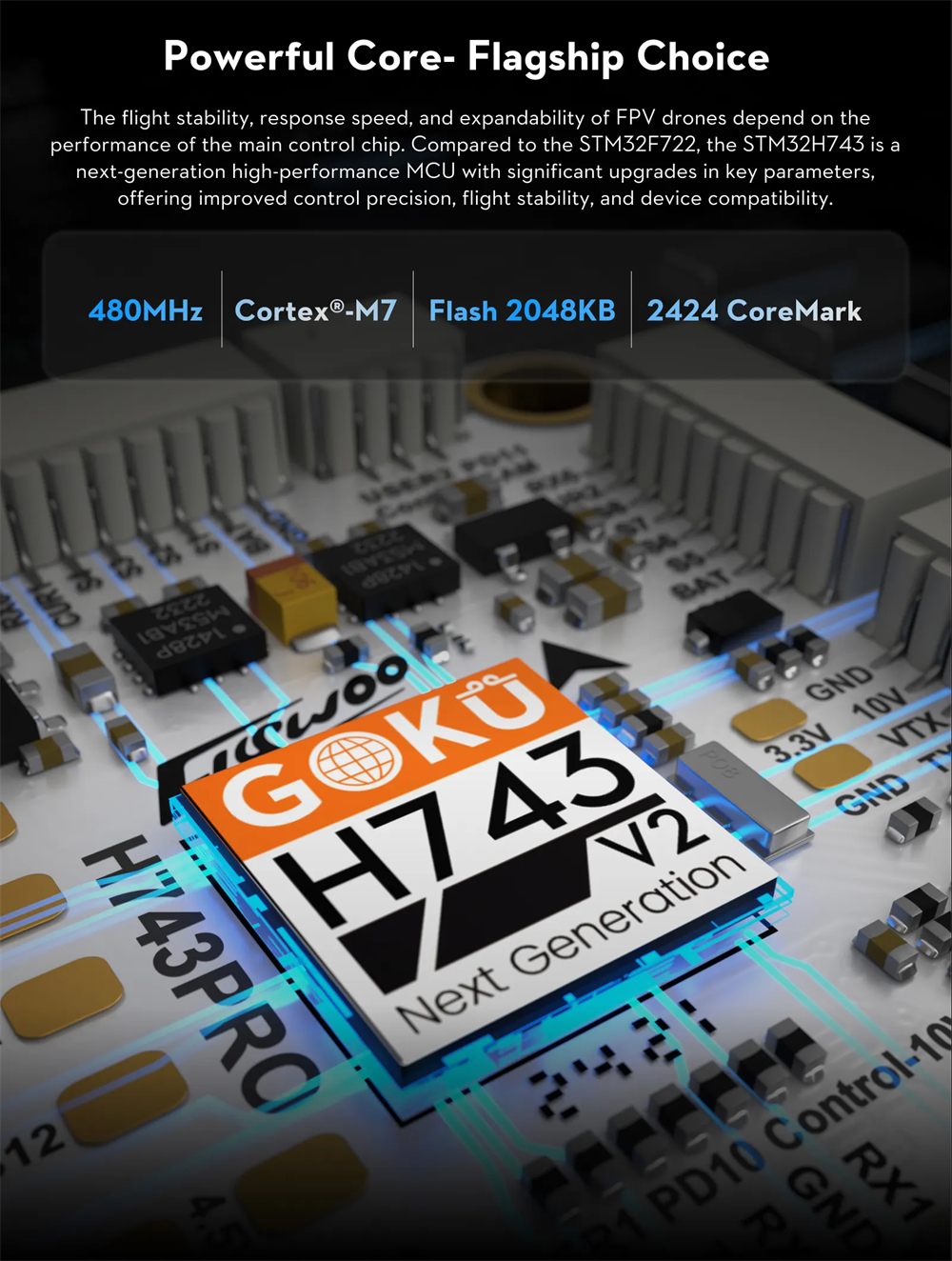

1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.

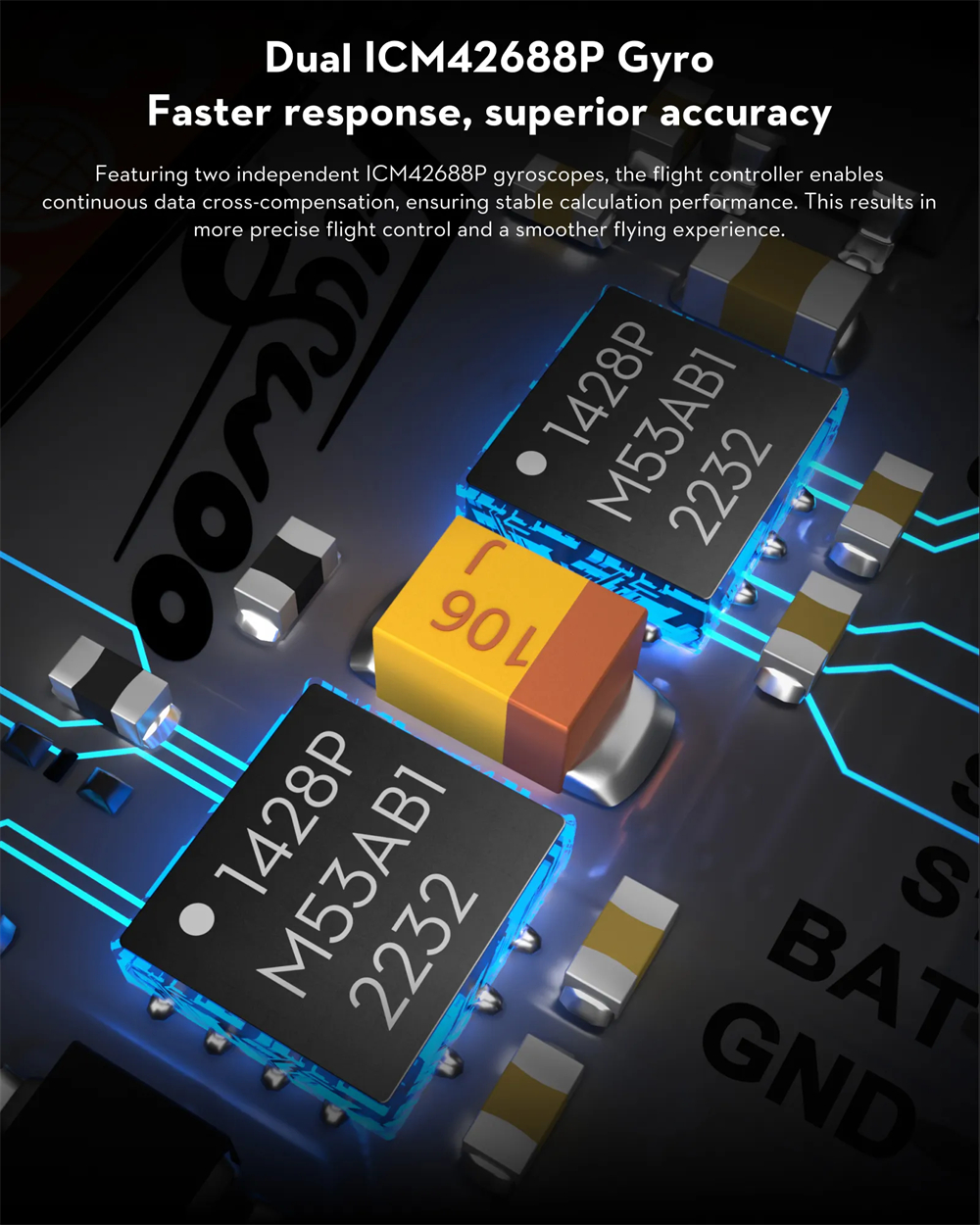

2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.

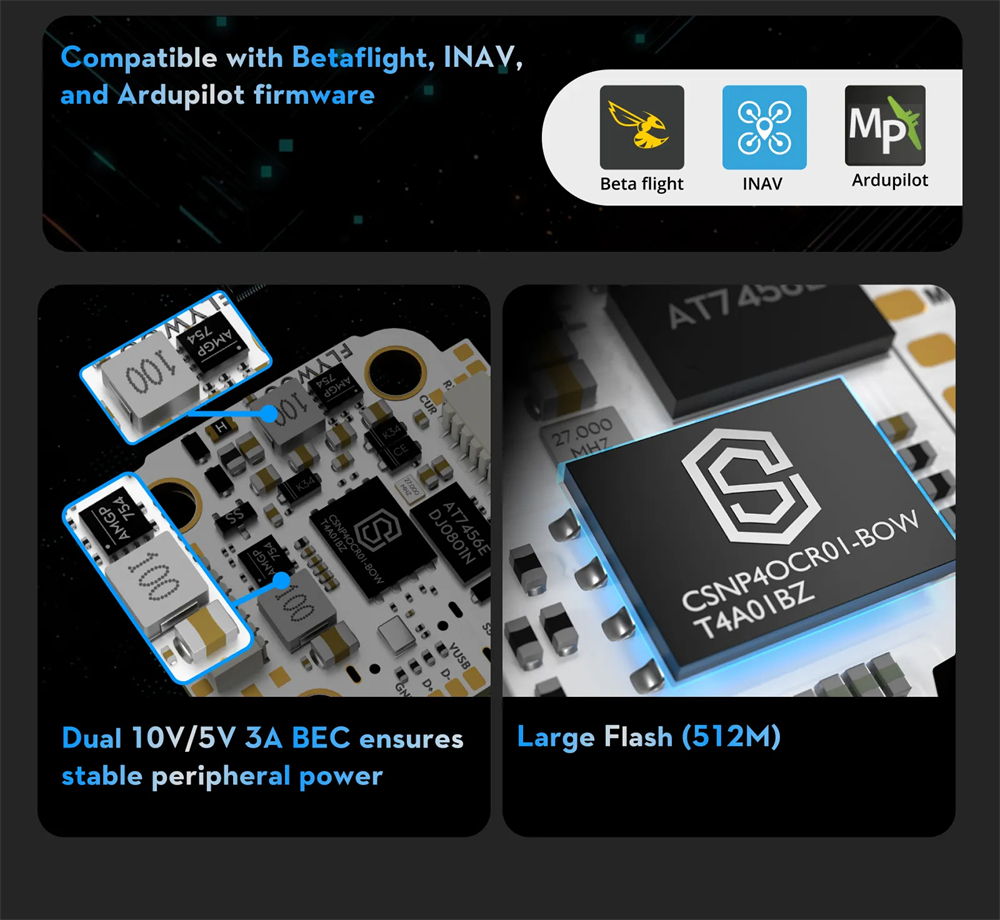

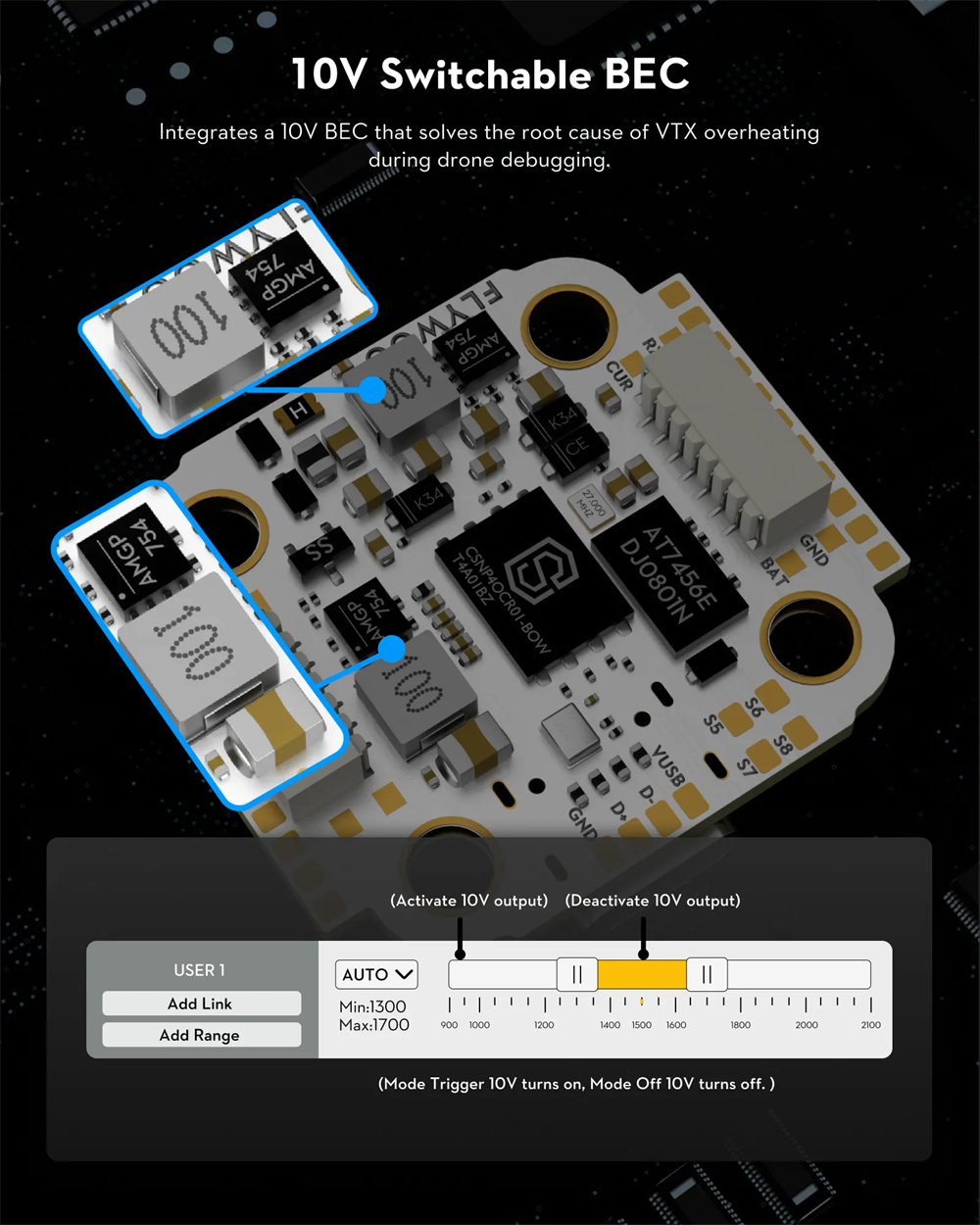

3. Efficient Power: Dual 10V/5V 2A BEC provides stable power for peripherals.

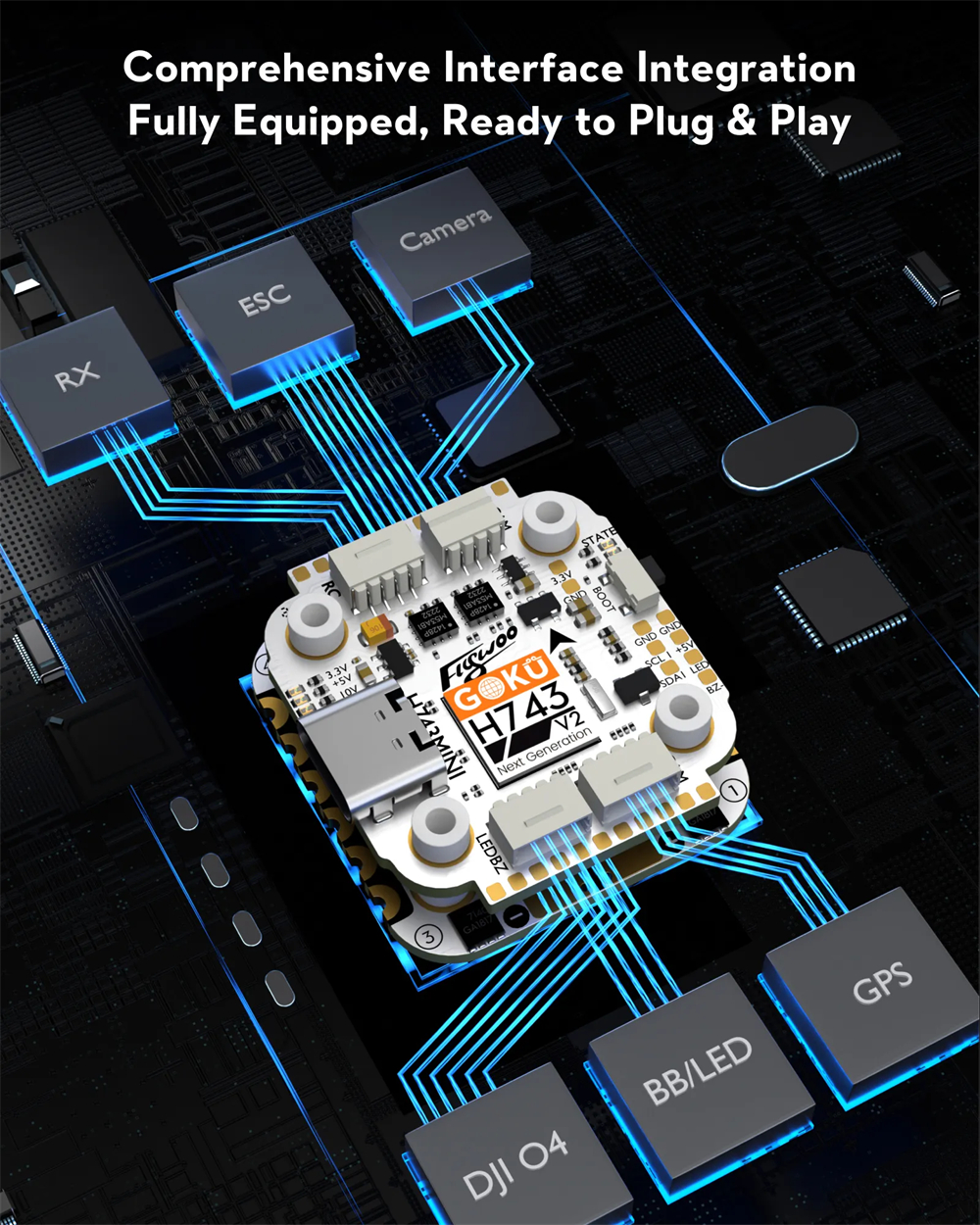

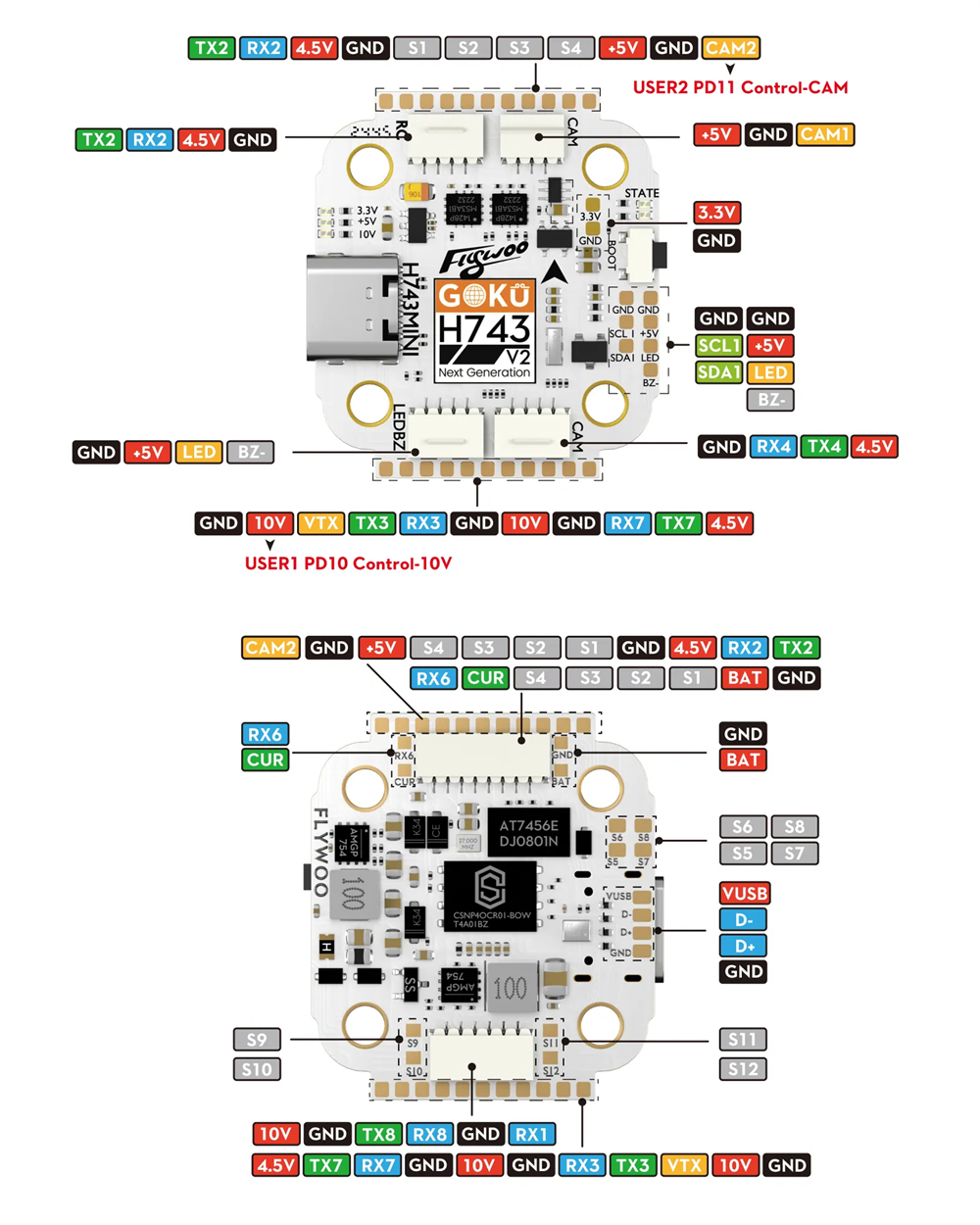

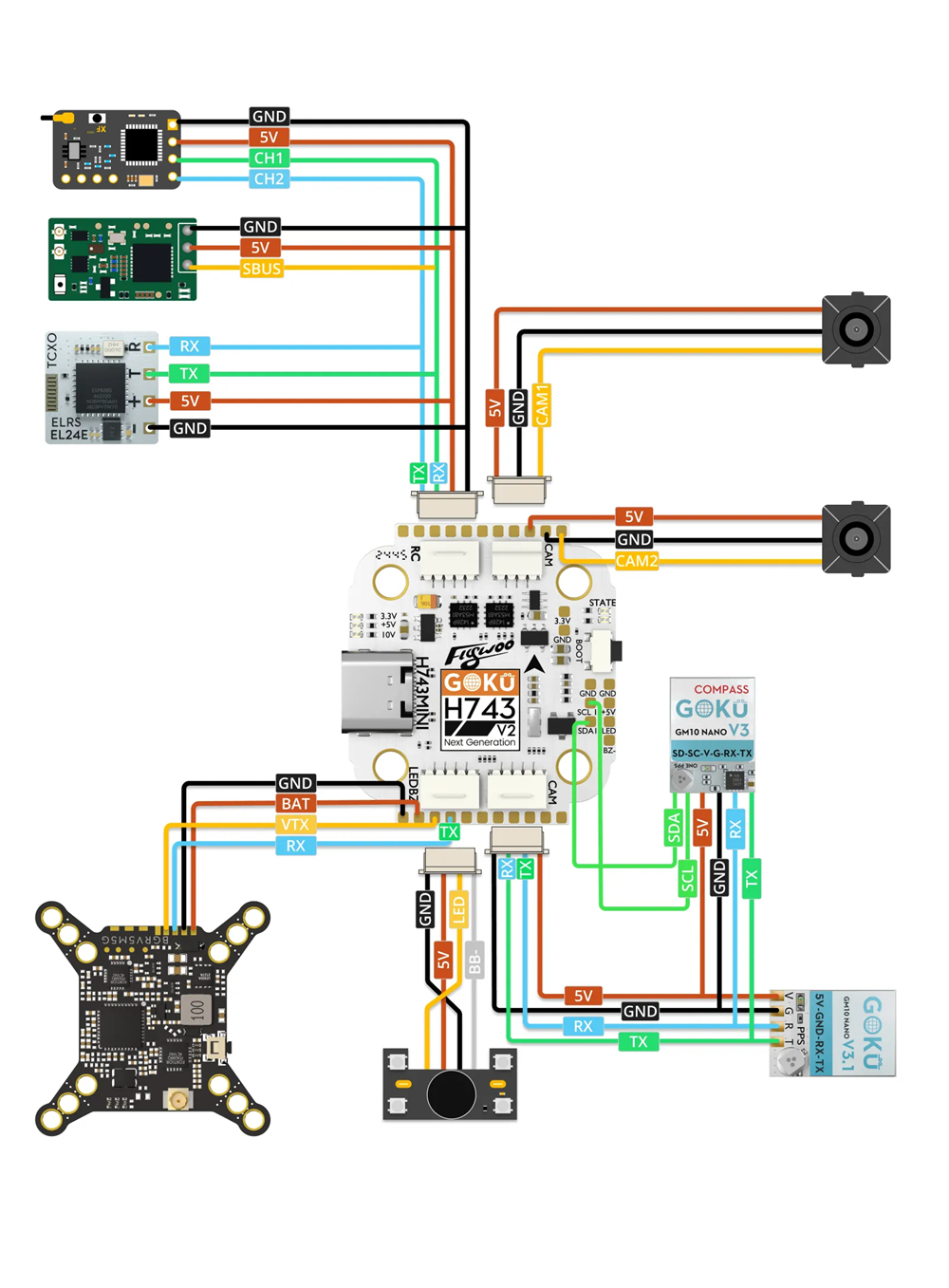

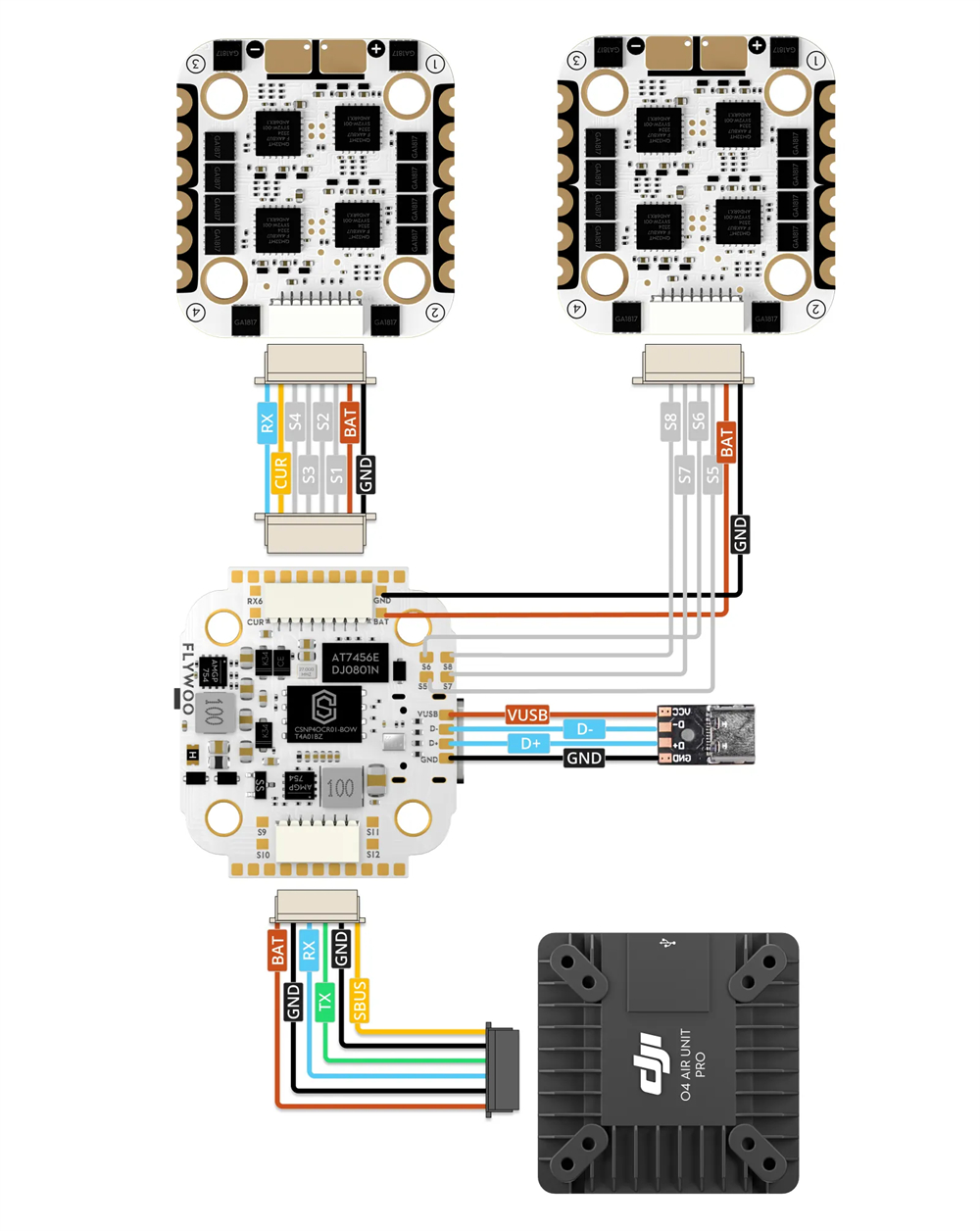

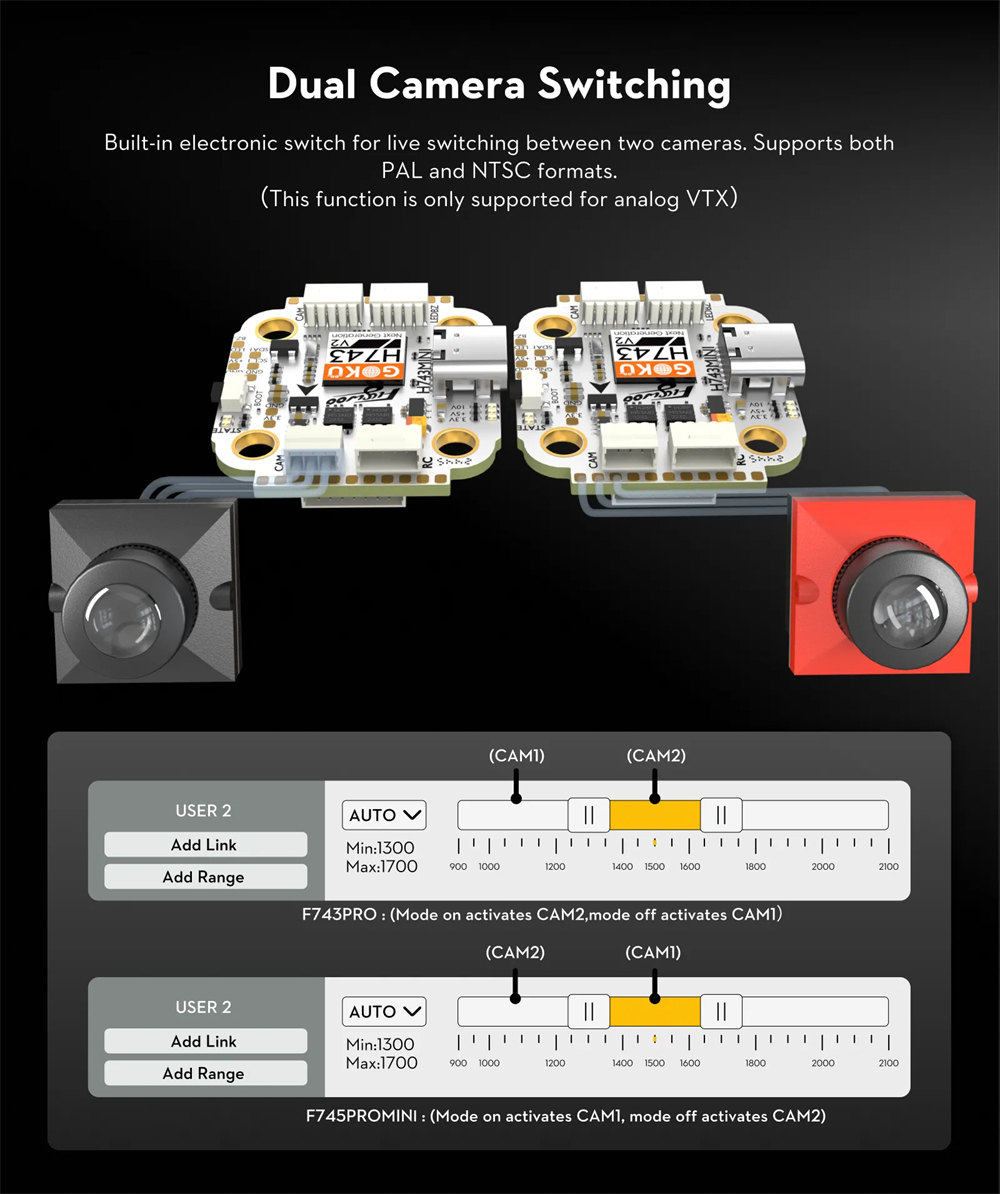

4. Versatile I/O: 7 UART ports + 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.

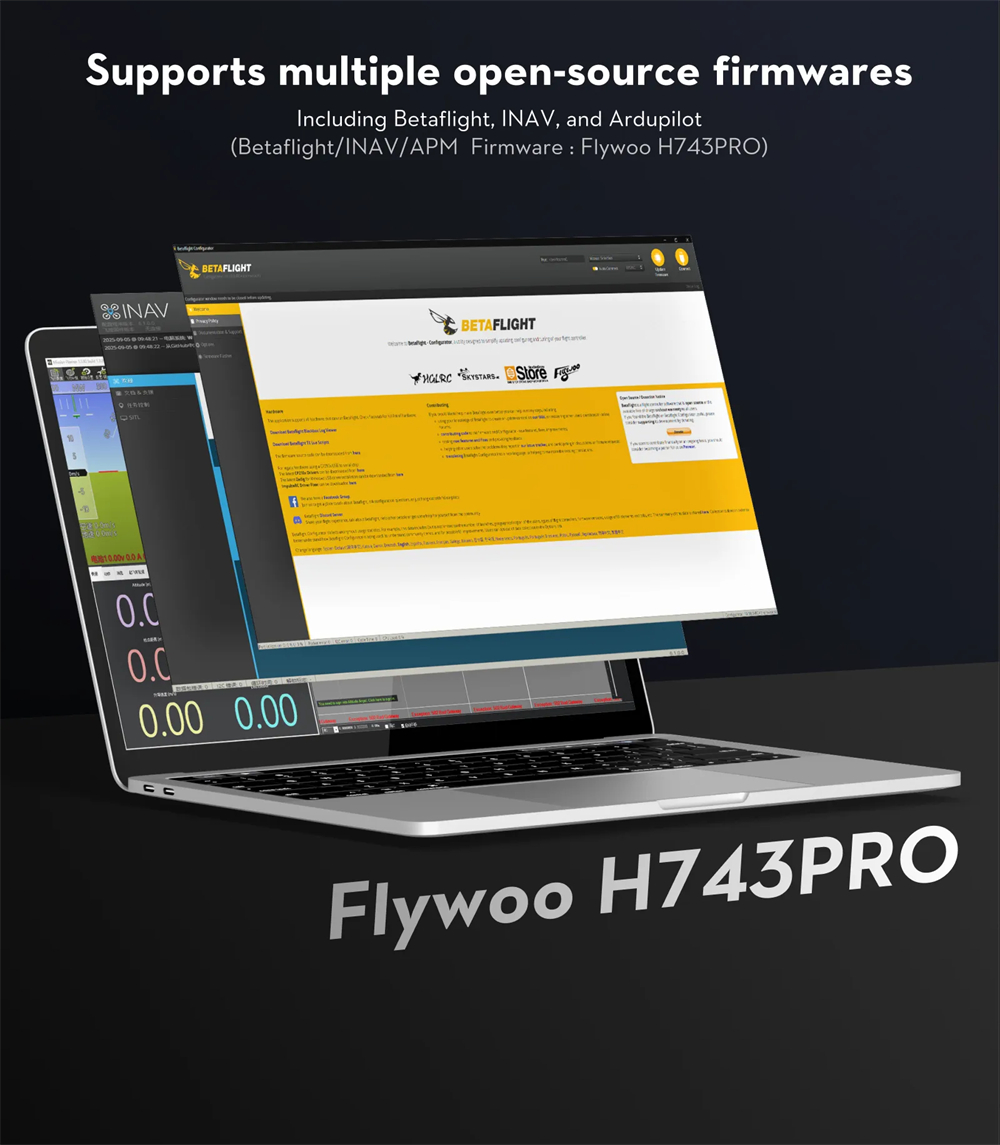

5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
Specifications:
Brand: Flywoo
Model: GOKU H743 PRO Mini
Item |
Parameter |

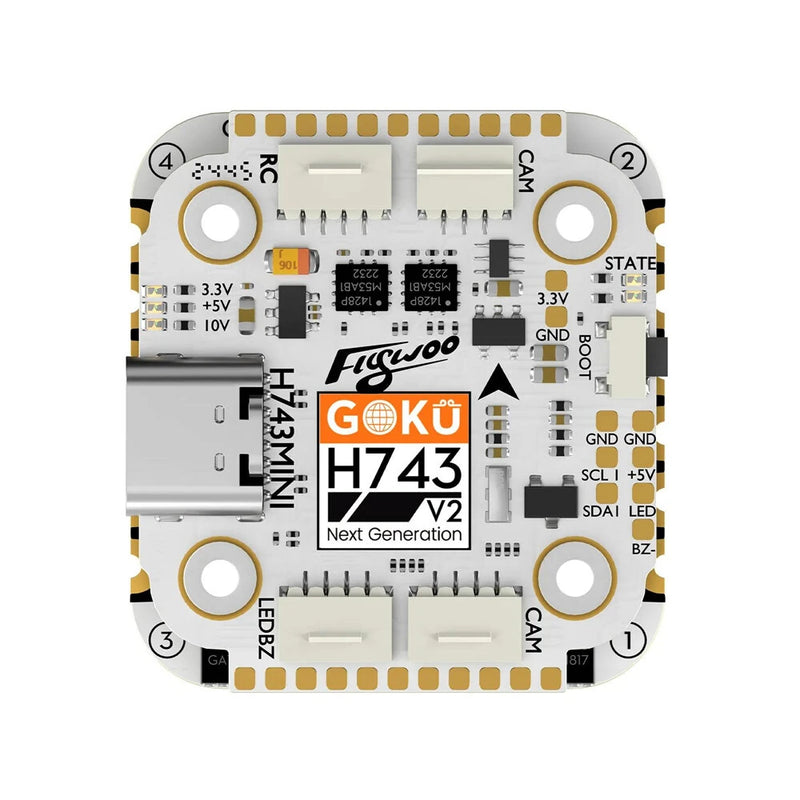

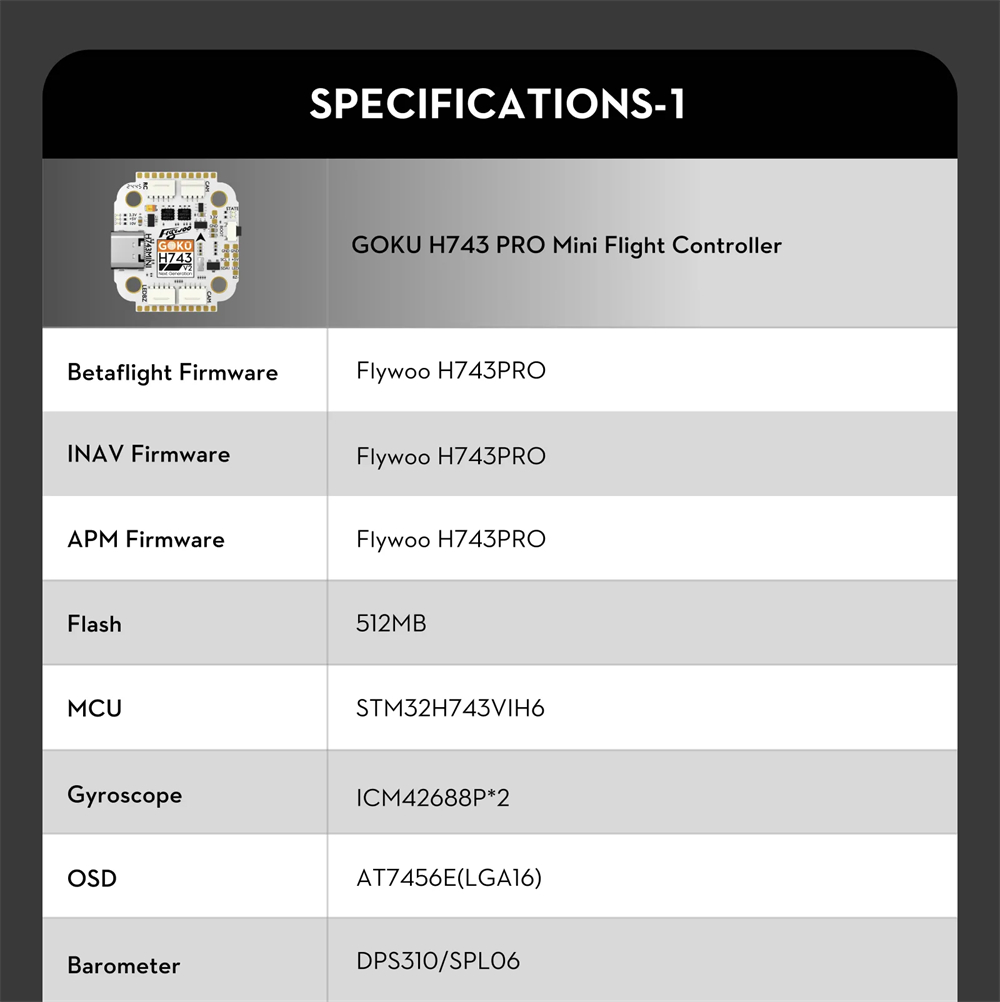

GOKU H743 PRO Mini Flight Controller |

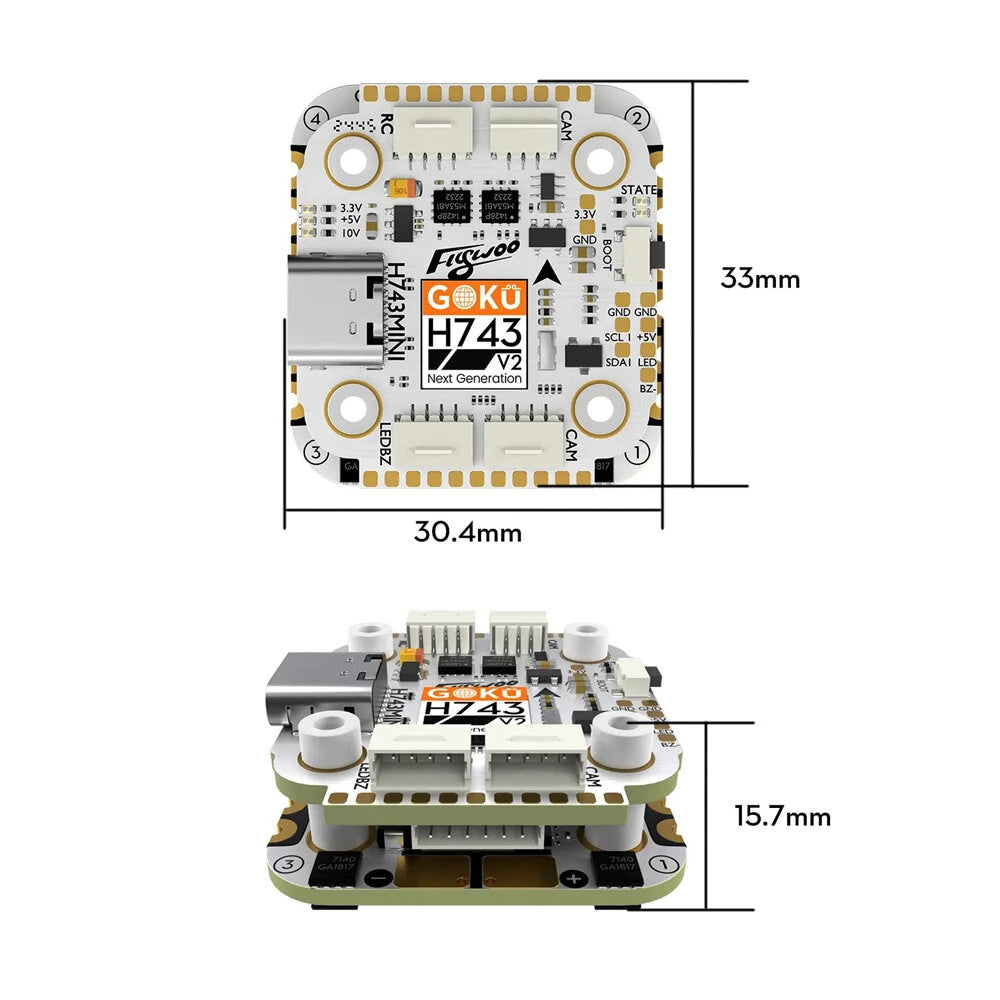

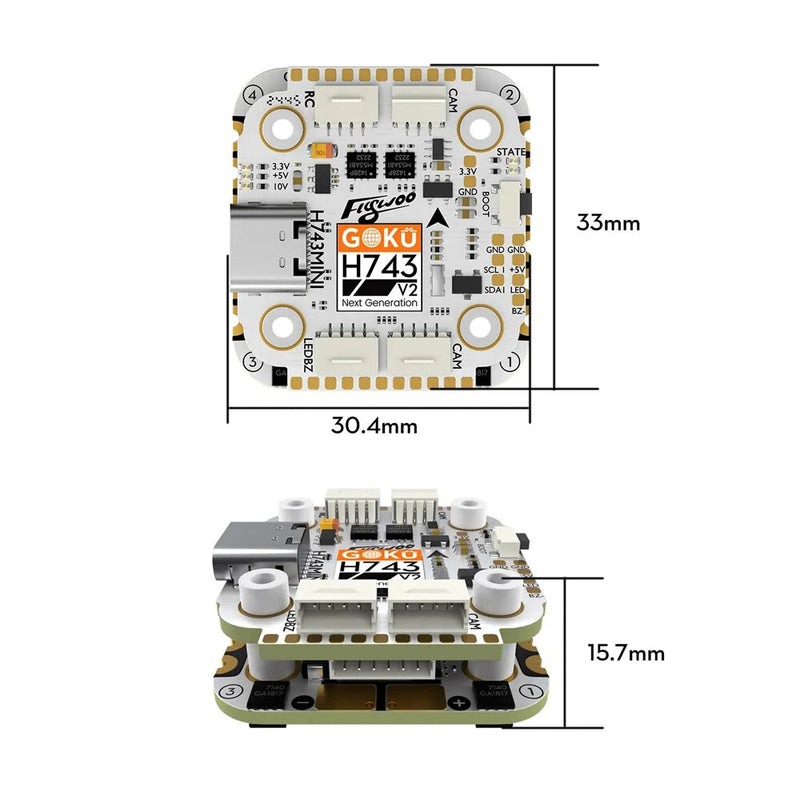

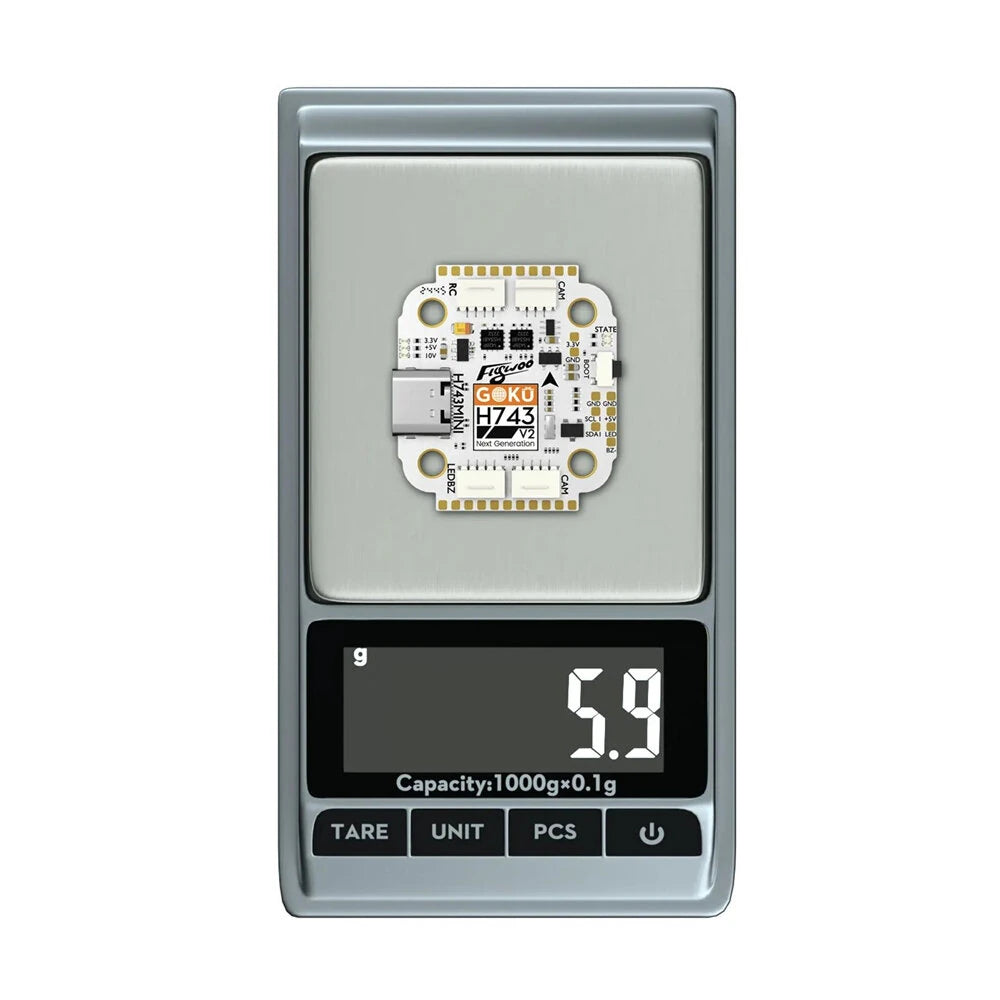

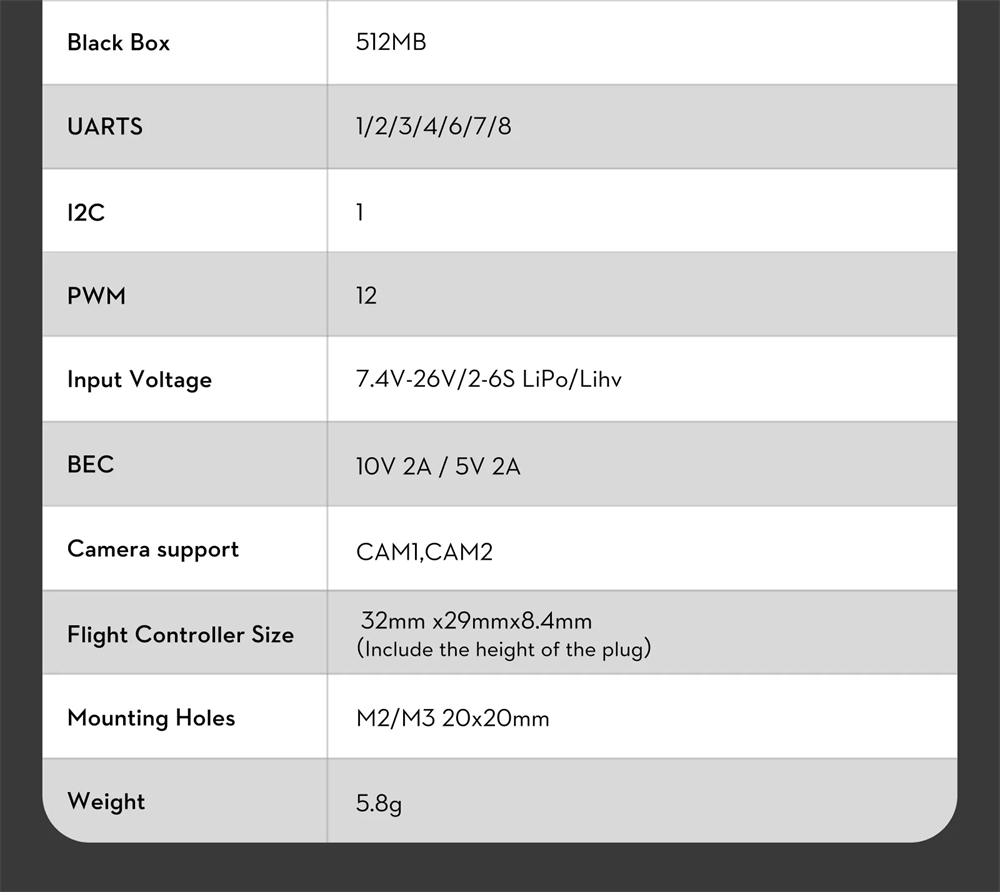

BetaFlight Firmware: Flywoo H743PRO INAV Firmware: Flywoo H743PRO APM Firmware: Flywoo H743PRO Flash: 512MB MCU: STM32H743VIH6 Gyroscope: ICM42688P*2 OSD: AT7456E(LGA16) Barometer: DPS310/SPL06 Black Box: 512MB UARTS: 1/2/3/4/6/7/8 I2C: 1 PWM: 12 Input Voltage: 7.4V-26V/2-6S LiPo/Lihv BEC: 10V2A/5V2A Camera support: CAM1,CAM2 Flight Controller Size: 32mm x 29mm x 8.4mm(Height including plug) Mounting Holes: M2 20x20mm Weight: 5.8g |

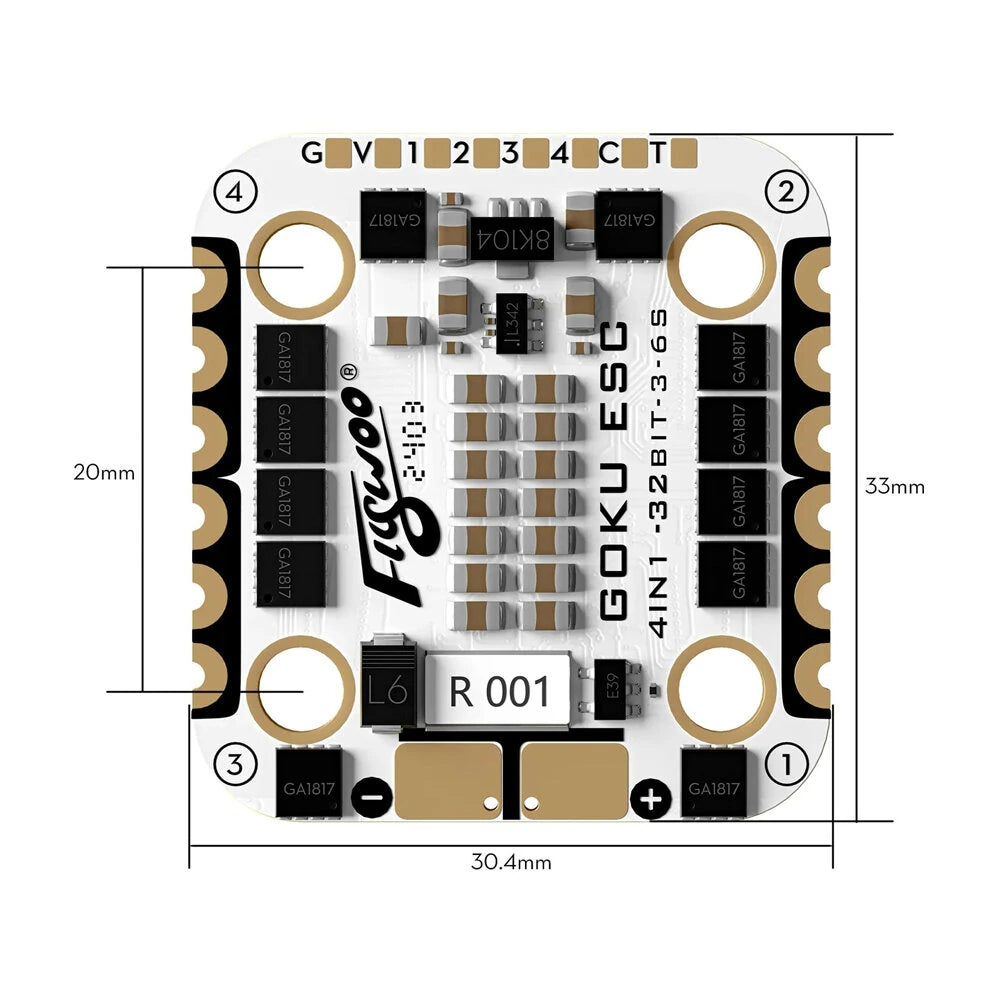

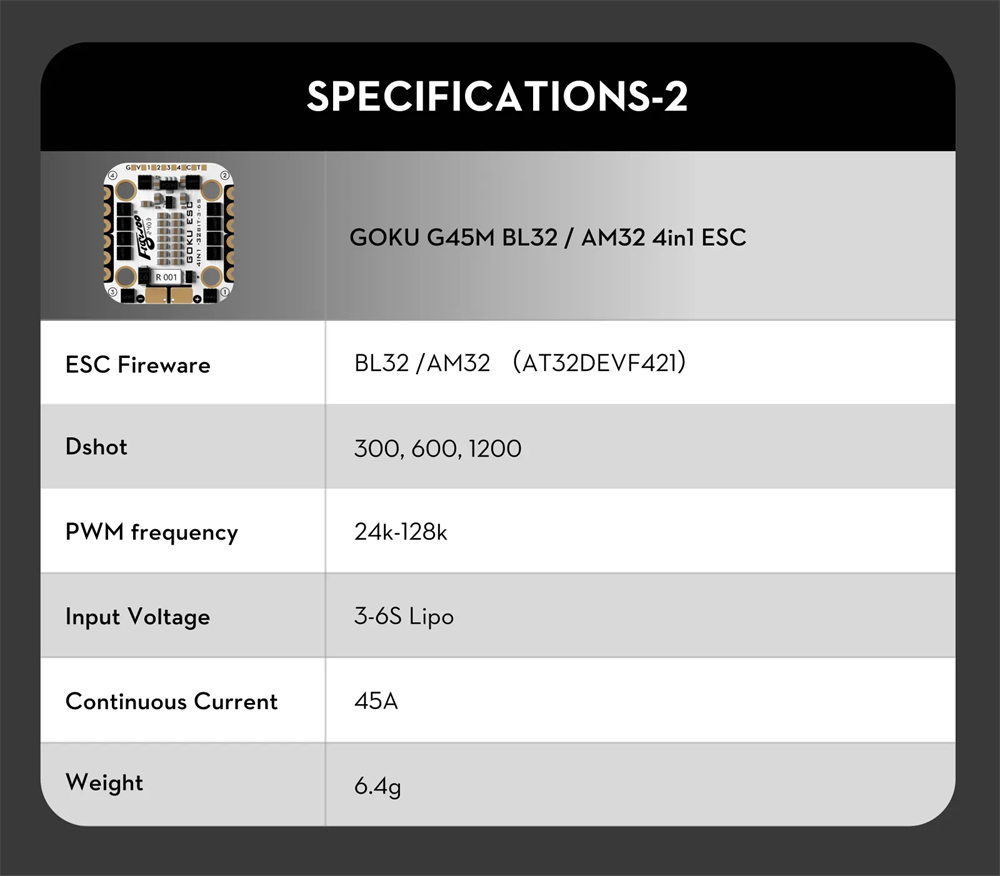

GOKU G45M AM32 4in1 ESC |

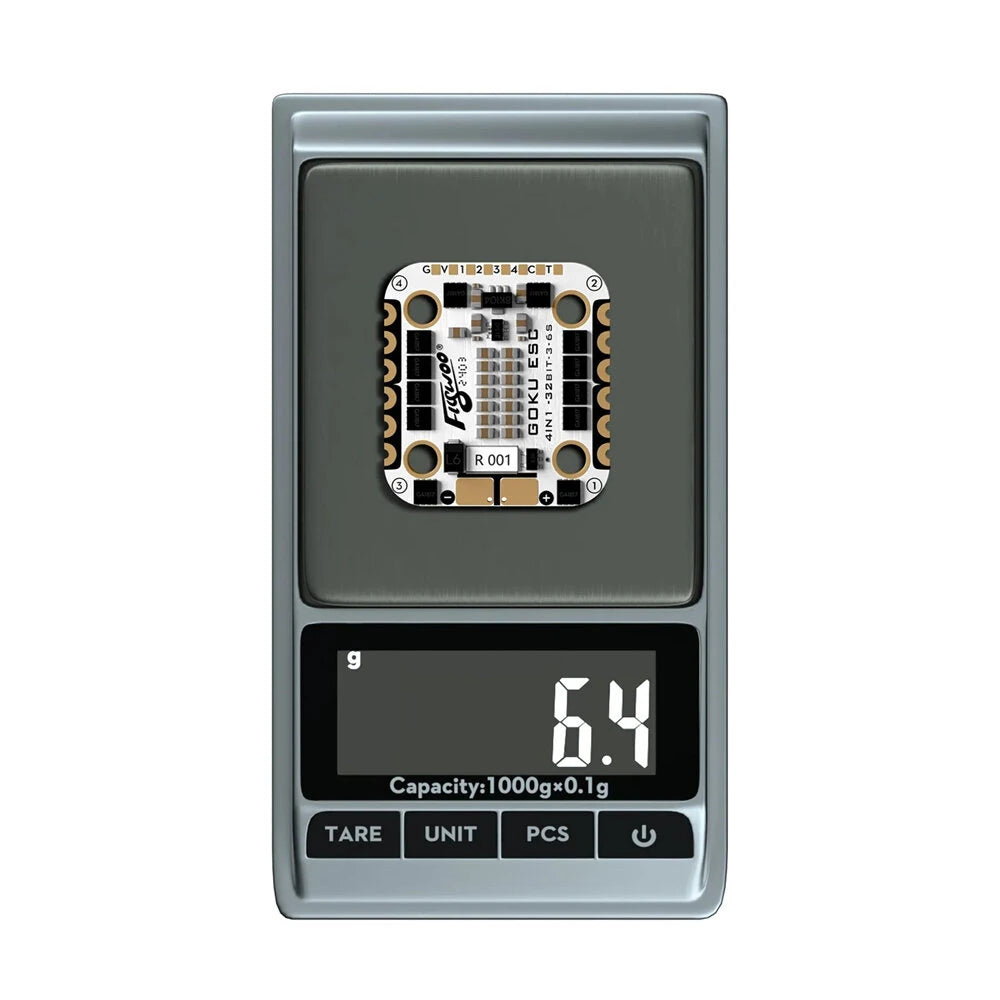

Support AM32 Support Dshot300, Dshot600，Dshot1200 PWM frequency: 24k-128k Input Voltage: 3-6S Lipo Continuous Current: 45A Firmware: AM32: AT32DEVF421 BL32: GOKU_F4A32_PRO Weight: 6.4g |
Package Included:
1 x FC&ESC Connection Cable
1 x DJI O4/O4P Connection Cable
1 x Buzzer Connection Cable
1 x Receiver Connection Cable
1 x GPS Connection Cable
2 x Camera Connection Cable
1 x XT30 Power Cable
5 x M3 Shock-Absorbing Ball
9 x M2 Shock-Absorbing Ball
1 x Capacitors
5 x Anti-Slip Nuts
