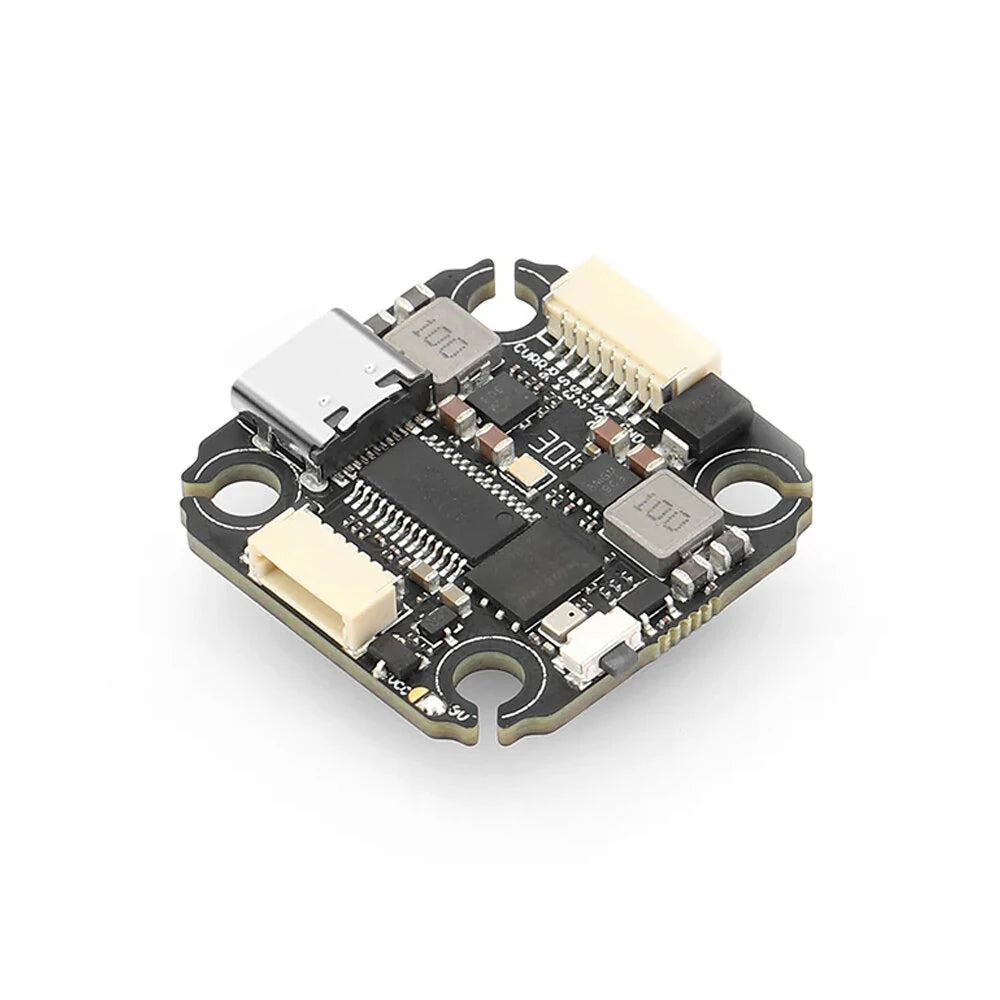

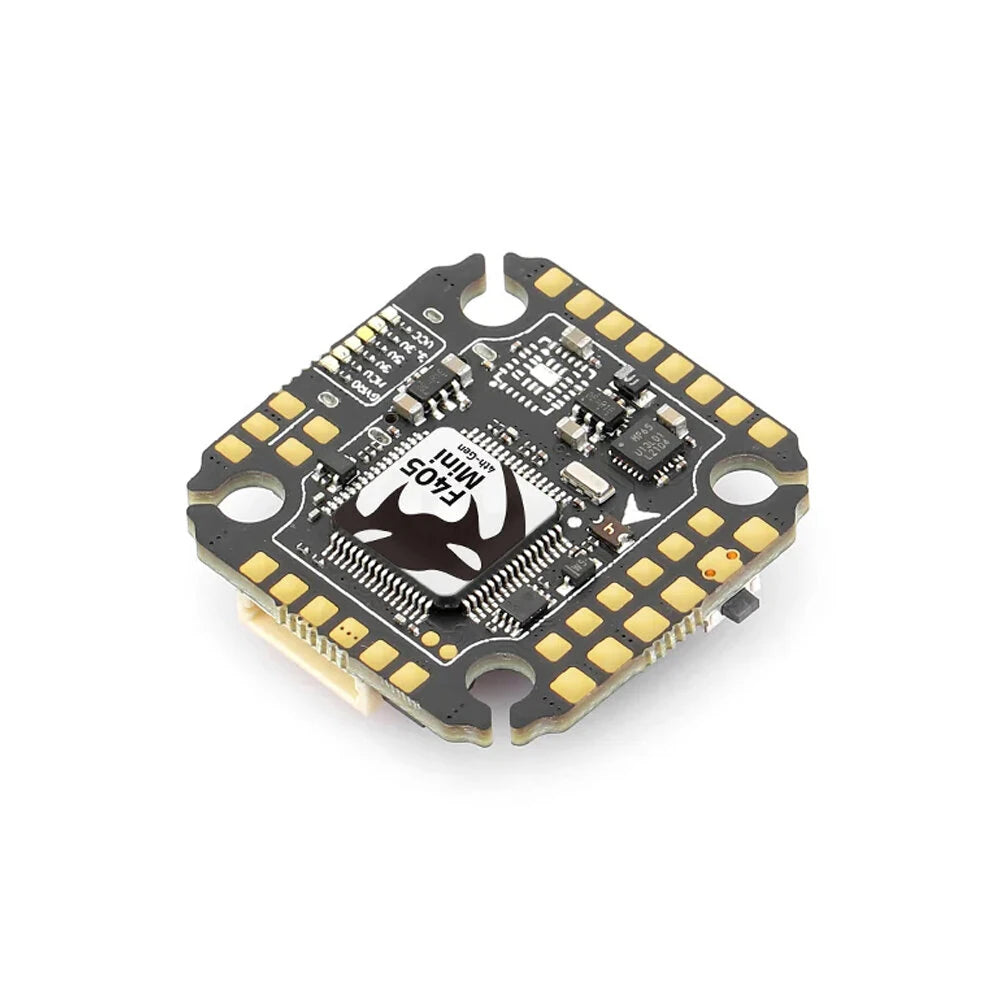

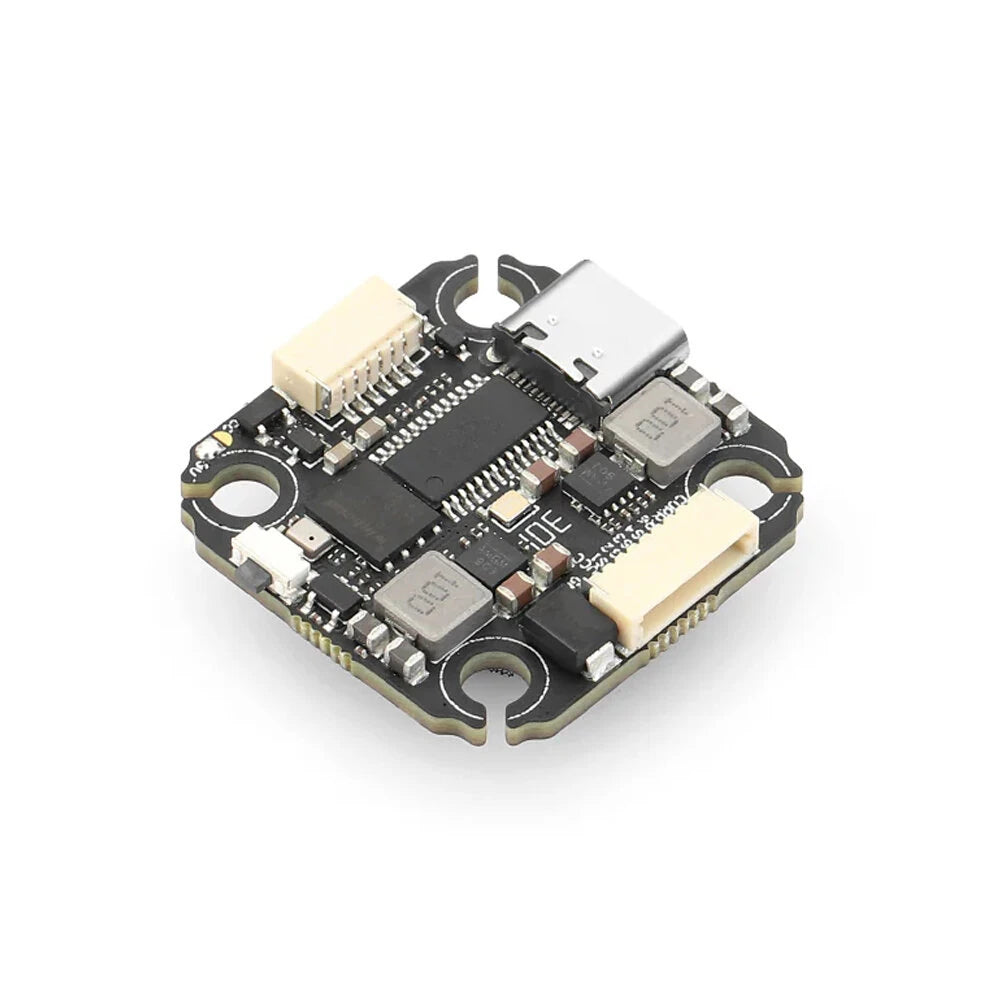

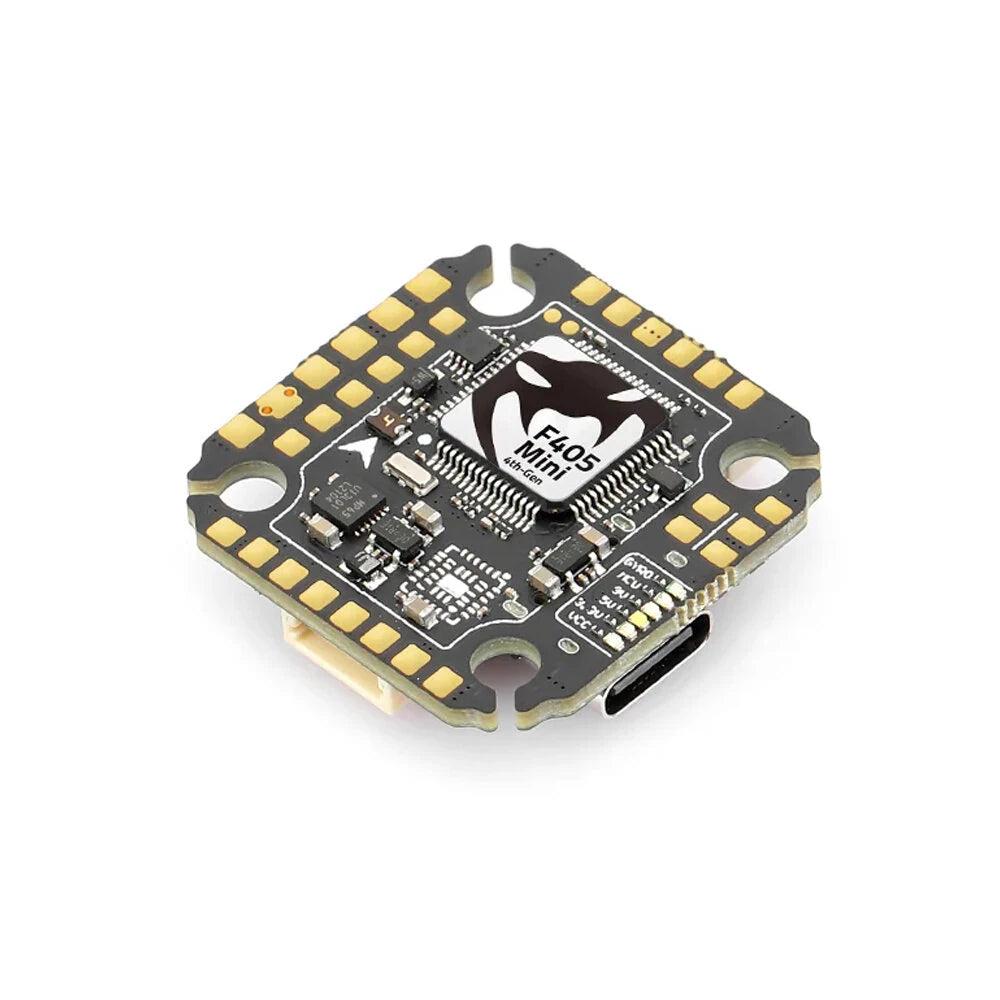

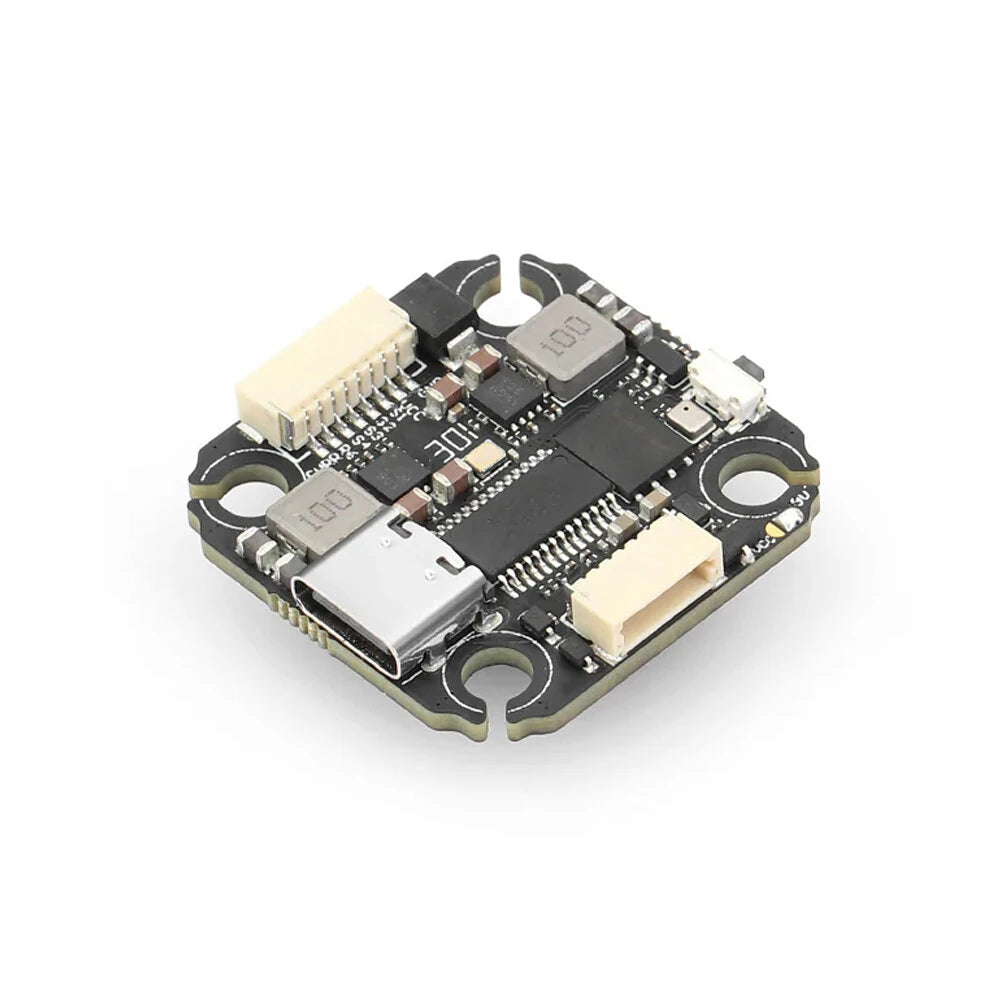

20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
Roll over image to zoom in Click on image to zoom
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones
20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones

20mm*20mm MAMBA MK4 F405 MINI 6S Flight Controller ICM42688P with 5V 9V BEC Output for RC FPV Racing Drones

Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: F405 FC
Price:
R 1,209.70 R 1,461.64
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specification:
Brand: MAMBA

Item Name: MK4 F405 MINI Flight Controller

MCU: STM32F405
Frequency: 168MHz
Gyro: Version: ICM42688P
OSD: AT7456E
Blackbox: 16M Memory
Barometer: SPL06
Uarts: 6 Set
Receiver: TBS/SBUS/IBUS/DSM
RSSI Pad: /
I2C: Yes
F.Port: Yes
Buzzer Pad: Yes
Curr Pad: Yes
ESC Signal: 6 Set
BEC 3.3V: 0.5A
BEC 5V: 2.5A
BEC 9V: 2A
MB Led: /
BF Led: Yes
Air Unit Port: Yes
Wifi: /
VTX Switch: Yes
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
Target: ICM42688P:MAMBA F405_2022B
Input: 6S Lipo
Soft Ware: Betaflight
Mounting: 20.0x20.0mm, Ø 3/Ø 2
Size: 29.0x29.5x6.5mm
Weight: 6.0g

Package Included:
1 x MAMBA MK4 F405 MINI Flight Controller
