Description
Description:

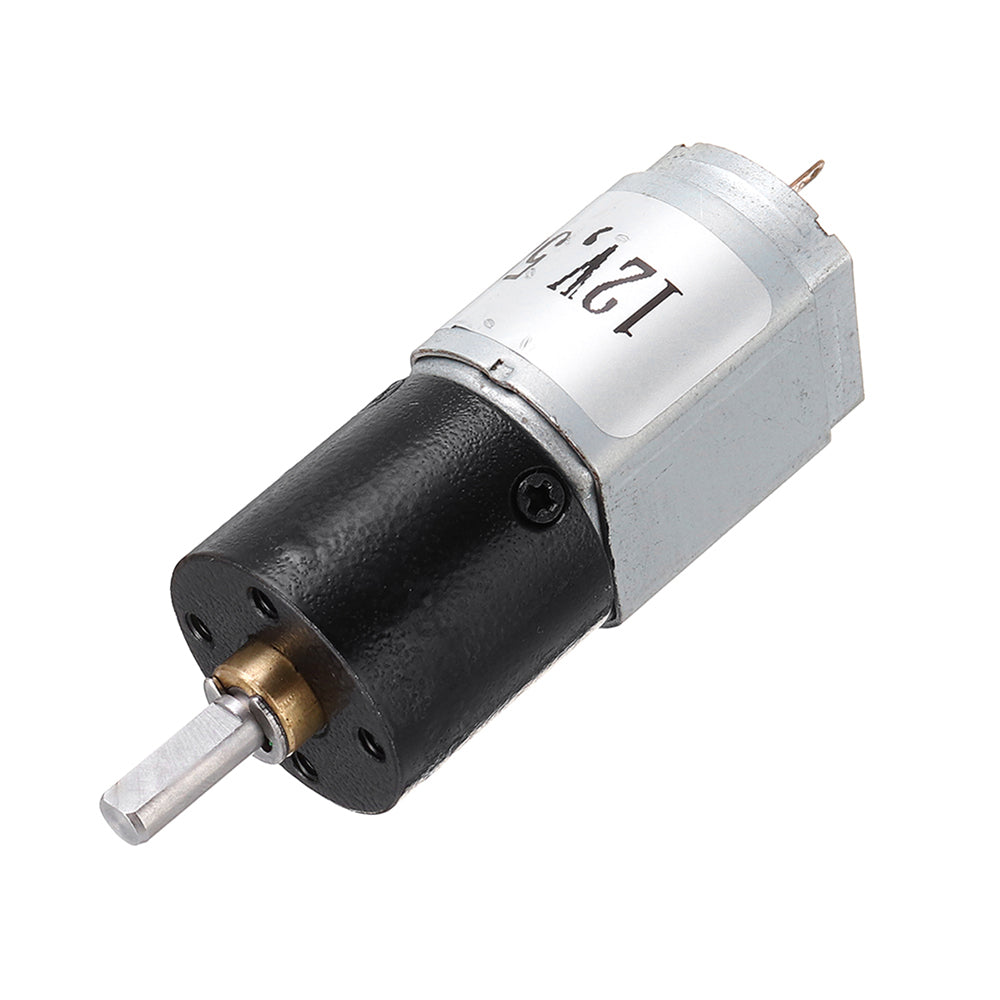

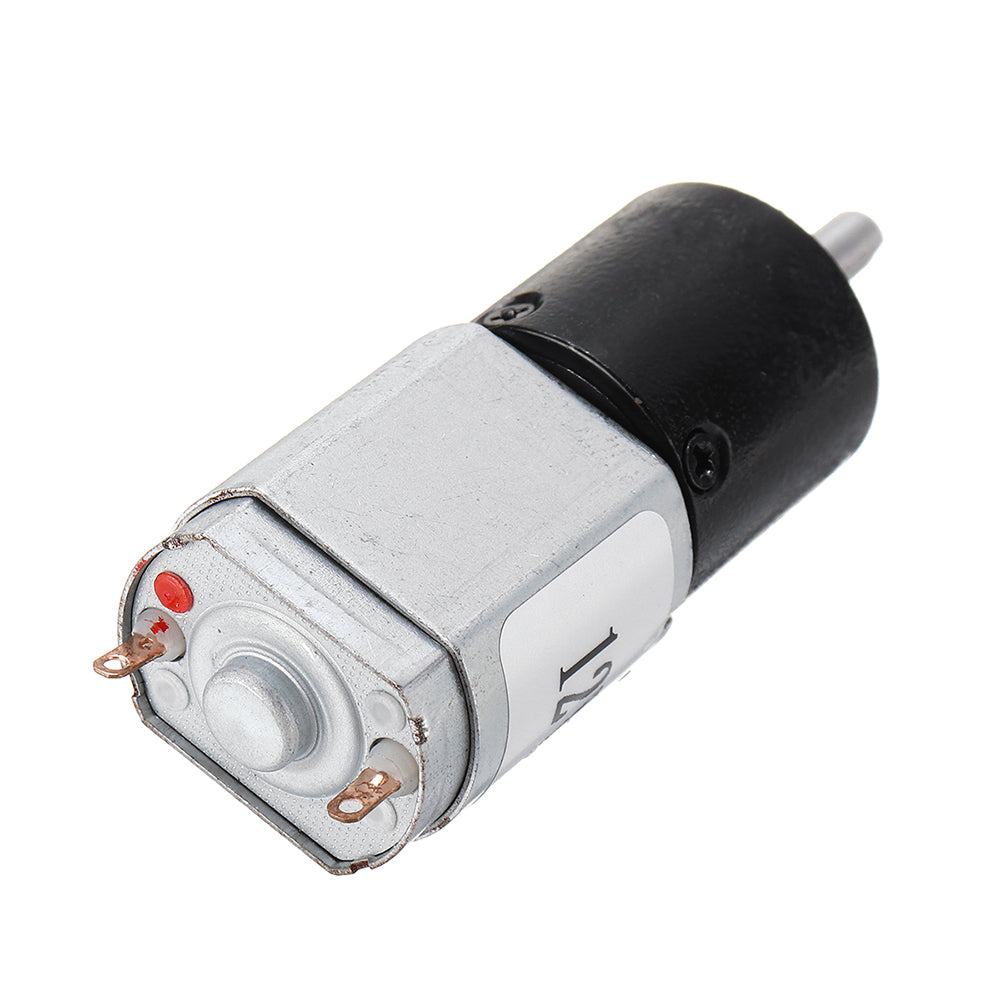

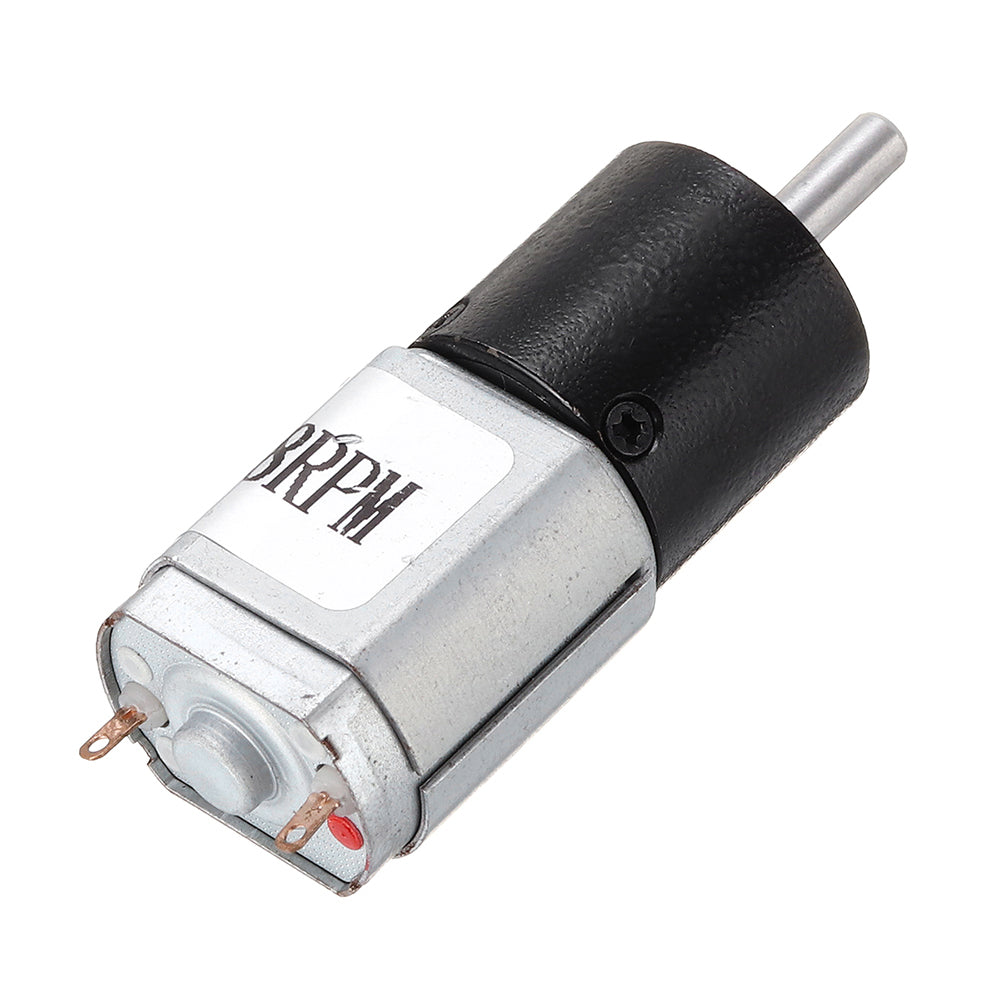

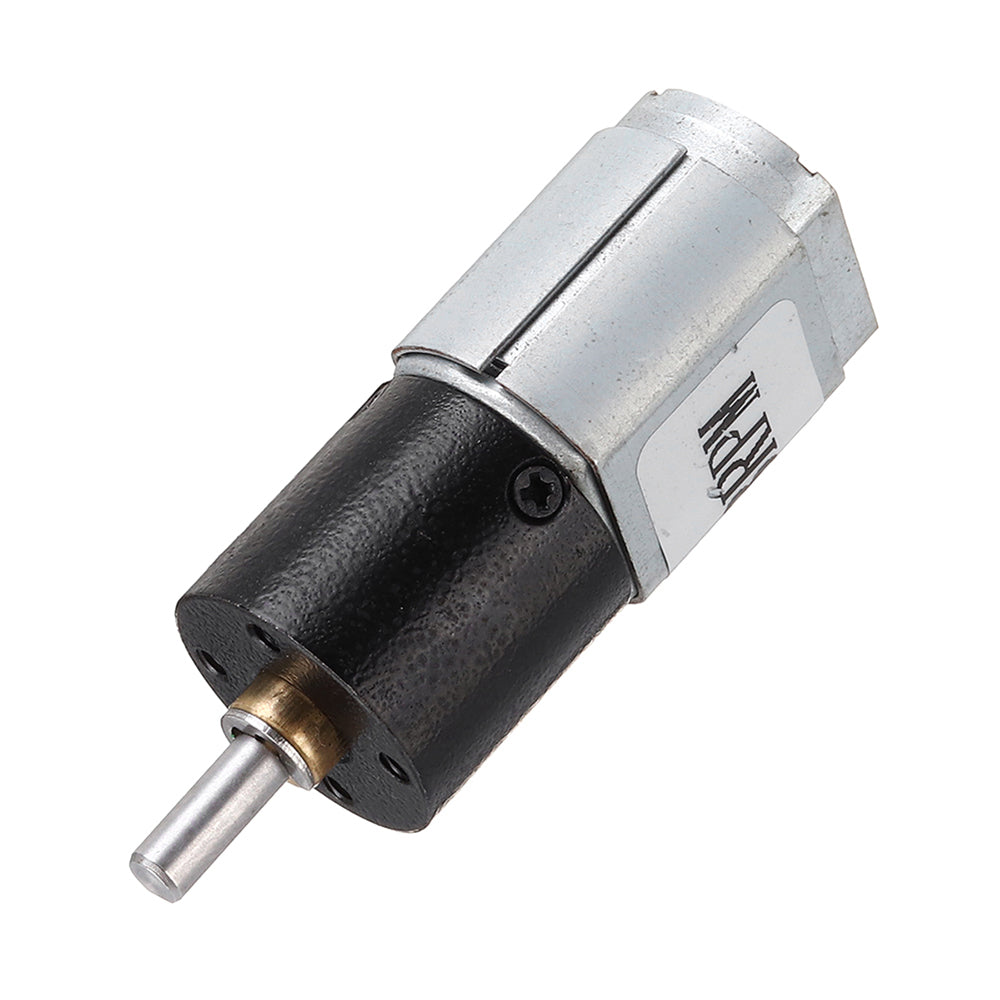

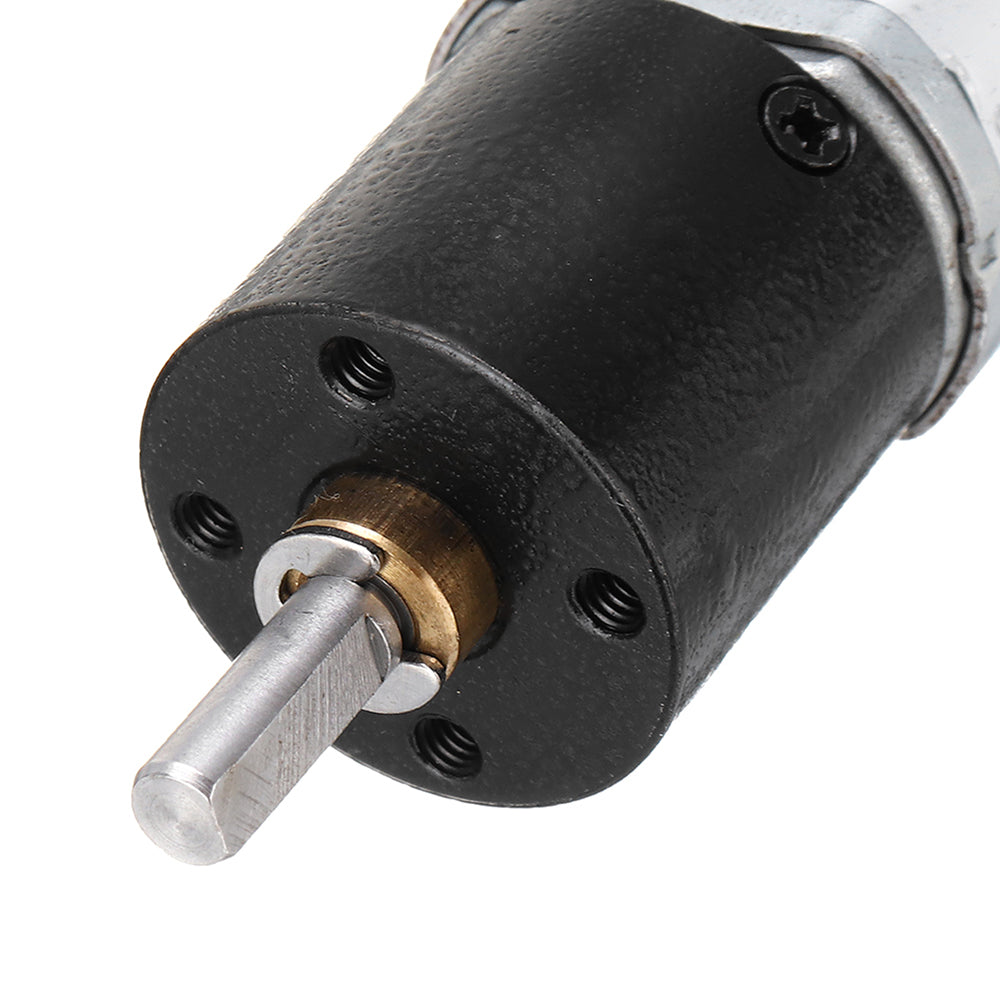

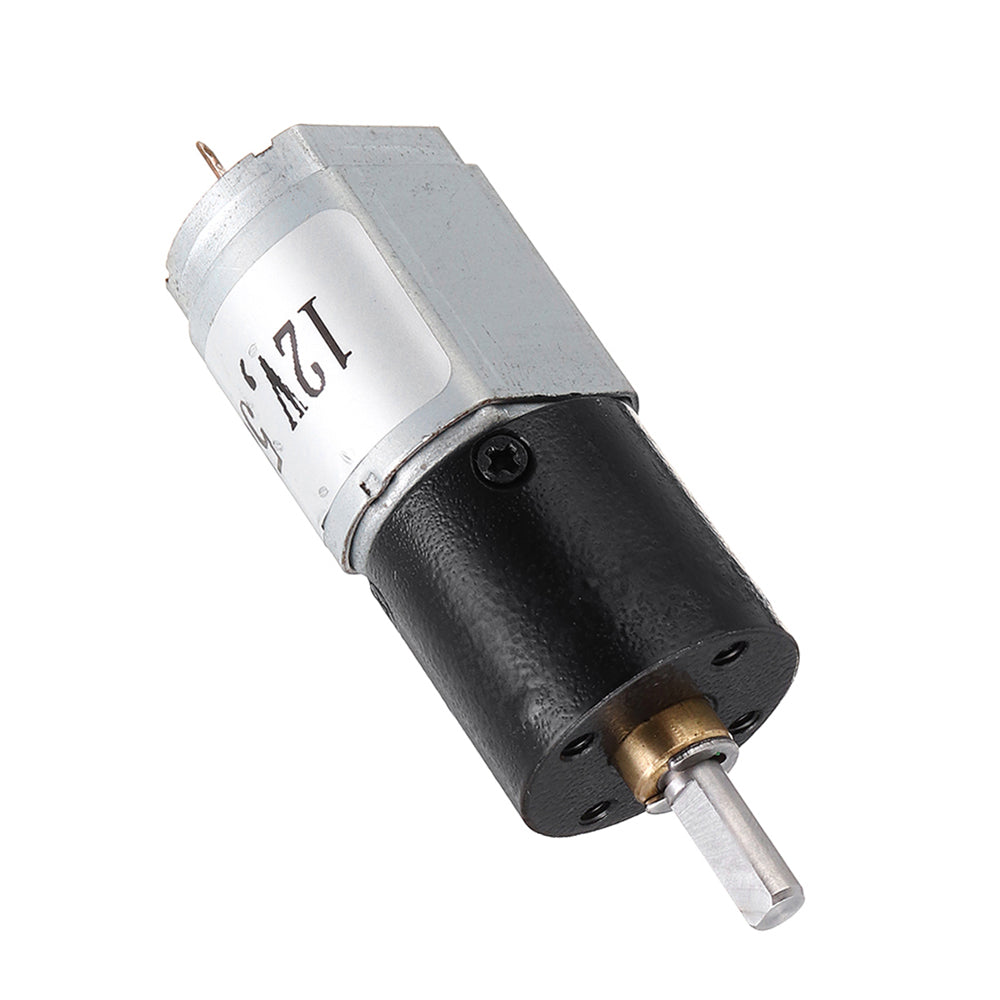

20GP-130 DC 12V Planetary Gear Motor 20mm 8/10/13/45/58/256/300rpm Miniature Gear Motor
Specifications:
| Product Name | 20mm Planetary Gear Motor |
| Model Number | 20GP-130 |
| Color | Black and silver |
| Material | Metal |
| Quantity | 1 Pc x 20mm Planetary Gear Motor |
| VOLTAGE | GEAR RATIO | LENGTH | NO LOAD | LOAD TORQUE | STALL | ||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | CURRENT | TORQUE | |||
| 12V | 1:1000 | 22.6M | 8RPM | ≤60MA | 7.5RPM | ≤160MA | 440g.cm | 570MA | 17.7KG.CM |
| 1:800 | 10RPM | 9RPM | 560g.cm | 560MA | 11.1KG.CM | ||||
| 1:615 | 13RPM | 11RPM | 320g.cm | 460MA | 12.3KG.CM | ||||
| 1:177 | 19M | 45RPM | 38RPM | 260g.cm | 470MA | 5.2KG.CM | |||
| 1:137 | 58RPM | 42RPM | 160g.cm | 460MA | 4.8KG.CM | ||||
| 1:31 | 15.7M | 256RPM | 222RPM | 430MA | 2.9KG.CM | ||||
| 1:27 | 300RPM | ≤70MA | 235RPM | 150g.cm | 420MA | 2.5KG.CM | |||
- Made of good materials, sturdy and durable, long life, corrosion resistance, suitable for use in a variety of complex environments.
- Gears are processed with high precision, stable performance, good consistency, low noise, and large torque
- Energy-saving, silent, stable operation.
- The size of the motor is accurate, and it runs smoothly in high and low temperature environments.
Package Included:
| 1 Pc × | 20mm Planetary Gear Motor |
More Details:
