Description
Description:

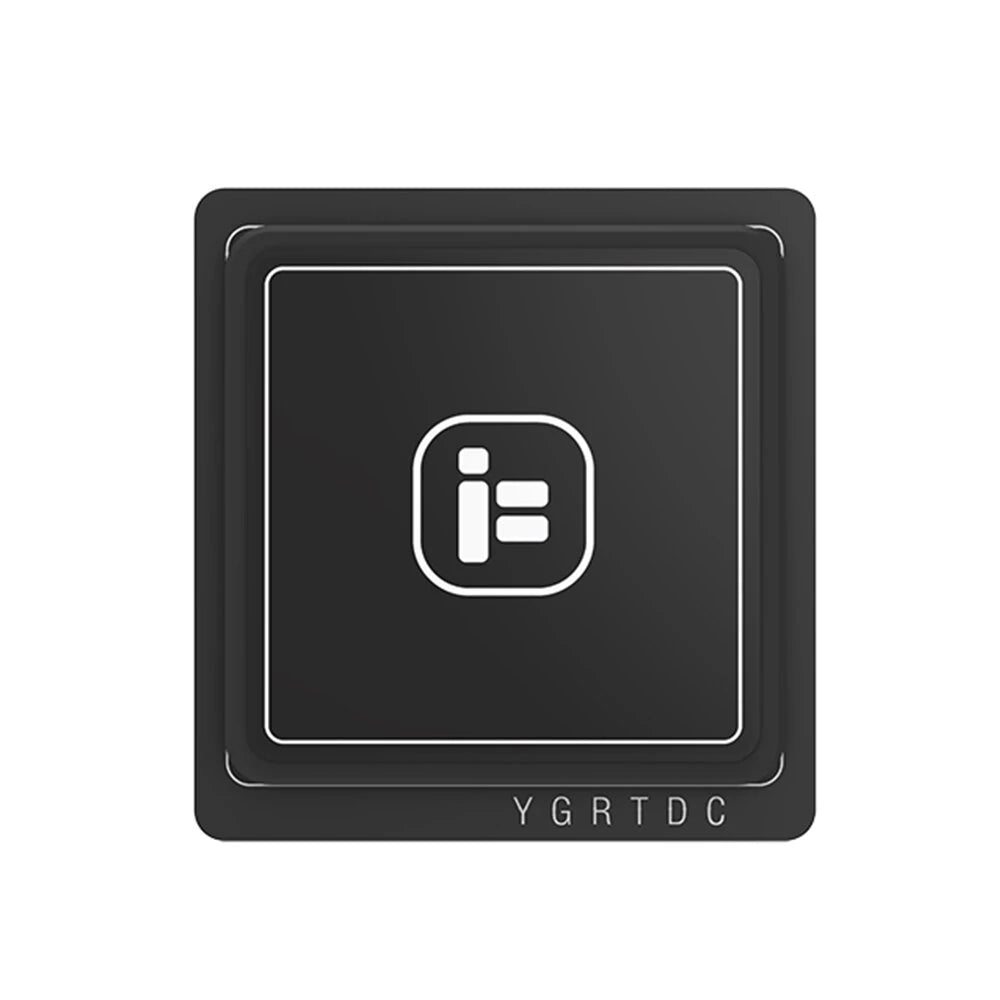

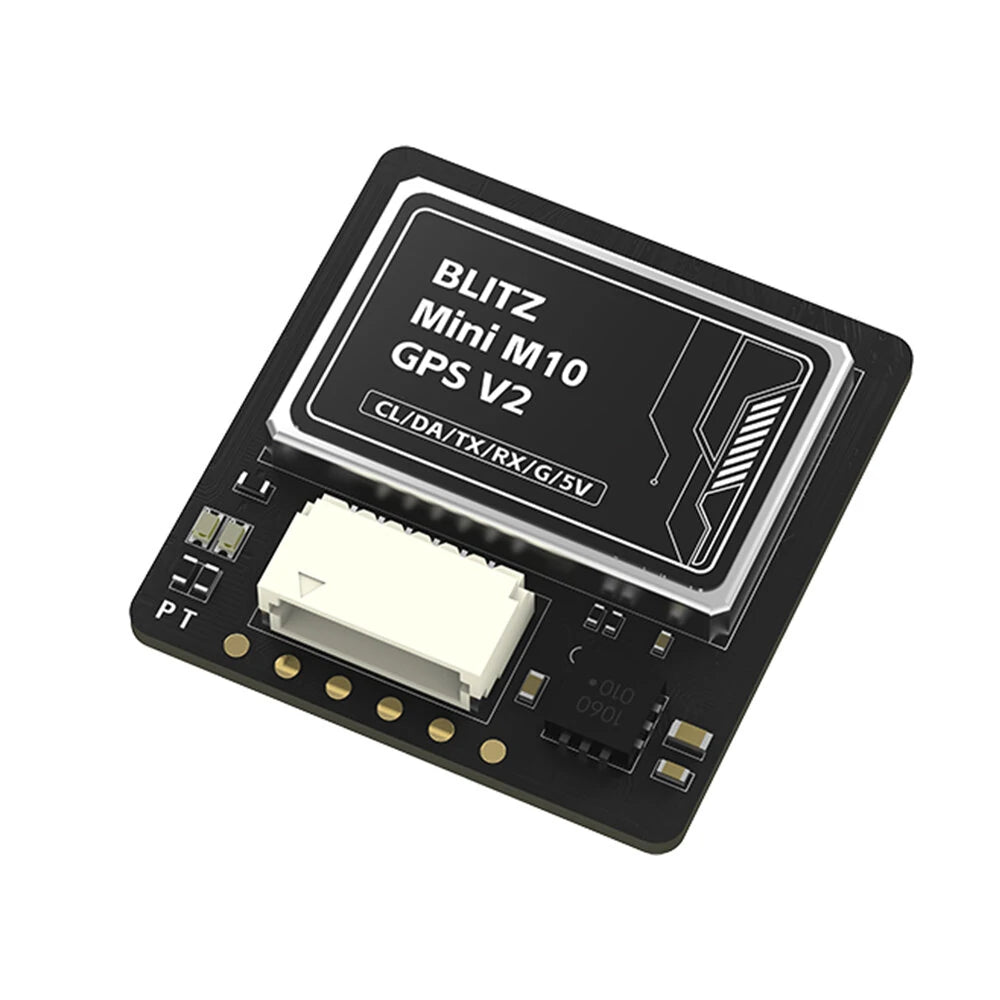

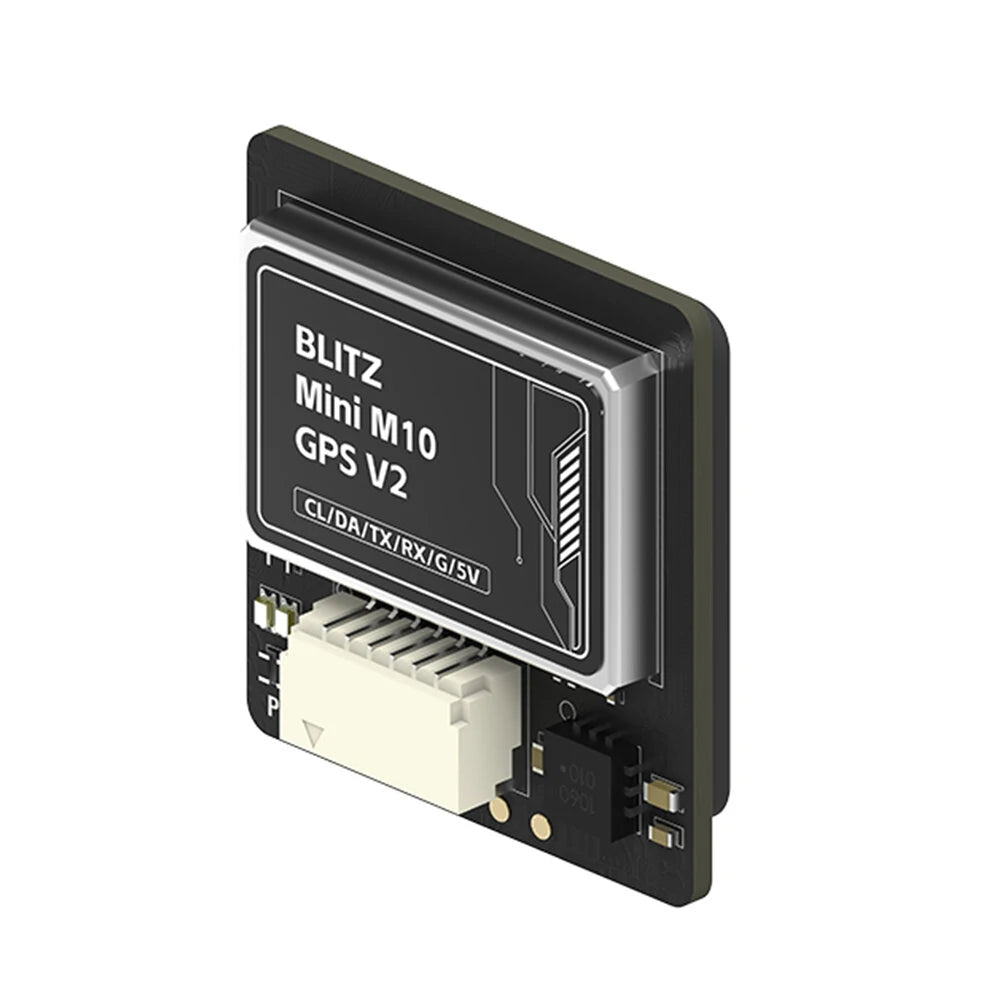

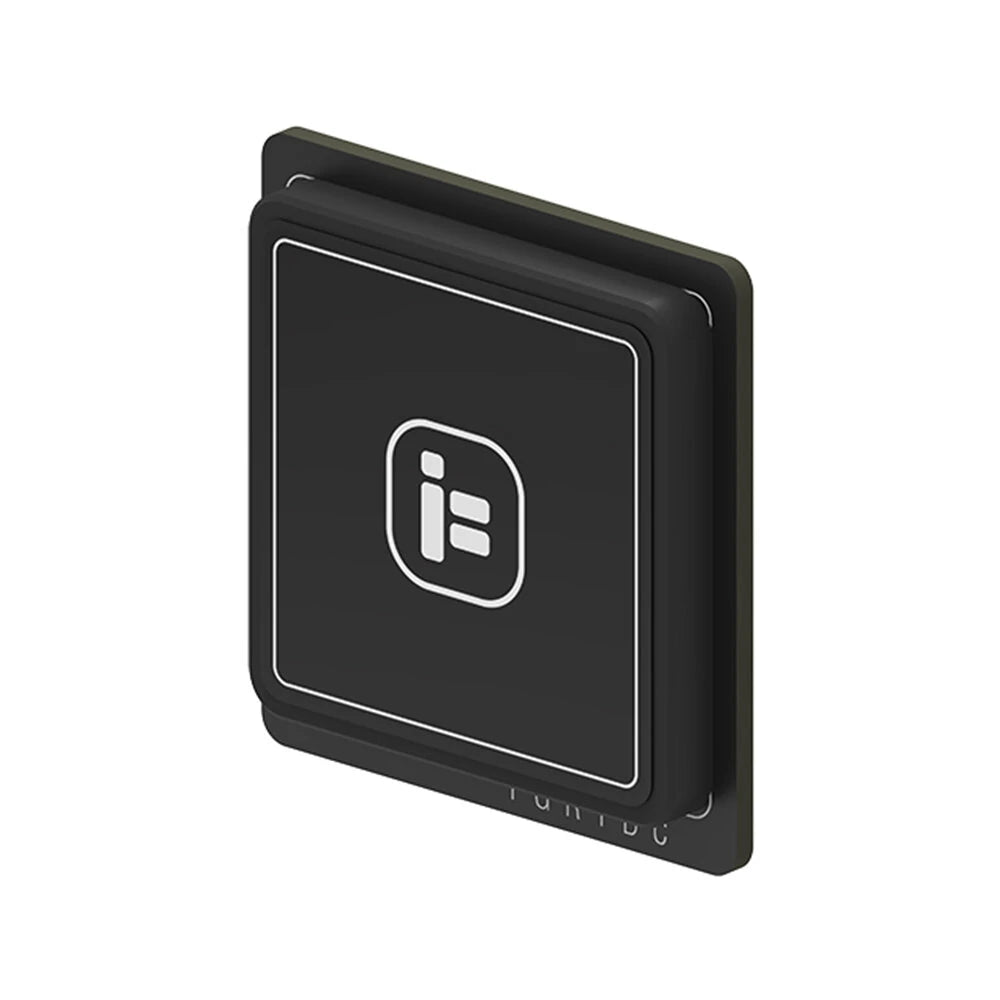

The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satelite search. This advancement in technology provides users with a more reliable and efficient GPS experience.
Features:
-UBLOX M10 chip
-Compass module QMC5883L integrated
-Built-in farad capacitor for faster hot start
-18.2x18.2mm GPS ceramic antenna, low power consumption, strong signal, lightweight.
-Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
-10 Hz Refresh rate
-Built-in Flash
Specifications:
Brand: iFlight
Model: BLITZ Mini M10
Item Name: GPS Module
Compass module: QMC5883L
Baud Rate: 9600bps-460800bps (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm
Total dimensions: 20 x 21 x 8 mm
Weight: 8 g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Packing List:
1 x BLITZ Mini M10 GPS V2
1 x Cable set
