Description
Note: 30.5*30.5mm SEQURE Blueson A2 Clink Here.
Feature:
1. High-quality ultra-high copper thickness PCB ensures the current carrying capacity while improving heat dissipation. Equipped with top-level MOSFET, it enhances flight performance and makes you enjoy the fun of flying in the air.
2. Equipped with a high-speed 32-bit processor, it supports full-segment dynamic PWM variable refresh rate of 8KHz-128KHz, with more precise speed response and smoother throttle control.
3. Supports 6S/8S wide range voltage input, allowing your aircraft to adapt to power batteries of different specifications, improving the versatility of the device.
4. With 20*20mm installation hole spacing, it is for the racing drones and easy to install.
5. ESC reserves a large area of solder pad to effectively reduce the difficulty of soldering.
Specification:
Brand: SEQURE
Model: Blueson A1
Item Name: 6S 65A ESC / 8S 70A ESC
Model |
Blueson A1 |
Processor |
AT32F421 |
Firmware Version |
AM32 or BLHeli_32 |
PWM Frequency |
8KHz-128KHz |
Working Voltage |
2-6S / 2-8S Lipo / LiHV |
Continuous Current |
6S 65A / 8S 70A |
Peak Current |
6S 120A / 8S 150A |
Support Protocol |
Dshot600/300/150,Oneshot,Multishot,PWM |
Telemetry Return |
YES |
Galvanometer |
YES |
BEC |
NO |
Mounting Hole Spacing |
20*20mm, Φ4mm/M3 |

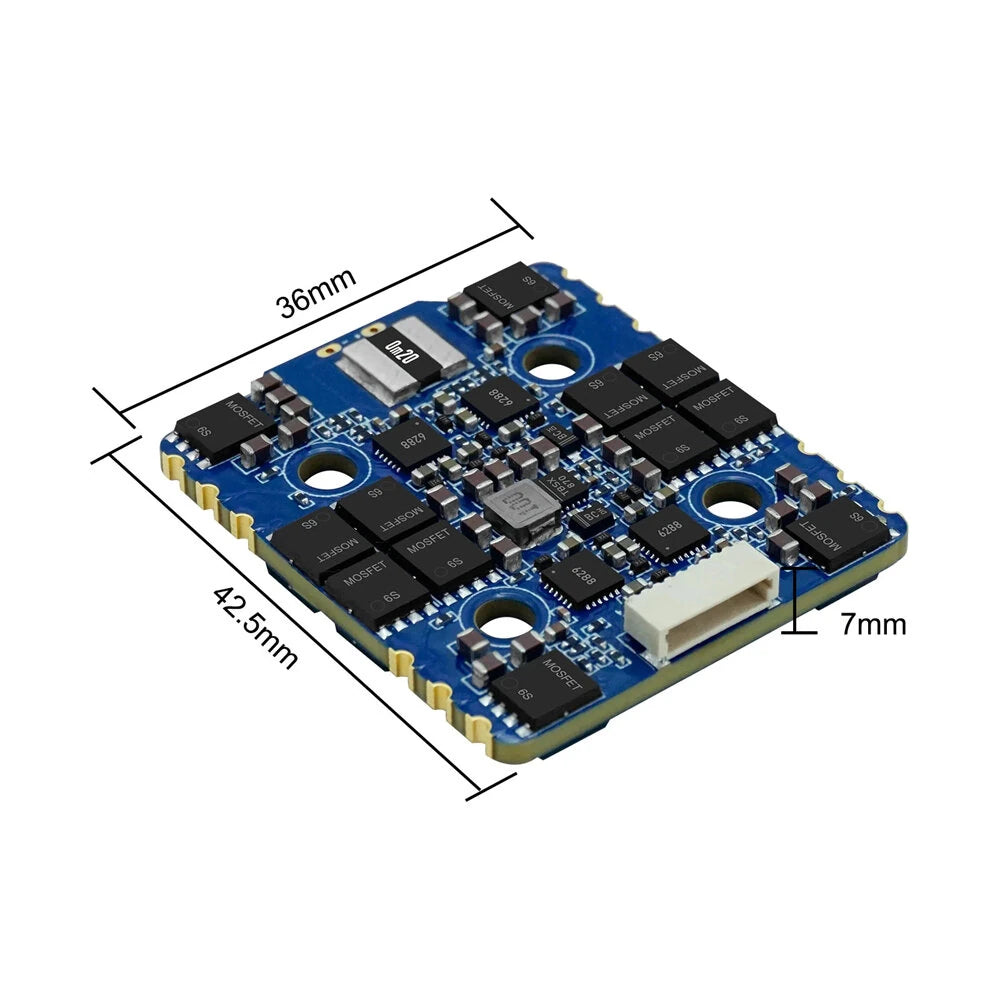

Product Size |
42.5*36*7mm(L*W*H) |

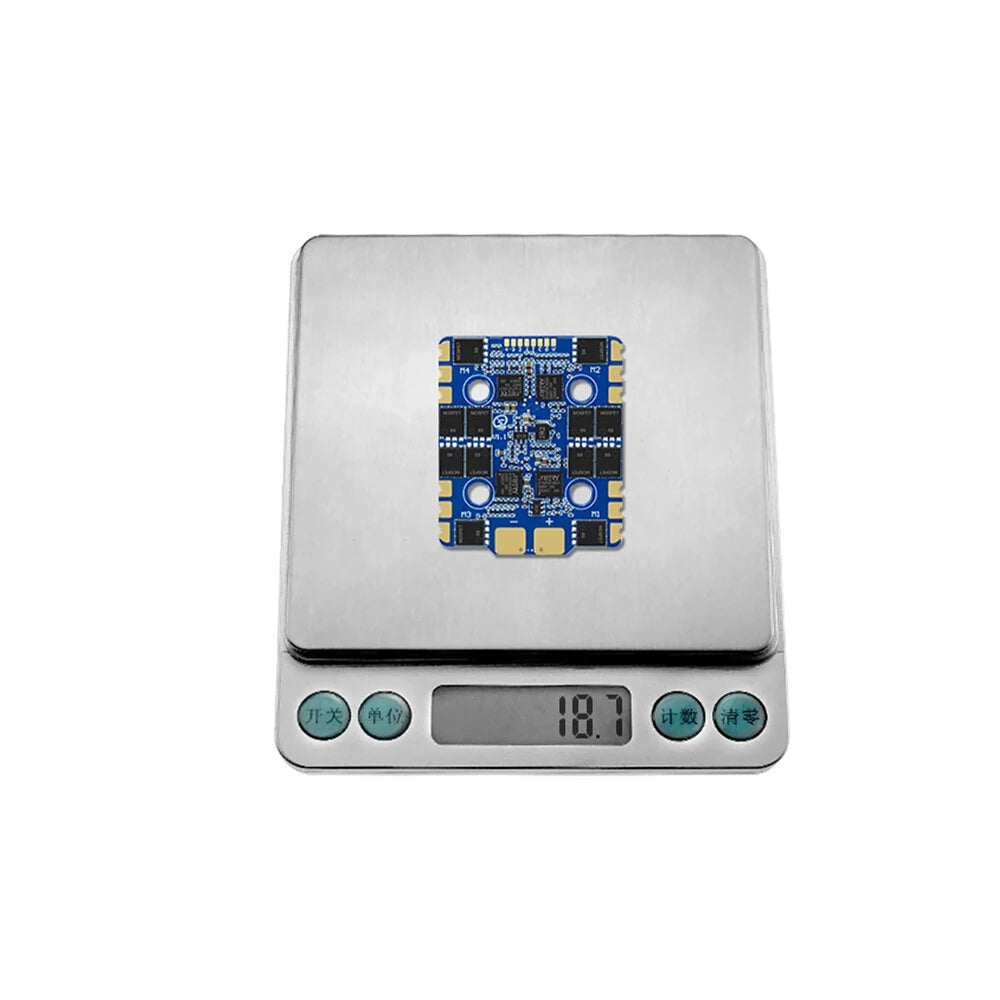

Product Weight |
19g |

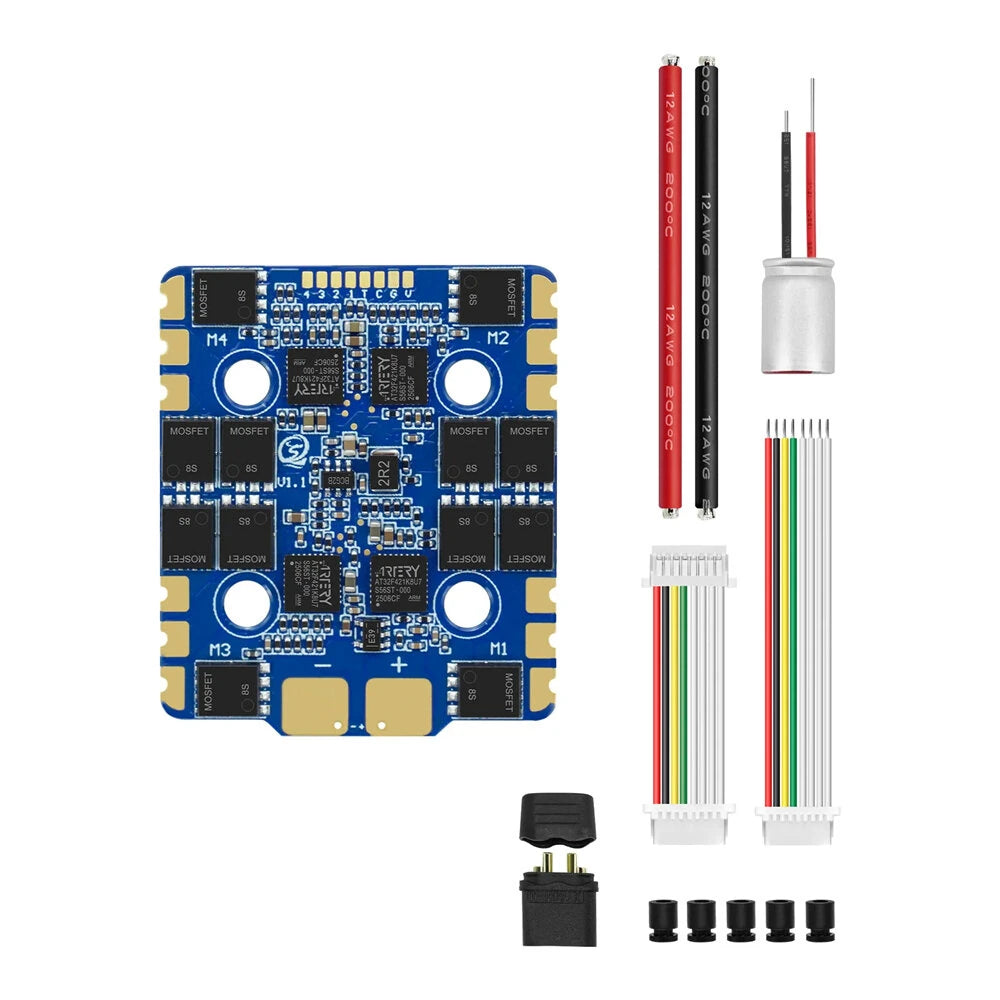

Package Included:
1 x SEQURE Blueson A1 4IN1 ESC
1 x 30AWG 40mm reverse double plug SH1.0-8P cable
1 x 30AWG 60mm single plug SH1.0-8P cable
2 x 12AWG 100mm power cable (black/red)
1 x XT60H-M black male connector
1 x 35V 680UF solid capacitor
5 x M3*8mm shock absorbing washer (black)
