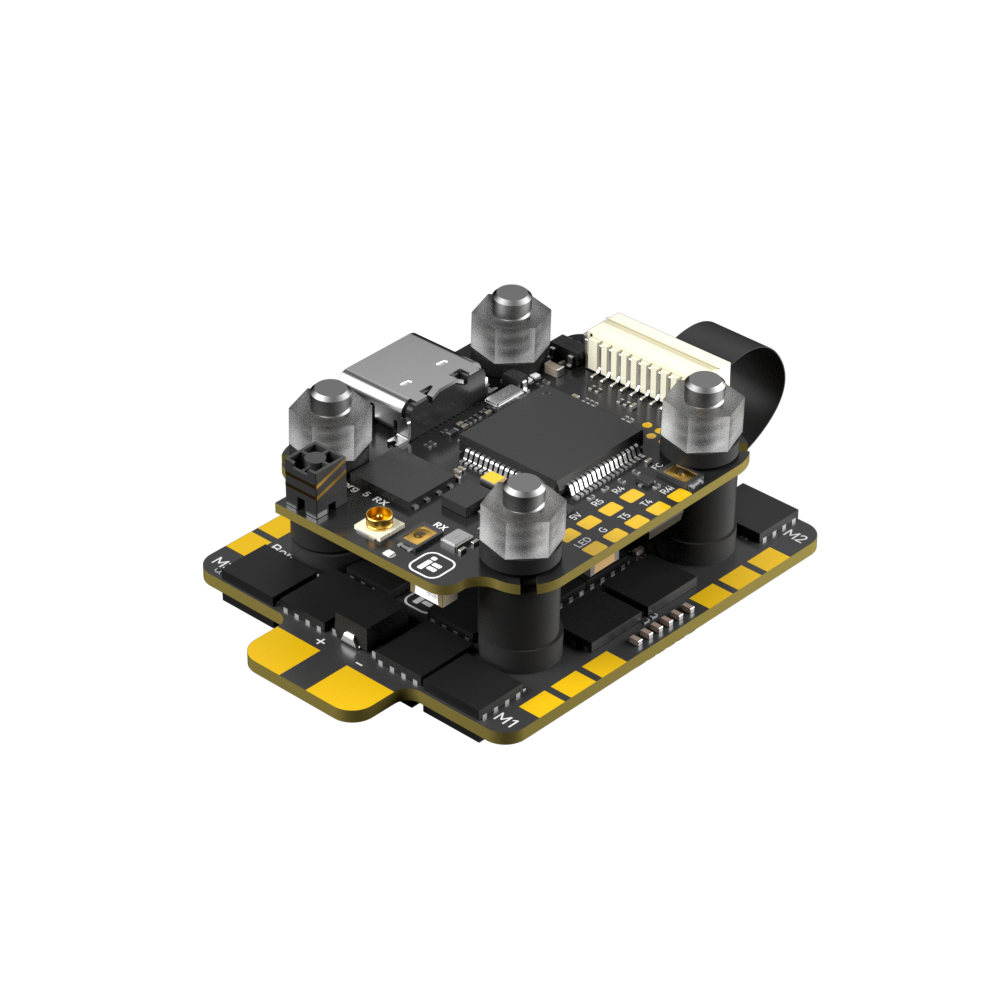

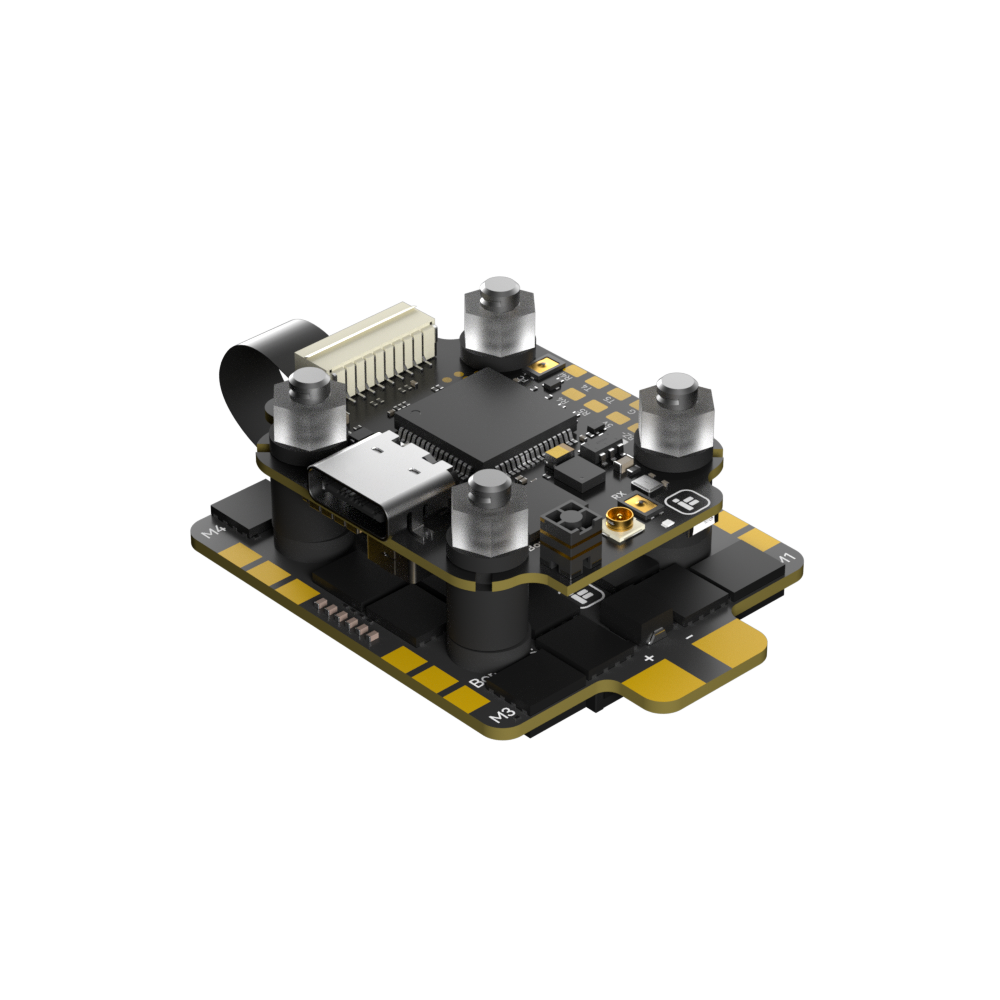

20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
Roll over image to zoom in Click on image to zoom
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone
20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone

20*20mm iFlight Borg 5S Flight Controller 5V 12V BEC with 60A 60RS 4-8S ESC Stack Built-in ELRS 2.4GHz Receiver for RC FPV Racing Drone

Isaiah 55:8-9 John 3:16 Philippians 4:19
Version: FC+ESC
Price:
R 2,564.70
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Wiring Suggestion:

UART 1 for VTX HD / Analog

UART 2 for ESC Telemet

UART 4 for Built-in ELRS receiver/SBUS input

UART 5 for GPS or other sensors that require a serial port


Description:

Introducing the All-New Borg Series – Power Meets Precision!

The Borg 5S RX FC Flight Controller is specifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights.

Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!



FC Features:

- Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.

- Supports 3S to 8S battery inputs, offering versatility for various racing setups.

- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.



Specification:

Brand: iFlight

Model: Borg 5S RX Flight Controller/Borg 60RS ESC

Item

Specification

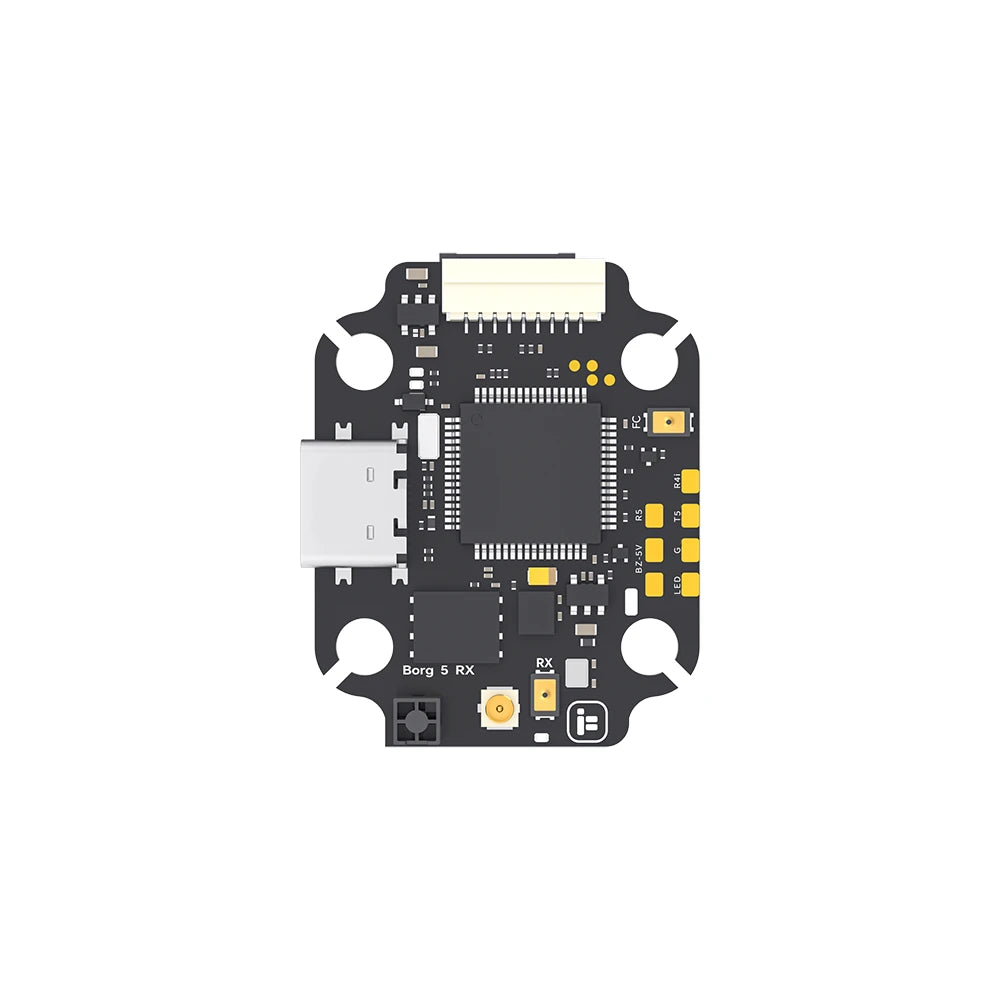

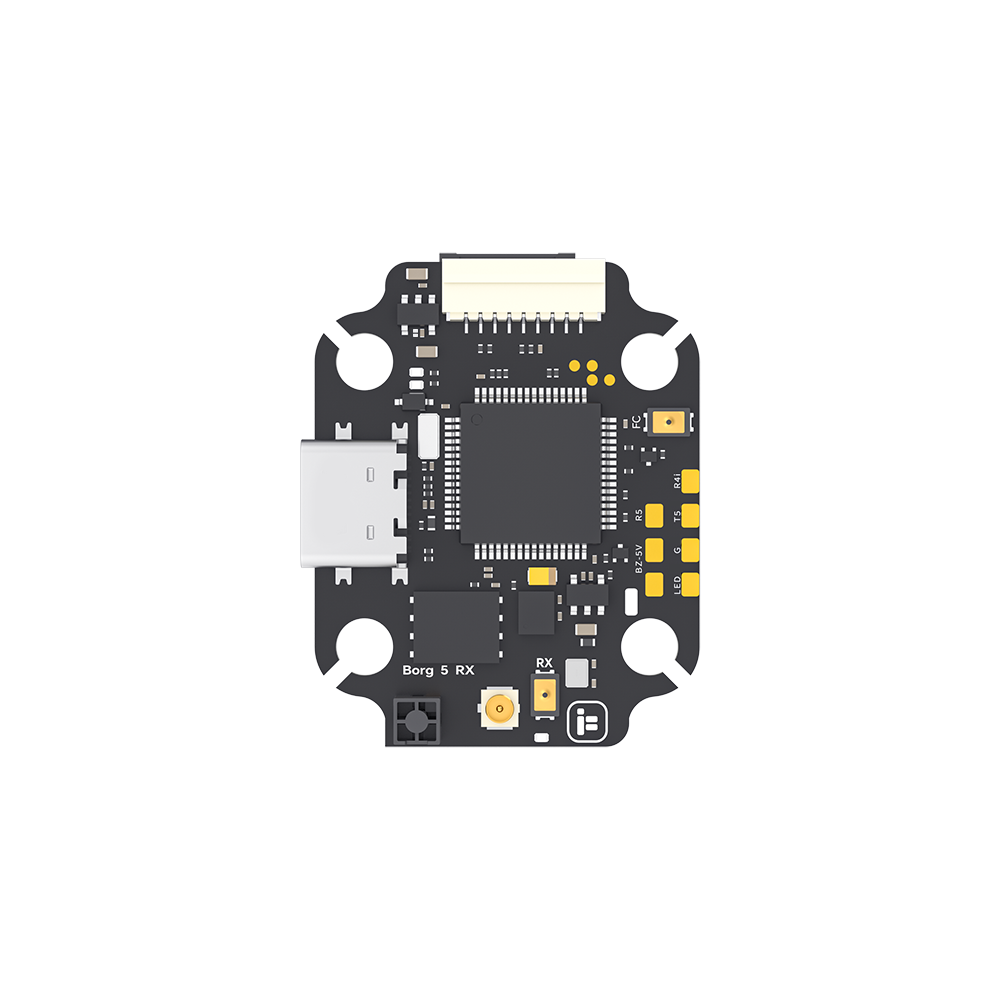

Borg 5S RX Flight Controller

Input voltage: 4-8S; Support LIHV battery

MCU: AT32F435RGT7

Gyro: ICM42688

Barometer: N/A

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 4

Motor outputs: 4

I2C serial: Not supported

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)

Mount pattern: 20*20φ4

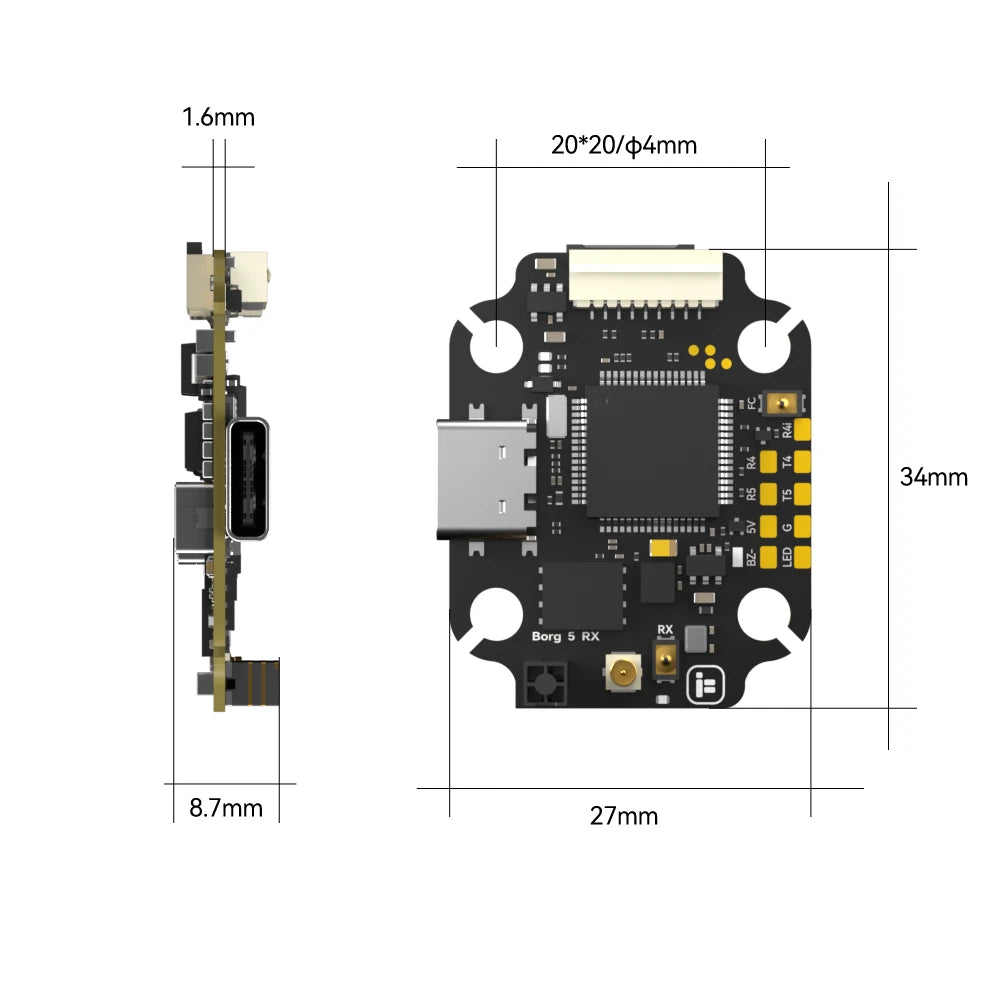

Dimensions: 34*28.5mm±1

Weight: 6.8g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)

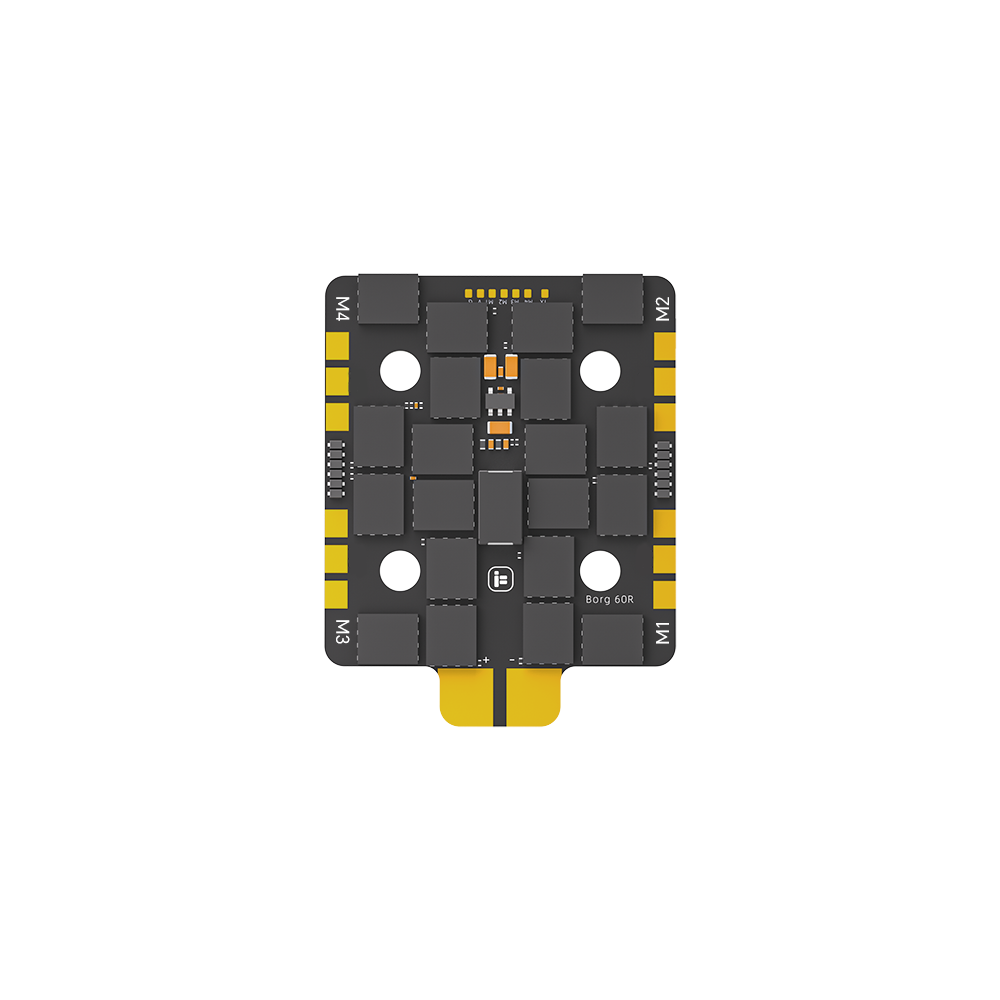

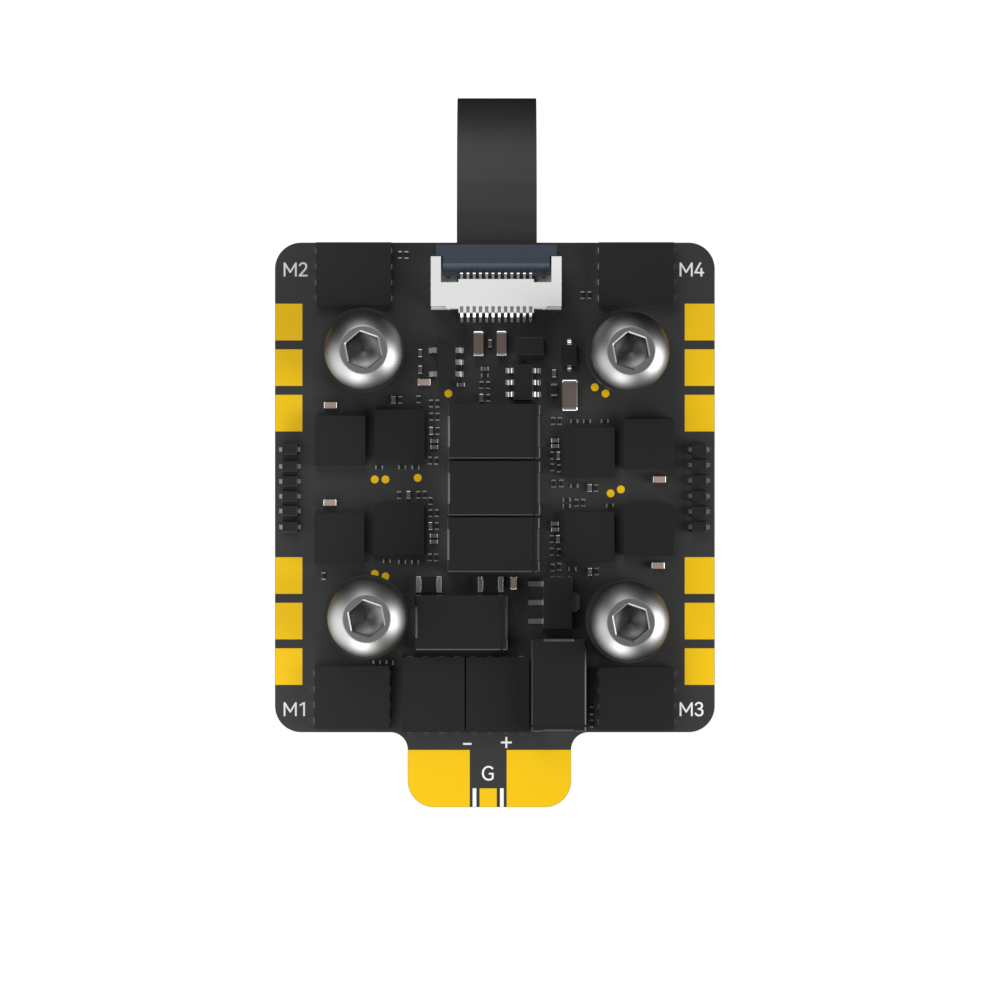

Borg 60RS ESC

Product Name: Borg 60RS ESC

Input Voltage: 4-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: N/A

BEC: N/A

Telemetry: Supported

Bidirectional DSHOT: Supported

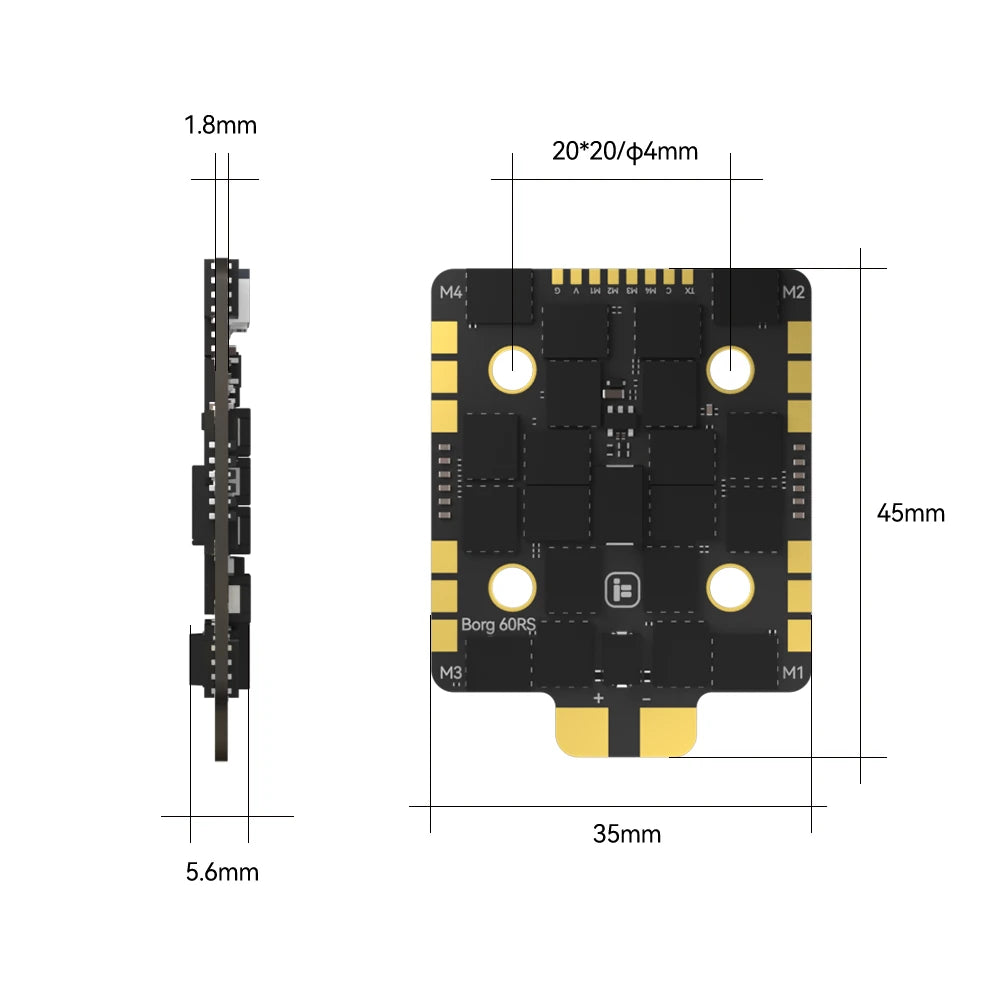

Dimensions: 45*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 9.5g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.



Package included:

Item

Included

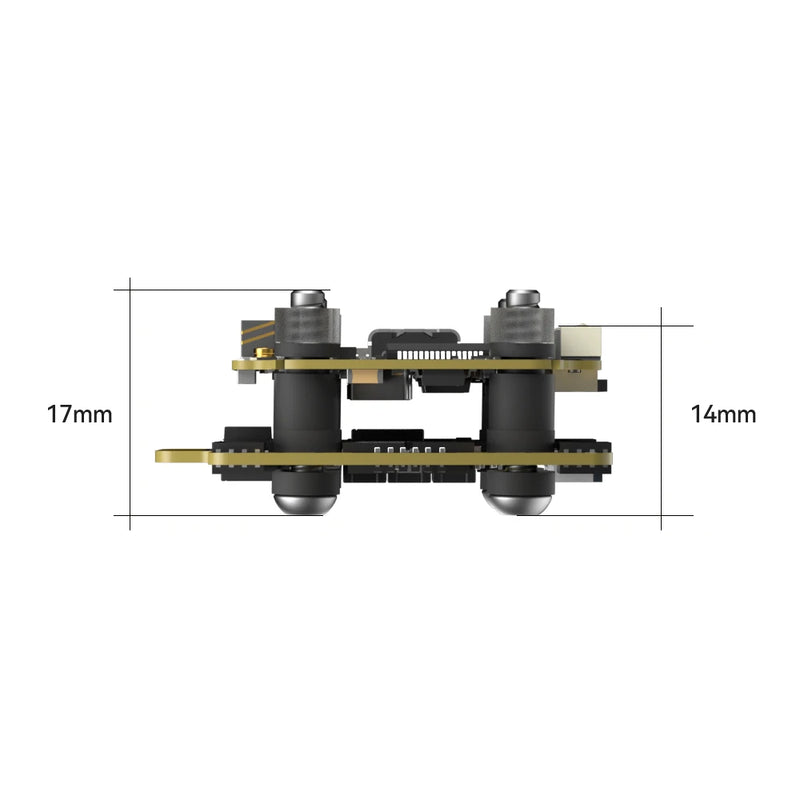

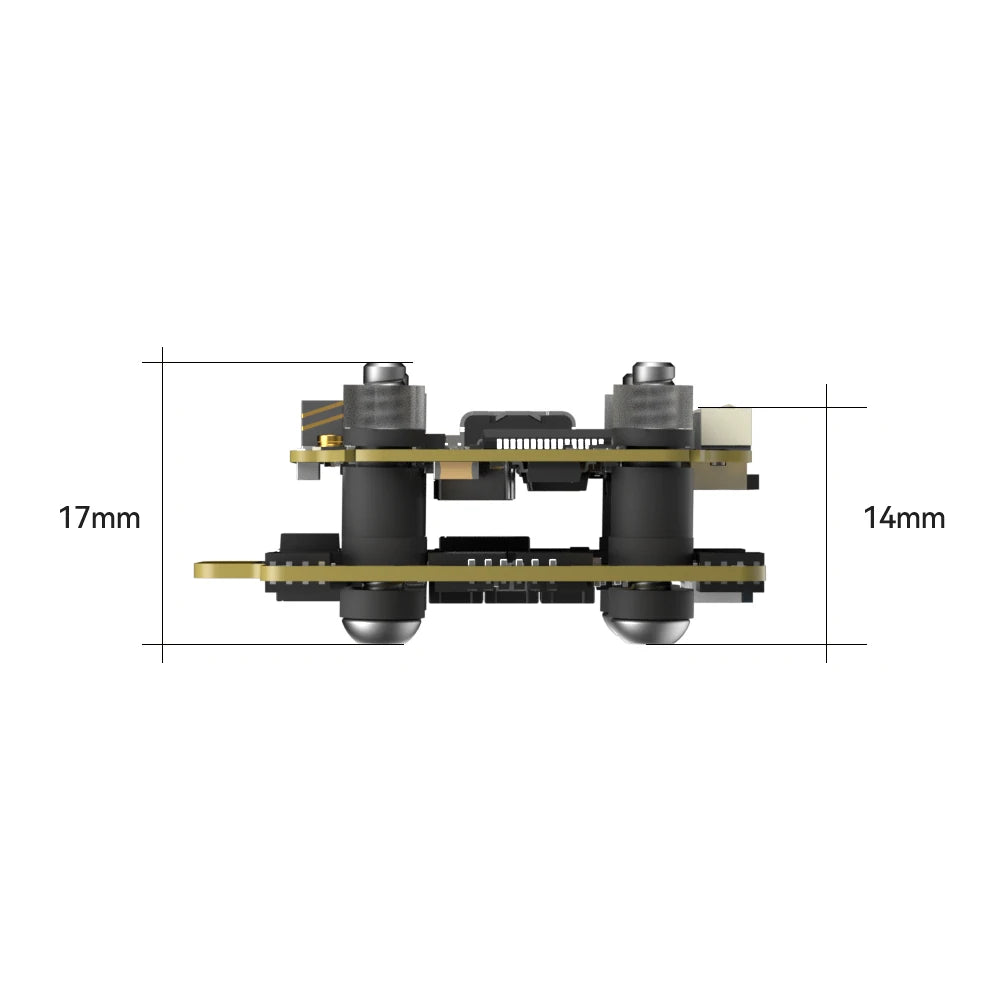

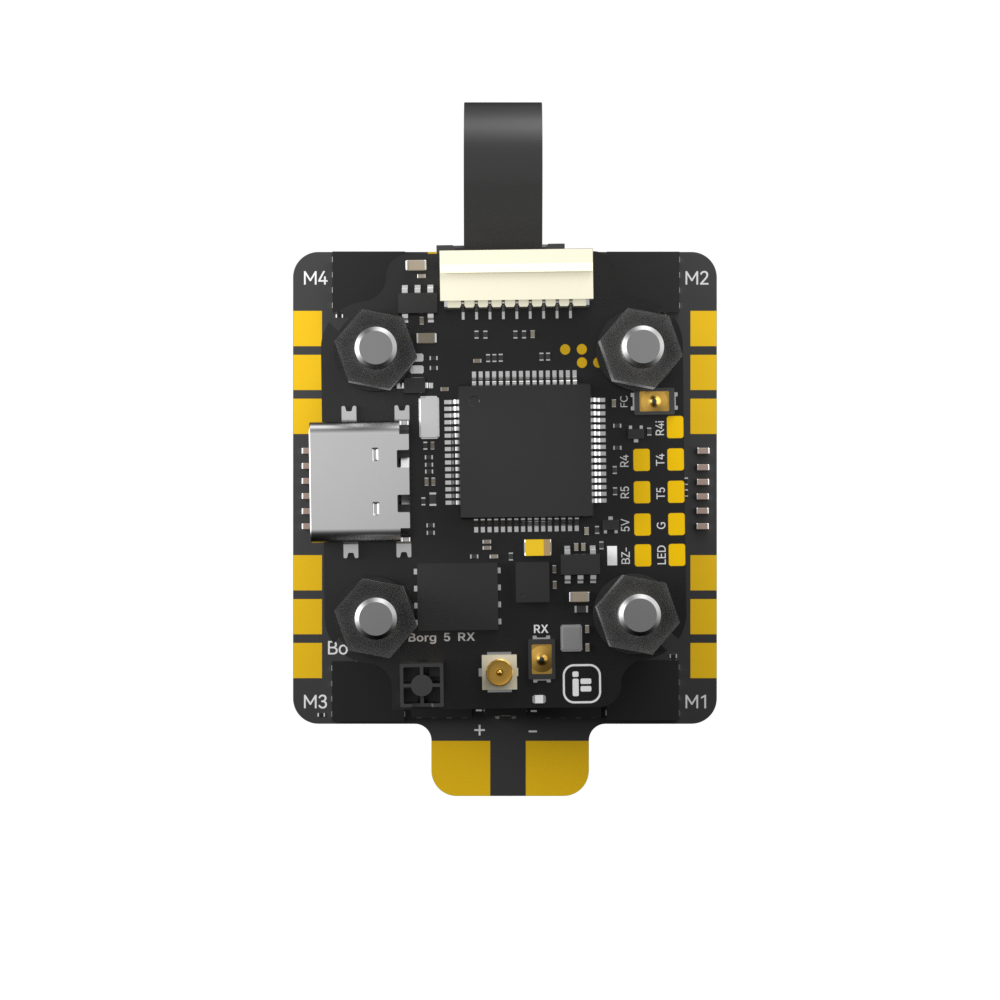

Borg 5S RX Stack

1 x Borg 60RS ESC

1 x Borg 5S RX Flight Controller

4 x Silicon Grommets

1 x Cable Set

Borg 5S RX Flight Controller

1 x Borg 5S RX Flight Controller

Borg 60RS ESC

1 x Borg 60RS ESCfont-size:10.5000pt;mso-font-kerning:1.0000pt;'>
