Description
Note: April 9, 2025: Dimensions changed from 34*28.5mm to 34*27mm.
Wiring SuggestionUART 1 for VTX HD / AnalogUART 2 for ESC TelemetUART 4 for Built-in ELRS receiver/SBUS inputUART 5 for GPS or other sensors that require a serial port
Description:
Introducing the All-New Borg Series – Power Meets Precision!The Borg 5S RX FC Flight Controller is specifically designed for racing fpv, providing unmatched performance. This innovative controller features a built-in ELRS 2.4GHz receiver and an integrated antenna, ensuring a reliable connection and enhanced control during your flights. Additionally, the Borg 5S RX FC offers the flexibility to support external receivers, allowing you to customize your setup to meet your individual racing needs. Elevate your racing experience with the cutting-edge technology of the Borg Series!
Features:

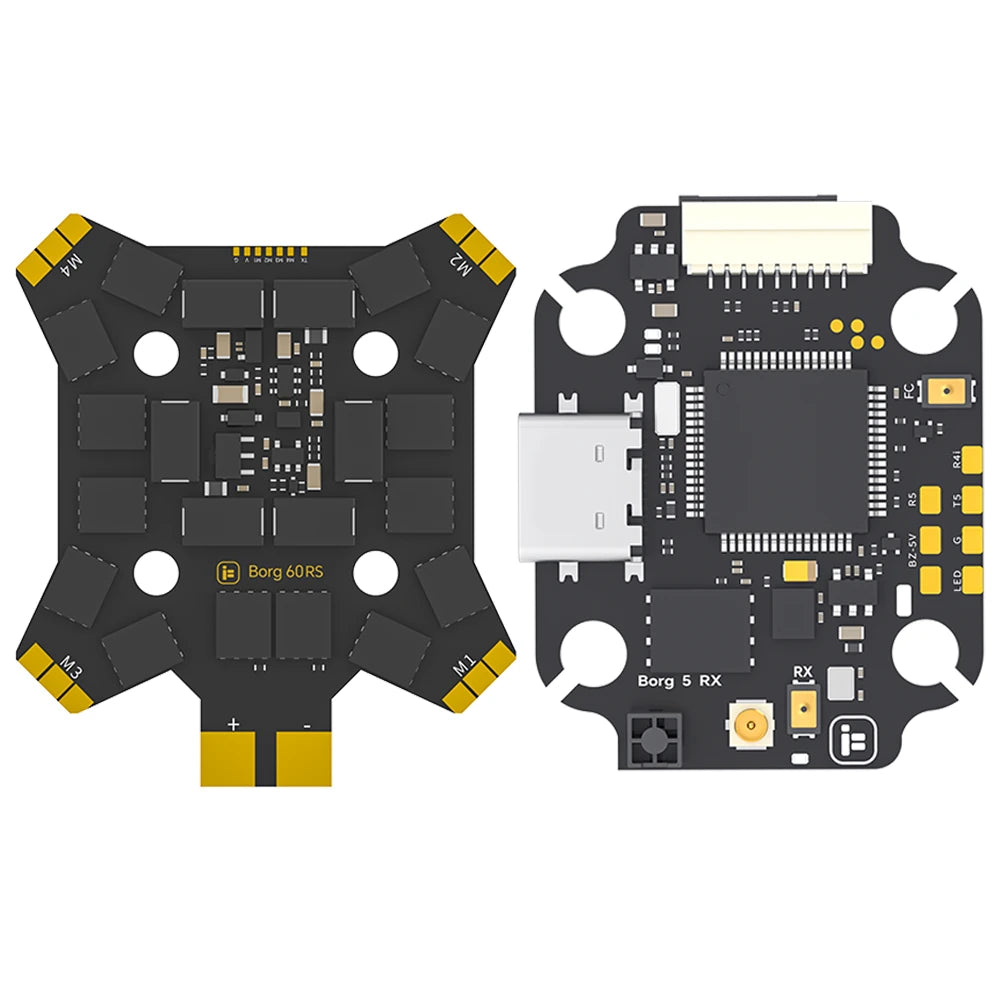

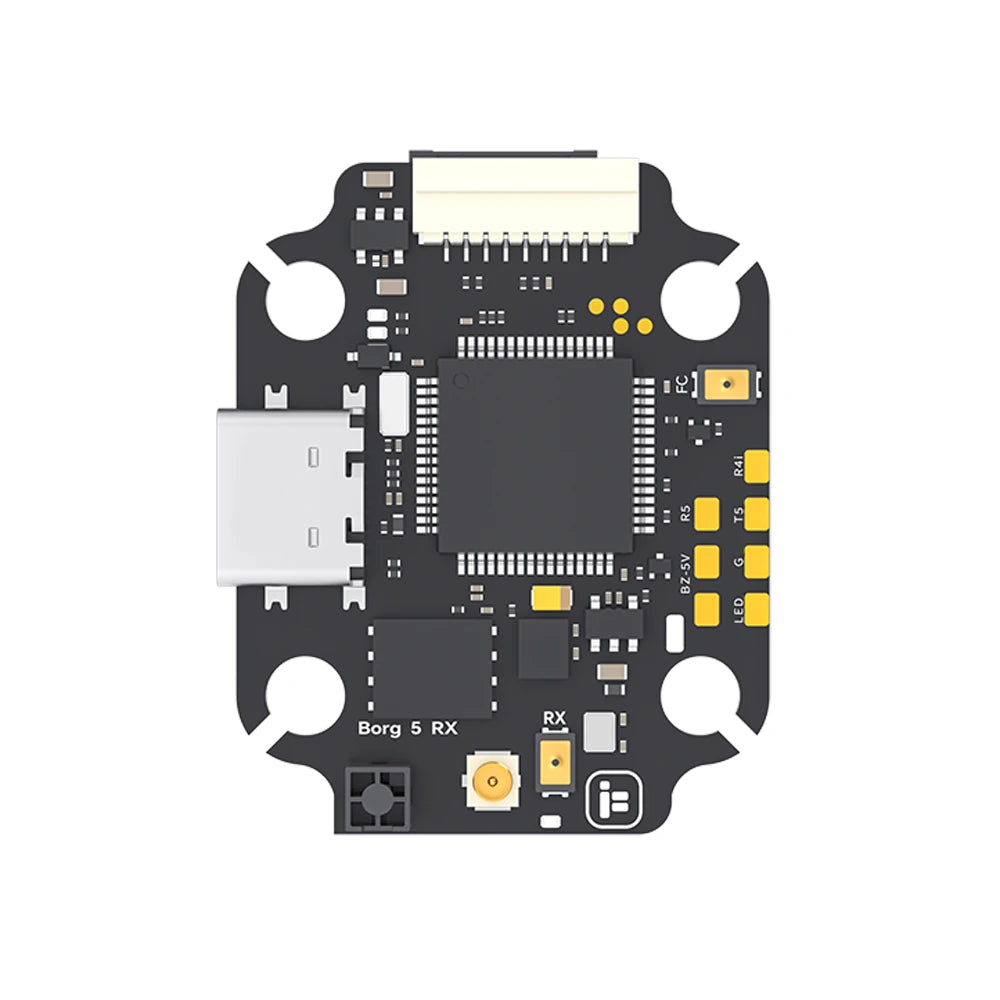

Borg 5S RX Flight Controller:
- Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.- Supports 4S to 8S battery inputs, offering versatility for various racing setups.- Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.- FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.

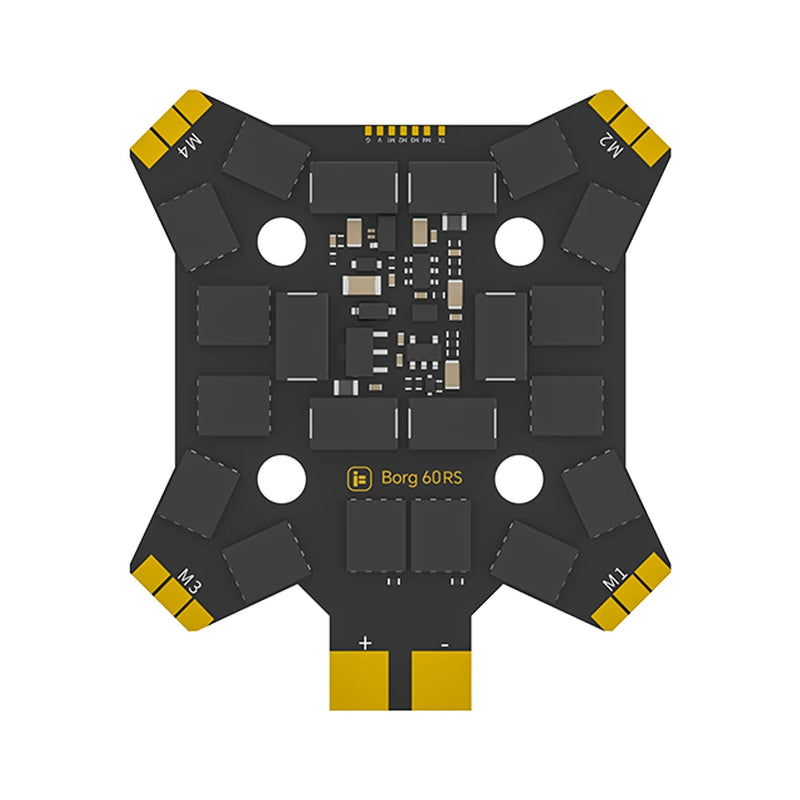

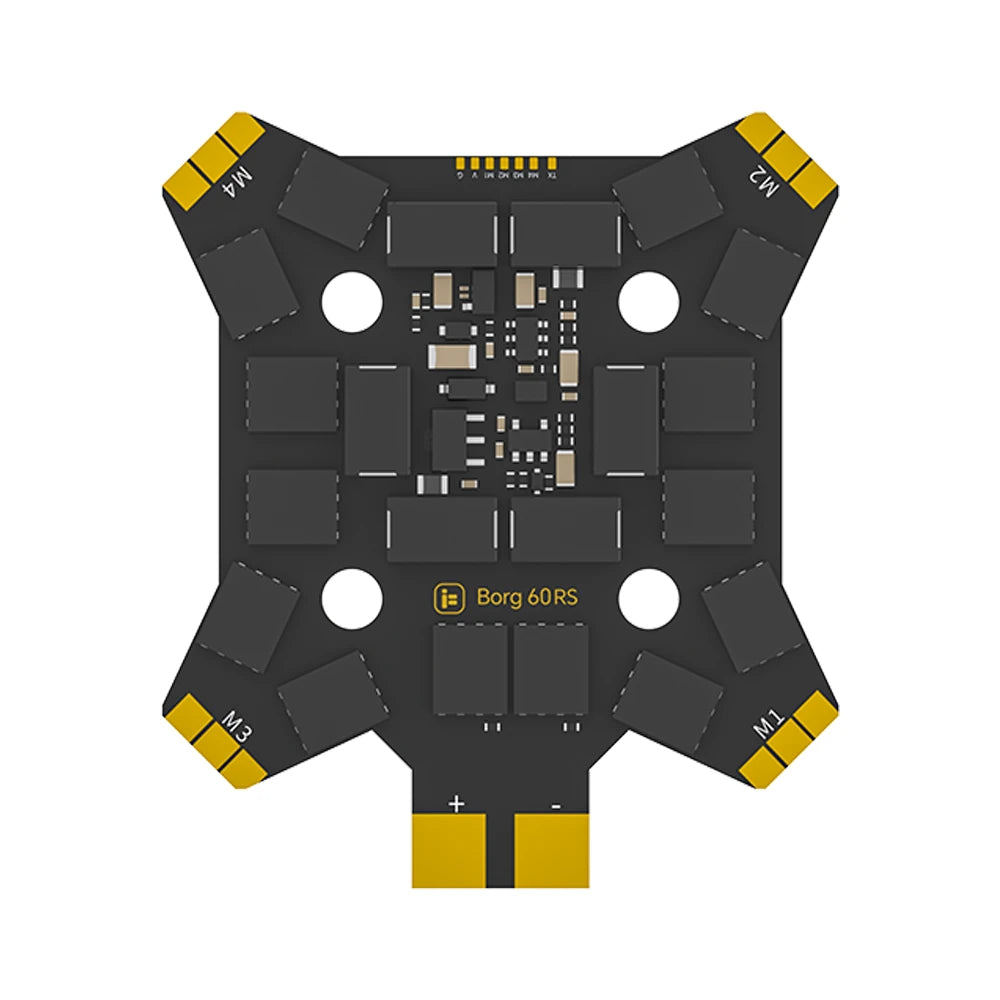

Borg 60R ESC:
- Supports 3-8S Battery Input for versatile power options.
- 6-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
- Integrated Anti-Spark Circuit protects your equipment from voltage spikes.
- Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.
- FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.
Specification:
Brand: iFlight
Model: Borg 5S RX Flight Controller/Borg 60R ESC
Model |
Specification |
Borg 5S RX Flight Controller |

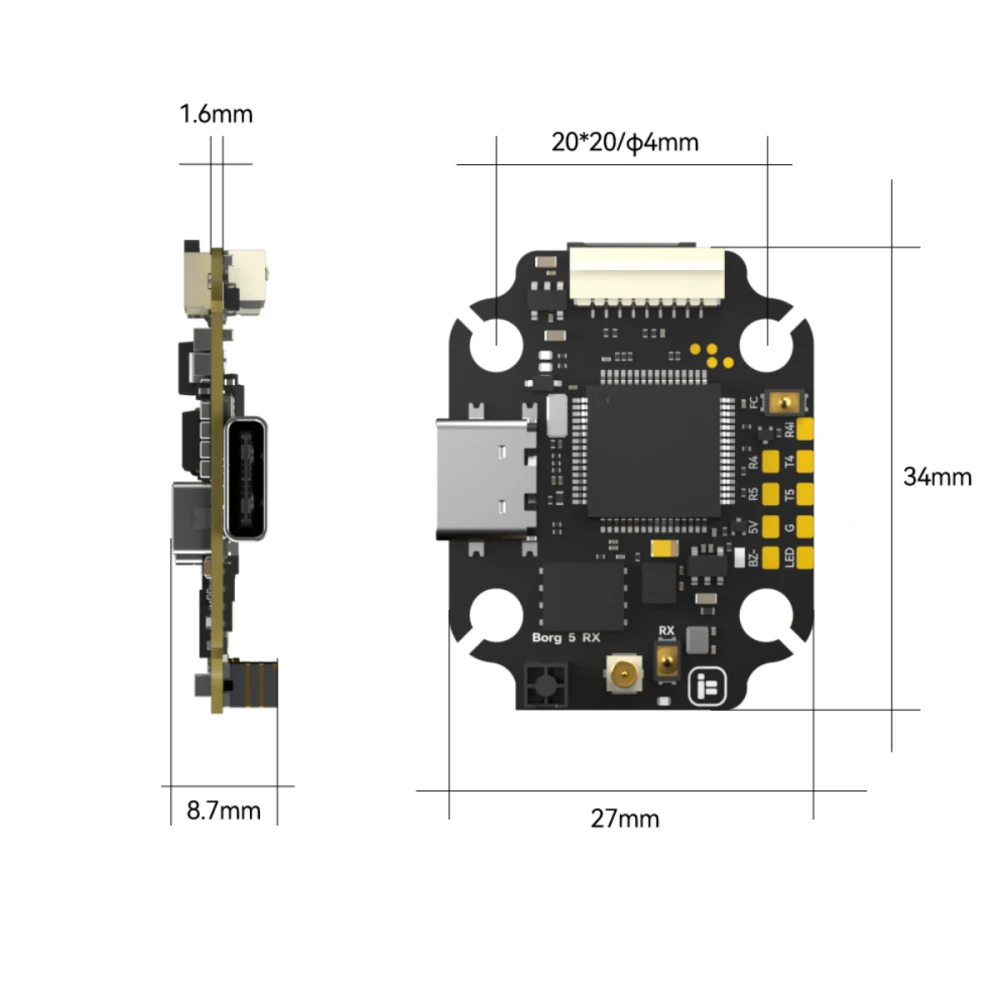

Input voltage: 4-8S; Support LIHV batteryMCU: AT32F435RGT7Gyro: ICM42688Barometer: N/AOSD Chip: AT7456EFlash: 16MB (Blackbox flash)UARTS: 4Motor outputs: 4I2C serial: Not supportedVTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZeroLED controller: YesBeeper pad: YesFirmware target: IFLIGHT_BLITZ_ATF435(Betaflight)Mount pattern: 20*20φ4Dimensions: 34*27mm±1Weight: 6.8g±1BEC: 5V 2.5A, 12V 2A (12V with VTX switch) |
Borg 60R ESC |

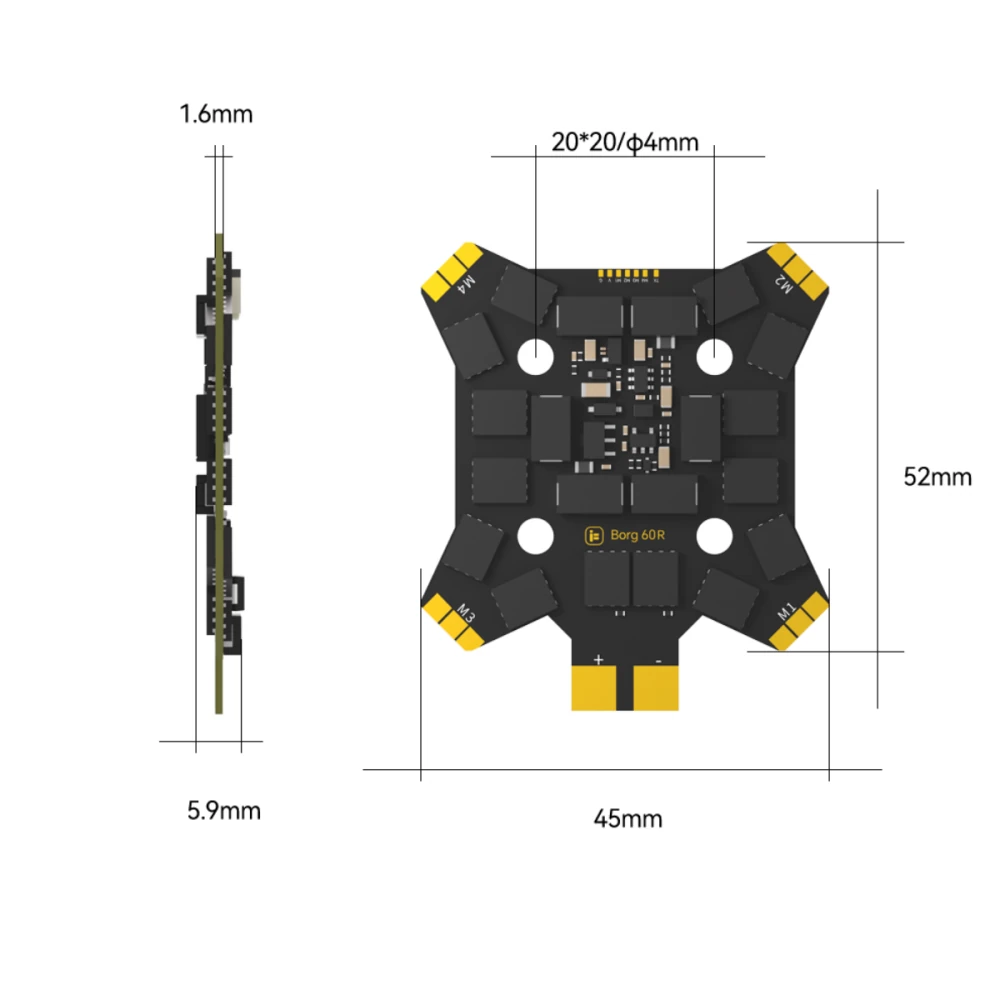

Product Name: Borg 60R ESCInput Voltage: 3-8S; Support LIHV batteryMax. Continuous Current: 60AMax. Burst Current: 65A (10s)MCU: STM32G071NDriver: FD6288Firmware: BL32 (32bit ESC)Target: IFLIGHT_BLITZ_G3 32.9Current Sensor: N/ABEC: N/ATelemetry: SupportedBidirectional DSHOT: SupportedDimensions: 45*52mm±1Mounting Holes: 20 x20 mm/Φ4mmWeight: 14.5g±1Protocol: Supports DShot150/300/600、MultiShot、OneShot etc. |
Package Included:
