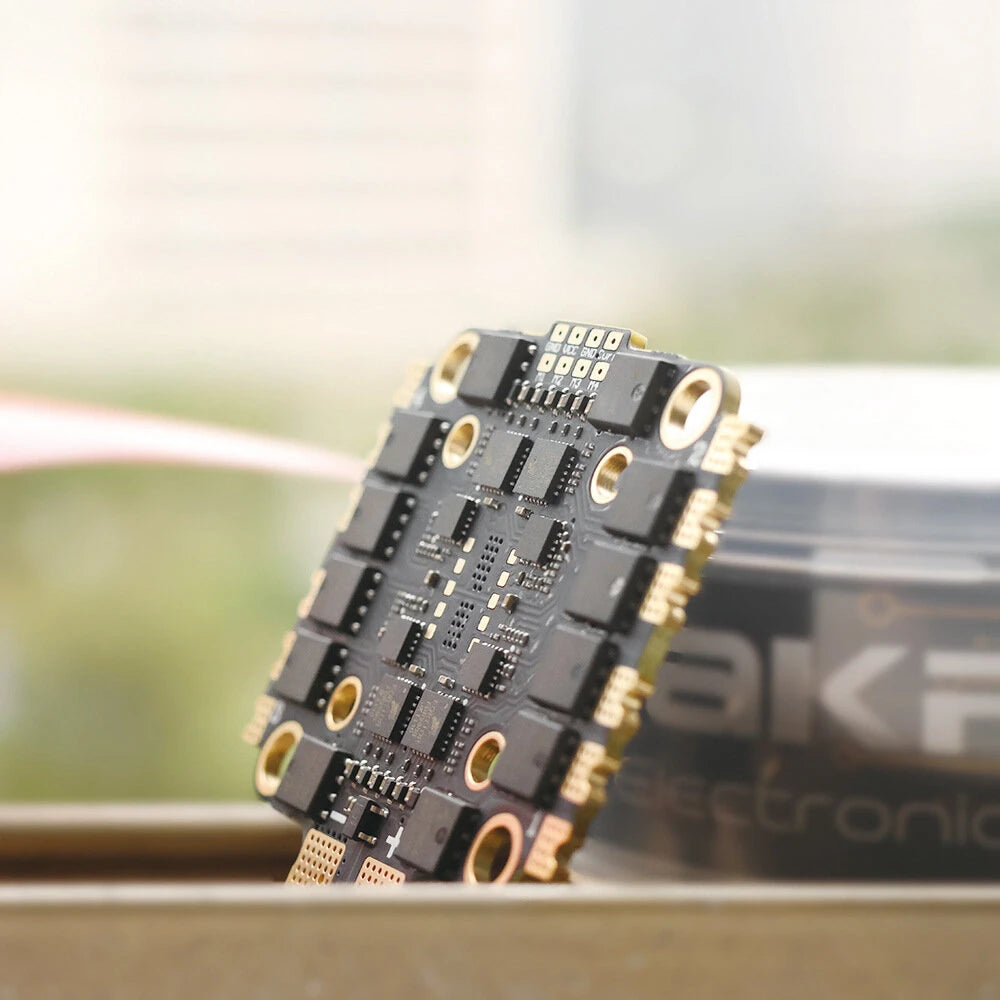

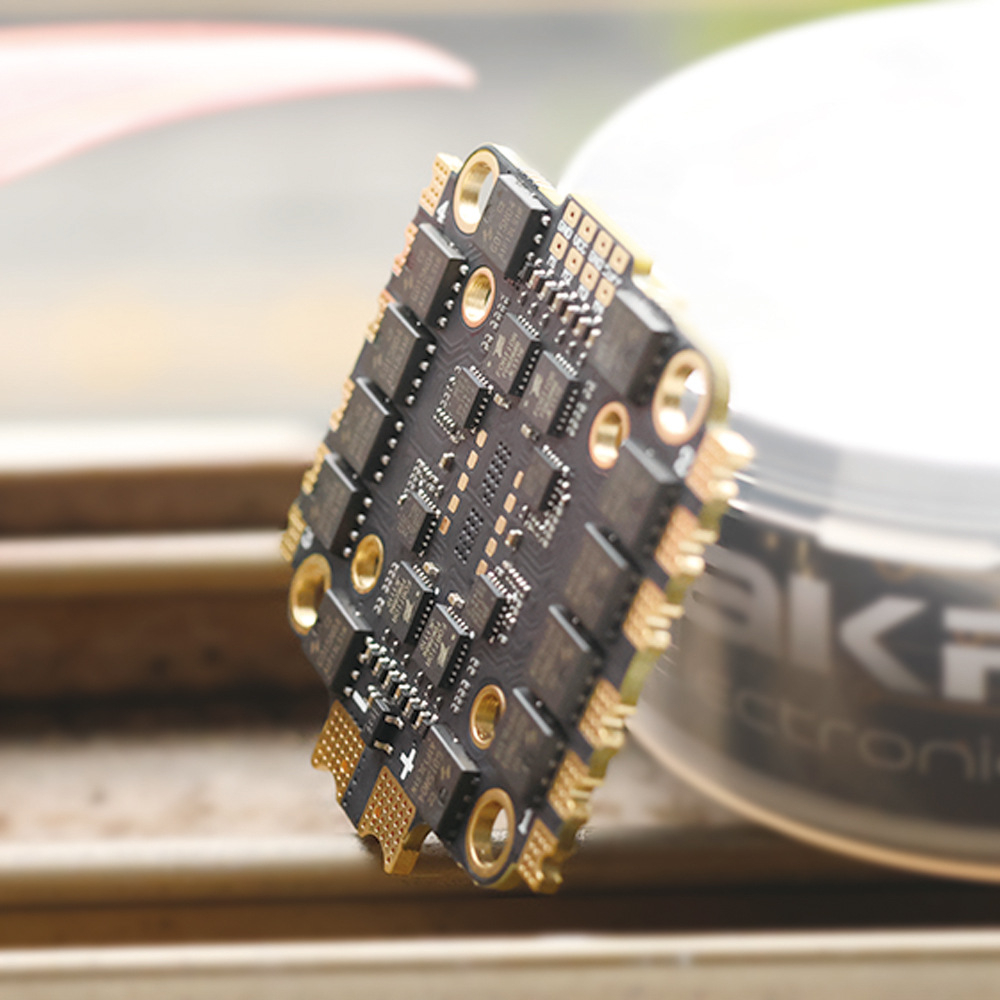

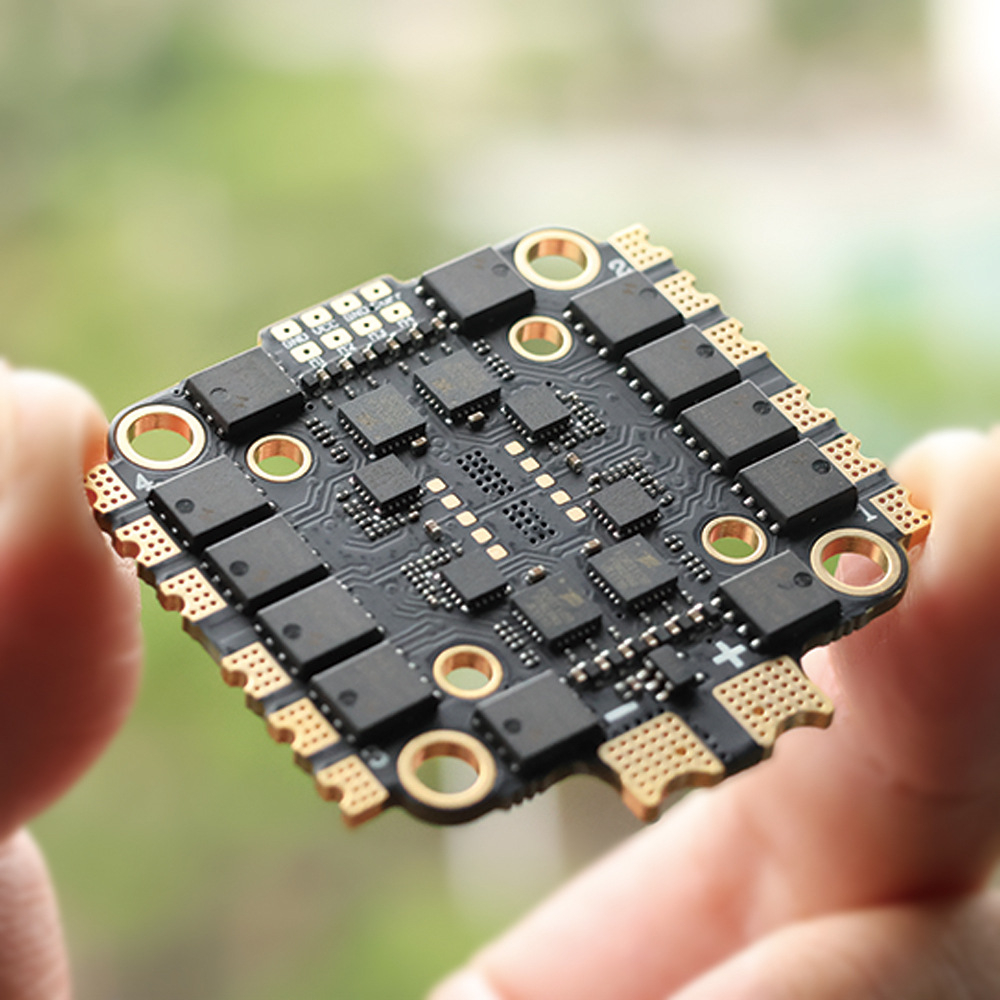

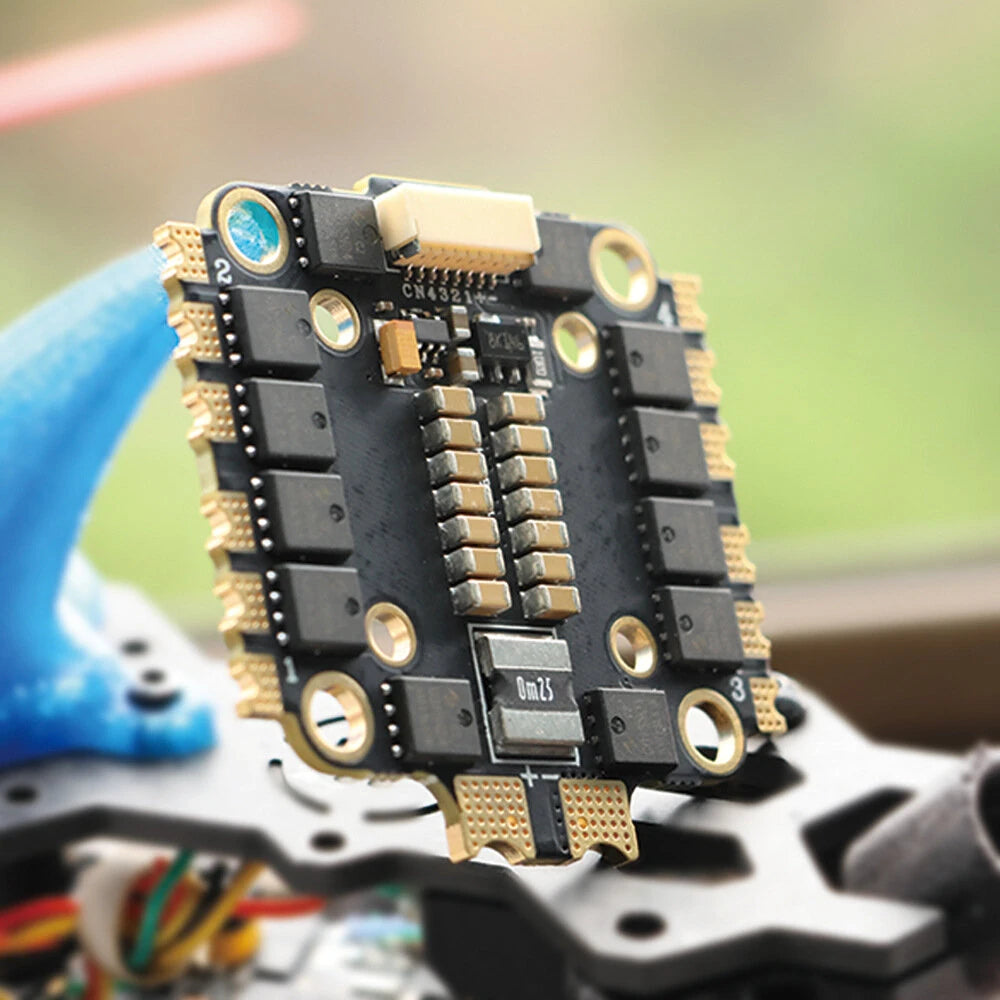

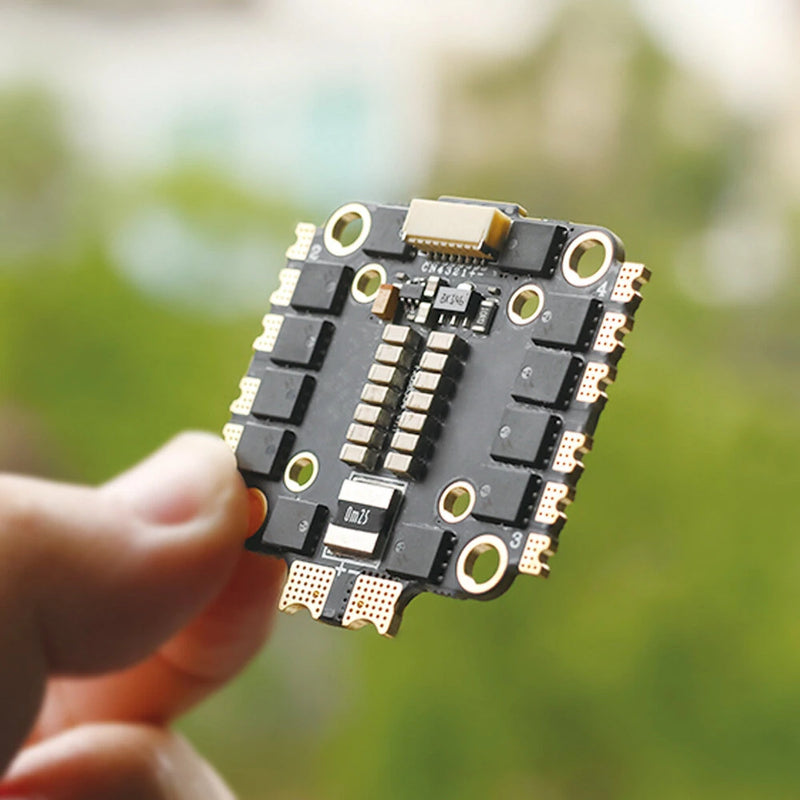

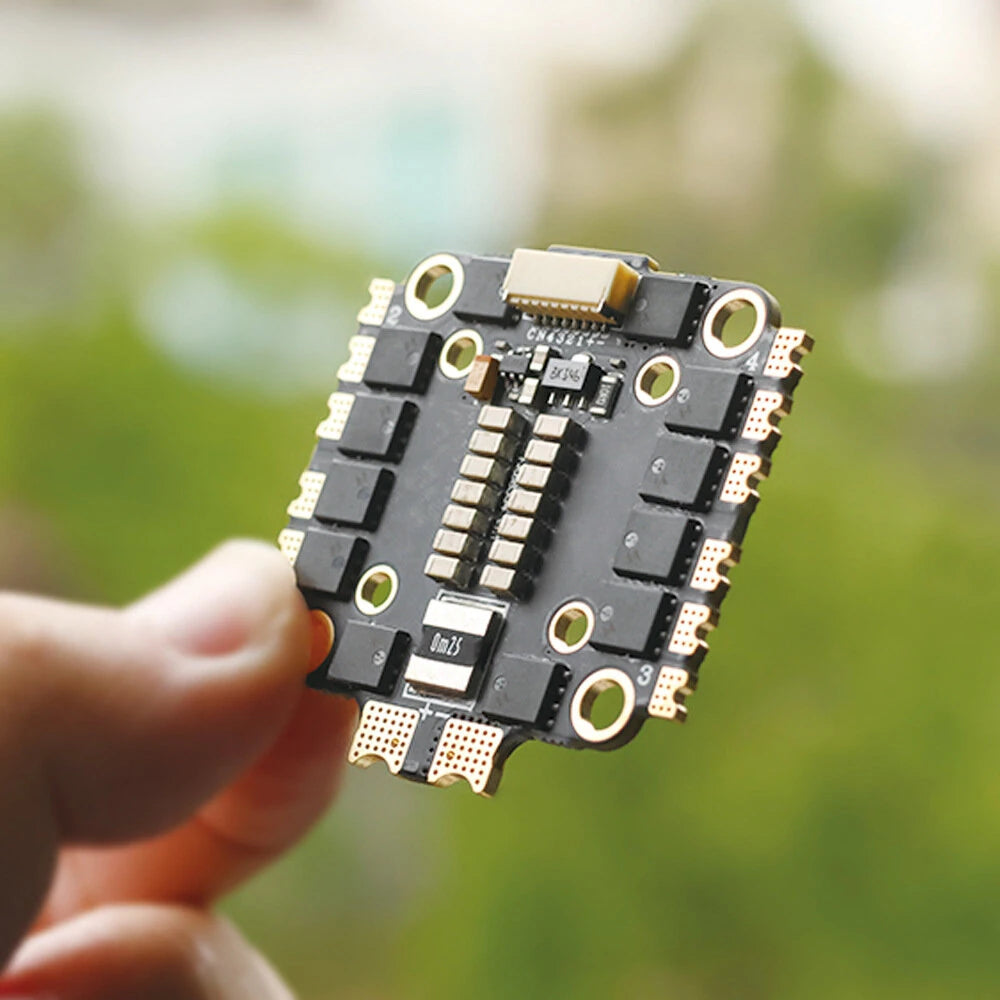

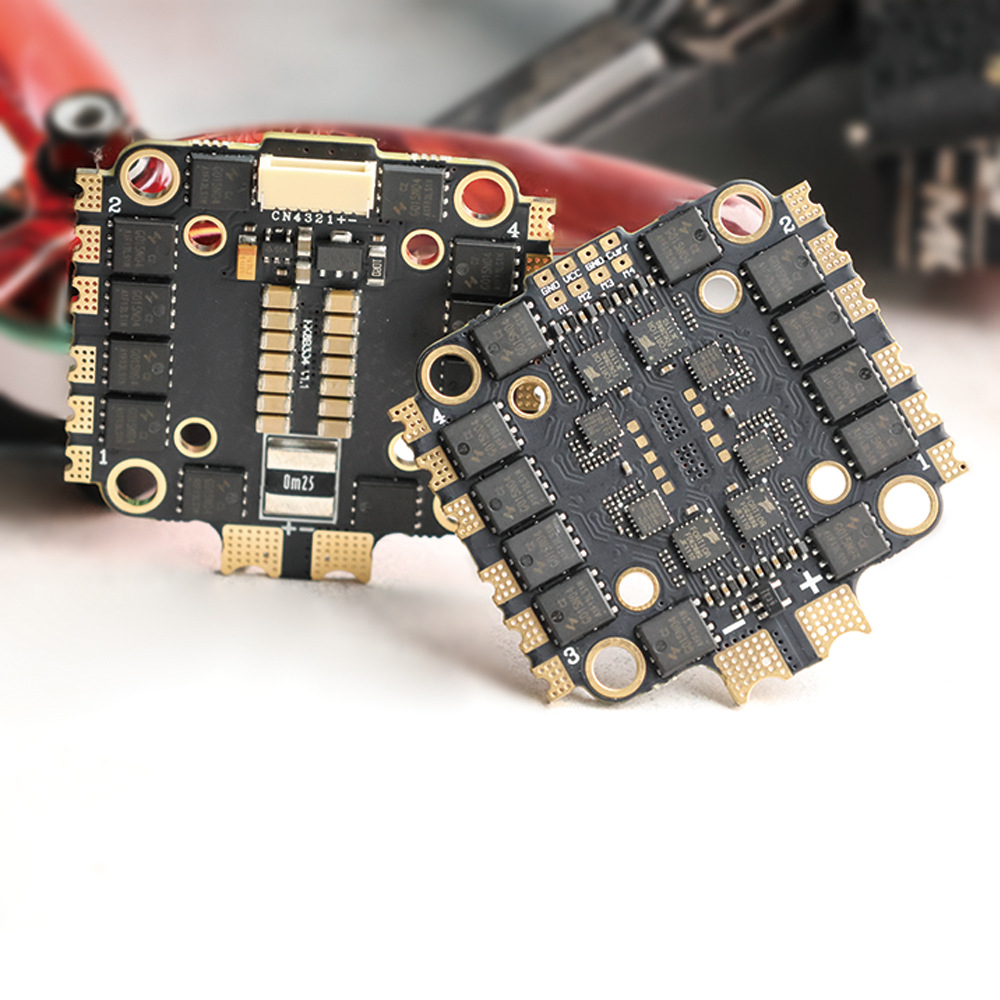

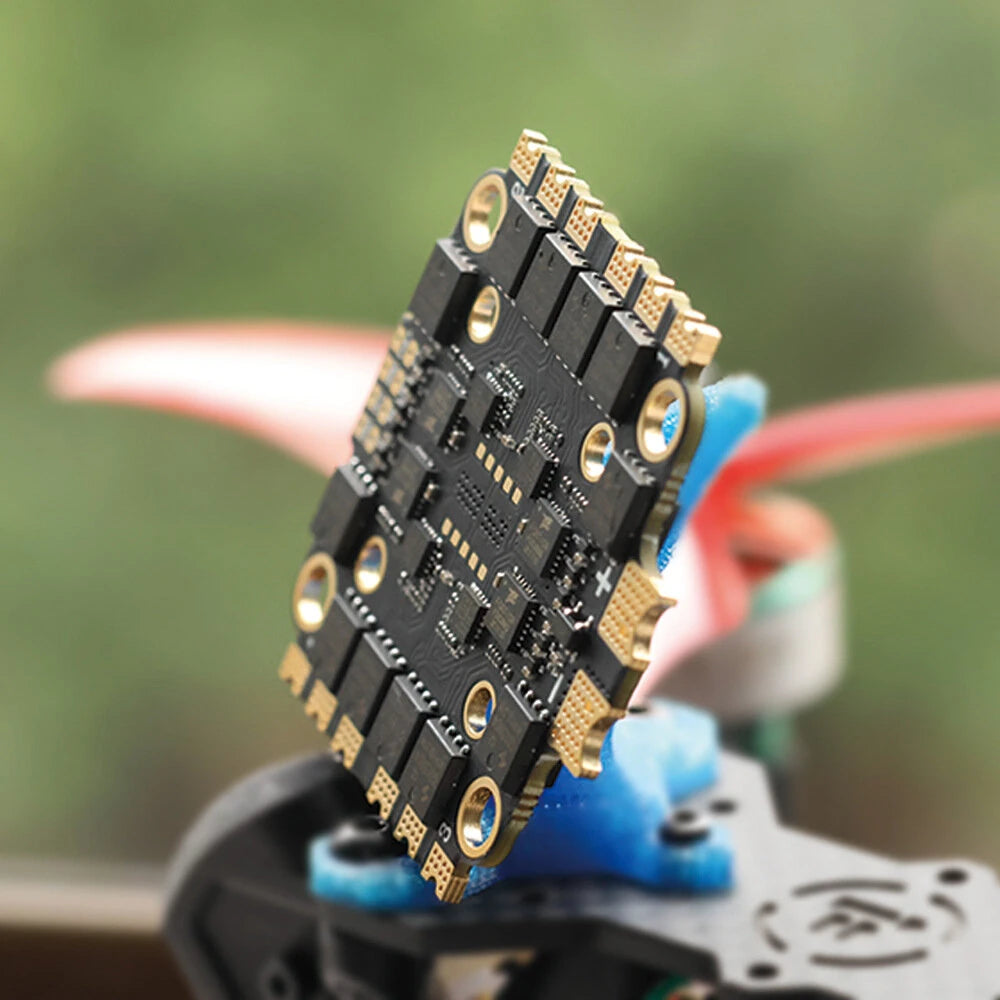

20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
Roll over image to zoom in Click on image to zoom
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones
20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones

20*20mm / 30.5*30.5mm HAKRC 8B50A 2-6S 8Bit 50A 4in1 Brushless ESC Supports PWM Oneshot125 Multishot Dshot600 for RC FPV Racing Drones

Isaiah 55:8-9 John 3:16 Philippians 4:19
Model: 50A ESC
Price:
R 1,209.70 R 1,461.64
Stock:
In Stock. Shipping via Courier.



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Features:
1. PCB adopts high-end 6-layer 2oZ thickened copper foil, applies high-end resin plug hole PCB production process, double pad design, stronger overcurrent capability and good heat dissipation.

2. MOS adopts imported 40V high current MOS, long life and strong load capacity.

3. Adopts industrial-grade LDO, high temperature resistance.

4. Adopts high-quality Japanese Murata capacitors, strong filtering performance.

Specification:
Brand: HAKRC
Item Name: 8B50A 4in1 ESC
Input Voltage: 2S-6S Lipo
Ammeter Ratio: 160
Continuous Current: 50A
Peak Current: 60A
ESC Firmware: G_H_40 - Rev. 16.7 - Multi
Protocol Support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Size: 44*44mm (20/30.5mm-20/30.5mm Mounting Hole Spacing)
Package Size: 64*64*35mm
Product Weight: 13.5g
Package Weight: 52g

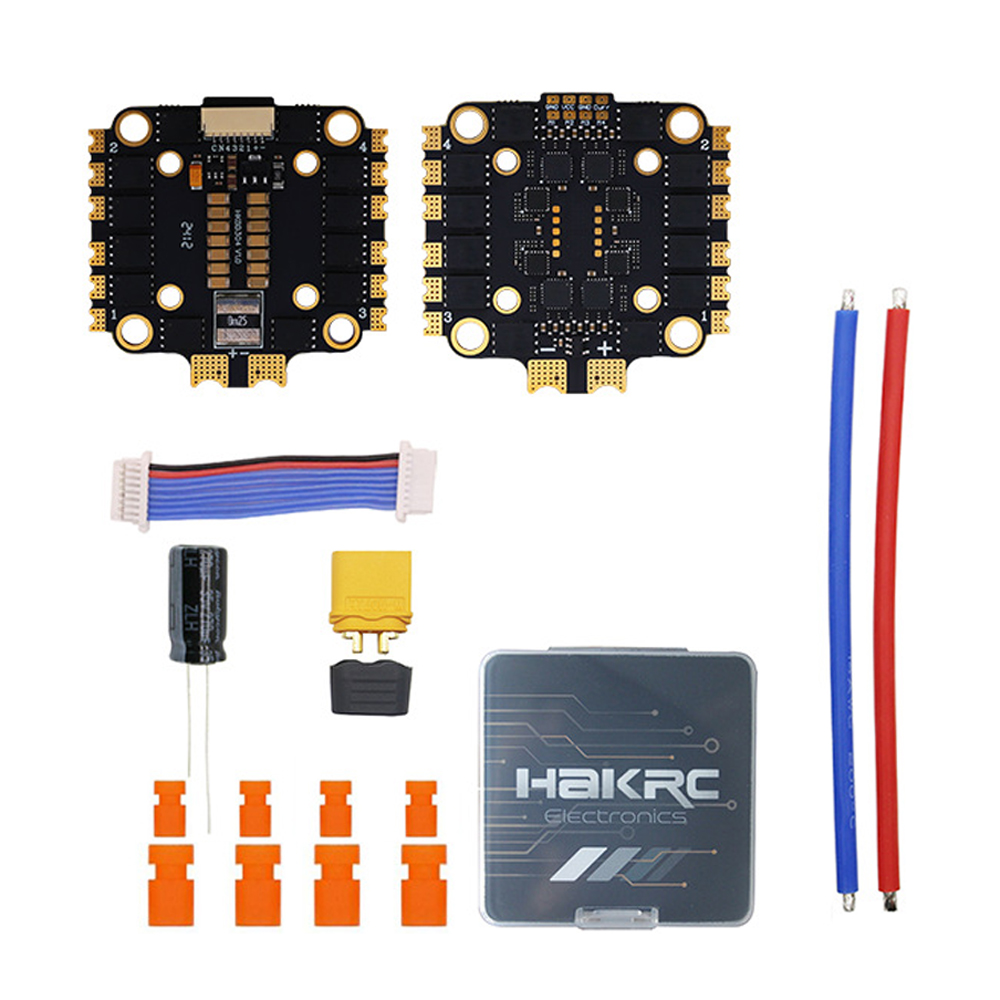

Package Included:
1 x HAKRC 8B50A 4-in-1 ESC
4 x M3 Shock Absorber
4 x M2 Shock Absorber
1 x XT60H Male Connector
1 x 12AWG Black Silicone Wire
1 x 12AWG Red Silicone Wire
1 x SH1.0/8P-8P Silicone Wire
1 x 1000UF/35V Capacitor
