Description: The EMAX E3 Series 2808 Motor is available in 1300KV and 1500KV and is designed for long-range and cinematic FPV drones. With a larger stator for increased torque and efficiency, these motors provide smooth power delivery, precise control, and reliable performance. Perfect for 7' prop setups, the E3 Series ensures stable, high-performance flights for both freestyle and cruising.

Specification:

Brand: EMAX

Model: ECOIII 2808

KV: 1300KV / 1500KV (Optional)

Model	Specification
ECOIII 2808 1300KV	KV: 1300KV Idle Current(10V): 1.5A Motor Dimensions: φ34.8*37mm Internal Resistance: 56mΩ Framework: 12N14P No.of cells: 3-6S Bearing Shaft: 5mm Propeller: 6'-7' Lead: 18#AWG 250mm Peak Current(6S): 56A Max.Power(6S): 1410W Weight: 53.6g(W/O Silicone Wire)
ECOIII 2808 1500KVor	KV: 1500KV Idle Current(10V): 1.8A Motor Dimensions: φ34.8*37mm Internal Resistance: 47mΩ Framework: 12N14P No.of cells: 3-6S Bearing Shaft: 5mm Propeller: 6'-7' Lead: 18#AWG 250mm Peak Current(6S): 65A Max.Power(6S): 1640W Weight: 53.8g(W/O Silicone Wire)



Feature:

- G1 level rolling element Precision bearing

- Steel shaft

- Al 7075 Anodizing

- M3(19*19mm) hole pattern

- Single strand winding

- 250mm 18 AWG silicone wire

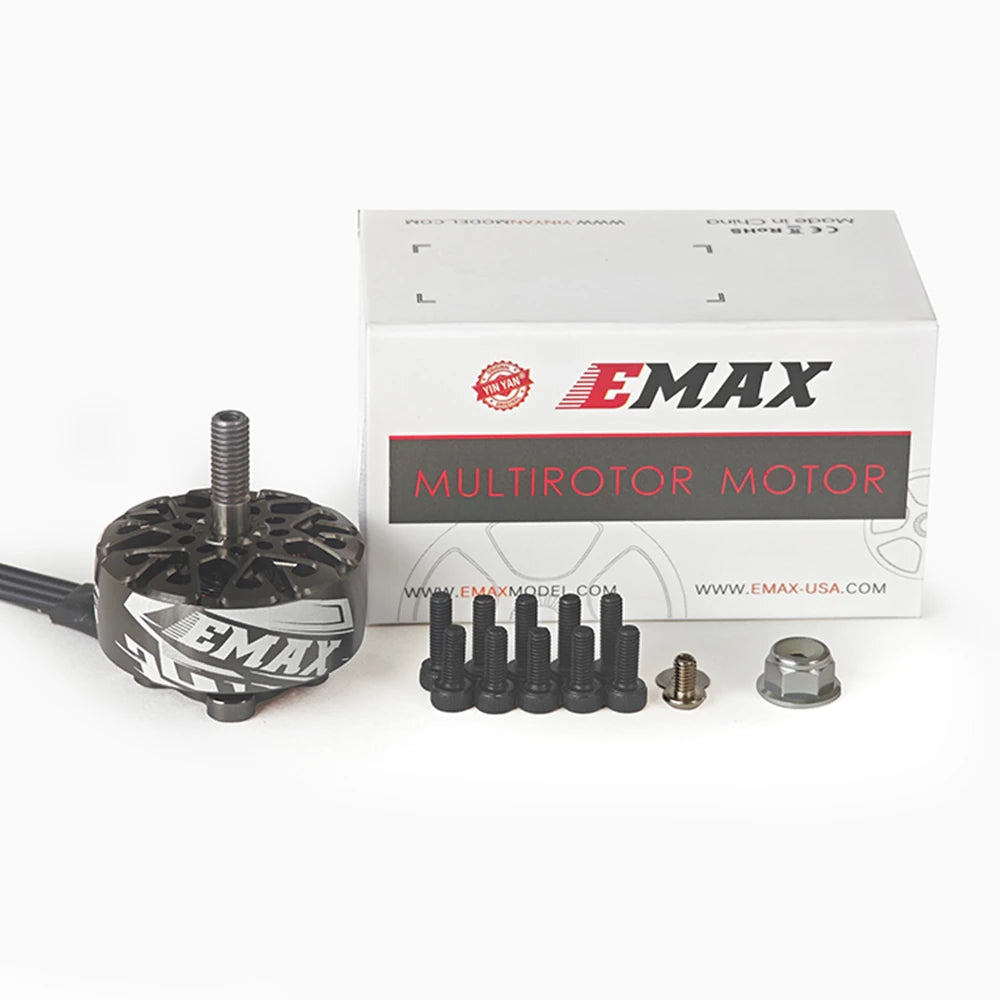

Package Included:

1x ECOIII 2808 Brushless Motor

5x M3*8 Screw

5x M3*10 Screw

1x Aluminum M5 Nylock Nut

1x Washer and Screw for Shaft

OR

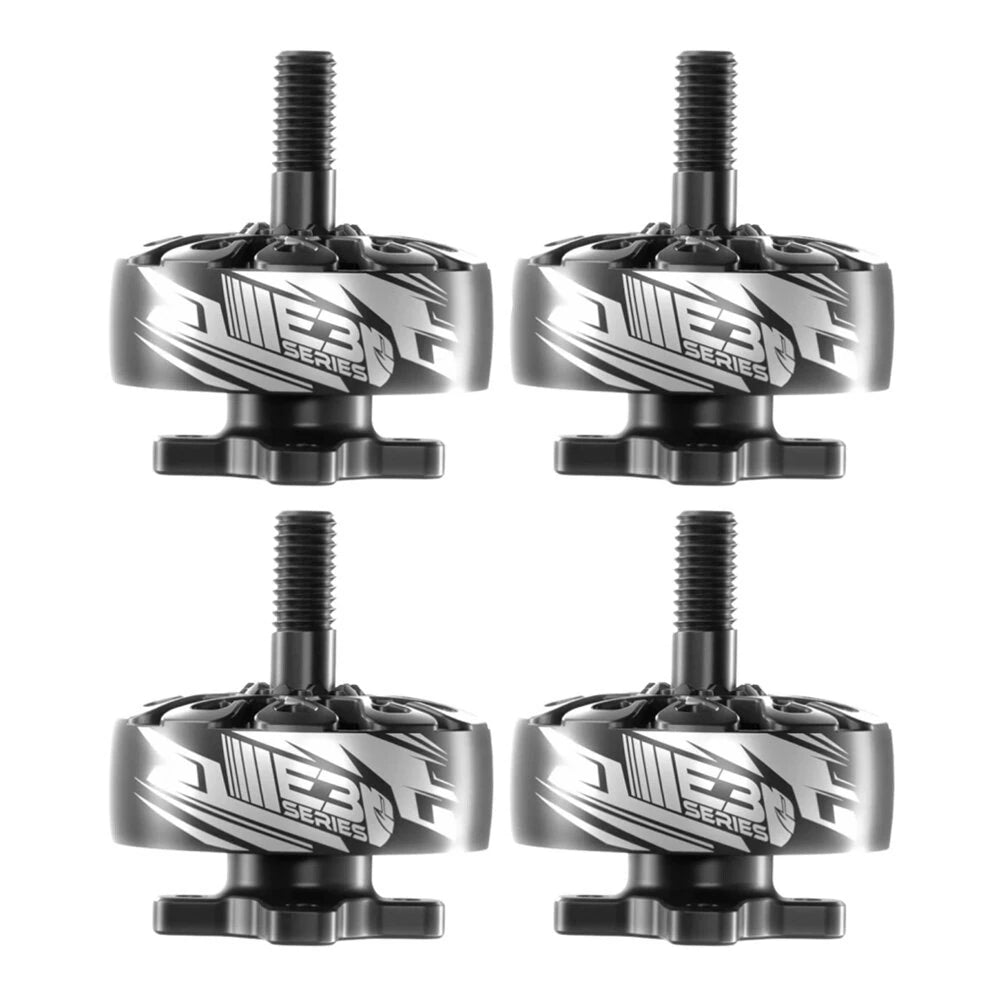

4x ECOIII 2808 Brushless Motor

20x M3*8 Screw

20x M3*10 Screw

4x Aluminum M5 Nylock Nut

4x Washer and Screw for Shaft
