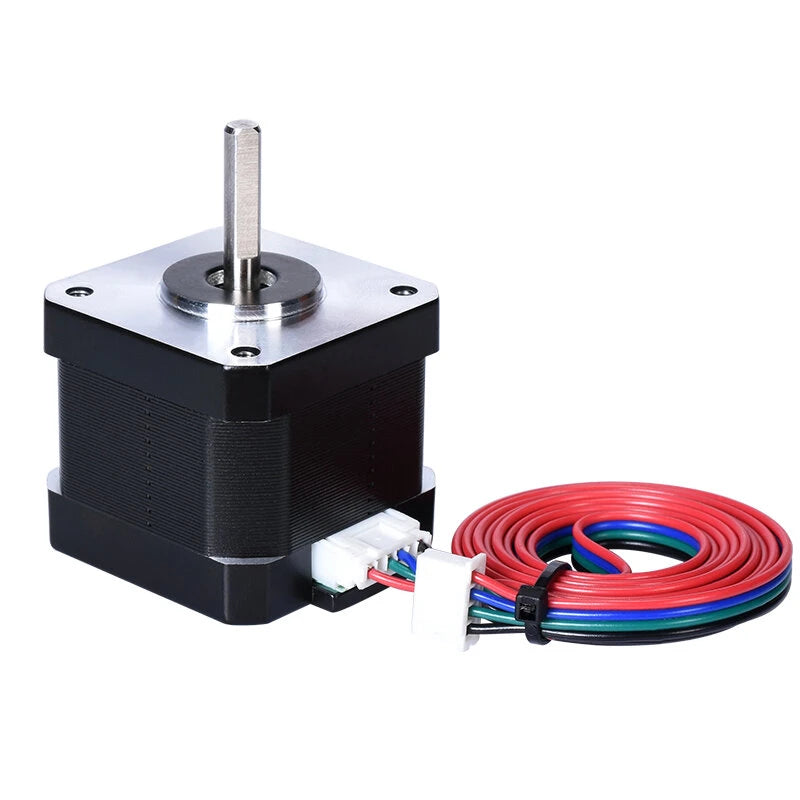

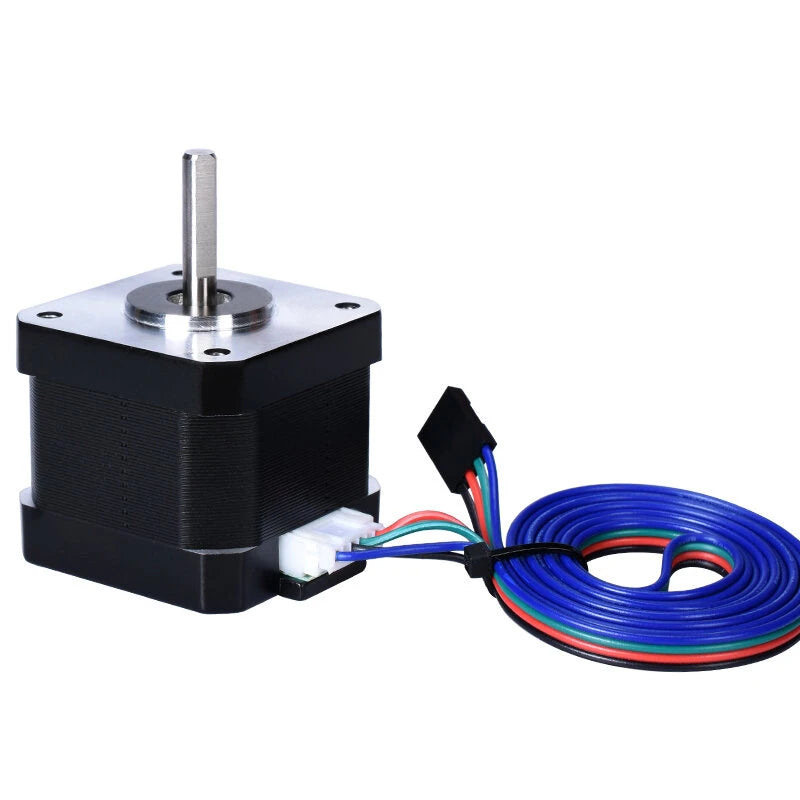

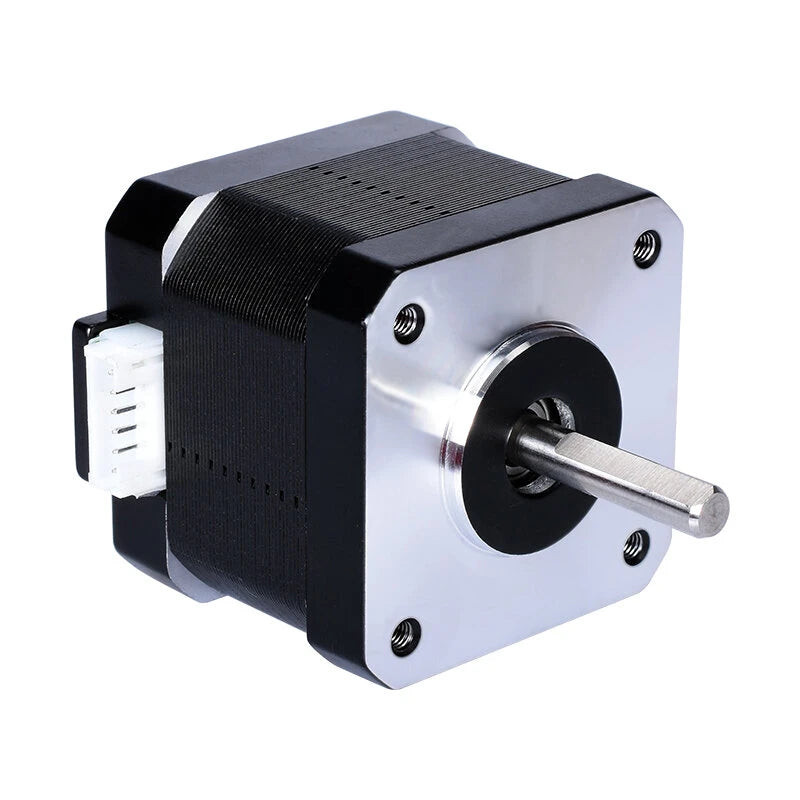

17HS4401-S 40mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.7A 40N.cm 4-lead Motor for 3D printer CNC Laser Engraving Machine


Isaiah 55:8-9 John 3:16 Philippians 4:19
Price:
Sale priceR 737.90 Regular priceR 960.00
Stock:
Sold out



We offer a 7 day replacement guarantee on all items that arrive defective or damaged. View our full policy here.



All payment methods are fully secure via SSL. We have the following payment methods available: Credit & Cheque Card; Instant EFT; QR Code Apps; Debit Card; MobiCred; and SCode.



Description

Specification:
Model 17HS4401-S
Phase 2
Step Angle 1.8°
Motor Size 42 x 40mm
Shaft 'D' shaft 22 x Ф5mm
Outlet way '4' plug line
Motor leads Dupont line(1M)
Adapter drive Two-phase step drive
Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery,
Packaging Machinery, Stage Lighting, Laser engraving, Automation
Equipment,  Non-standard Equipment, Placement machine ect.

Electrical Specifications:
Model No. Step Angle Motor Length Rated
Current
Resistance
/Phase
Inductance
/Phase
Holding Torque Detent
Torque
Inertia Of
Rotor
  Lead
( °) (L)mm (A) (Ω) (mH) (N.cm)  (N.cm)  (G. cm²) (No.)
17HS4401-S 1.8 40 1.7 1.5 2.8 40 2.2 54 4

General Specification:
Precision angle step ±5% (full step, no charge)
Resistance accuracy ±10%
Precision inductance ±20%
Temperature rise 80deg Max (rated current, 2 phase on)
Ambient temperature ( - 20°)-(+ 50°)
Insulation resistance 100MΩ Min, 500VDC
Insultion Force 500VAC for a minute

Features:
1. Low noise.
2. Low heat.
3. Smooth operation.
4. Good acceleration performance.
5. Black surface treatment.

Package Included:
1 X 17HS4401-S Stepper Motor
