Description
Features:
1. Radiation Efficiency That Actually Delivers> *'Stop losing video mid-powerloop! Our coupled-patch design achieves **87% efficiency** – 2.5× better than FR4-based competitors. Unlike lossy PCB arrays, we eliminate feed network losses so every milliwatt reaches your goggles.'***Pain Point Solved:** **Zero breakup during dives** (tested at 90° bank angles) **200m+ penetration** in concrete environments (vs. 120m standard) 2. Locked Signal, No Matter Your Angle> *'Fly aggressive freestyle without video wobble: **0.8dB axial ratio** maintained at 60° off-axis – the closest to perfect circular polarization in FPV. Your dives stay crisp when other feeds turn to snow.'*
**Real-World Validation:** Pro pilot tested: Zero signal degradation in split-S maneuvers at ThunderDrone 2024 3. Smart Gain That Prioritizes Reliability> *'We sacrificed theoretical max gain for what matters: **6.2dBi usable gain** with near-zero sidelobes. Competitors' 'high-gain' antennas spray 30% power into useless directions – ours focus energy where your drone points.'* 4. Surgical Signal Precision> *'**-20dB sidelobe suppression** concentrates 95% energy in the main lobe. Fly through crowd-filled race gates without interference – your signal stays focused like a laser beam while others scatter.'*Track Advantage:- **Wider main lobe** = More forgiveness in banking turns - **Near-zero sidelobes** = Immunity to multipath interference
Specifications:
| Center frequency: | 5.8 GHz |
| Bandwidth: | 660 MHz (5.47 – 6.13 GHz) |
| Matching: | S11 < -30 dB, VSWR < 1.065 |
| Axial ratio: | 1.05(0.38dB) |
| Antenna gain: | 14.4 dBi |
| Half power beam width: | 30° (horizontal and vertical) |
| Radiation efficiency: | 75% |
Package included:

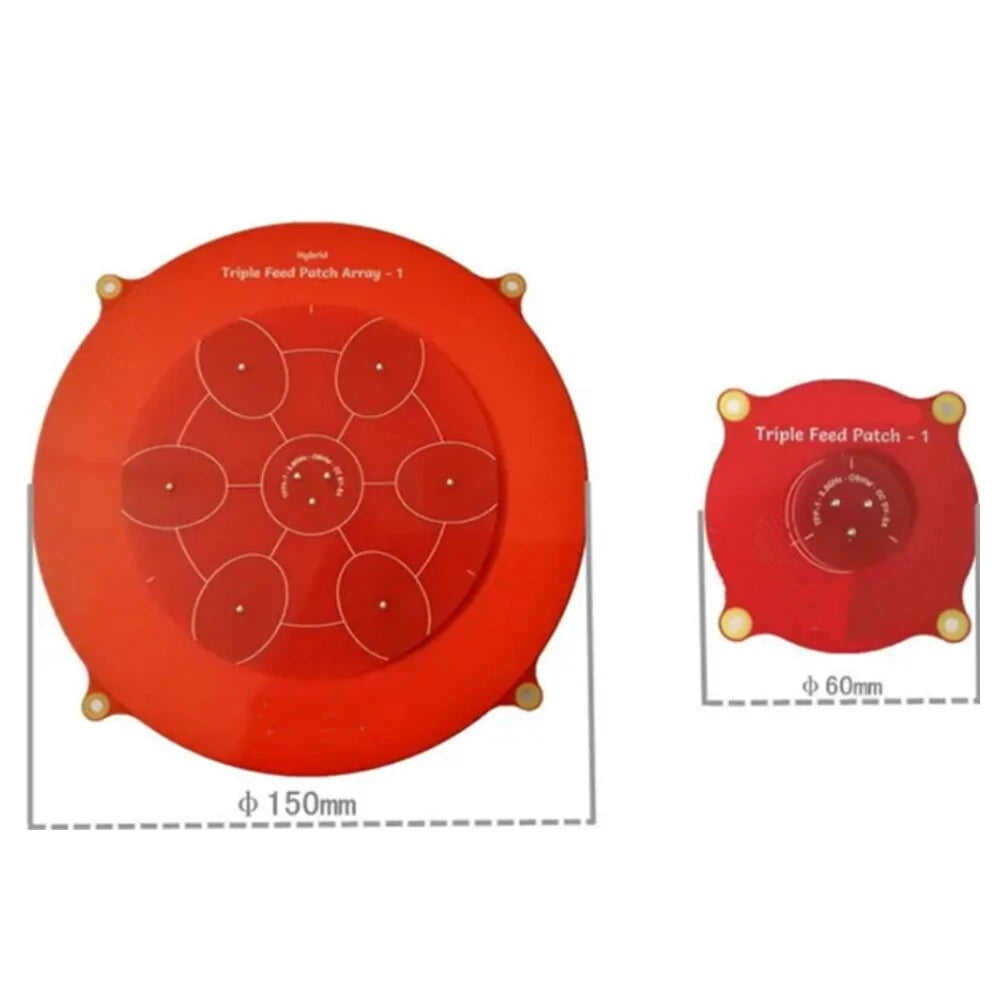

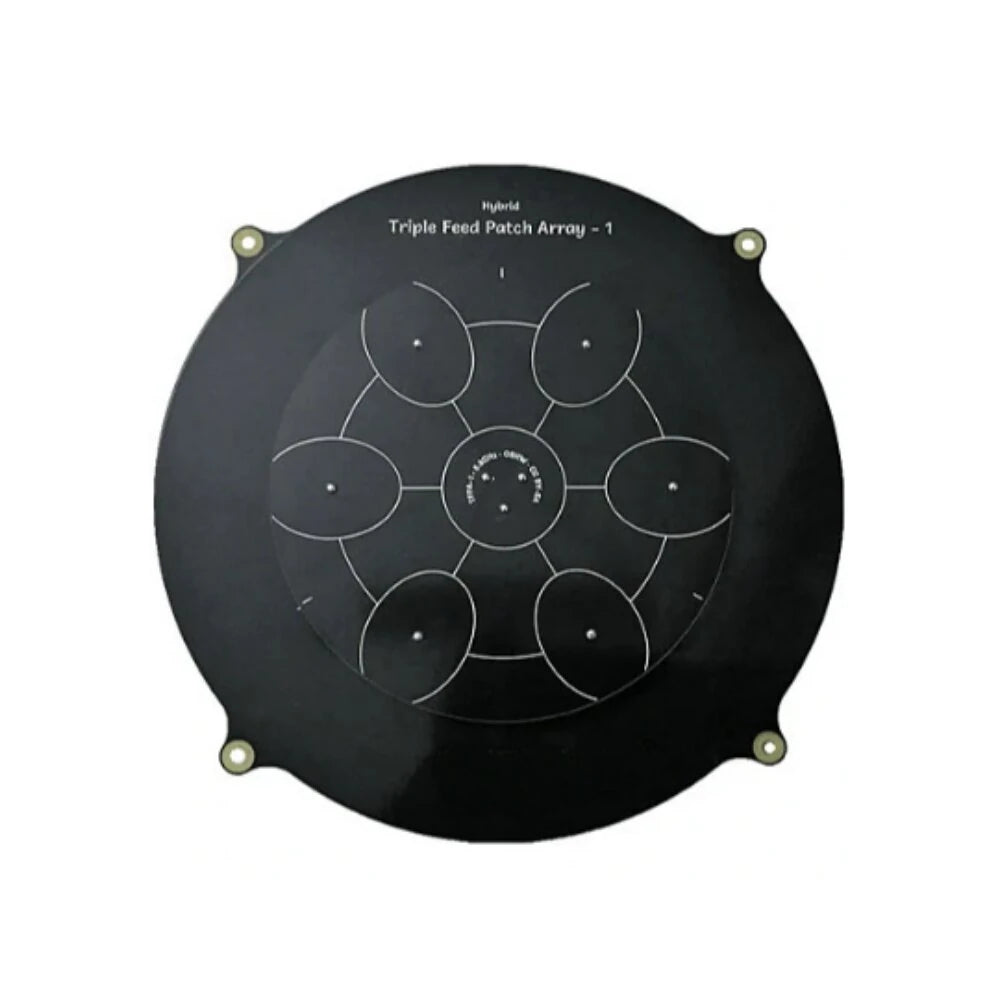

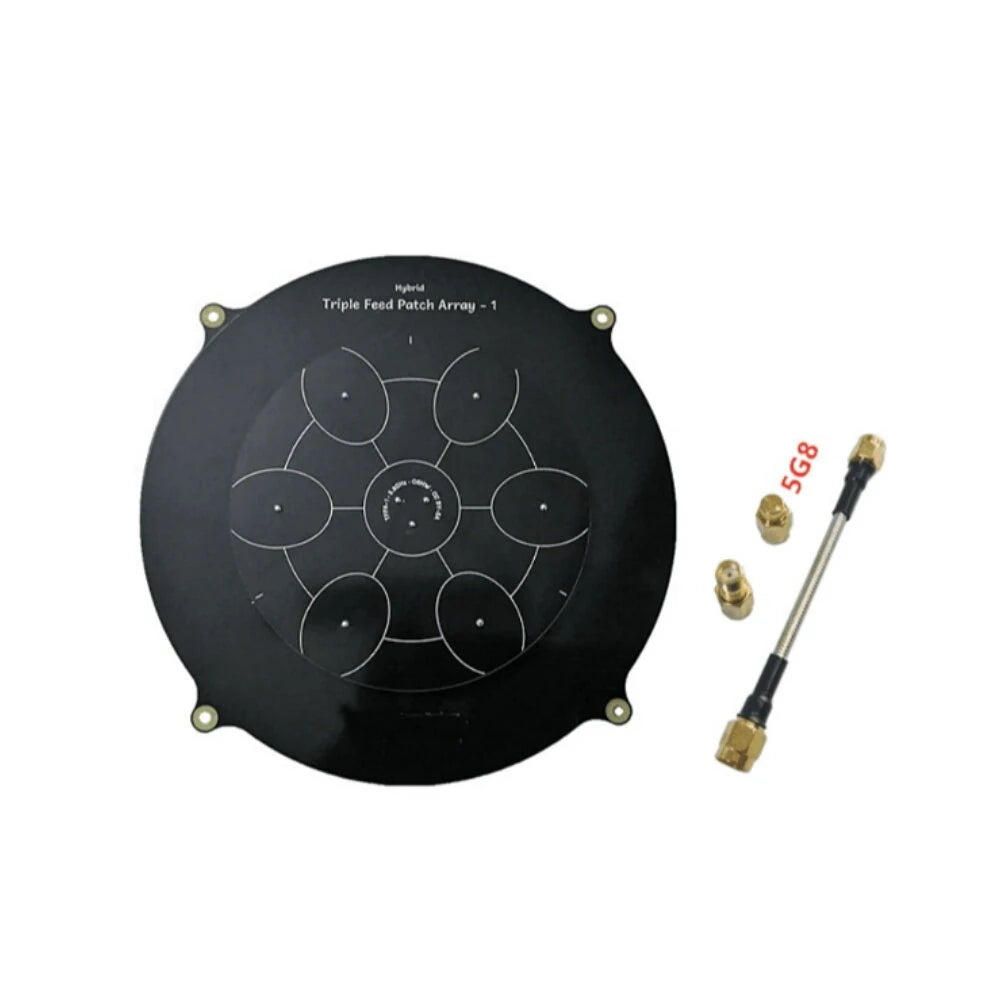

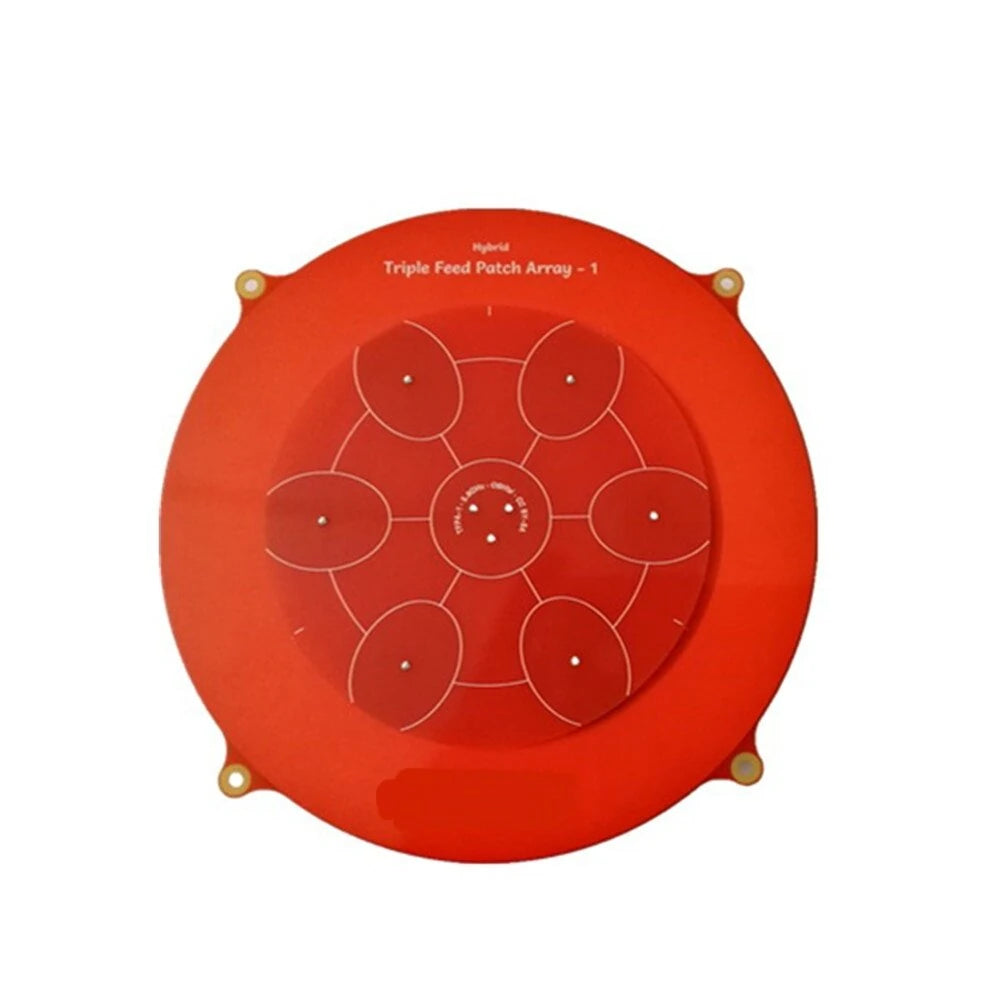

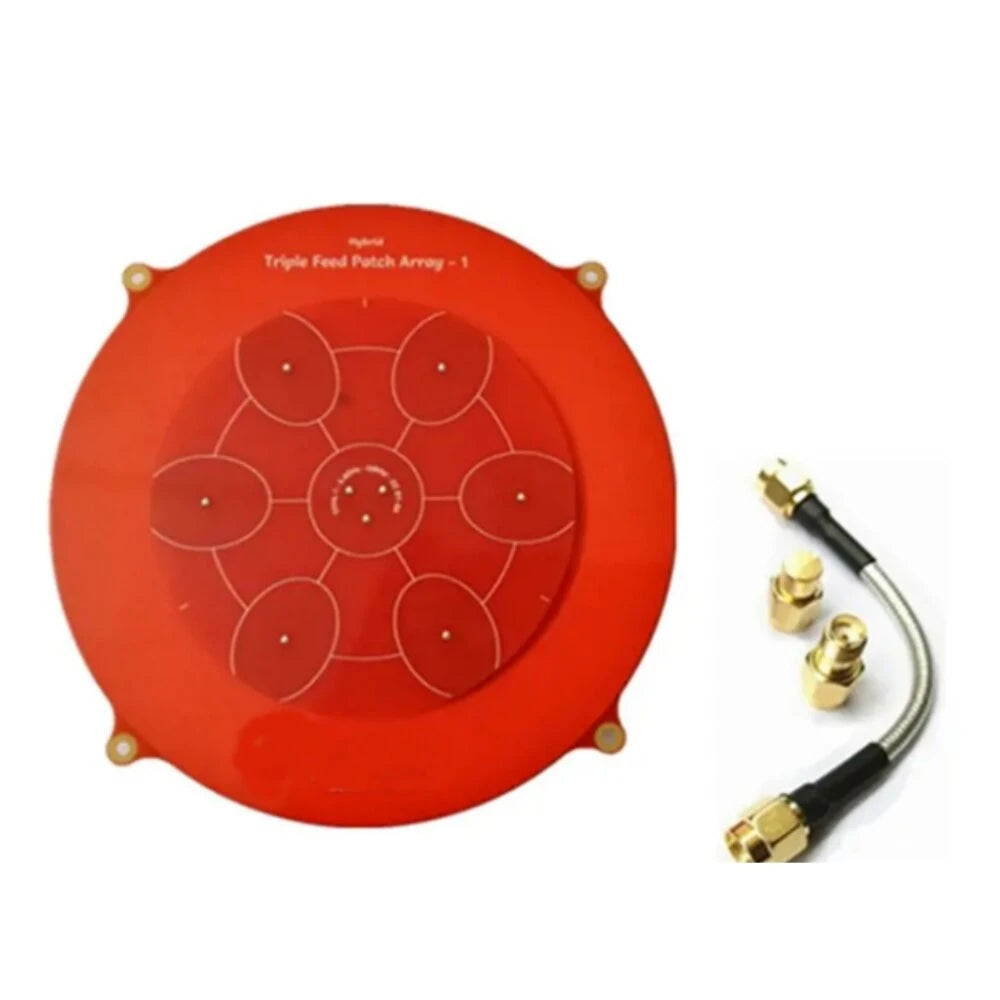

1 x 150mm Triple Feed Patch 5.8GHz 14dBi Pagoda Array FPV Antenna
1 x extension cable
2 x adapter
