Description
Description:

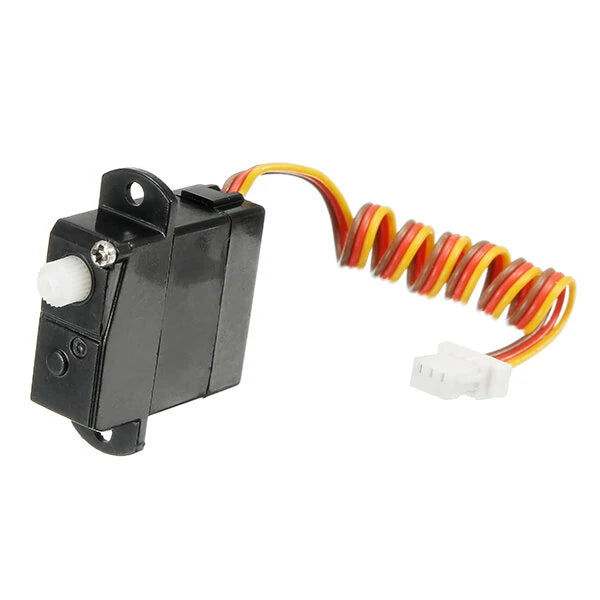

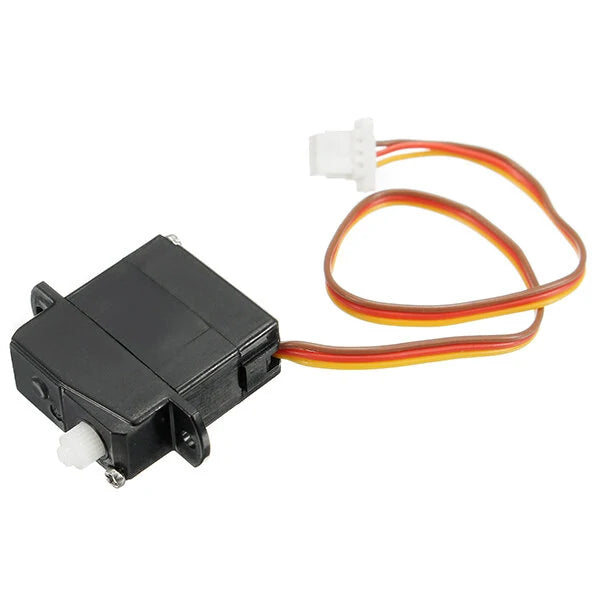

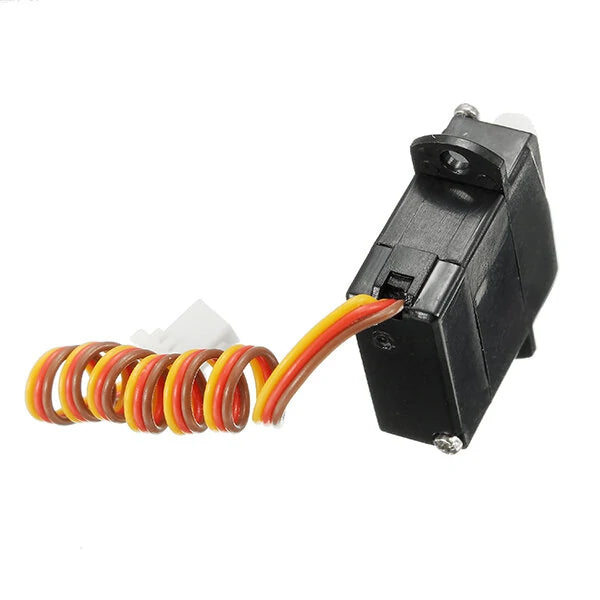

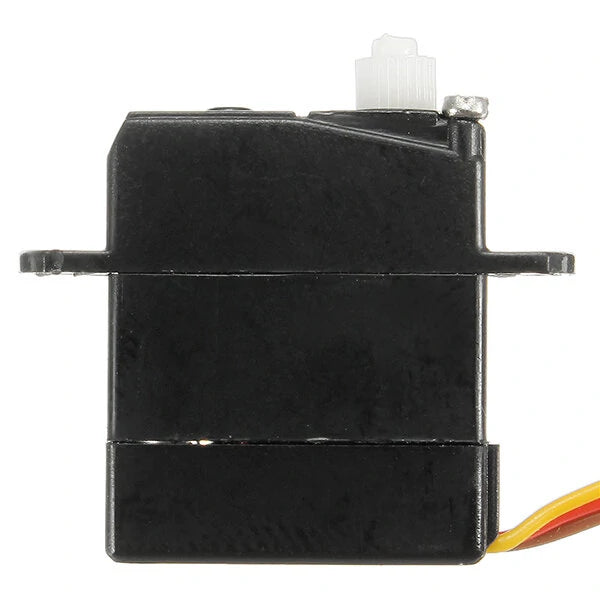

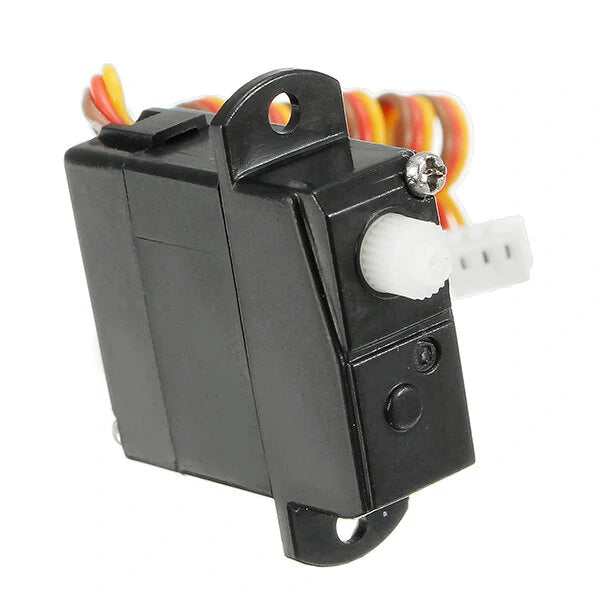

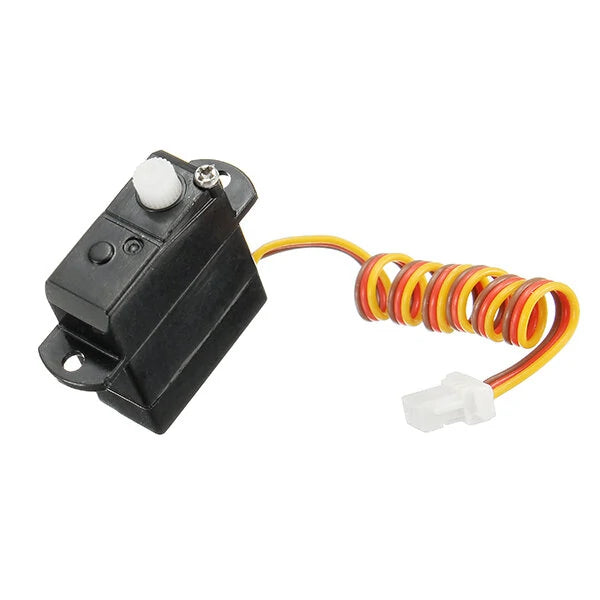

Item name: 1.7G Low Voltage Micro Digital Servo
Cable length: 110mm
Weight: 1.7g

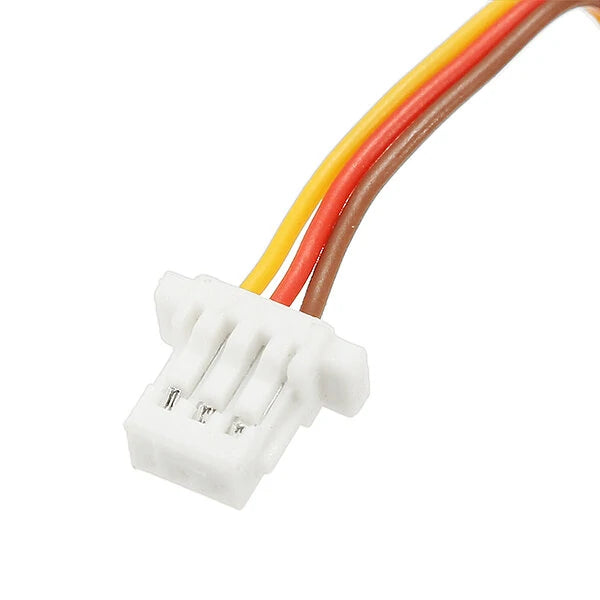

Connector: mini JST 1.25mm
Connector: mini JST 1.25mm
Temperature Drift (at 25℃): ≤1°
Limit Angle: 180°±10°
Reduction Ratio: 1/313
Amplifier Type: Analog Controller
Neutral Position: 1500 μsec
| 3.7V | 4.2V | |
| Operating Speed (at no load) | 0.07±0.01S/60° | 0.05±0.01S/60° |
| Running Current (at no load) |
70±15mA | 80±15mA |
| Stall Torque (at locked) | 0.065±0.01Kg·cm | 0.075±0.01Kg·cm |
| Stall Current (at locked) | 240±30mA | 310±30mA |
| Idle Current (at stopped) | 2±1mA | 2±1mA |
| Running Life (at no load) | >6000 times | >4000 times |
Package Included:
1x 1.7G Low Voltage Micro Digital Servo
,
,
,
,
,
,
,
,
